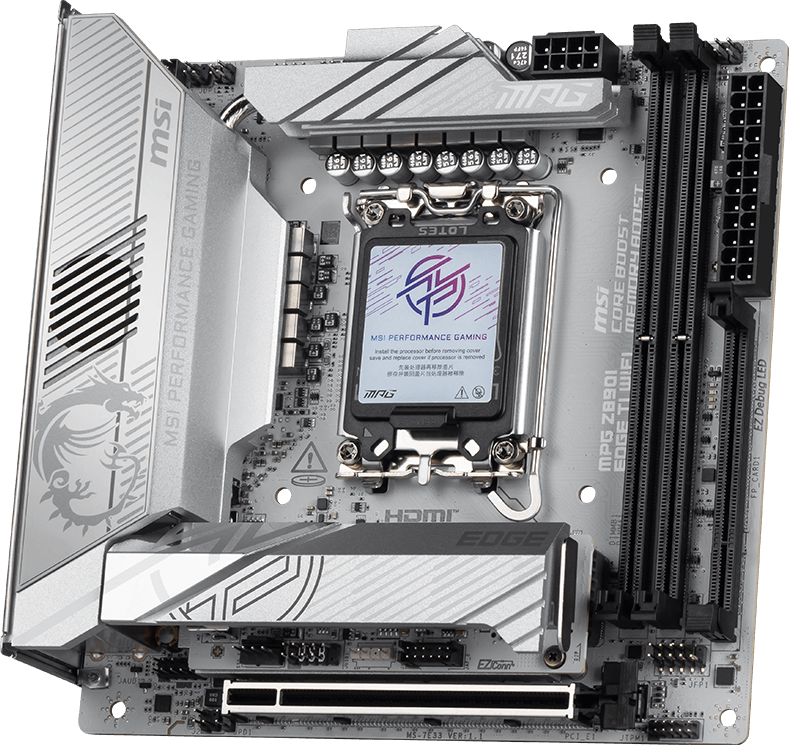

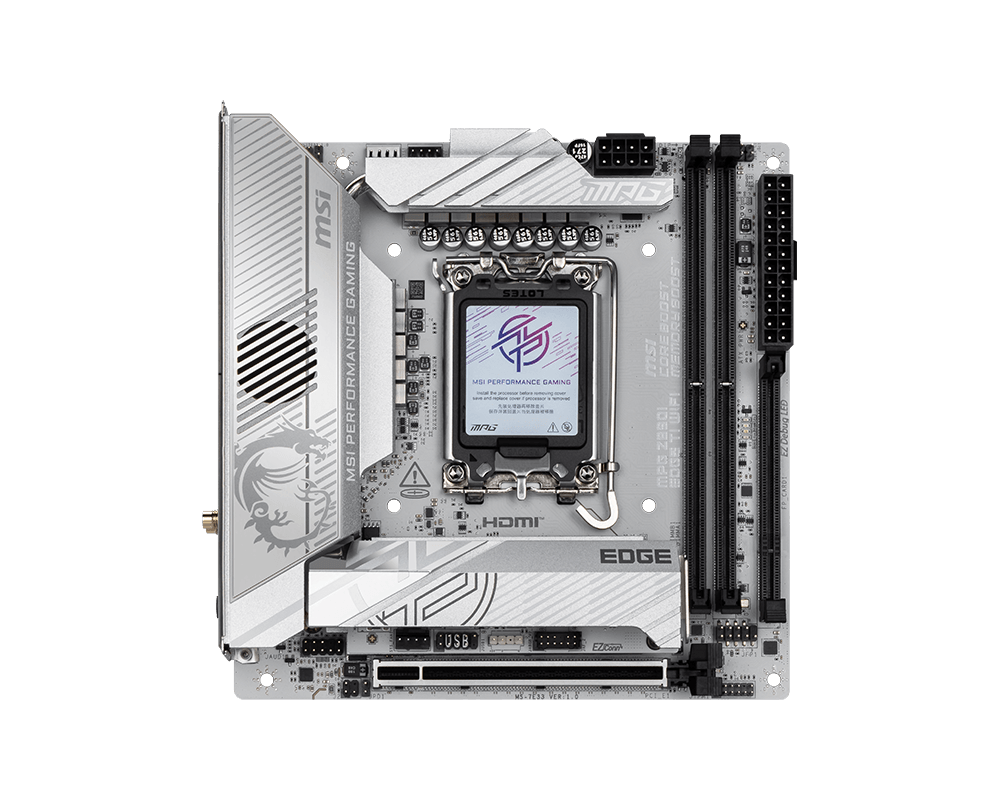

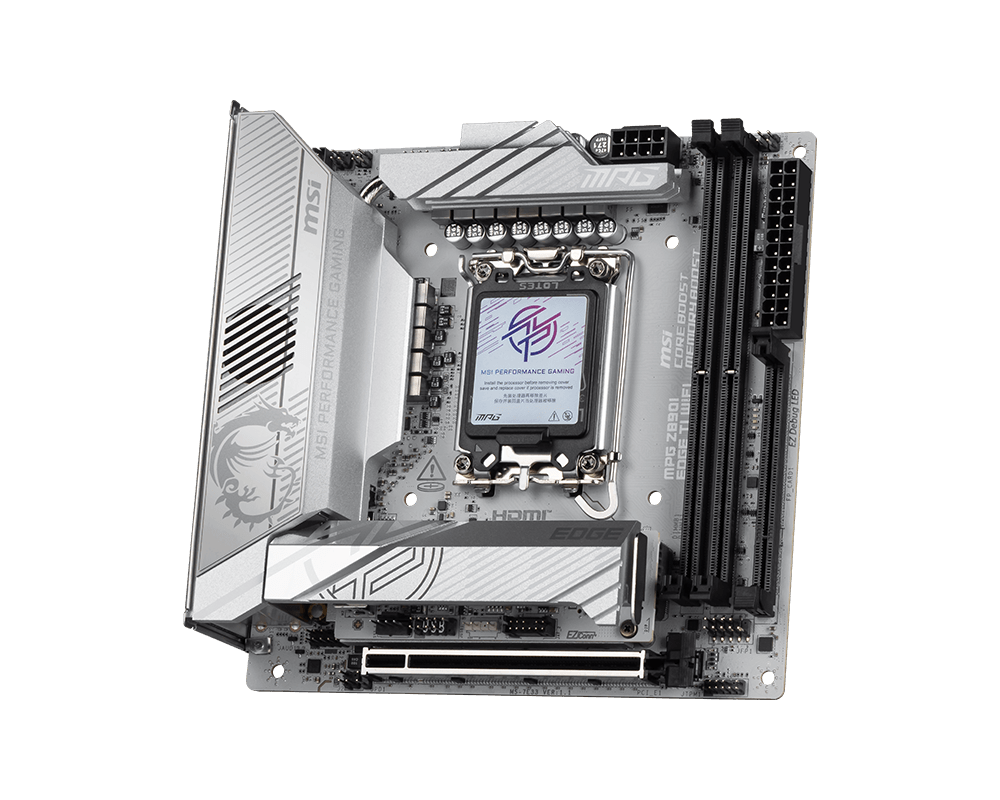

MPG Z890I EDGE TI WIFI is a mini-ITX Z890 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 connecitvity. The 5-in-1 Xpander brings this motherboard more connectivities. It is definetly the best mini-ITX motherboard for Intel Core Ultra processors.
Less steps, control easily
Direct 10+1+1+1 Phases
One-click overclocking
Premium thermal design
Flawless connection and speed
Optimized UI / UX design
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
PERFORMANCE & THERMAL SOLUTION
Extended Heatsink with
Heat-pipe
M.2 Shield Frozr
7W/mK MOSFET Thermal Pads
10+1+1+1 Phases VRM Power
14-Layer Server Grade PCB with 1oz Thickened Copper

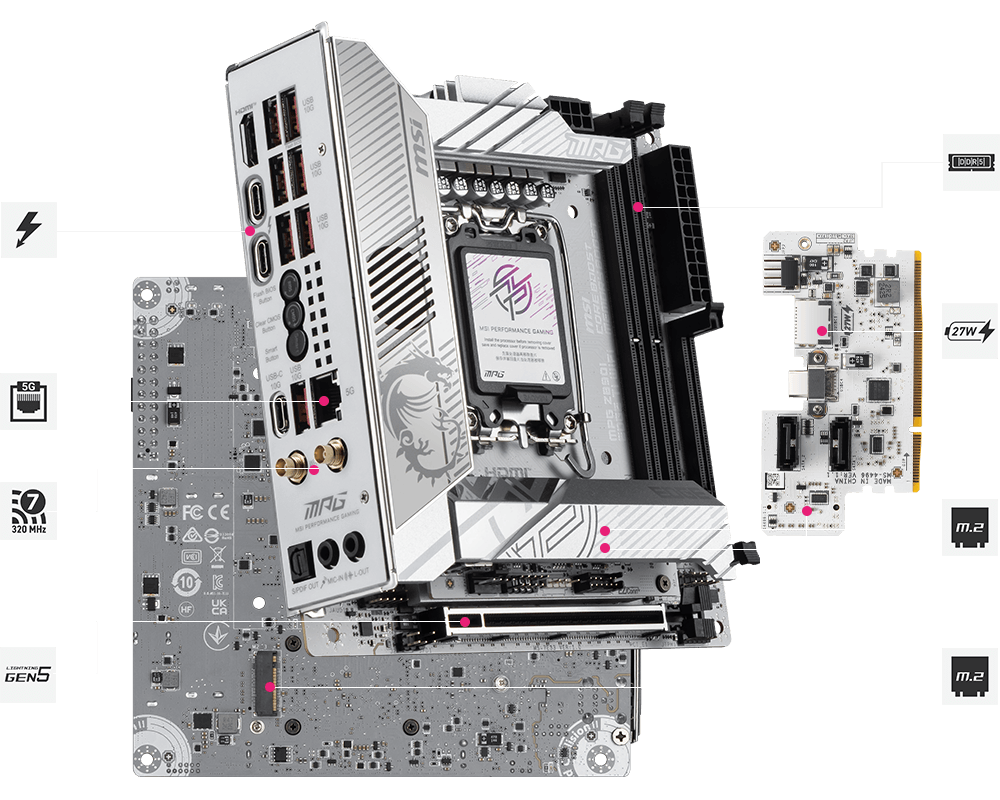

HIGH-SPEED TRANSMISSION
Thunderbolt™ 4
5G LAN
Latest Wi-Fi 7
Lightning Gen 5 PCIe
Latest DDR5 Memory
Front USB Type-C with 27W PD
1x PCIe 5.0 M.2 Slot
3x PCIe 4.0 M.2 Slots

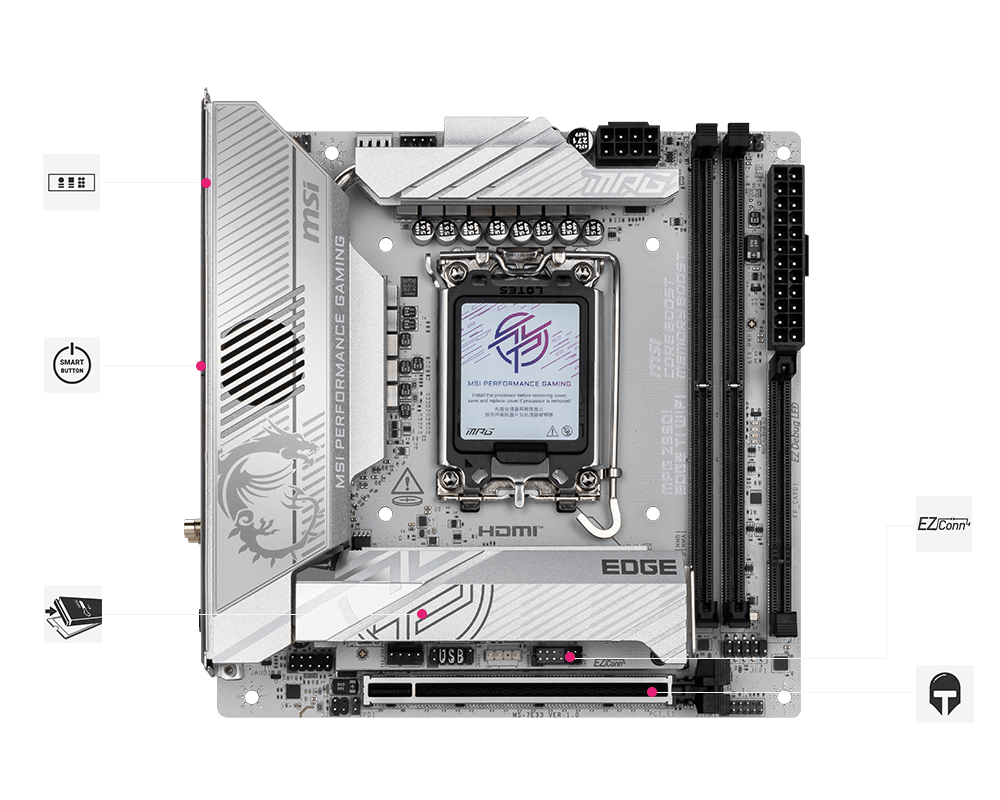

EZ DIY
Pre-installed I/O Shield

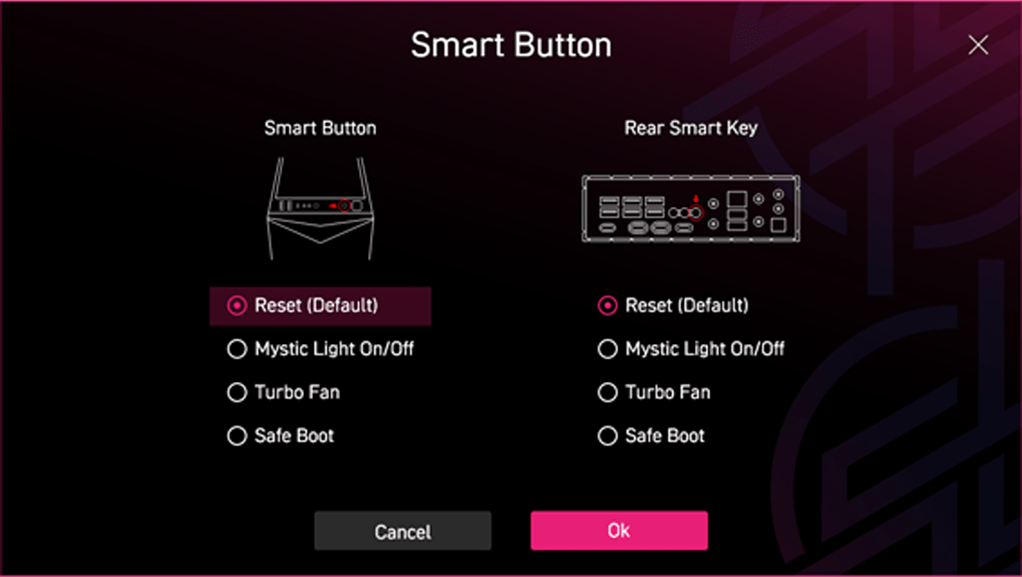

Smart Button
EZ M.2 Shield Frozr II
EZ Conn Design
Steel Armor
Ready for AI PC
微星主机板结合强悍的硬体配置与独家先进技术，满足游戏玩家与AI 使用者的需求。同时，MSI 将AI 功能融入MSI Center 与BIOS，使操作更加直观方便。
AI Engine
提供多项同步专案，自动优化应用程式运行，营造流畅舒适的使用体验。
AI LAN MANAGER
针对网路性能进行优化，减少延迟，带来流畅的线上体验。
Frozr AI Cooling
智能调节风扇速度，确保系统在凉爽稳定的高性能状态下运行。
AI Boost
MSI 独家技术，透过超频NPU 提升AI 性能。
EZ DIY
- ONE-FINGER
- ONE HAND
- ONE STEP
- ONE GLANCE
- ONE CLICK
- EZ M.2 INSTALLATION
- EZ BUTTON
The Patented design allows you to set your M.2 Shield Frozr without the anoying screws, provides the easiest way for M.2 Installation.
MORE FOR DIY FRIENDLY

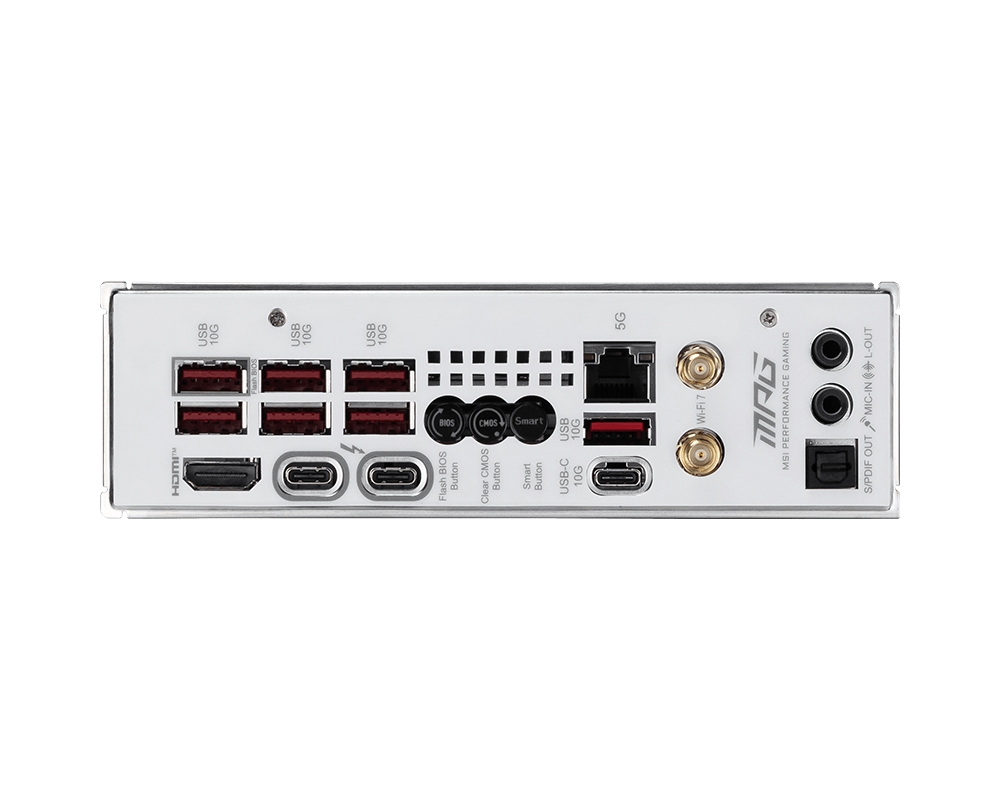

- PRE-INSTALLED I/O SHIELD
- EZ Mounting

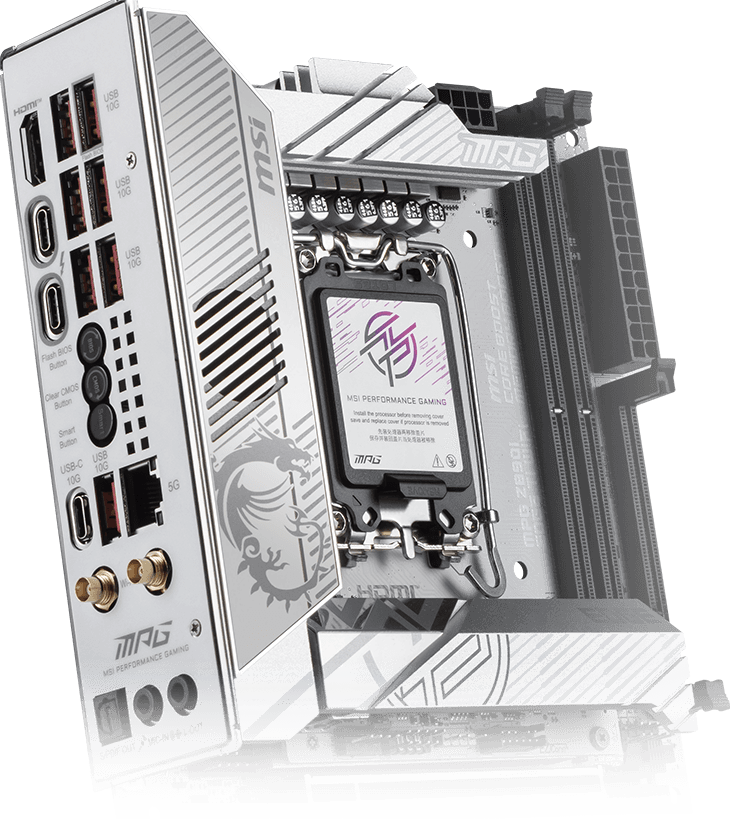

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ MOUNTING
MSI主机板电路区域清楚标示机壳螺丝锁点须避开的位置，让此区域净空。每个螺丝孔都有附加保护漆，防止零组件刮伤或损坏主机板。
防刮保护
区域净空
双重防静电保护

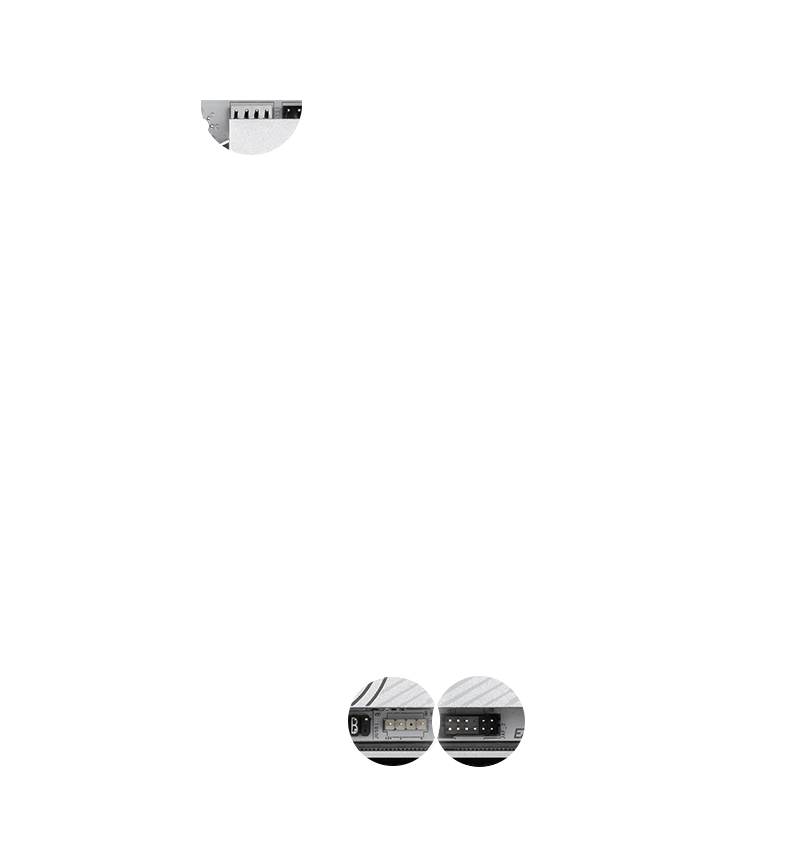

- EZ 天线
- EZ Conn-Design
- EZ Front Panel Cable
- EZ Driver Installation
微星EZ 天线，不需旋转即可紧密接上，轻松完成安装。

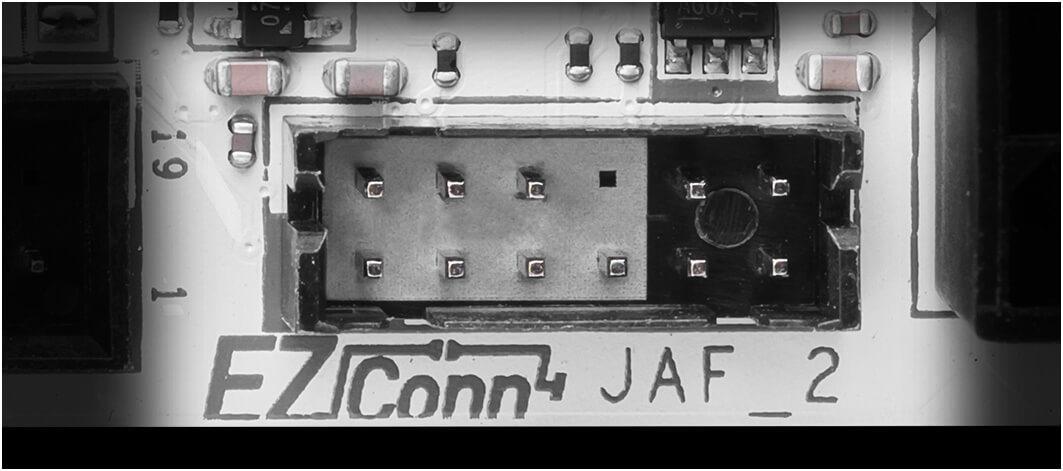

EZ Conn 接头(JAF_2)
MSI 的EZ Conn 接头可轻松连接MSI EZ 系列风扇（7 pin）或MSI 一体式水冷（11 pin）。如果您没有上述产品，我们还提供1 对3 EZ Conn 线材，可以连接ARGB 灯、系统风扇和USB 装置。
ARGB + SYS FAN + USB
MSI LIQUID COOLING

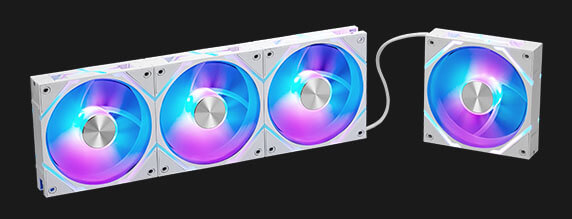

MSI EZ SERIES FAN
附赠线材可快速直接串接主机板前方面板。
MSI Driver Utility Installer automatically detects and presents suitable drivers and utilities once connected to the internet, install them with just a few clicks. Learn more
USB Drive includes the utilities and drivers for setup process. It can also be the USB drive to store BIOS files for BIOS update.
- EZ DEBUG

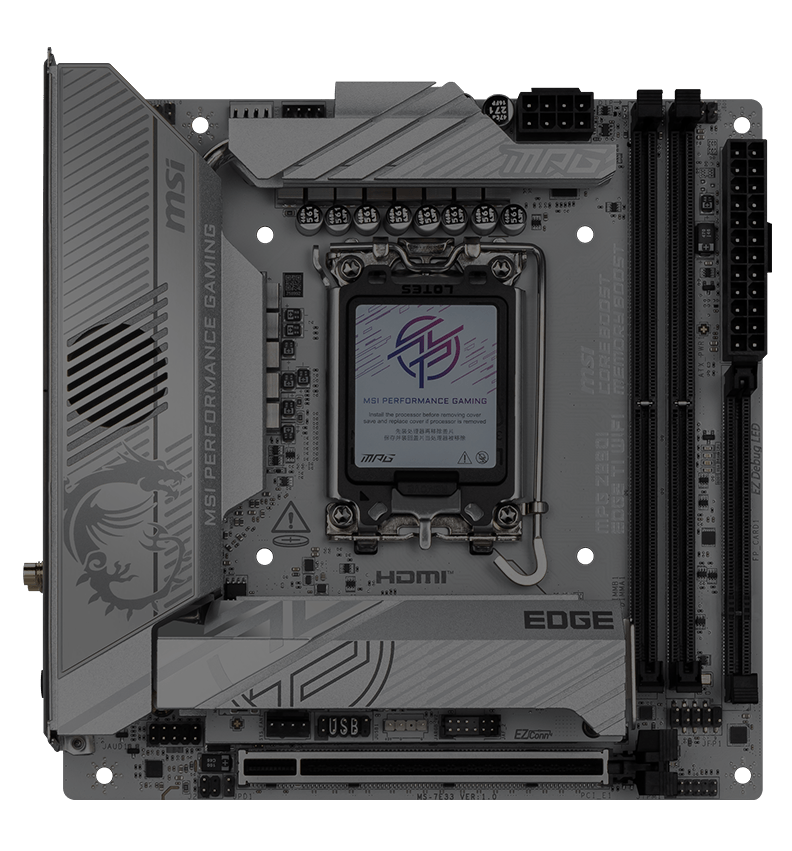

- EZ Identify
EZ 除错灯
主机板上LED 除错指示灯，可快速显示问题根源，以便您准确判断并重新启动运行。
- EZ Overclocking
- EZ 优化
- AI BOOST
EZ Overclocking
虽然超频对某些人来说可能过于复杂，但MSI Click BIOS X 设计多款一键超频功能，就是要让处理器和记忆体超频变得更简单，不再需要复杂设定，即使没有理工背景的玩家也能轻松提升系统性能。

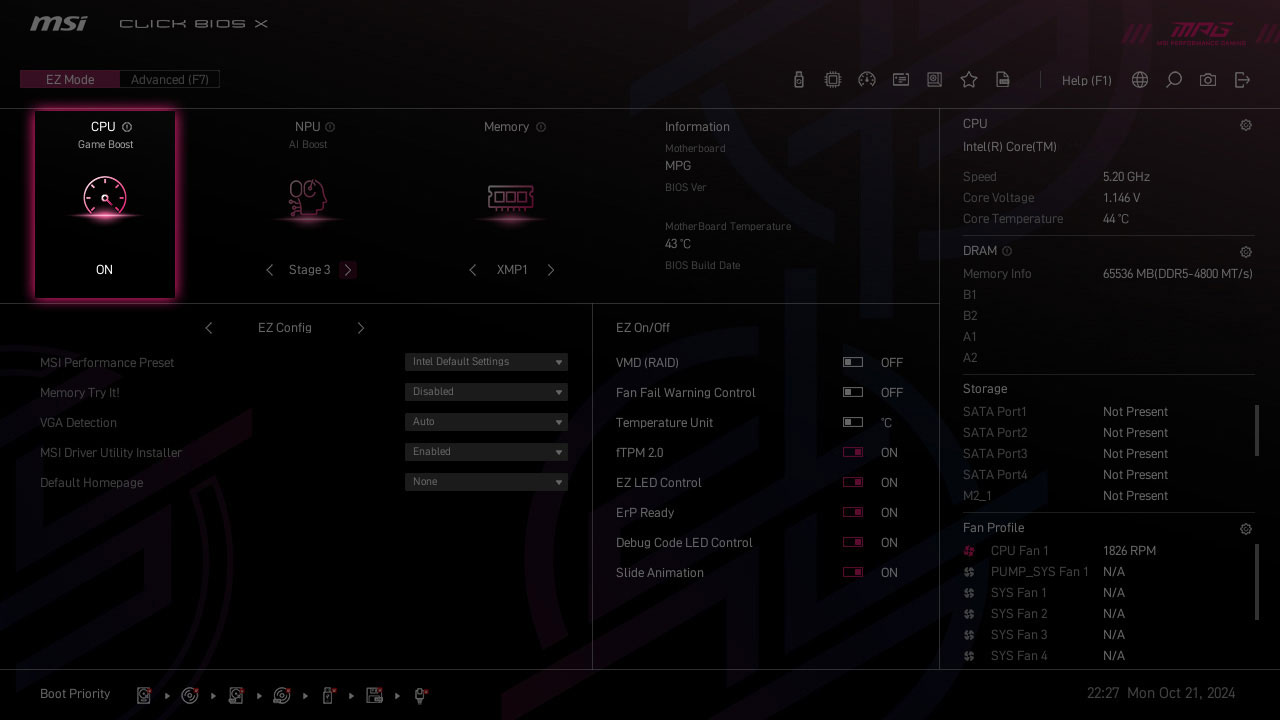

GAME BOOST
一键CPU自动超频，可瞬间优化您的处理器性能，调整至最佳水平。
AI BOOST
智能演算法能提升NPU 效能，在额外运算能力时，提供最佳的AI 性能。 *需搭配相容处理器启用。 "
*Enabled with compatible processors.

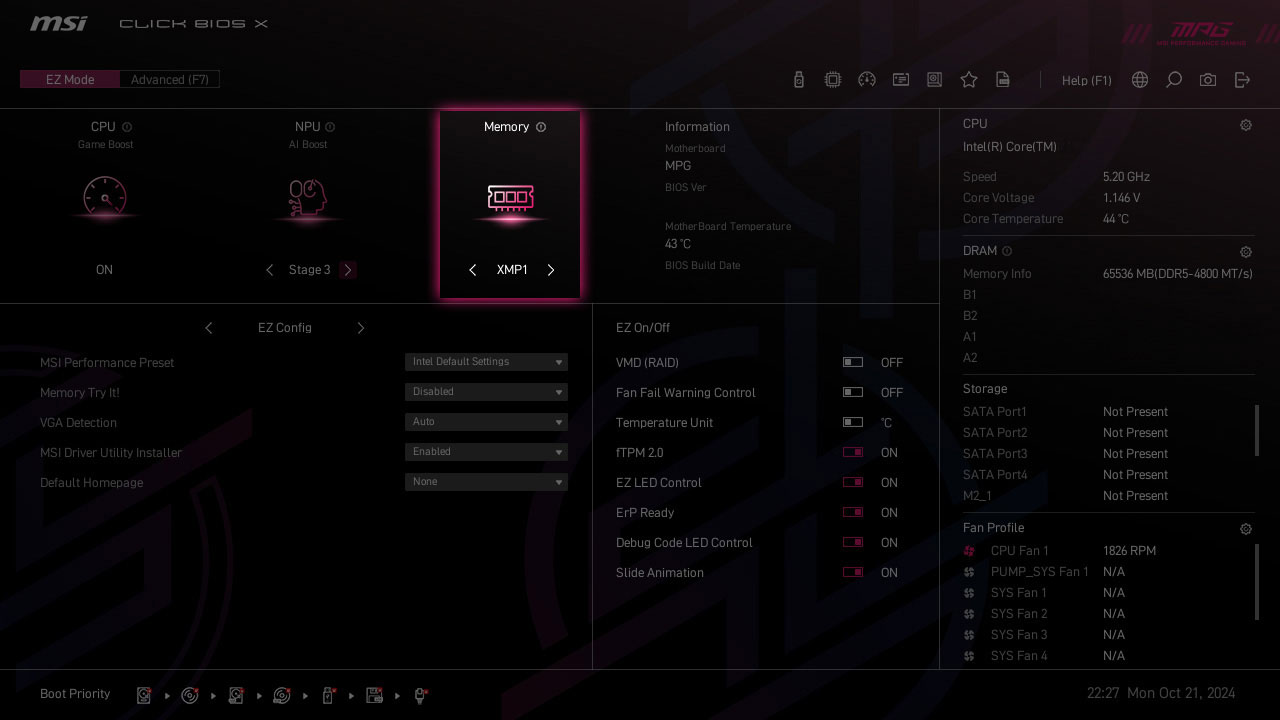

XMP
从预设的XMP资料夹中选择，并可自动超频相容的DDR记忆体。
多款功能为您的运算体验注入人工智能，实现更智慧的即时优化。 MSI Center 介面简洁清楚，让您轻松订义并管理电脑设定。例如: AI 引擎能根据您使用的应用程式自动调整设定，确保流畅的效能表现。

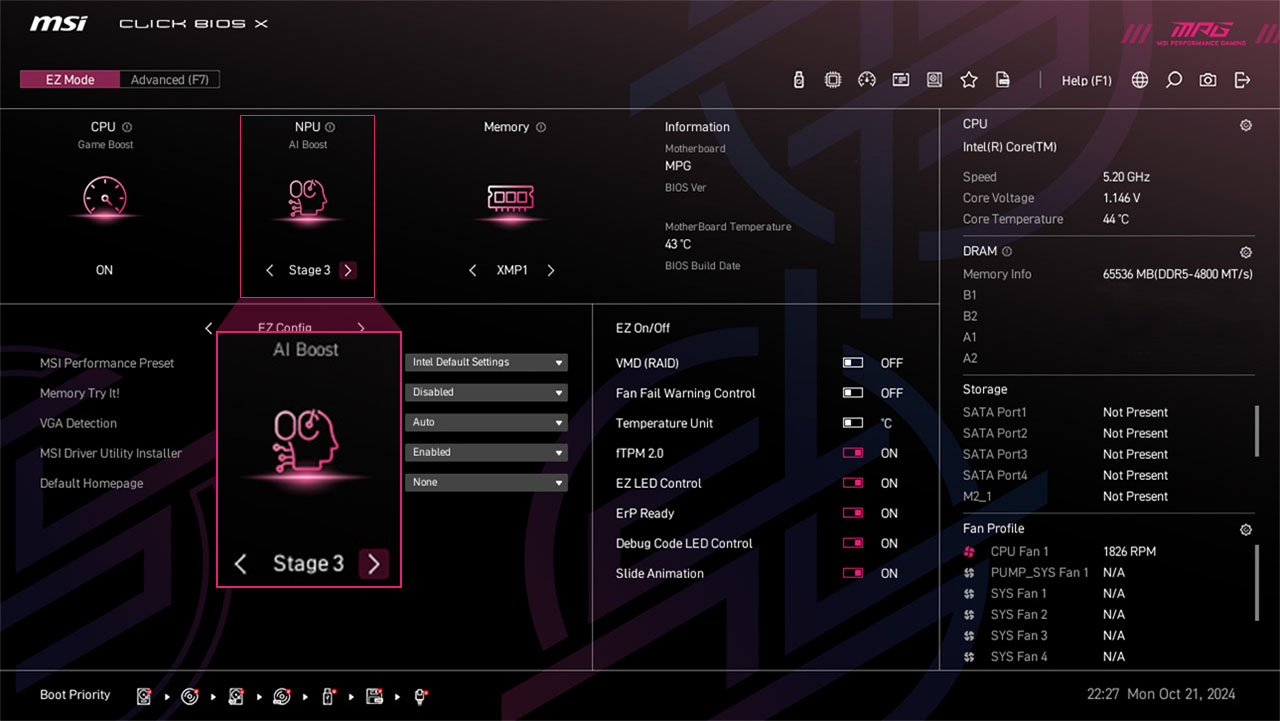

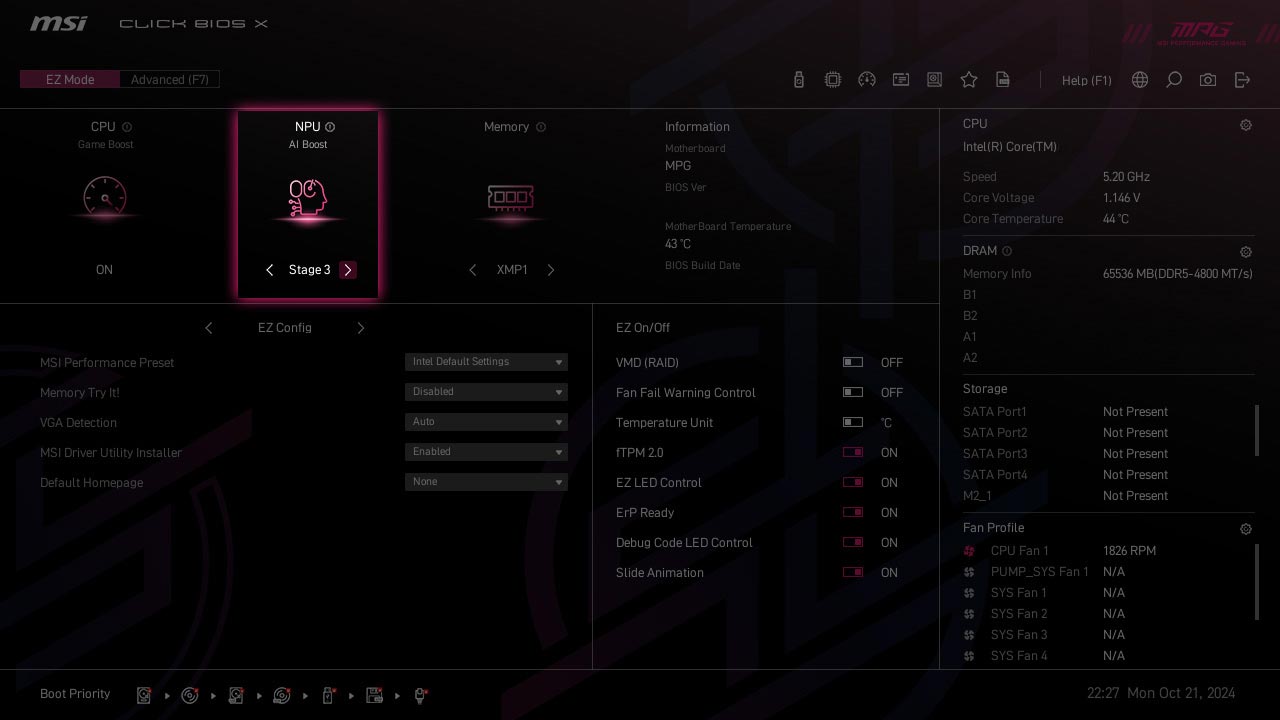

MSI AI Boost offers three-stage NPU overclocking, allowing users to adjust NPU performance based on their specific needs. This easy-to-use feature makes NPU overclocking both convenient and accessible, enabling users to boost NPU power effortlessly. Tested by MSI OC LAB , AI Boost can achieve up to a 27% performance increase, significantly improving AI computing tasks.
ULTRA PERFORMANCE
- 供电解决方案
- 记忆体
- 保护装置
- POWER DESIGN
- PCB DESIGN
- EZ OC TUNING
- OC Engine
- 更多效能优化

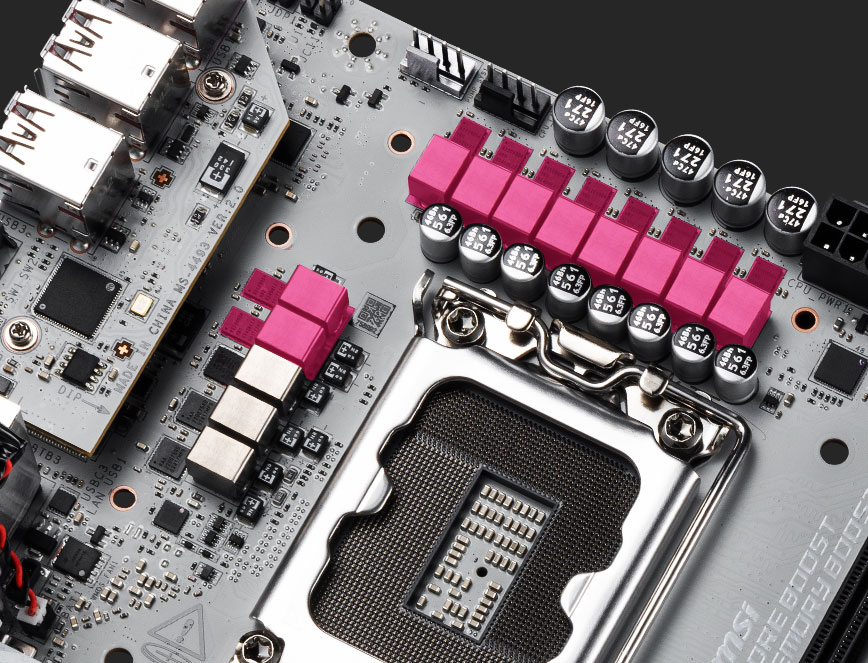

DIRECT 10+1+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1+1 phases power design. Combining 110A Smart Power Stage, MPG Z890I EDGE TI WIFI is ready for the challenge of high-end processors.
10
PHASES
1
PHASE
1
PHASE
1
PHASE
Core Boost
Digital Power

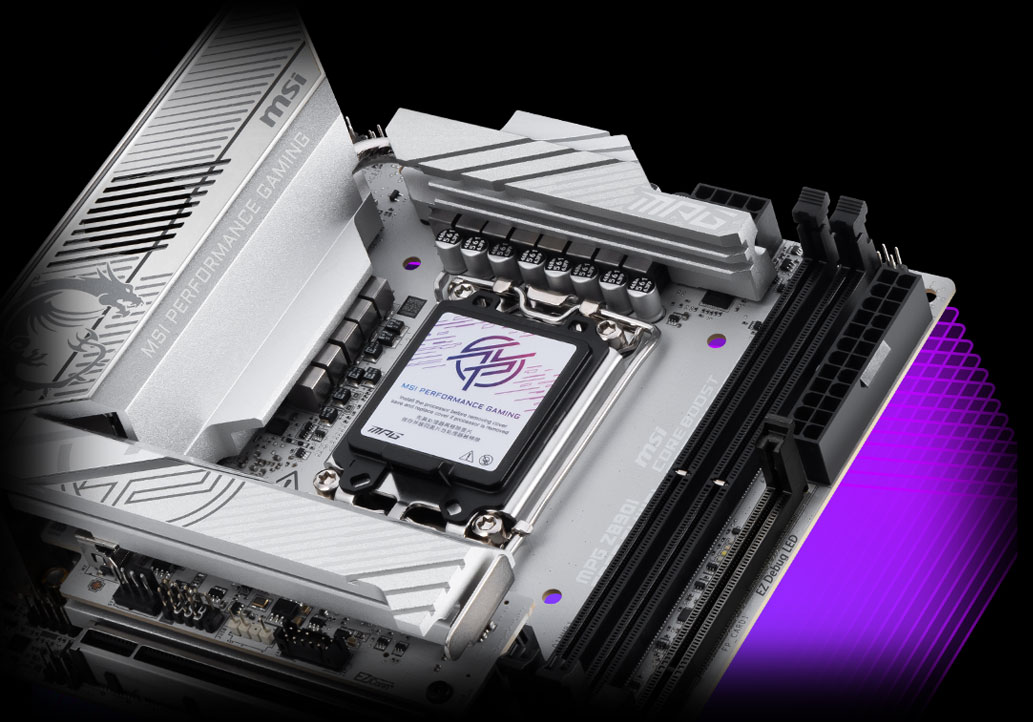

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 14 PCB layers
- NPG-170D Server-grade PCB material
- 1oz Thickened Copper

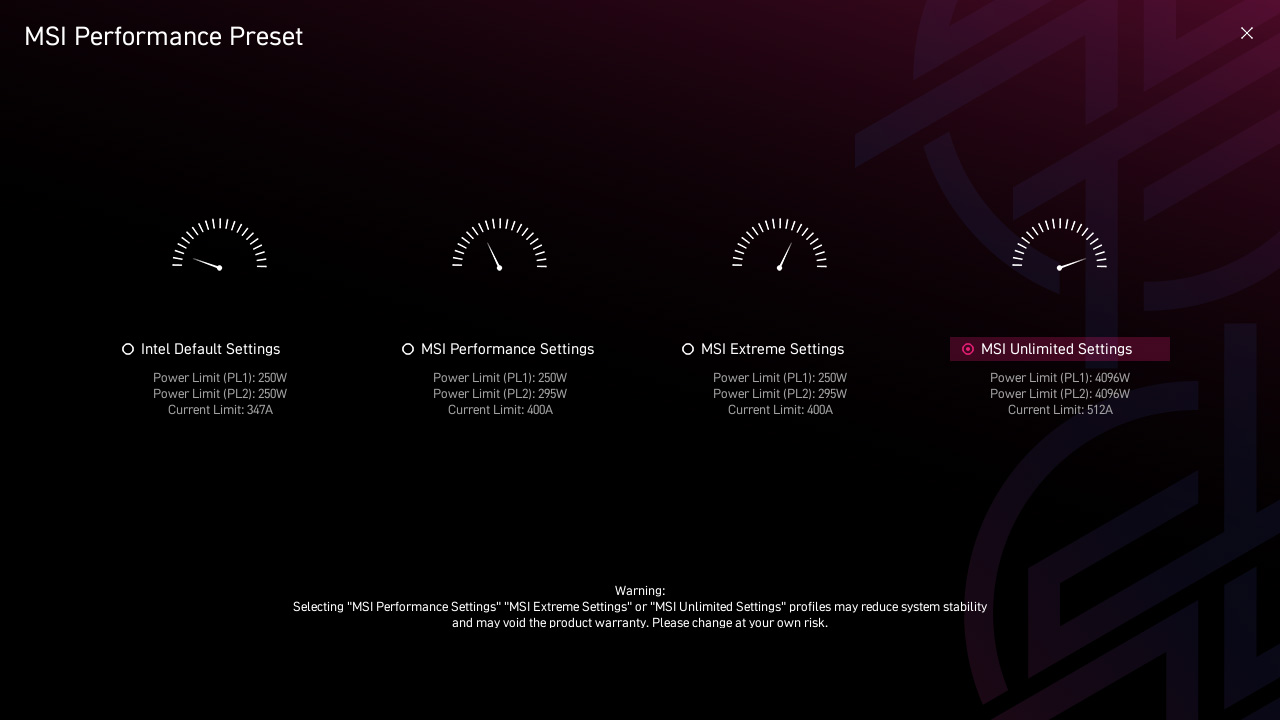

MSI exclusive Performance Preset is a more intuitive way to boost performance by setting the power limitation as your preference.
There are four level settings – Intel Default Settings, MSI Performance Settings, MSI Extreme Settings and MSI Unlimited Settings.

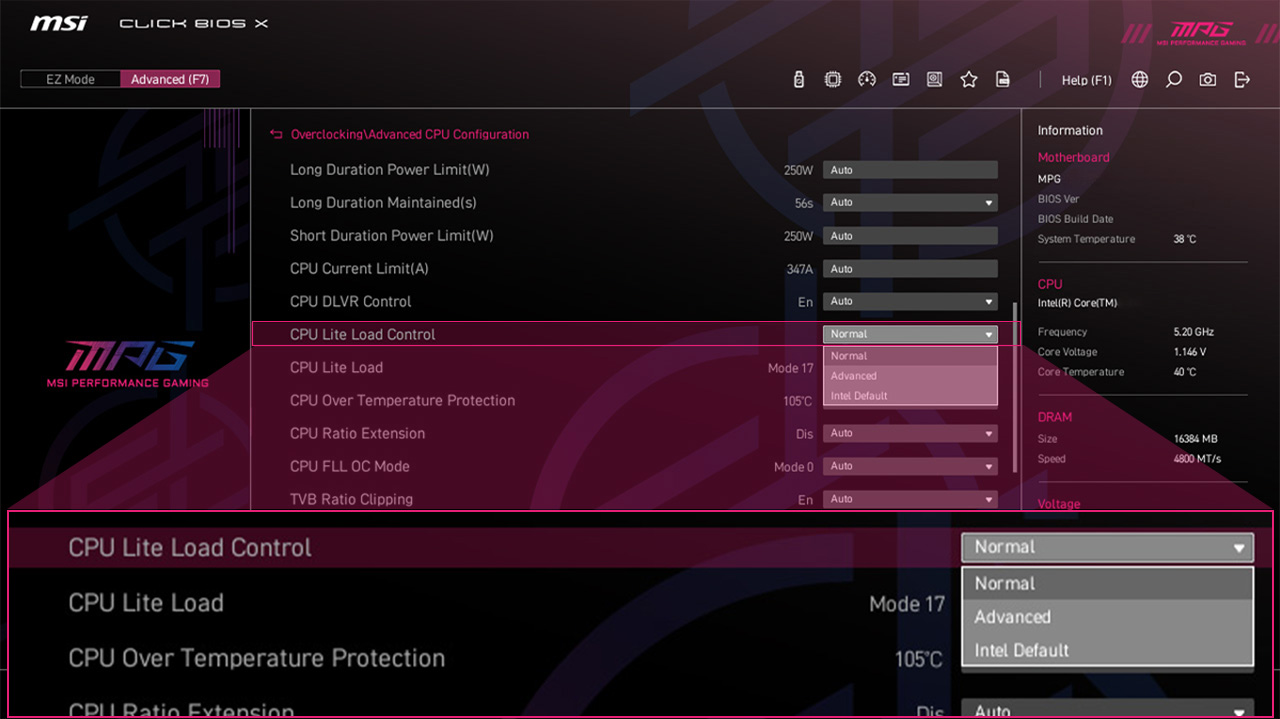

CPU Lite Load Control is a feature that allows for easy adjustment of the AC/DC loadline settings. It is primarily used to fine-tune the CPU's operating voltage to optimize power consumption and thermal performance. The system can maintain stable performance while improving energy efficiency , reducing overall power consumption and temperature. This feature is ideal for users who want more precise control over system power management.

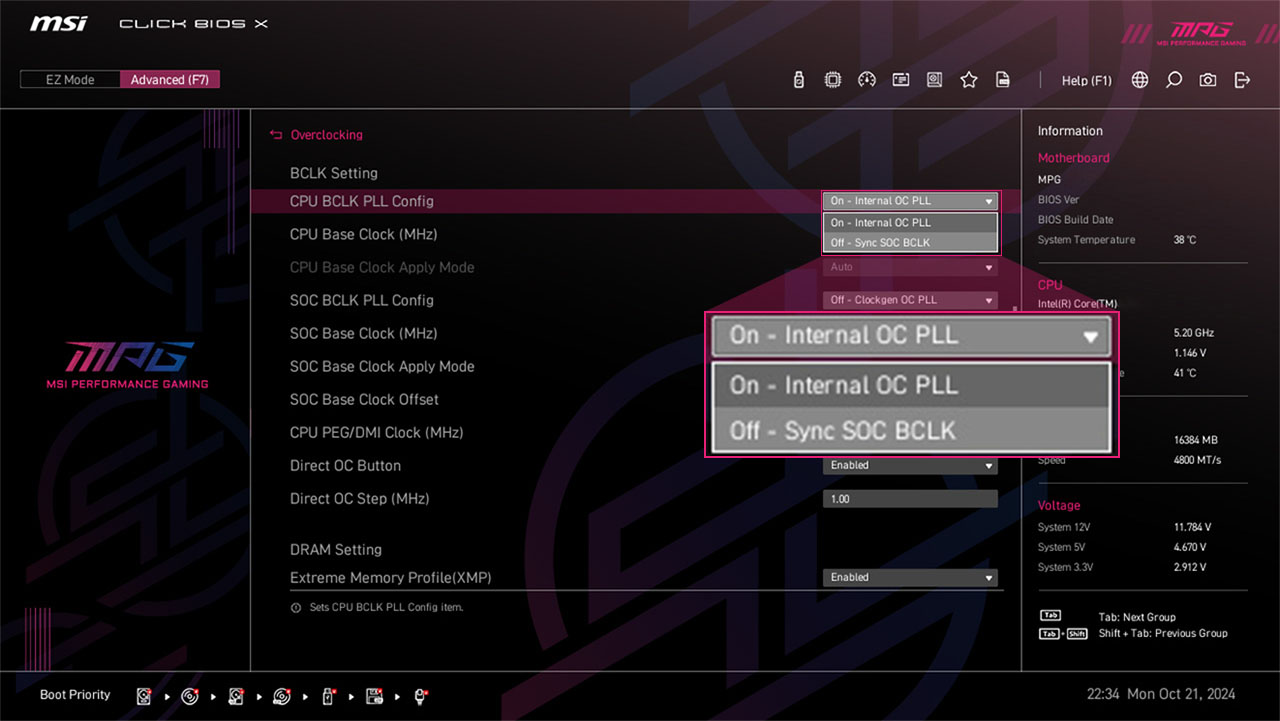

MSI motherboards feature a dedicated clockgen, enabling flexible BCLK overclocking. Users can choose to sync CPU and SOC BCLK or adjust them separately, allowing for precise, independent tuning of each for optimal performance. This flexibility enhances the overclocking experience, letting users fine-tune settings for improved stability and system efficiency.
OC Engine 是一款专为极限超频设计的时脉生成器，可独立调整基准时脉(BCLK) 频率，以提升CPU 性能。再推进系统极限的同时，仍能维持系统的可调性与稳定性，创造新纪录。
更多效能优化
- DDR5
- Memory Extension Mode

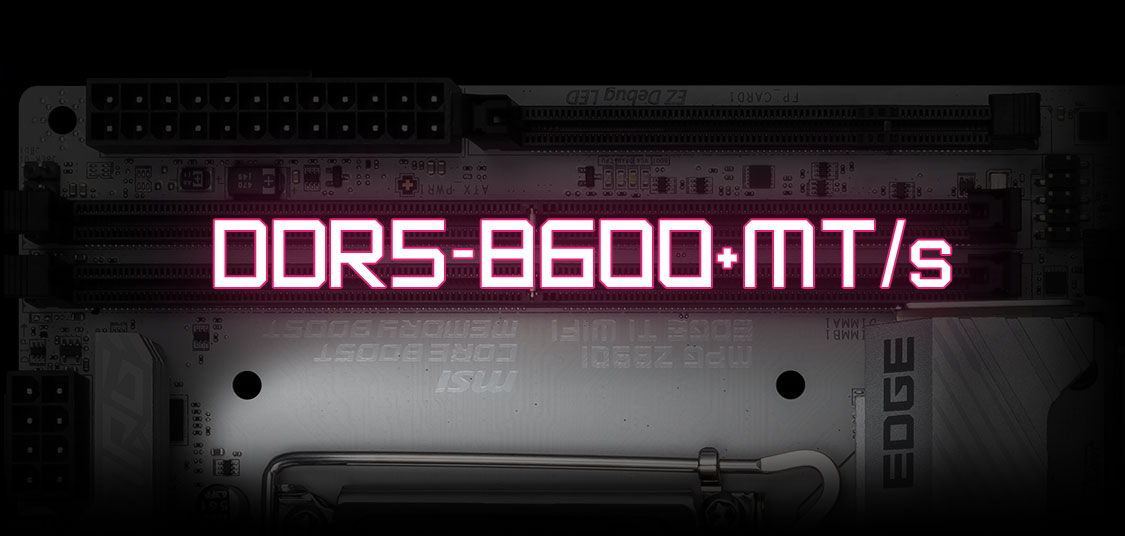

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z890I EDGE TI WIFI is ready to deliver the world class memory performance.

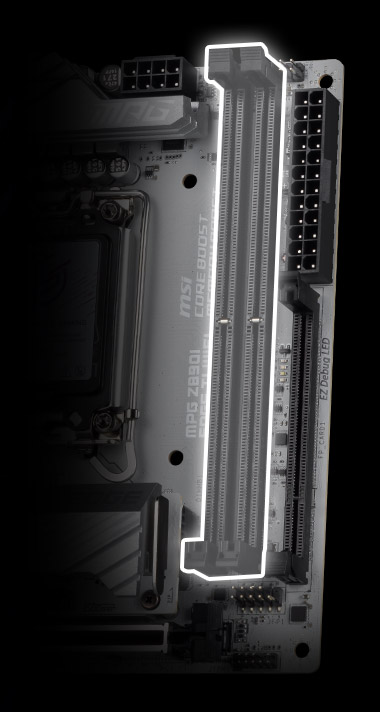

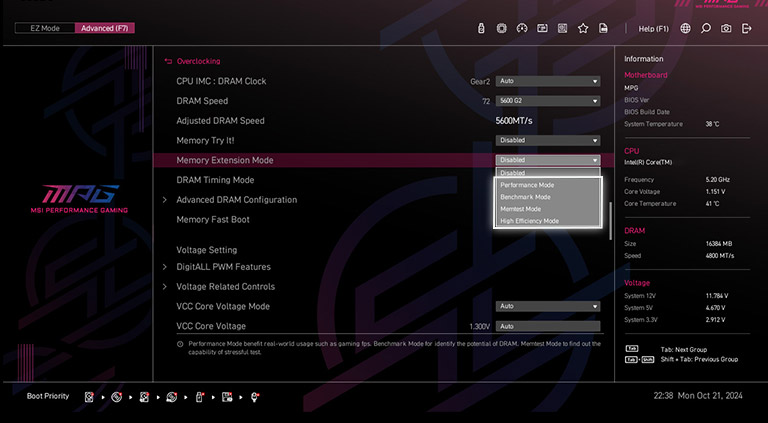

Memory Extension Mode
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.
Performance Mode, Benchmark Mode, Memtest Mode and High Efficiency Mode provide users with the flexibility to swiftly identify the ideal configuration tailored to their requirements and memory overclocking capabilities.
- TVS
- 实心针脚设计
- STAINLESS STEEL IO
- OCP Protection
- GROUNDING STRUCTURE
瞬态电压抑制器(TVS) )
瞬态电压抑制器(TVS) 是用来防止电压过高的安全装置。微星所有主机板均配置TVS。当电压异常升高时，TVS从高电阻状态切换到低电阻状态，将过高的电压转移到地上，有助于防止高电压造成的电路损坏。 .
实心针脚设计
MSI 主机板4-pin、8-pin 和24-pin 电源接头均采用实心针脚设计。实心针脚设计优点在于处理高电流负载时，能更安全且稳定地将12V 电力传输至处理器。
实心针脚电源连接埠的优势
- 提升稳定性：较大的接触面积，强化电力传输的稳定性。
- 低阻抗：实心针脚拥有低阻抗优势，实现高效能电流传输。
- 强韧耐用：实心针脚设计具有出色的耐用性，能够应对严苛的使用环境。
- 适用于高电流应用。
防锈不锈钢IO 保护盖
加上额外一层海绵和防锈不锈钢IO 保护盖，减少静电和系统的电磁辐射噪音，与传统IO 保护盖相较， 更耐用。
* The image above is an illustrative reference. Please refer to specification pages for more details.
过电流保护
MSI 主机板内建过电流保护(OCP) 优先考虑安全性，确保USB 连接埠、DDR 记忆体、PWM IC 和CPU 等关键组件免受过电流影响。这种主动防御机制可降低因过多电流突然涌入而造成损坏或故障的风险，从而促进系统的长期稳定性。让MSI 玩家使用的更安心。
电源相位的接地架构
电源相位的接地架构是微星独家设计。这项专利设计能够抑制电源相位所产生的电磁干扰（EMI），并有助于有效地将热能传导到具有接地特性的铜平面。
FROZR DESIGN
- FROZR GUARD
- FROZR SYNC
- FROZR CONTROL
- cooling overview

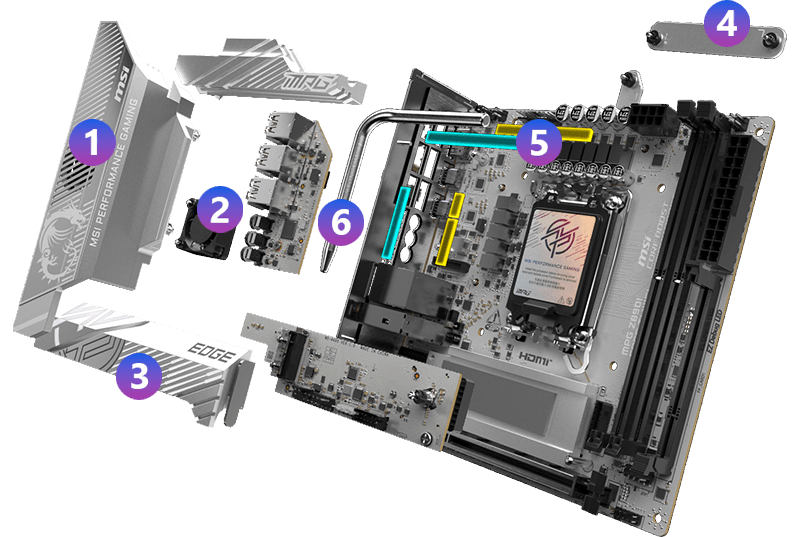

Cooling Overview
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
-
Frozr Heatsink
The active cooling solution is ready to release the maximum performance.
-
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
MOSFET Baseplate
Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.
-
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
-
Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
- COMBO FAN
多功能风扇连接埠
MSI 风扇连接埠拥有多用途，既可作为帮浦连接埠，也可作为风扇连接埠。此连接埠会自动侦测是否为帮浦或PWM/DC 风扇，其独特的灰色设计，更容易辨识。
- 散热精灵
- FROZR AI COOLING
- 自动侦测风扇

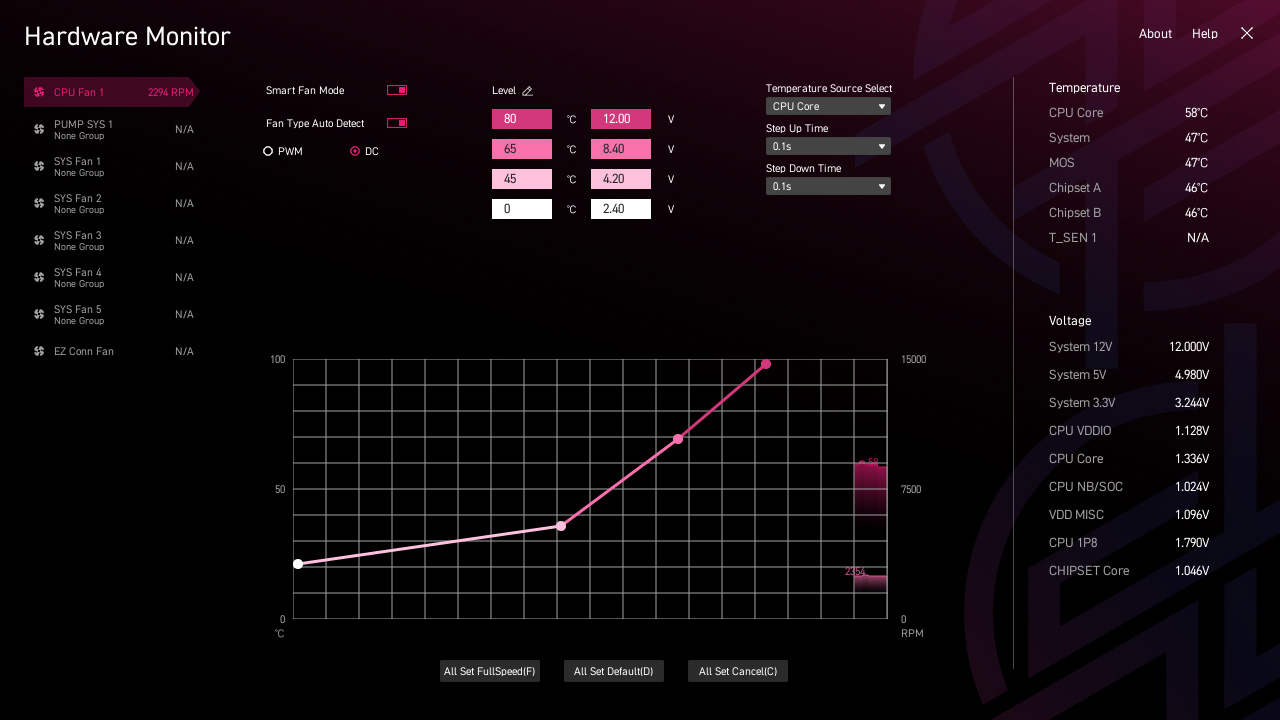

Cooling Wizard 是一个全面的风扇设定管理解决方案，并适用于所有MSI 产品。不论是系统风扇、PWM/DC 风扇还是帮浦…等，都可自行调整，让性能和噪音达到自己可以接受的平衡点，只需一键即可轻松控制。
多情境设定
最多可储存5 组不同情境设定档
智能风扇和手动风扇
Smart Fan
用户可设定四组温度与风扇转速节点，并允许手动调整温度曲线。
手动风扇
允许用户手动设定风扇转速百分比
使用情境
Follow MSI Center 模
根据使用的情境，自动调整风扇设定。
BIOS 模
在BIOS 中调整风扇设定。
自定义
允许玩家自行定义风扇设定。
Frozr AI 散热系统针对CPU 与GPU 温度进行调校。 AI 系统会侦测CPU 和GPU 的温度，自动调整系统风扇的转速，确保最佳效能。
MSI 风扇接头可自动侦测风扇将以直流或PWM哪种模式运行，视情况随时调整风扇转速和进行降噪。 Hysteresis也能让系统风扇的运转更为流畅，并确保系统随时处于安静的状态。
TRILINK
- 网路连线
- 储存
- 扩充性
- FLAWLESS CONNECTION
- WI-FI 7 解决方案
- Intel Killer
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
5G LAN
Wi-Fi 7

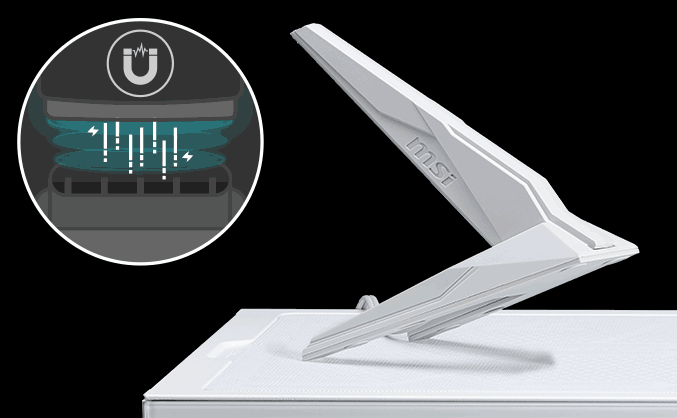

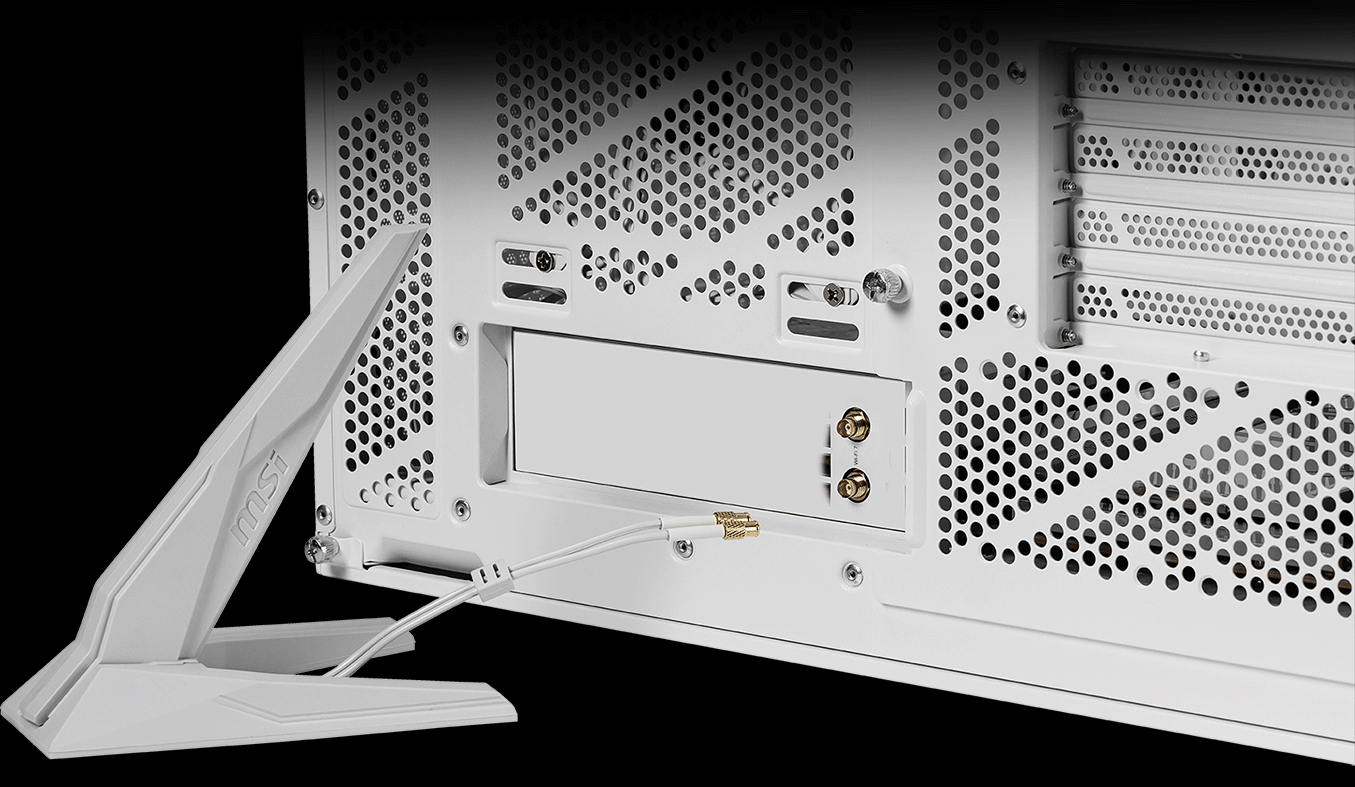

EZ Antenna with Magnetic Stand
最新的无线解决方案WI-FI 7
最新的无线解决方案Wi-Fi 7 ，新一代大跃进，多项改良技术，满足时下越来越多无线装备对庞大频宽的渴望。
与Wi-Fi 6 (802.11ax) 相较，Wi-Fi 7 (802.11be)提供更高的速度、更大的频率，大幅降低延迟问题，并拥有更好的连线效率。并提供更长的电池使用寿命，在拥挤环境中也能提供更佳性能。
Wi-Fi 7 连线速度高达5.8 Gbps ！ 比之前的Wi-Fi 6/6E 标准快2.4 倍， Wi-Fi 7 将成为未来的连线主流。
前几代Wi-Fi 频宽为160MHz 。 Wi-Fi 7 将频率提升至320MHz（6GHz ）－确保在最大速度传输时，也能同时拥有高稳定性
更高的正交振幅调变（QAM，Quadrature Amplitude Modulation），每个数据包可以携带的资料就越多。 Wi-Fi 7 将调变方案从1024-QAM 增加至4096-QAM，进而提高峰值传输速率和网路流量。
Wi-Fi 7 可使设备能够在多个频段和通道中同时发送和接收数据，满足未来扩充无线设备时，也能应付庞大的流量需求。
Intel KiLLER 效能套件
搭载Intel Killer LAN / Killer Wi-Fi配置，即可使用Intel Killer效能套件针对常用的应用程式作优先排序，同时，还能提供良好网路连线的选择建议。
- 应用程式优先权自动检测
- 自动进行频宽分析与管理
- 智能AP选择，快速切换至连线分数较高的网路
- 依据CPU体质侦测提供最佳AI超频性能推荐（仅适用于K系列处理器）
- STORAGE
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
1x
3x
*The M.2 slot on 5-in-1 XPANDER card only supports the single sided SSD.
- 5 in 1 XPANDER
- LIGHTNING GEN 5 PCI-E
- 支援TBT4
- SUPER CHARGER +

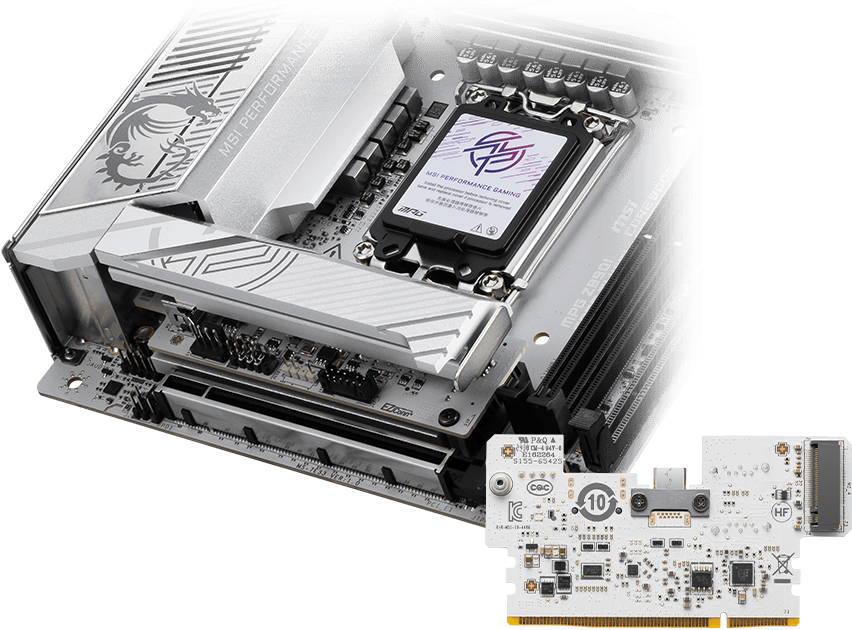

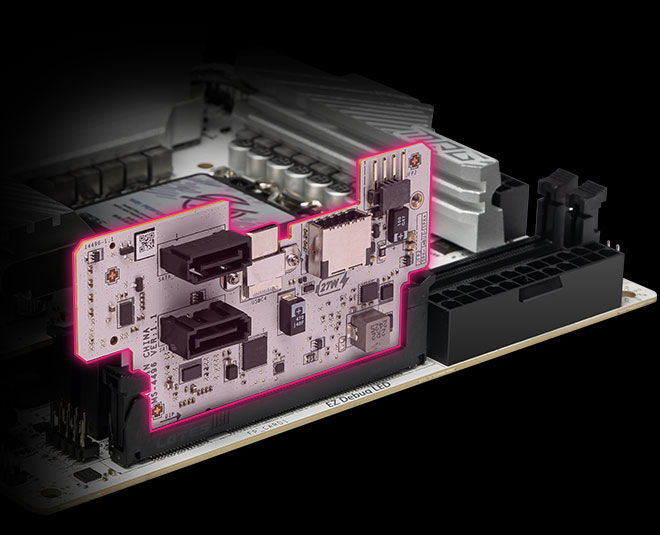

The 5-in-1 XPANDER Card is an exclusive expansion card for the MPG Z890I EDGE TI WIFI. It provides a total of 1x Gen 4 M.2 slot, 1x USB 20Gbps Type-C port (with 27W PD), 2x 5Gbps Type-A ports(via 5-in-1 XPANDER USB 5Gbps Cable), 2x SATA ports, and 1x JFP_2. This allows users to enjoy excellent expandability while opting for an ITX motherboard.
JFP_2
USB 20Gbps Type-C (with 27W PD)
2x SATA
2x USB 5Gbps Type-A (via 5-in-1 XPANDER USB 5Gbps Cable)
M.2 Gen 4
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

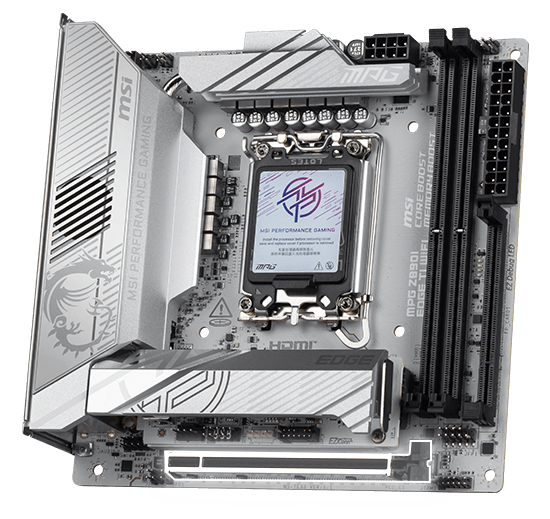

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
以菊花链方式连接多个Thunderbolt™ 设备，允许数据、电源和影音讯号从电脑传输到五组周边。或者使用Thunderbolt™ HUB 或扩展座整合所有装置传输到一台电脑。
Thunderbolt™ 拥有40Gbps频宽传输，适用于高负载、极速传输使用需求。玩家可以直接从外接硬碟玩大型资料片游戏，释放电脑存储空间。创作者可以快速备份大量影音和照片，使用上更安心有保障。
丰富的显示选项：可支援两个4K 60Hz 显示器或一个8K 60Hz 显示器。

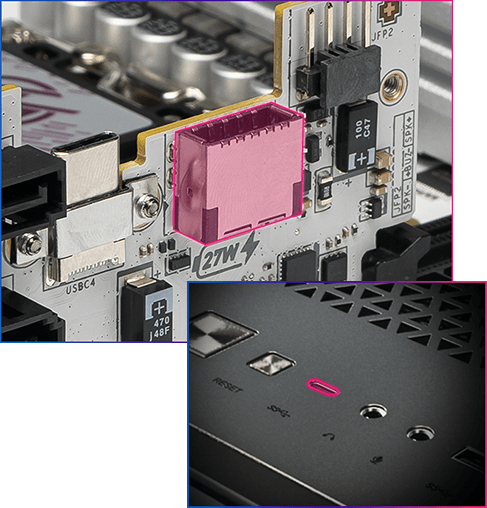

Super Charger + makes fast charging (PD 27W) available on the dedicated front USB port for your PD-compatible devices. Besides charging efficiency optimization, it monitors USB output power, voltage and current in real-time.
Experience
- audio
- mystic light
- BIOS
- 软件
- Audio Boost 5
audio boost 5
- HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR
- HIGH QUALITY AUDIO CAPACITORS
- HIGH QUALITY AUDIO JACKS WITH S/PDIF
- DEDICATED HEADPHONE AMPLIFIER
- ISOLATED AUDIO SIGNAL
- DE-POP PROTECTION
- Mystic Light
- Synchronized
尽情挥洒彩色世界
透过MSI Center 的Mystic Light 工具，为你的桌机增添色彩和充满活力的RGB 灯效。拥有上百万种颜色选择与多样炫酷的LED 效果，任您选、任您配、自由随意!
波浪
稳重
火焰
火焰
处理器温度
色环
闪焰
娱乐
流星
默认
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
*Gen2 device only supports 7 RGB themes

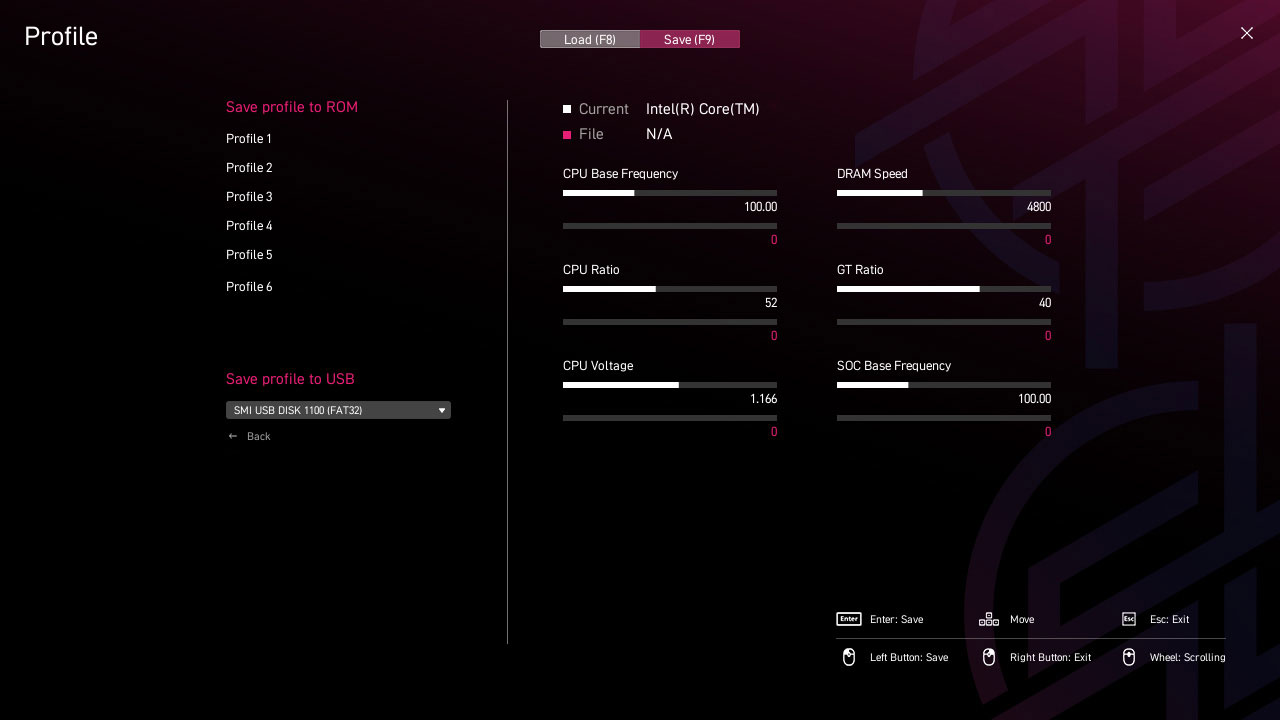

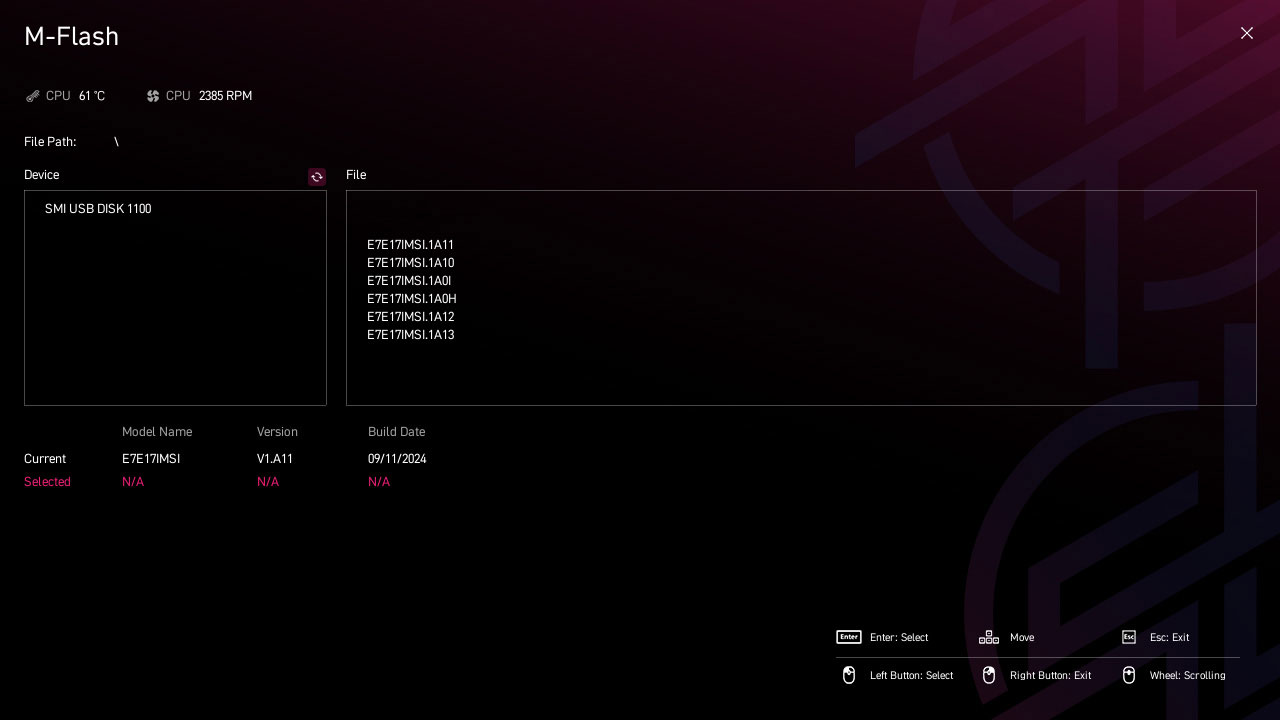

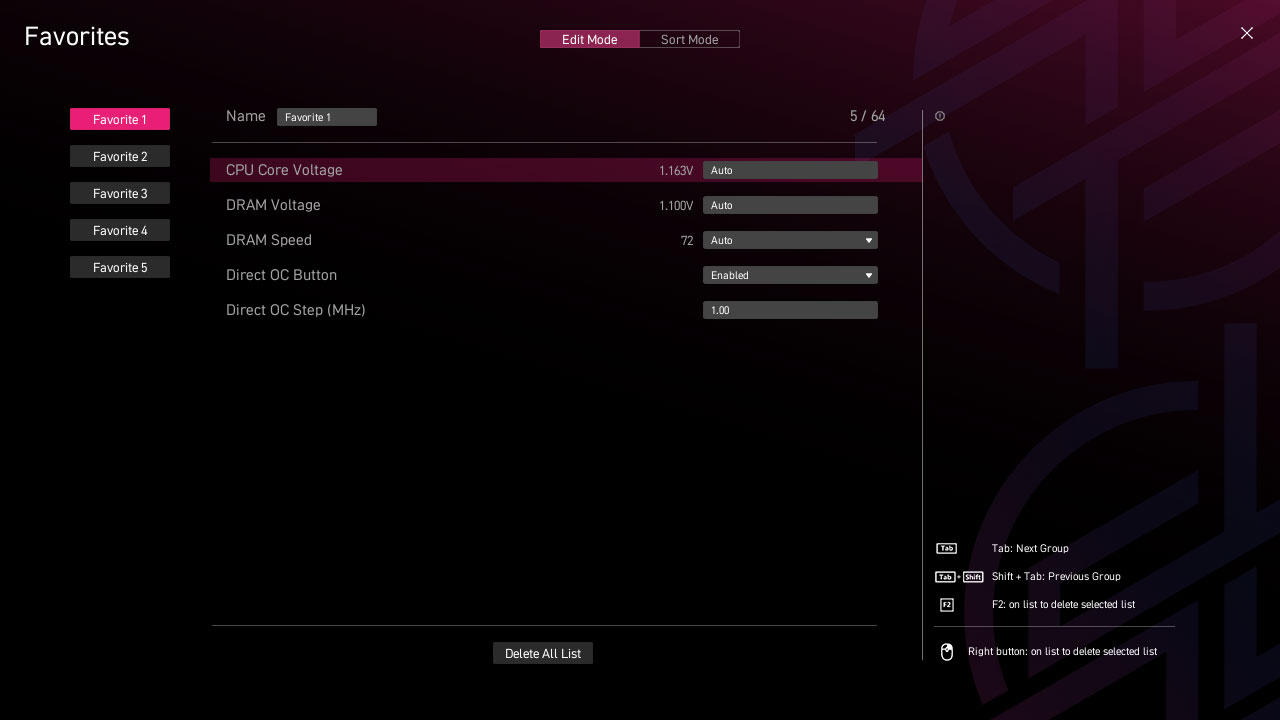

- Click BIOS X
- BIOS KEY FEATURES

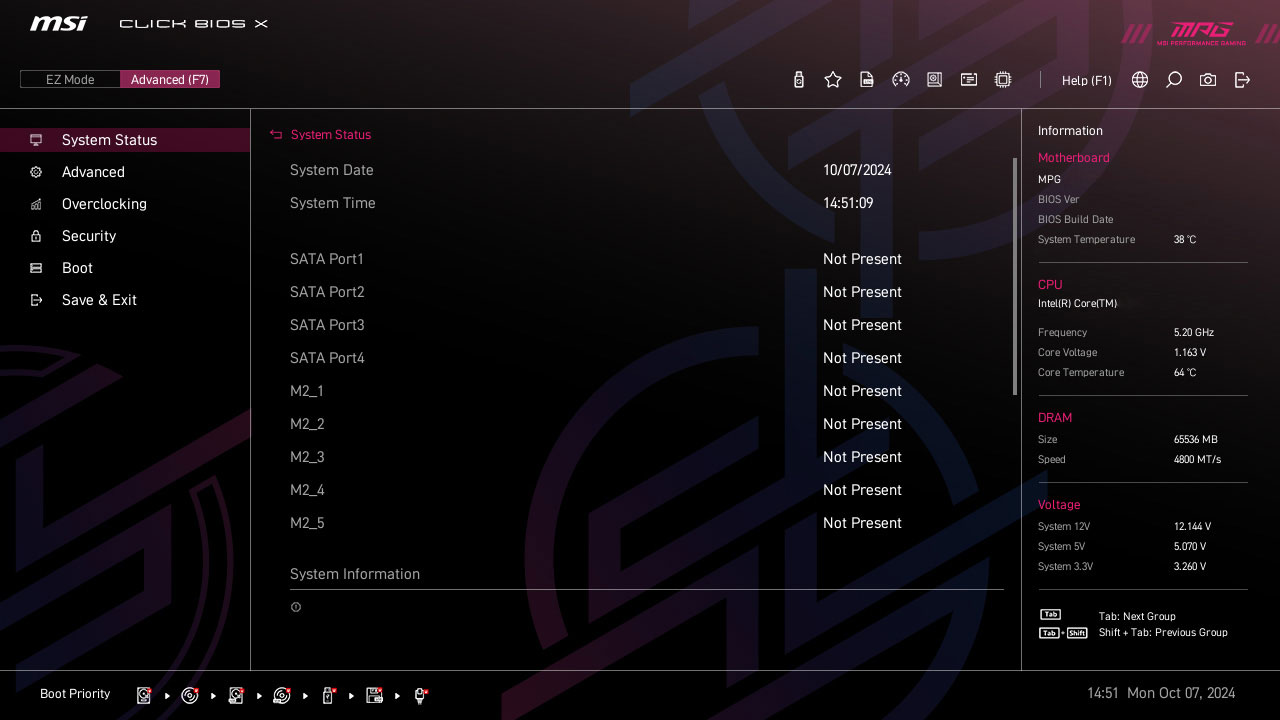

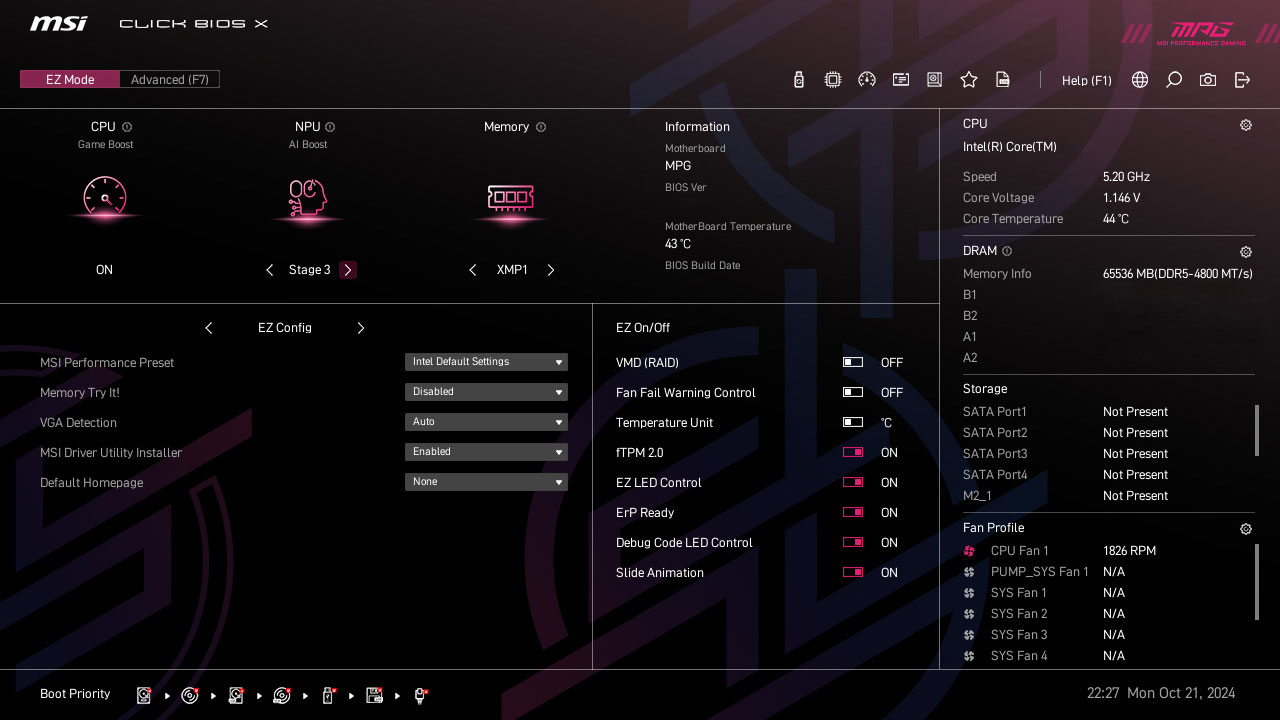

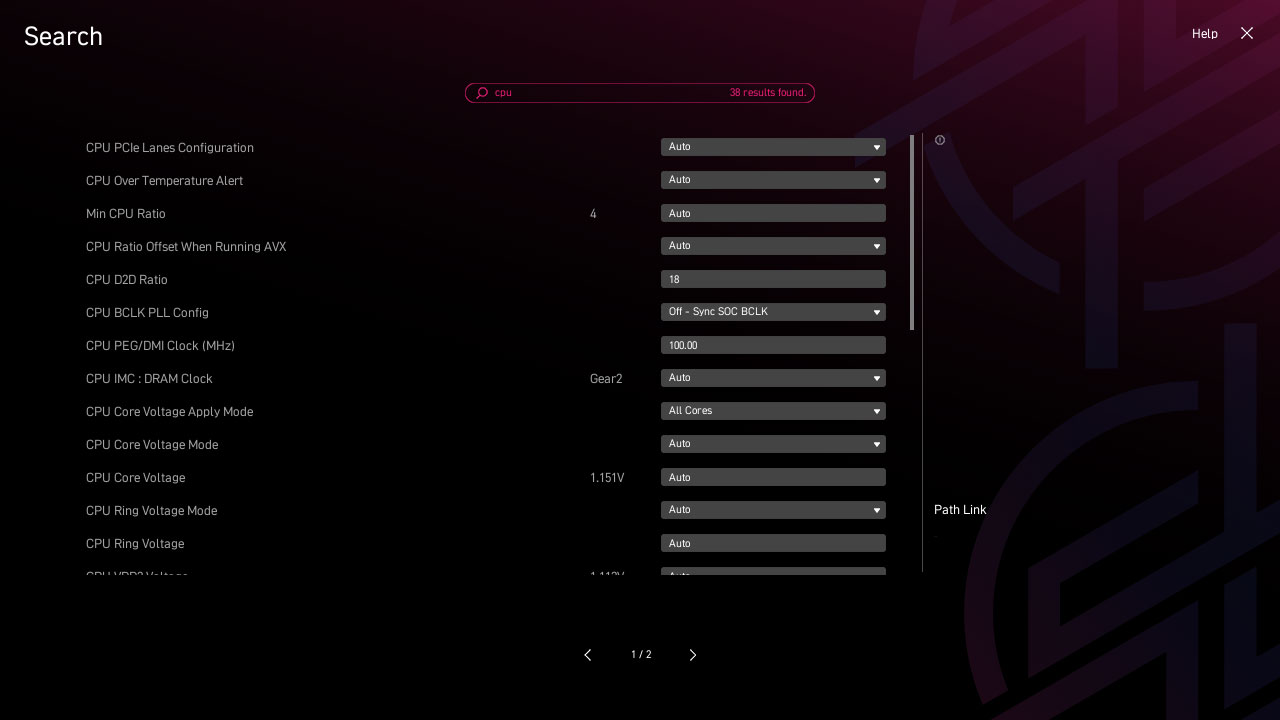

微星全新设计的CLICK BIOS X 提供美观更友善使用体验，让玩家可以更快速存取和调整系统配置。
- MSI CENTER
- AIDA64
- NORTON 360
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。透过该软体，您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯，并可储存CSV、HTML 等多种格式档案。
选择使用NORTON 360 DELUXE 加入网路安全
为您的装置提供多层保护、线上隐私功能包含安全VPN，以及暗网监测，并全数整合在单一解决方案中。使用MSI 主机板，即可免费试用Norton 360 Deluxe 60 天。
- 提供高达50 GB云端备份空间
- 即时威胁防护和智慧防火墙
- 密码管理员
- PC SafeCam
MSI 试用优惠不适用于现有的诺顿客户。如果您已订购诺顿方案，则需要选择退出订购才有资格享受此优惠。有关重要的订阅、订价和优惠详情，请参阅NortonLifeLock 授权和服务协议。 NortonLifeLock 产品和服务隐私权声明。
MPG Z890I EDGE TI WIFI
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 8600+ MT/s (OC)
- Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
