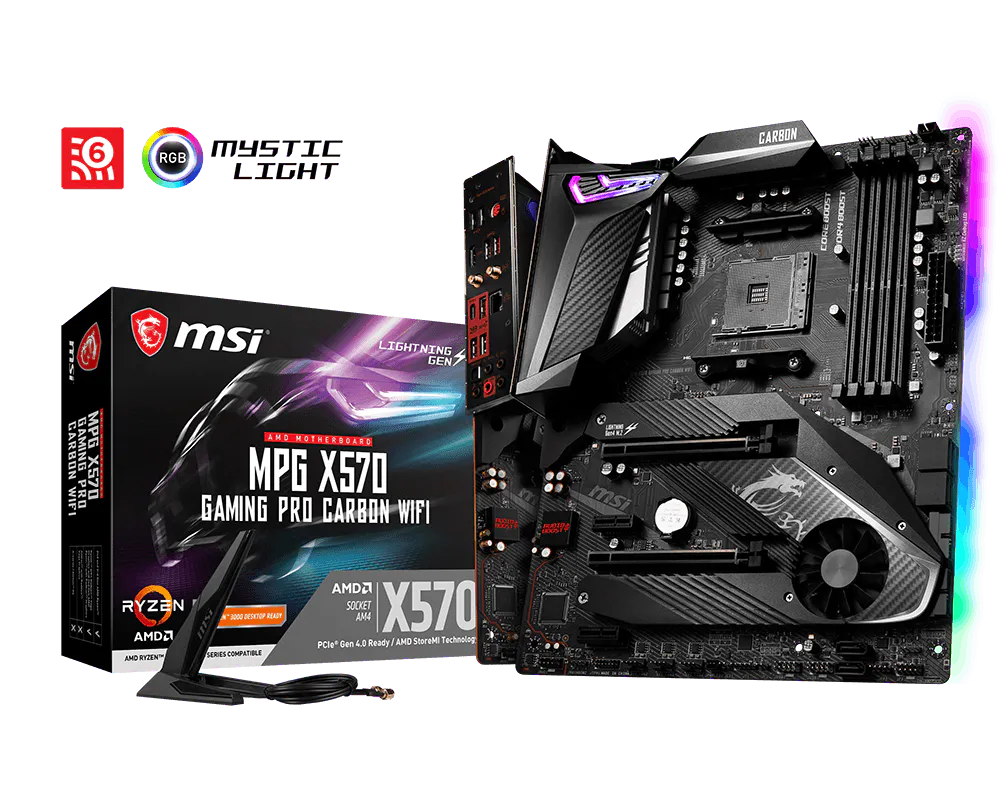

MPG X570 GAMING PRO CARBON WIFI

CPU (最高支持)
CPU 插槽
芯片组
DDR4 内存
内存插槽数
最大内存 (GB)
M.2 接口
USB 3.2 ports (Front)
PCI-E X1
USB 3.2 ports (Rear)
PCI-E X16
PCI-E X4
USB 2.0 接口 (前置)
USB 2.0 接口 (背板)
SATAIII 接口
网卡接口
TPM
音频接口 (背板)
HDMI 接口
DirectX
交火
尺寸规格
无线网卡

CPU (最高支持)

RYZEN 9

CPU 插槽

AM4

芯片组

AMD® X570 Chipset

DDR4 内存

1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE

内存插槽数

最大内存 (GB)

128

M.2 接口

USB 3.2 ports (Front)

4(Gen1, Type A)

PCI-E X1

USB 3.2 ports (Rear)

1(Gen2, Type C), 3(Gen2, Type A), 2(Gen1, Type A)

PCI-E X16

PCI-E X4

USB 2.0 接口 (前置)

USB 2.0 接口 (背板)

SATAIII 接口

网卡接口

1x Intel® I211AT Gigabit LAN controller

音频接口 (背板)

5+ Optical S/PDIF (Realtek® ALC1220 Codec)

HDMI 接口

DirectX

交火

尺寸规格

ATX

无线网卡

Processor

Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket

See supported processors

Chipset

AMD^® X570 Chipset

Memory

4x DDR4 memory slots, support up to 128GB
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slots

1x PCIe 4.0/3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
- Ryzen™ 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots

The speeds may vary for different devices

Onboard Graphics

1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
Only support when using Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Maximum shared memory of 2048 MB

Multi-GPU

Supports 2-Way AMD^® CrossFire™ Technology

Storage

AMD^® X570 Chipset

4x SATA 6Gb/s ports(SATA1-SATA4)
2x M.2 slots (Key M)¹
- M2_1 slot (from AMD^® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices
- M2_2 slot (from AMD^® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

ASMedia ASM1061

2x SATA 6Gb/s ports (SATA5, SATA6)

The speeds may vary for different devices

RAID

AMD^® X570 Chipset

Supports RAID 0, RAID 1 and RAID 10

USB

AMD^® X570 Chipset

2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell
4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD^® Processor

2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek^® ALC1220 Codec

7.1-Channel High Definition Audio
Supports Optical S/PDIF output

LAN

1x Intel^® I211AT Gigabit LAN controller

WiFi & Bluetooth

Intel^® Wi-Fi 6 AX200

The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth^® 5.1

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR connector
1x 2-pin LED Demo Connect
4x EZ Debug LEDs

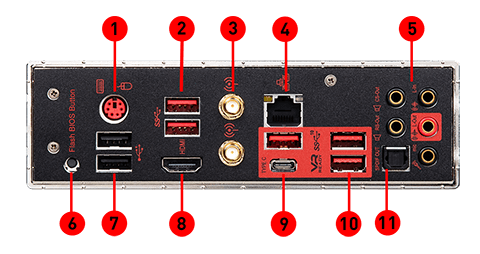

Back panel ports

Keyboard / Mouse
USB 3.2 Gen1 Type-A
Wireless / Bluetooth
LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen2 Type-A + C
USB 3.2 Gen2 Type-A
Optical S/PDIF out

Dimensions

12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

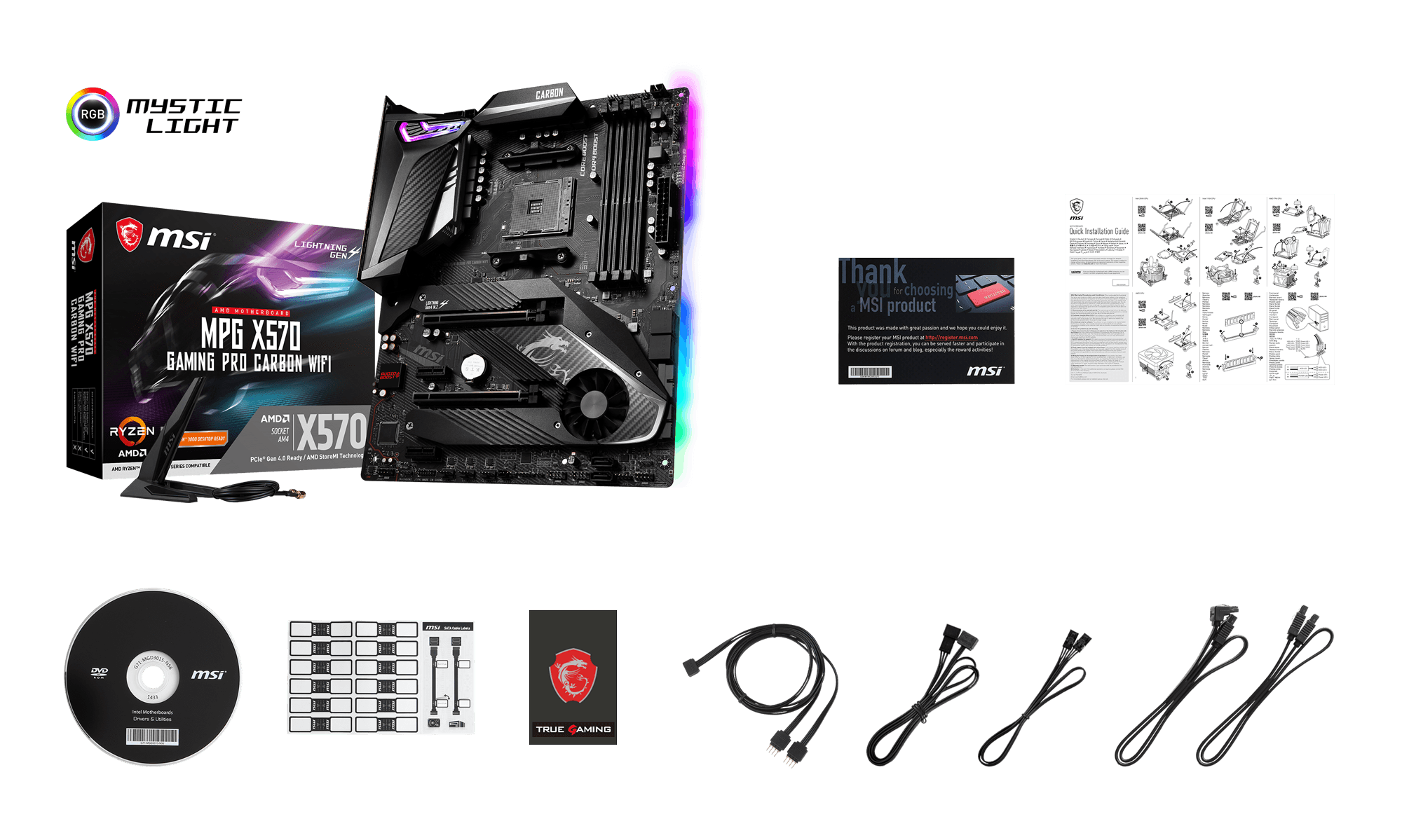

Box content
