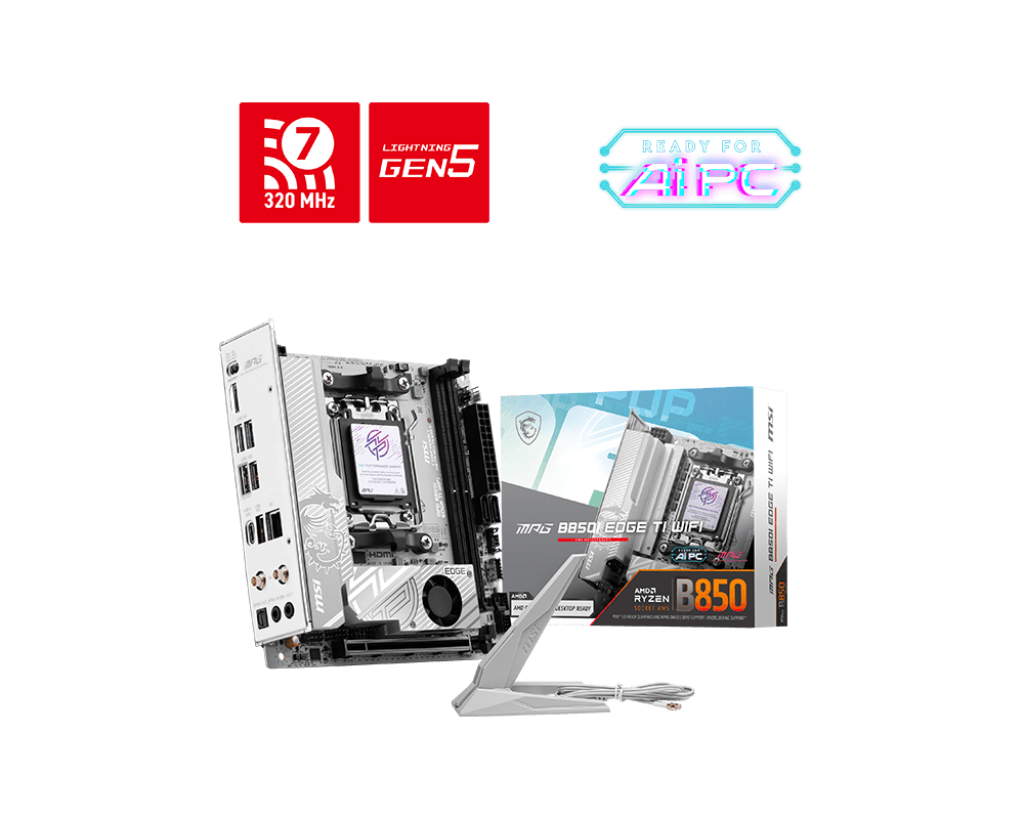

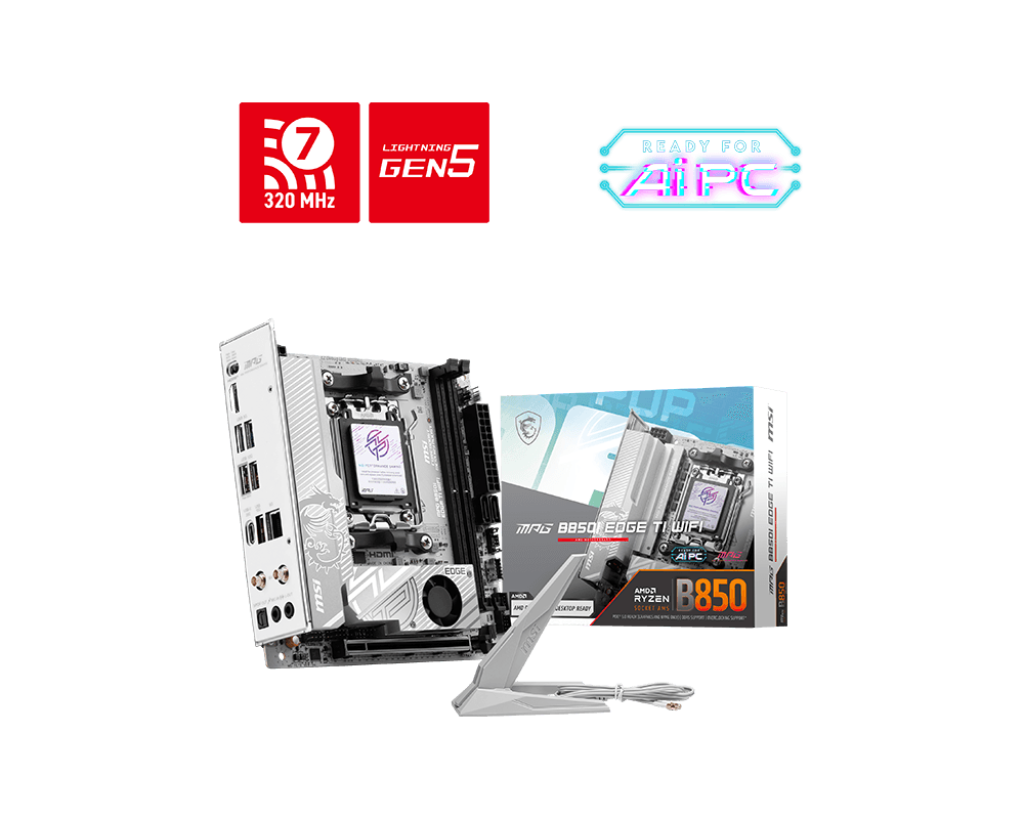

MPG B850I EDGE TI WIFI

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory 支持 DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 插槽（数量）
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Storage 2x M.2 (Qty)
M.2_1 源 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G (Qty)

M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot
• Supports up to PCIe 4.0 x4
• Supports 2280 storage devices
RAID • Supports RAID 0, and RAID 1 for SATA storage devices
• Supports RAID 0, and RAID 1 for M.2 NVMe storage devices
USB 2x USB 2.0 (前置)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN 1x Realtek® 8126 5G LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
2x USB 2.0 接口
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED

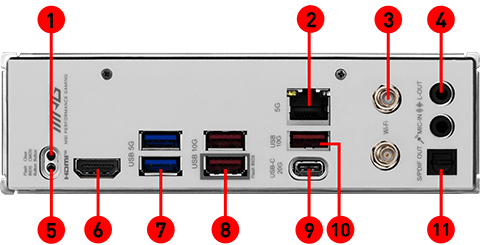

BACK PANEL PORTS
  1. Clear CMOS Button
  2. 5G LAN
  3. Wi-Fi / Bluetooth
  4. Audio Connectors
  5. Flash BIOS Button
  6. HDMI™
  7. USB 5Gbps Type-A
  8. USB 10Gbps Type-A
  9. USB 20Gbps Type-C
  10. USB 10Gbps Type-A
  11. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit

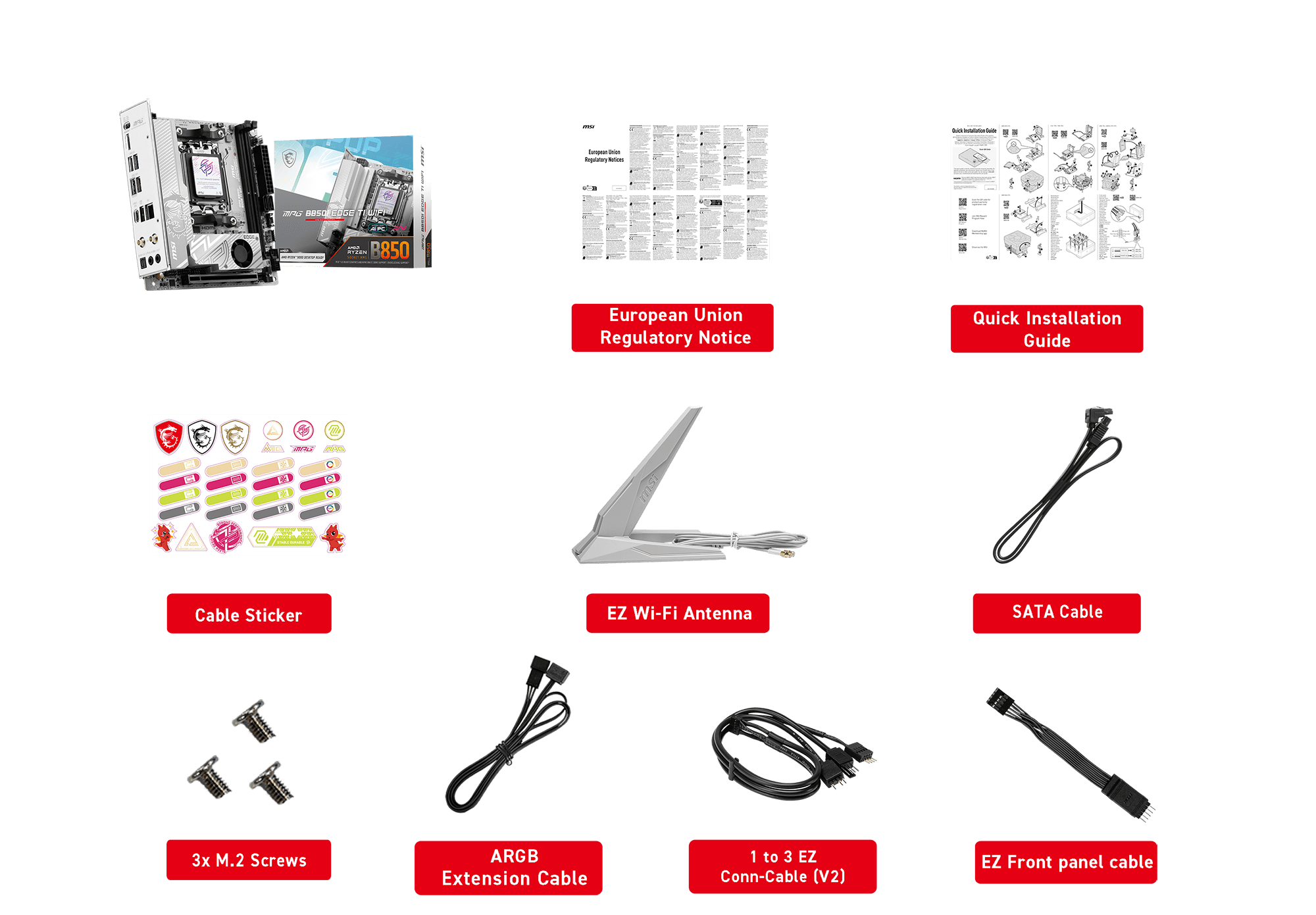

BOX CONTENT
PCB Info Mini-ITX
170mmx170mm
