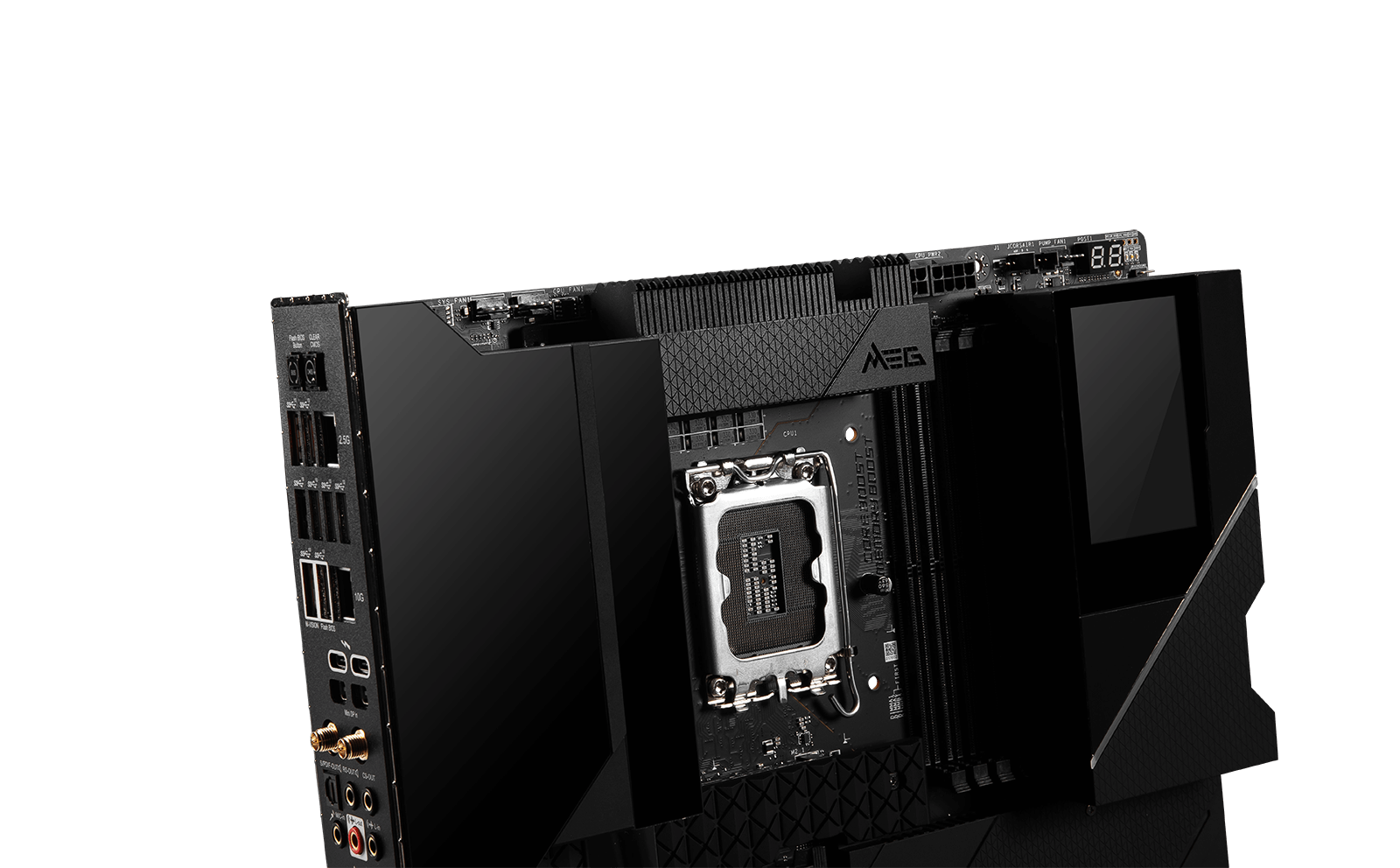

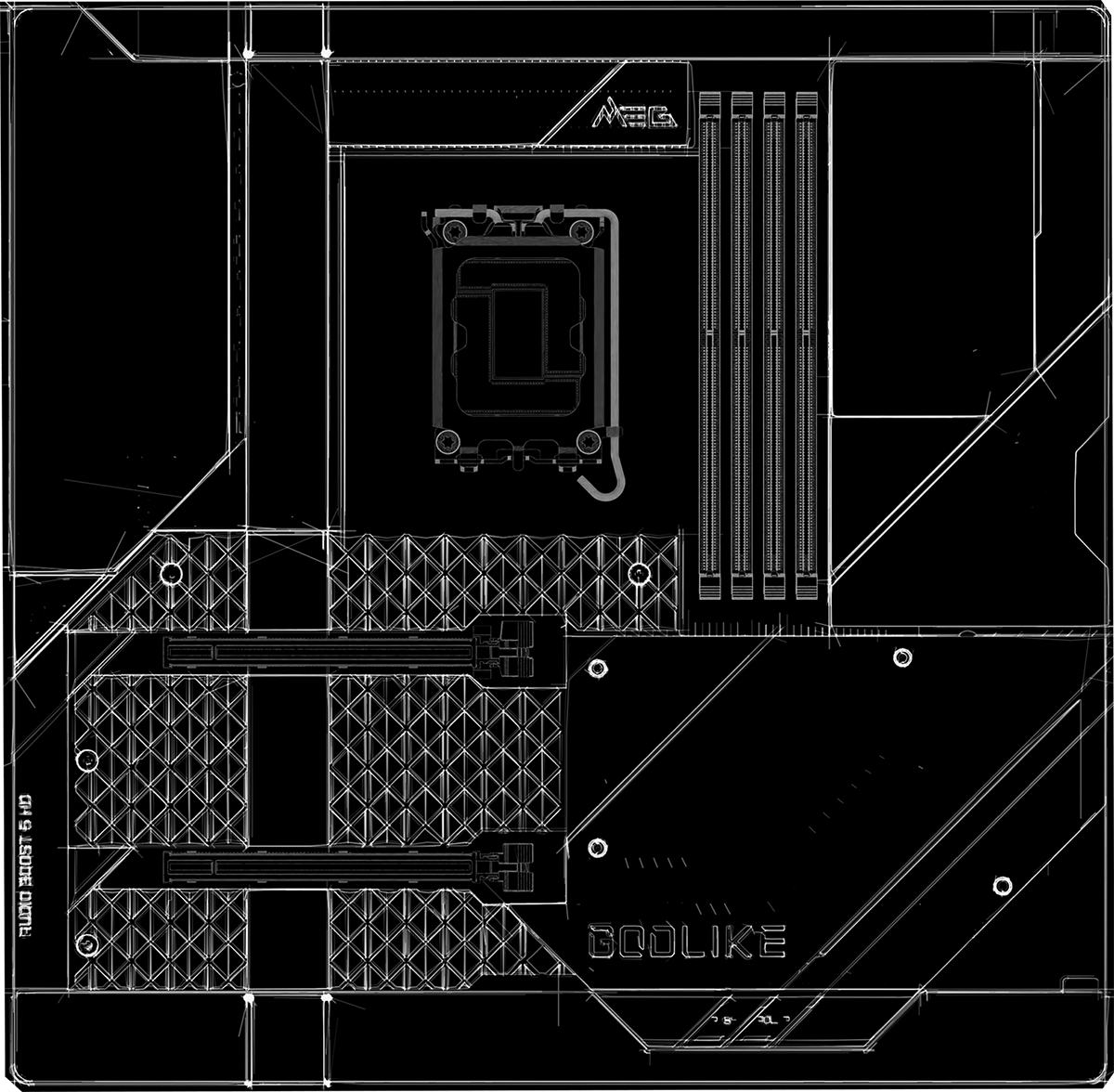

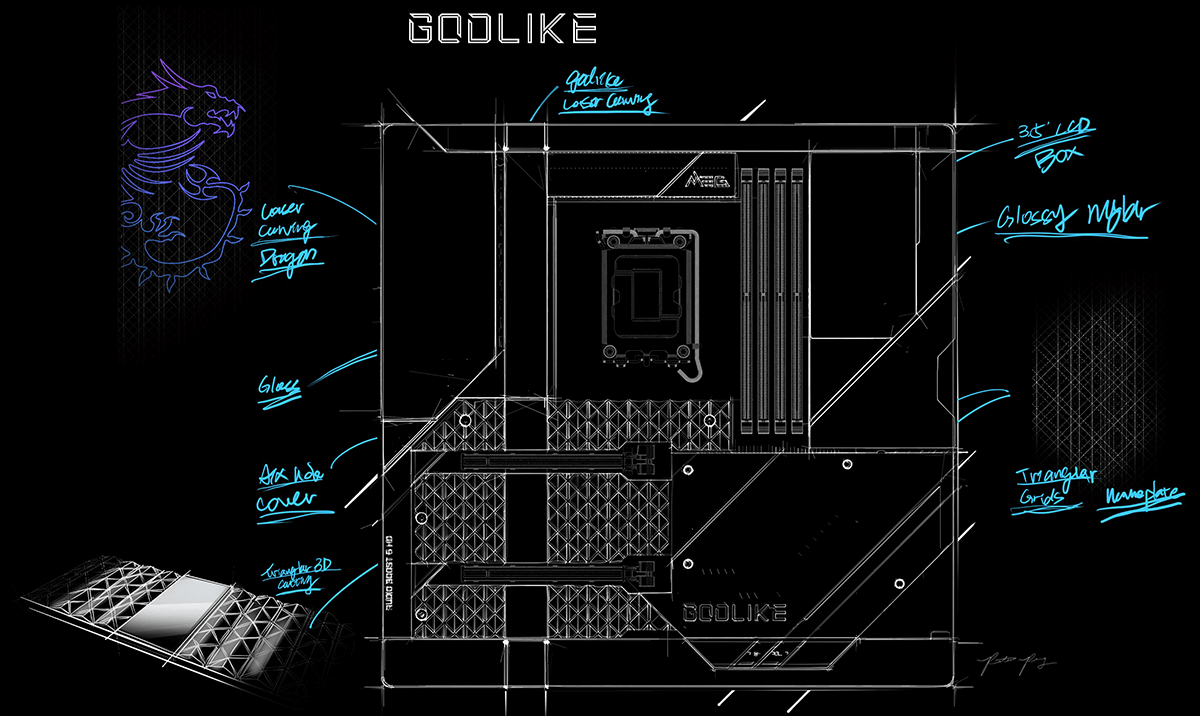

THE ONE UNIVERSE DESIGN

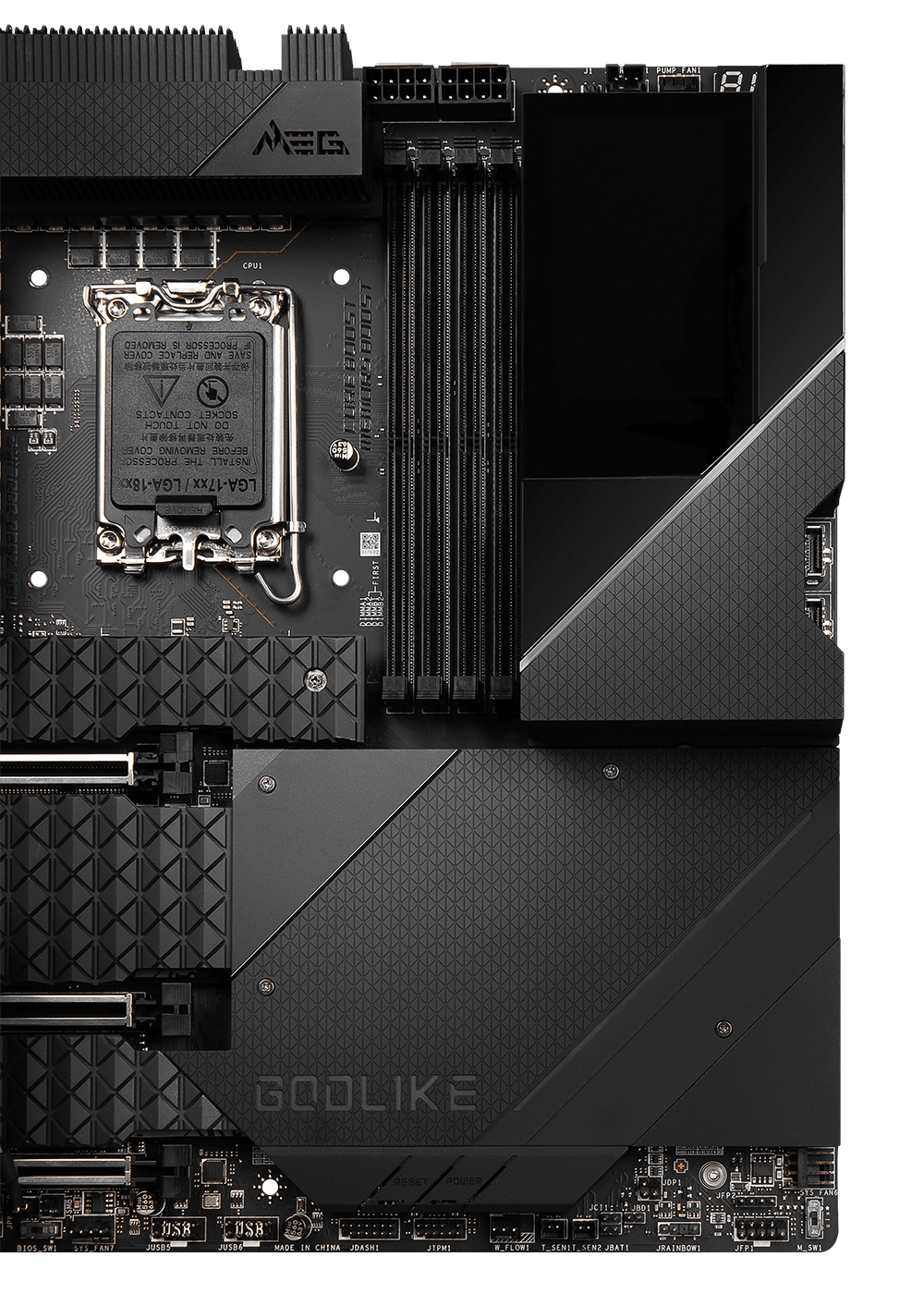

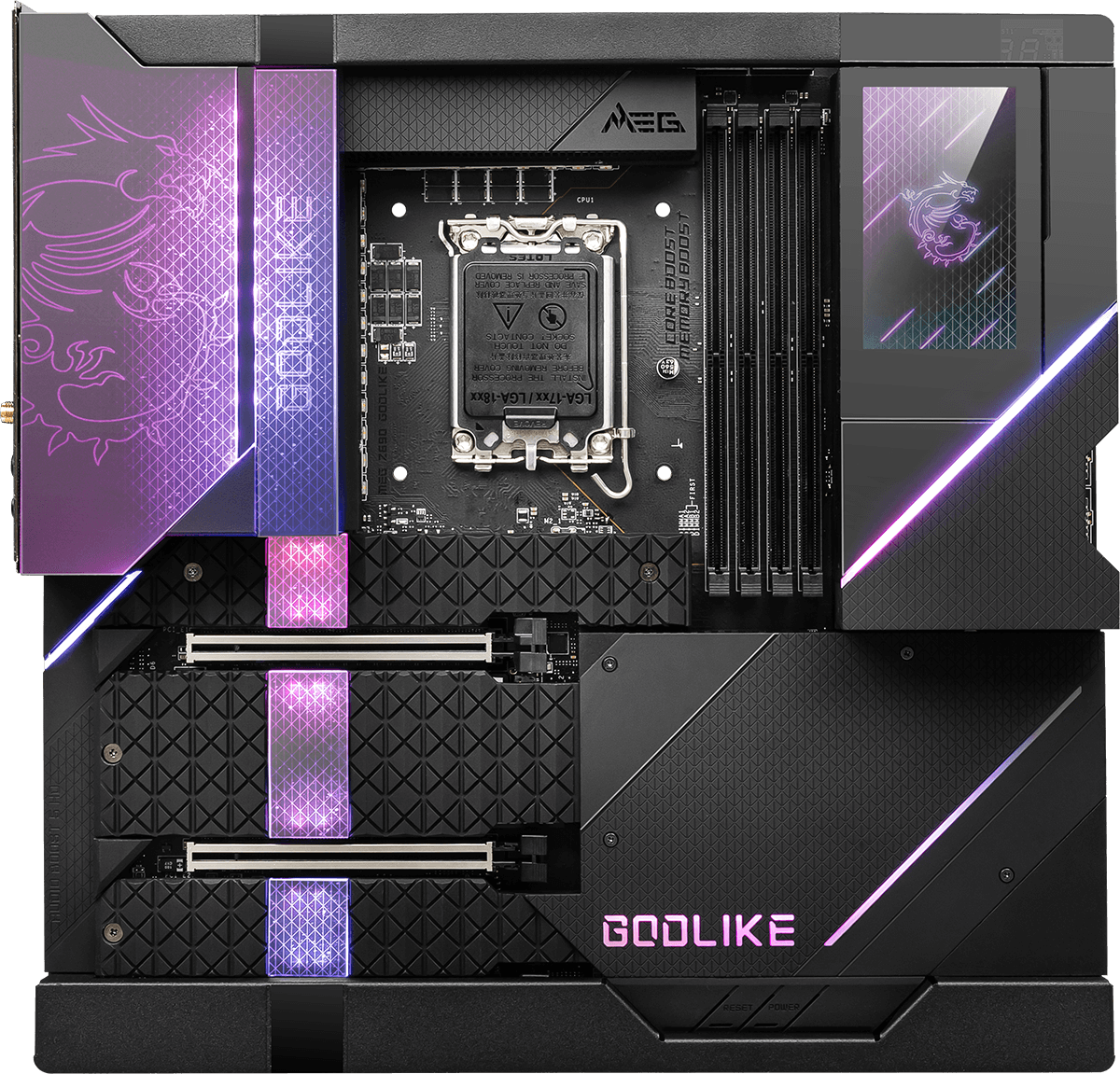

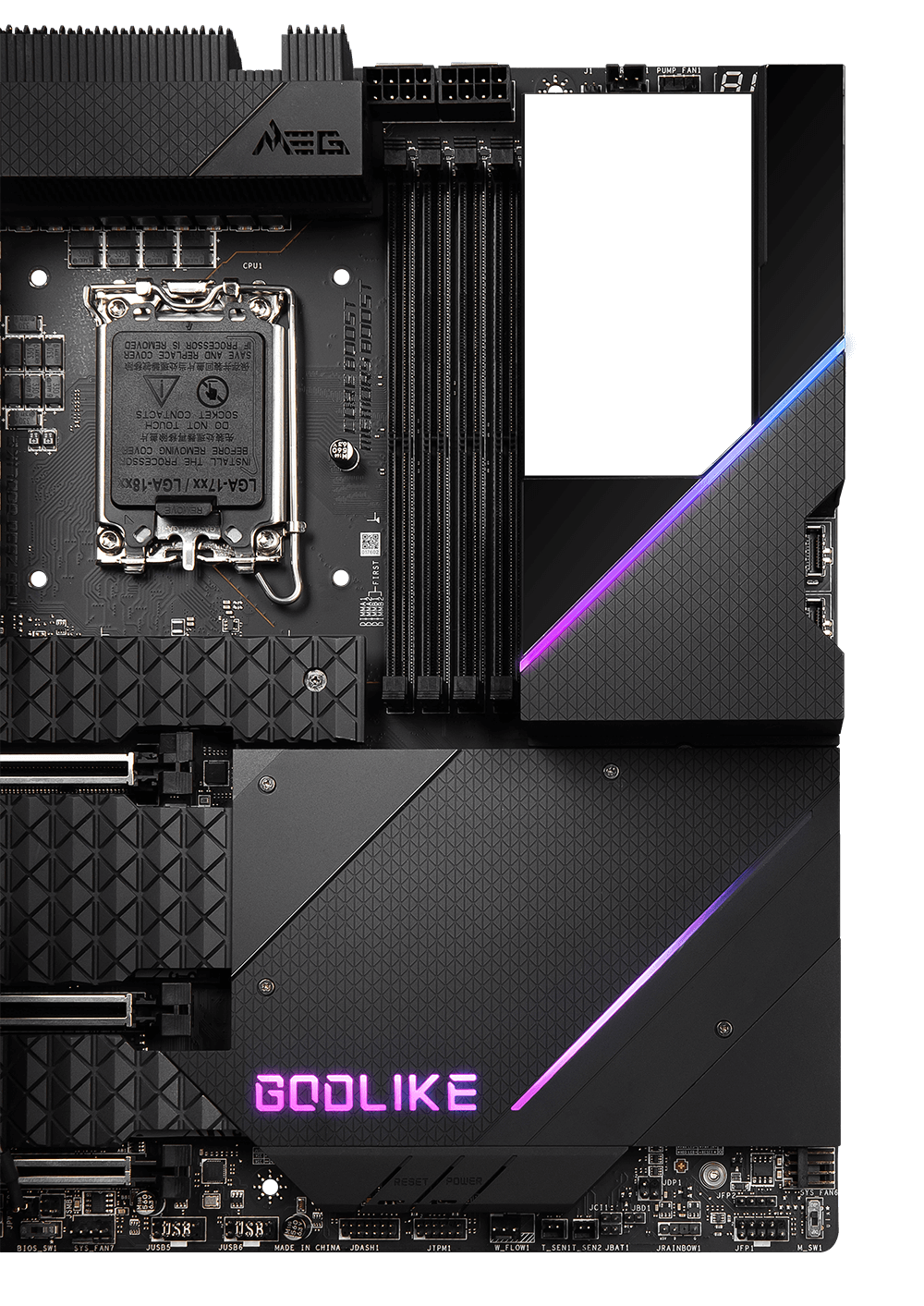

它覆盖着深色、深且全铝制的散热片，采用三角形网格图案制作。 带有钢化玻璃的发光龙星云以信仰之柱和流星RGB效果彰显力量。 MEG Z690 GODLIKE 象征着一个宇宙的无穷力量，准备好迎接每一个挑战。

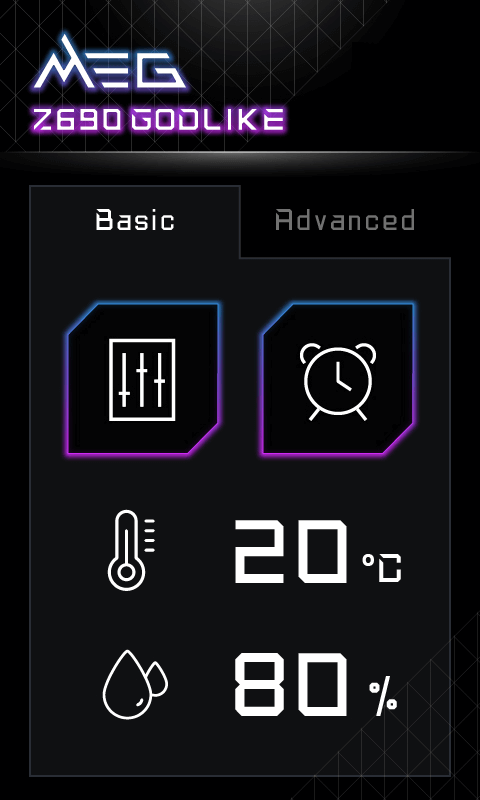

DASHBOARD
主板内置 LCD屏幕
- 3.5 英寸IPS屏幕
- 触控
- 全彩显示
- 扬声器功能
- 磁吸接口
- Customizable with SW
龙魂动态面板的触控设计允许用触控进行多应用程序控制。

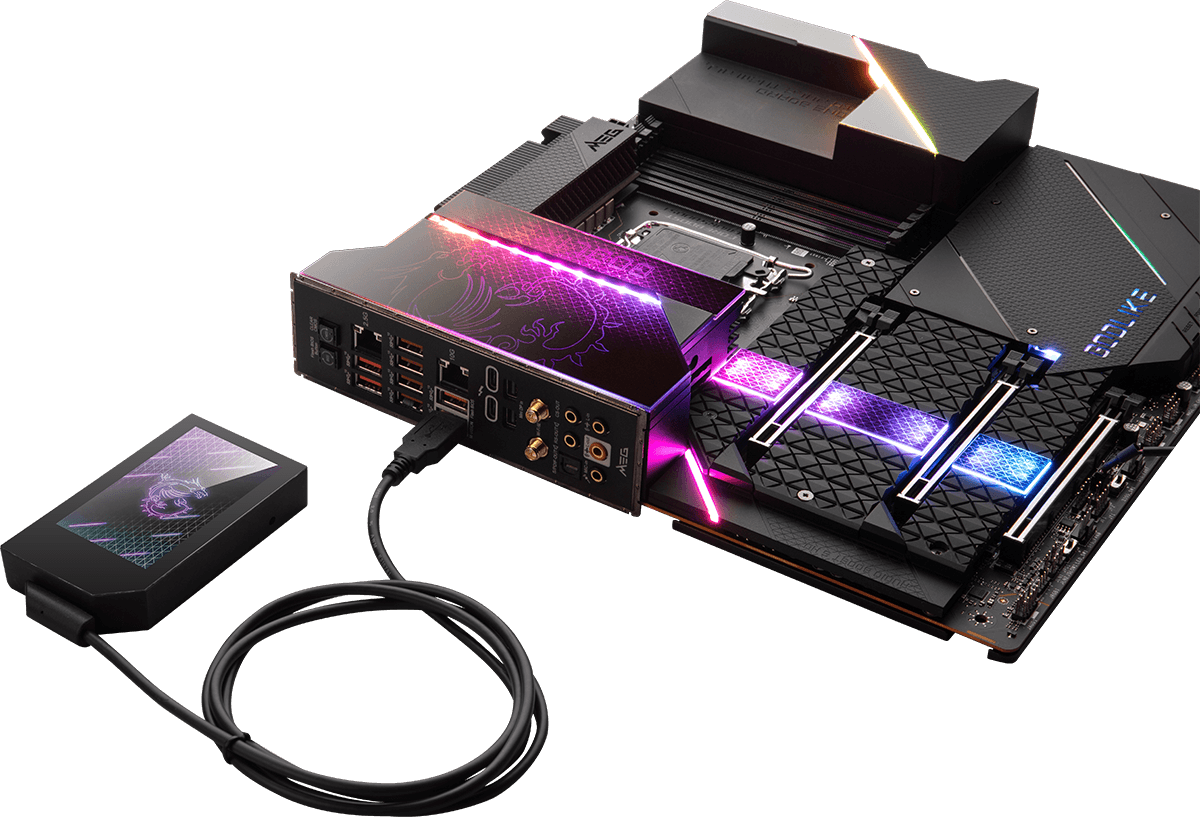

对板载操作不满意？ 分离模式 为您的PC控制带来一种全新的体验
1. Detach the M-Vision Dashboard
2.使用专用 USB 端口连接仪表板

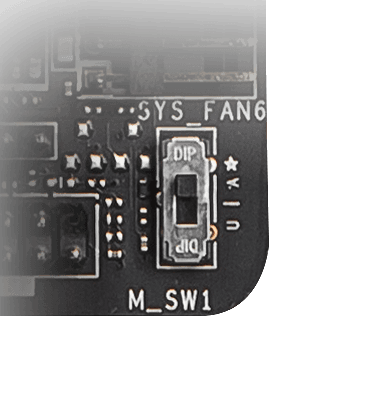

3. Turn up the M_SW switch and receive an entire new form for your PC operation

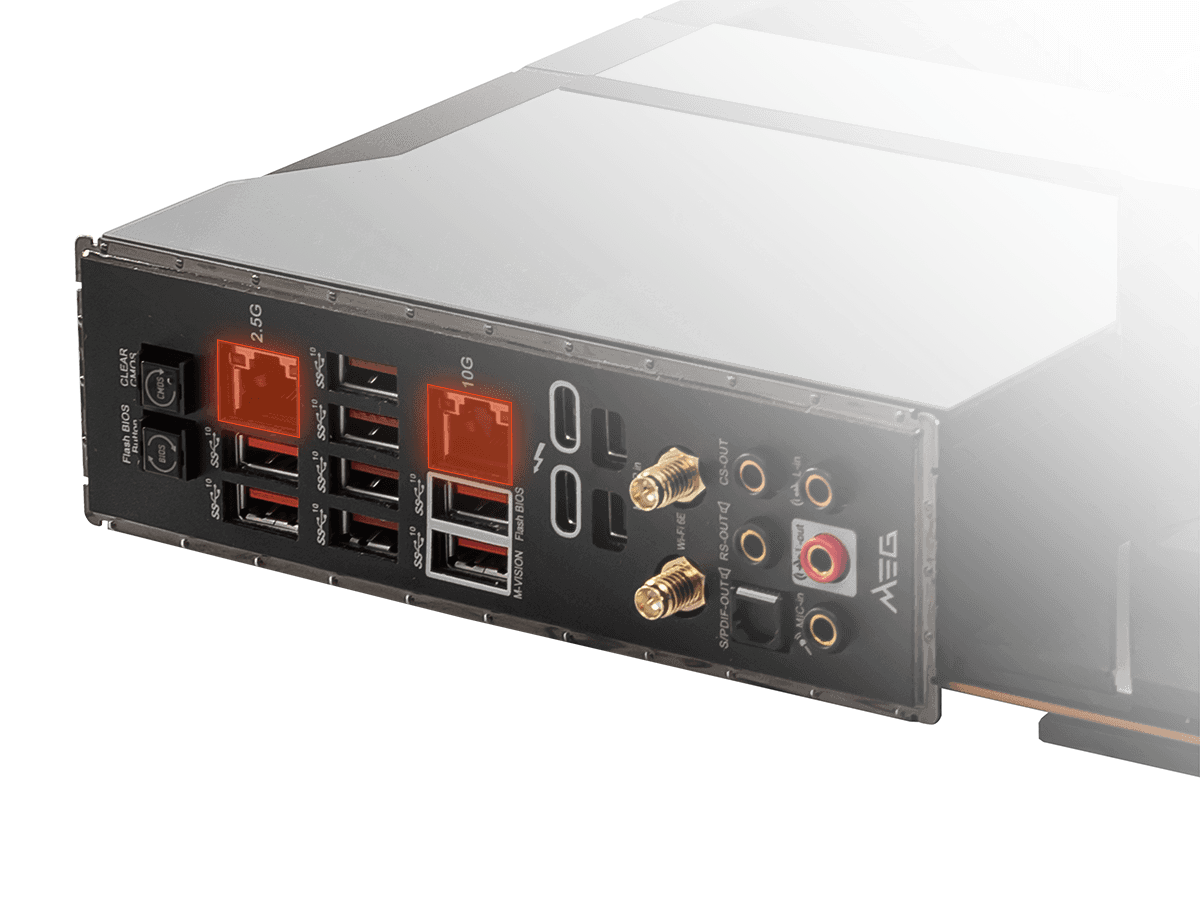

LATEST
CONNECTIVITY
Onboard 10G万兆有线网络 与2.5G 有线网络 提供无延迟的最佳在线体验

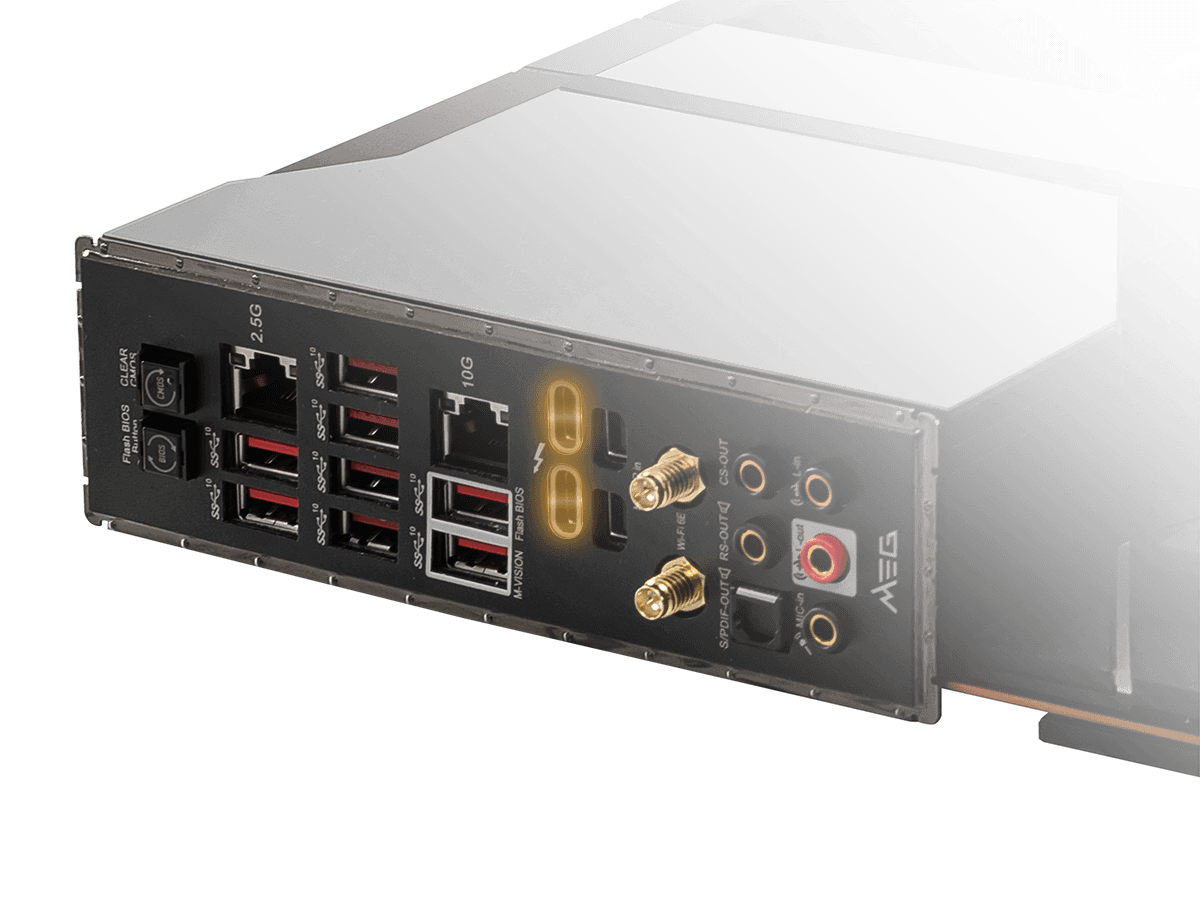

Thunderbolt 4 以真正的 40 Gb/s 速度带来 USB-C，支持 8K 显示， Daisy-Chaining和多端口附件架构。

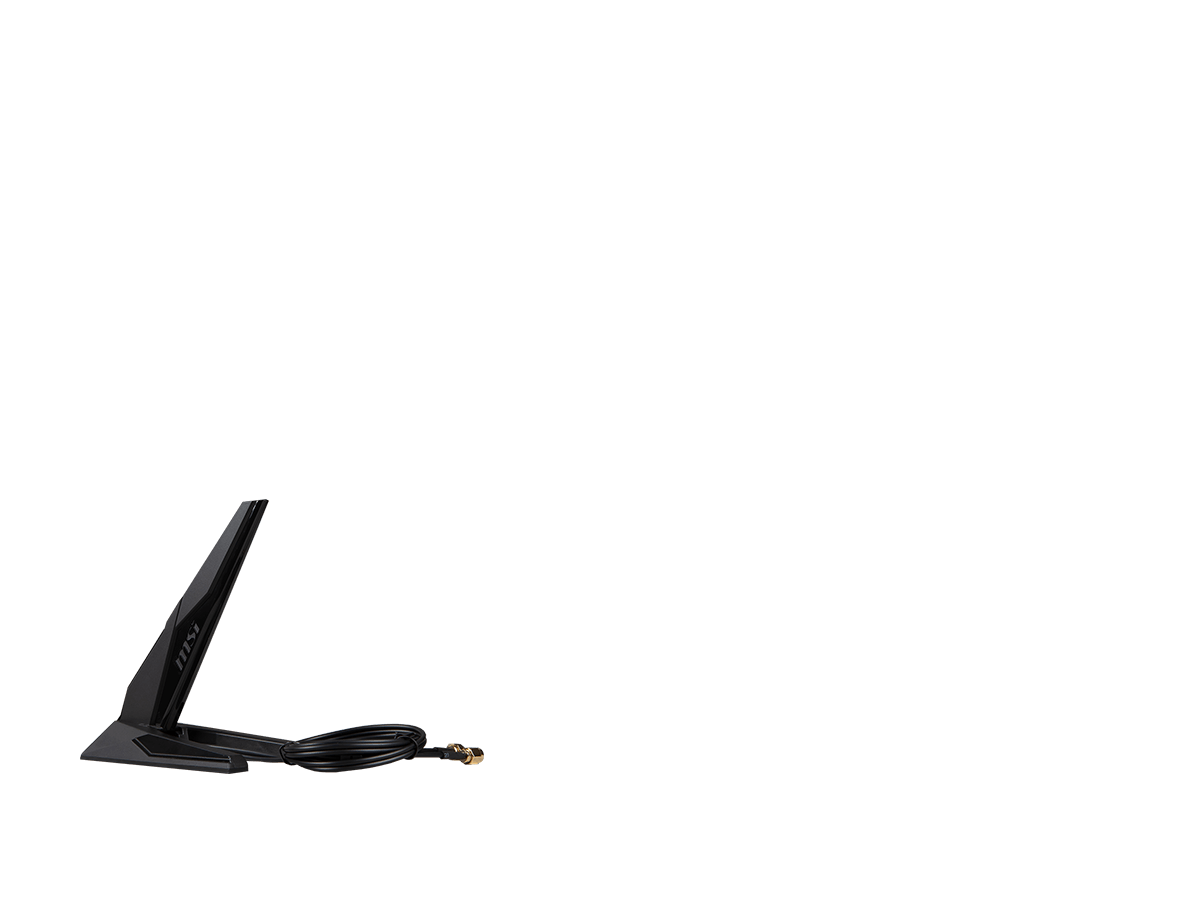

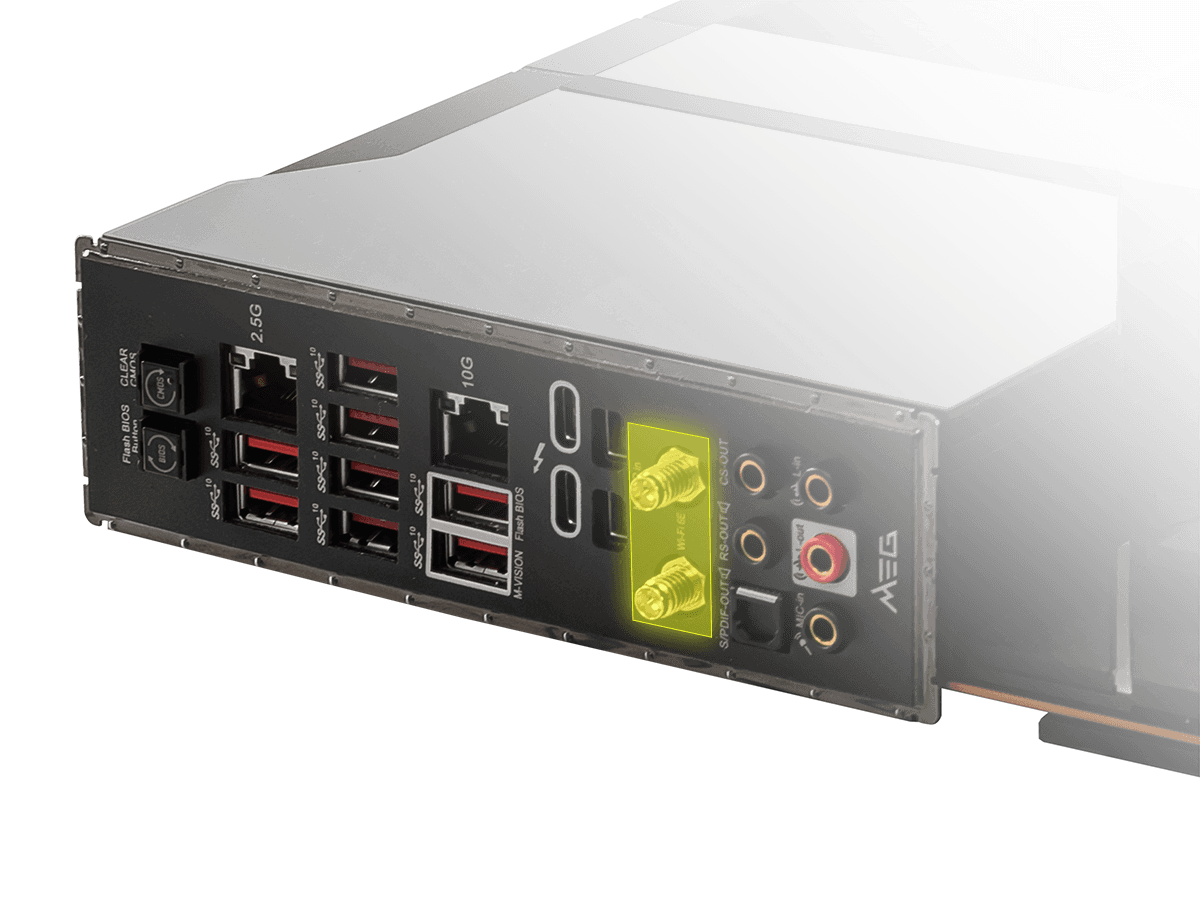

新一代 Wi-Fi 6E 支持 6GHz 频率、MU-MIMO 和 BSS 技术 传输速度高达 2400Mbps.

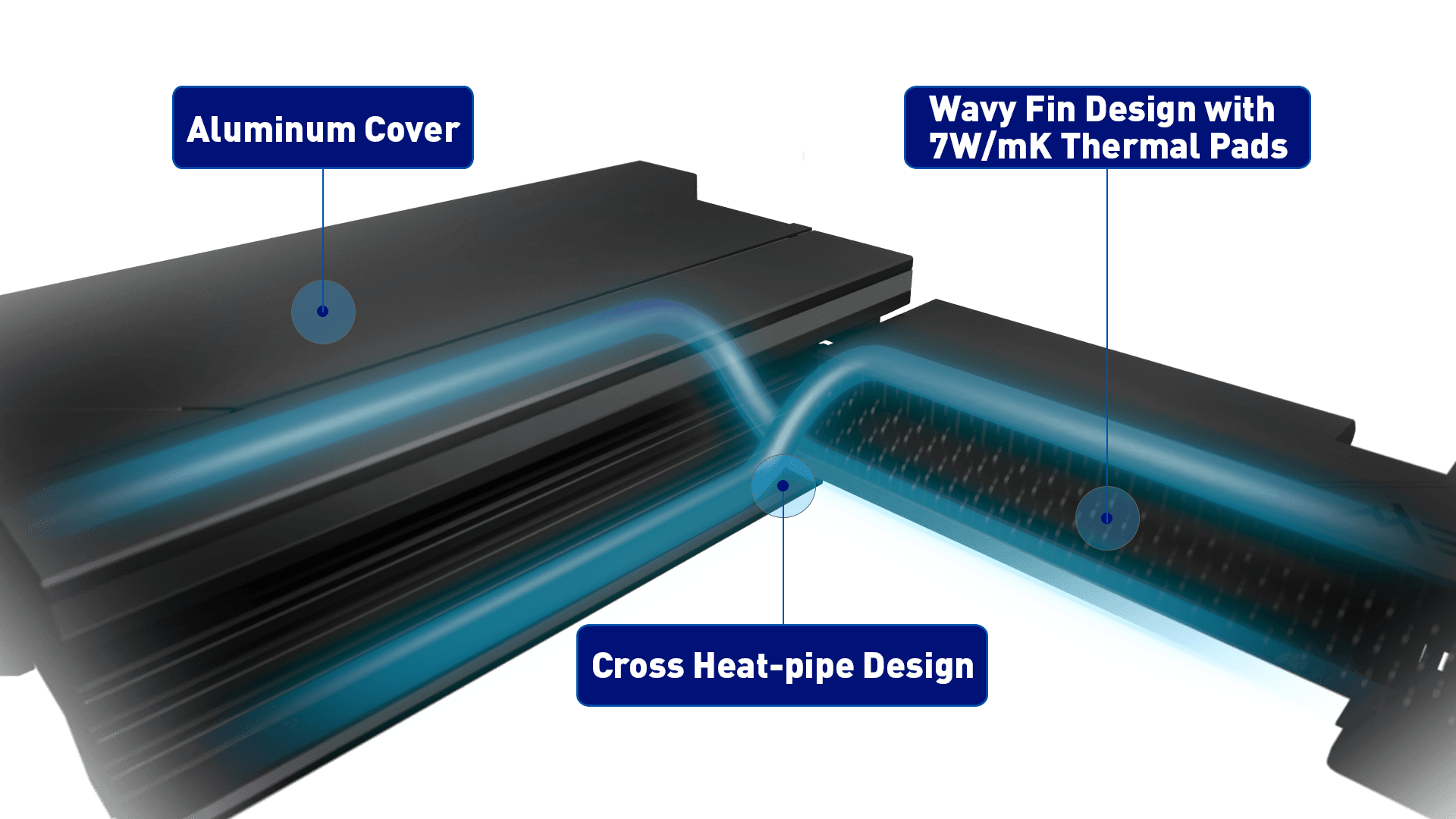

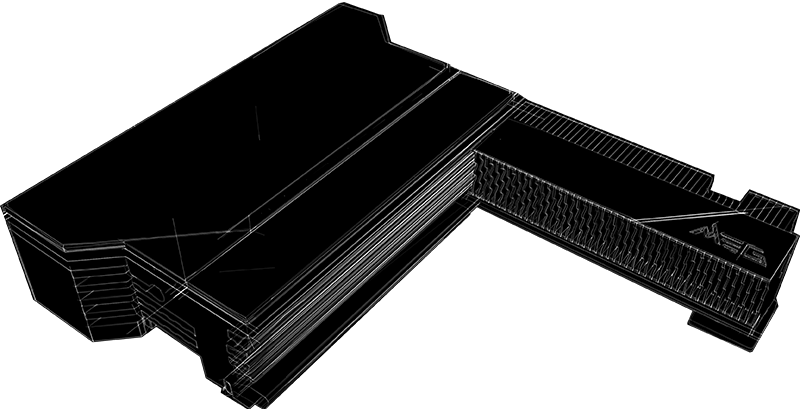

与散热
方案
优质的冷却解决方案可确保在低温下具有出色的性能。

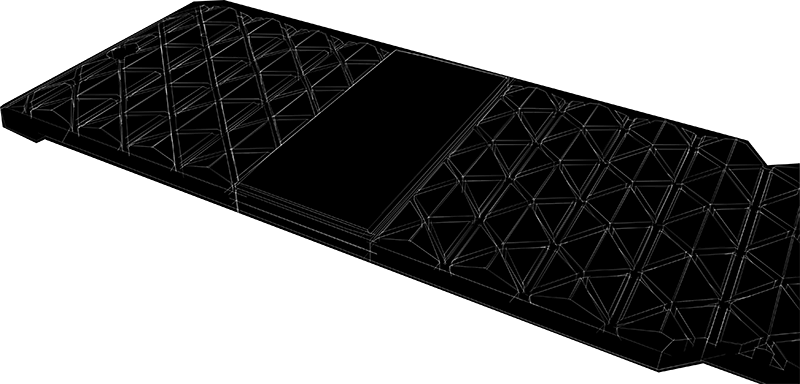

- 鳍片设计
- 导热热管
- 全金属覆盖
Direct 20+2相 105A SPS 电源设计 准备好发挥处理器的强大性能

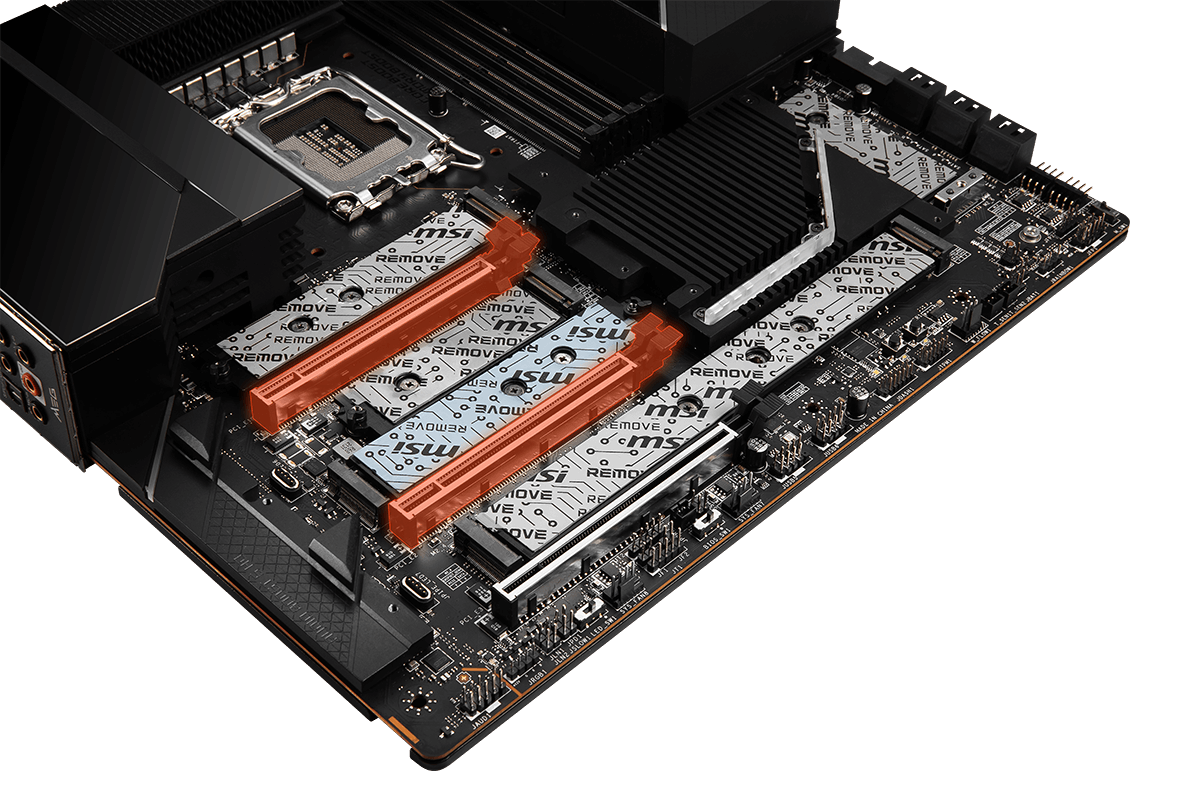

READINESS WITH
PCIE & M.2 SLOT
MSI Lightning Gen 5 PCI-E代表x16接口带宽达到128GB/s，是上一代速度的两倍。

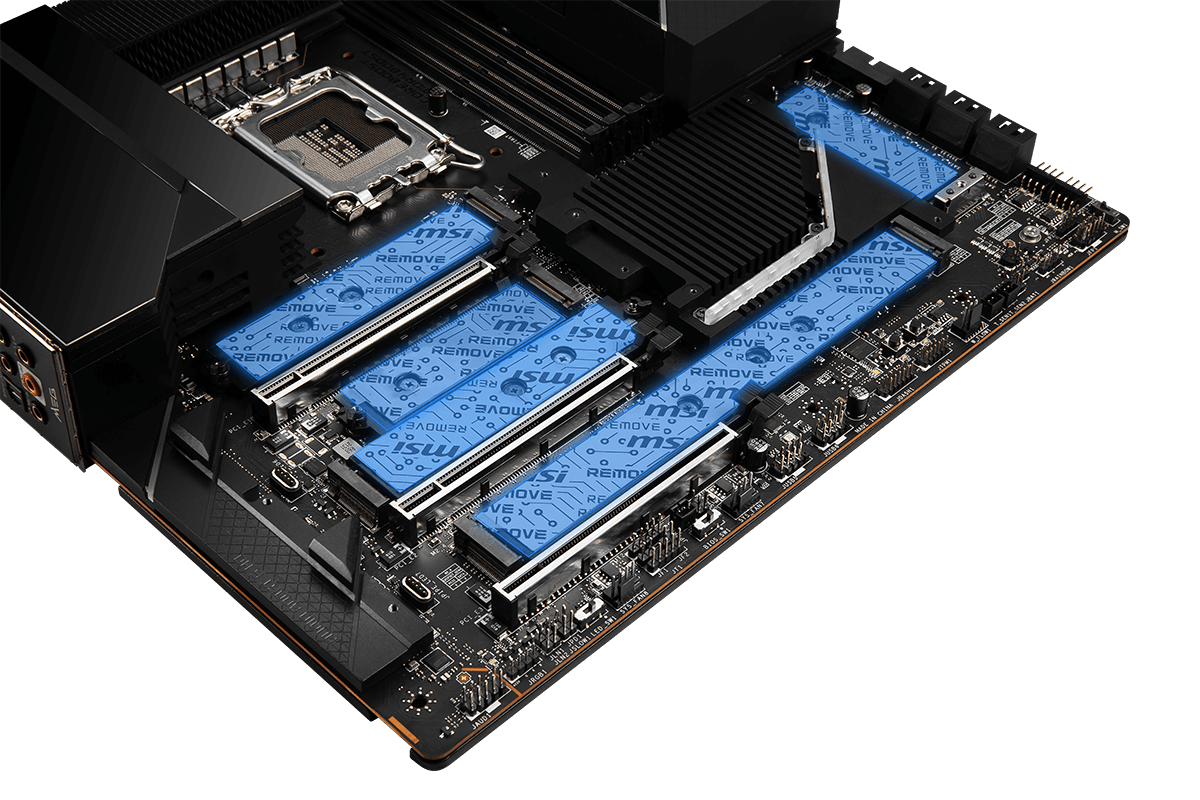

强大的存储空间 板载6x M.2 接口.
The latest Lightning Gen 5 M.2接口以获得优秀的存储性能。

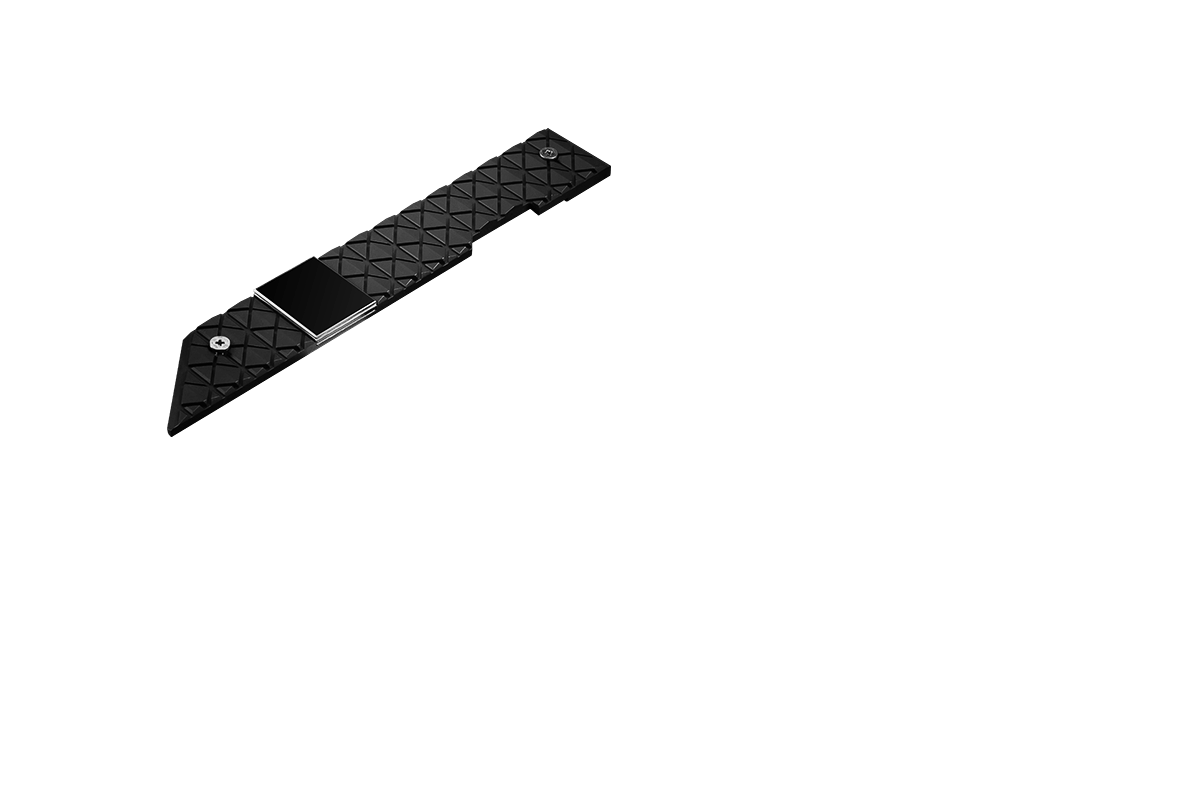

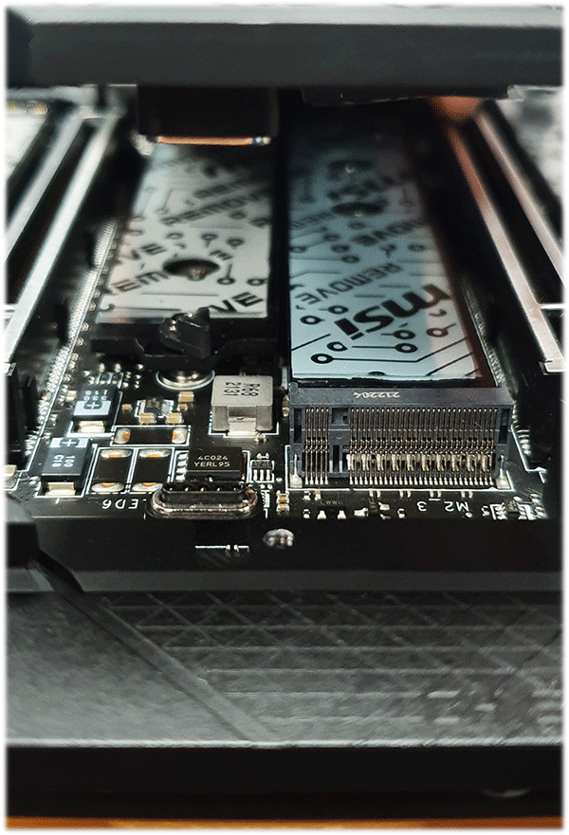

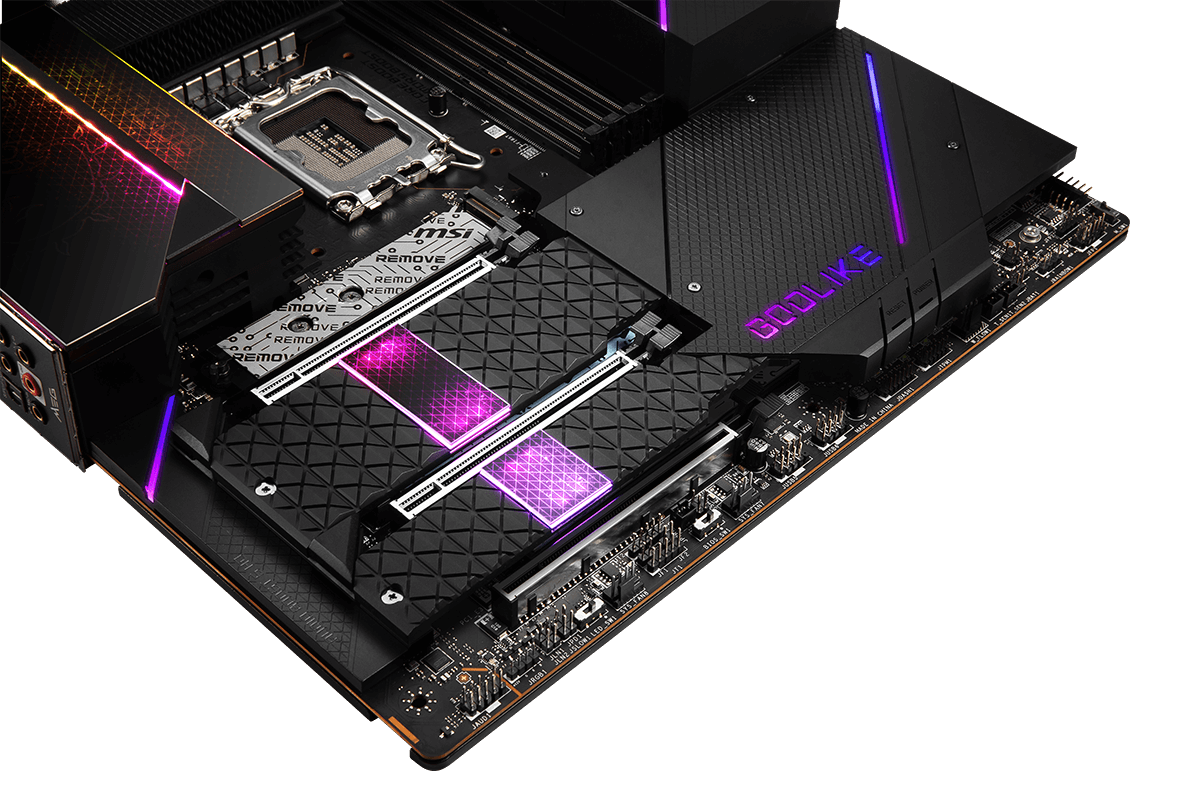

双面M.2冰霜铠甲设计使 M.2 SSD 得到有效散热，同时防止节流，运行更稳定.
统治一切
更多额外设计

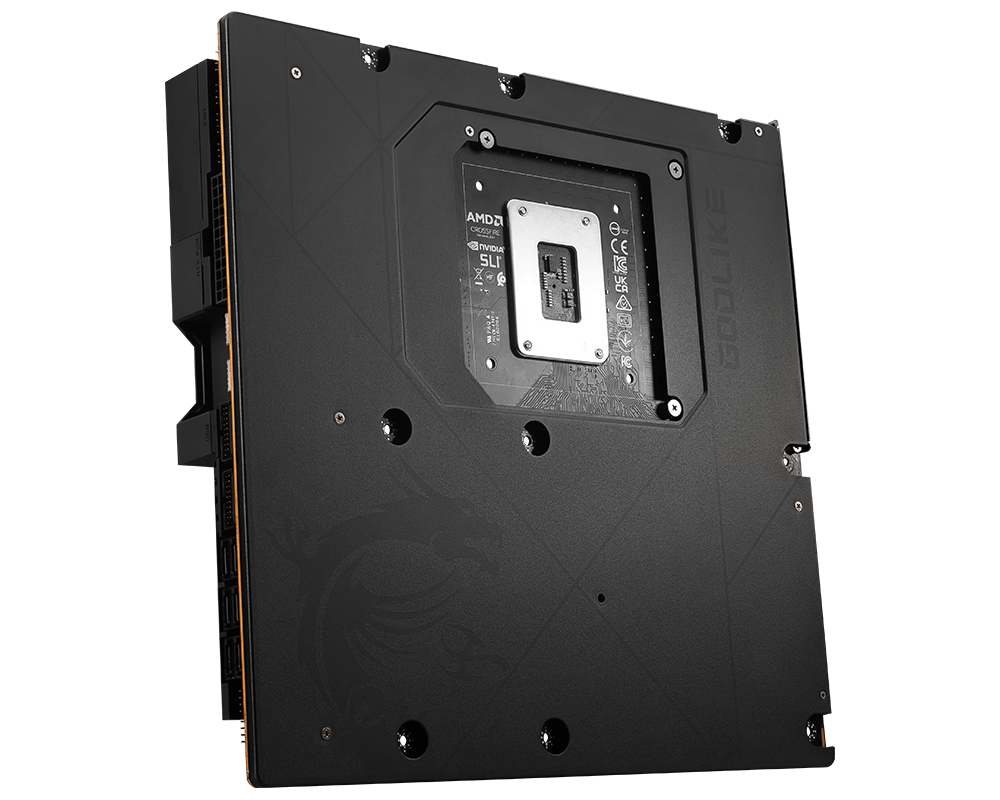

Chest Plate
新一代DDR5内存

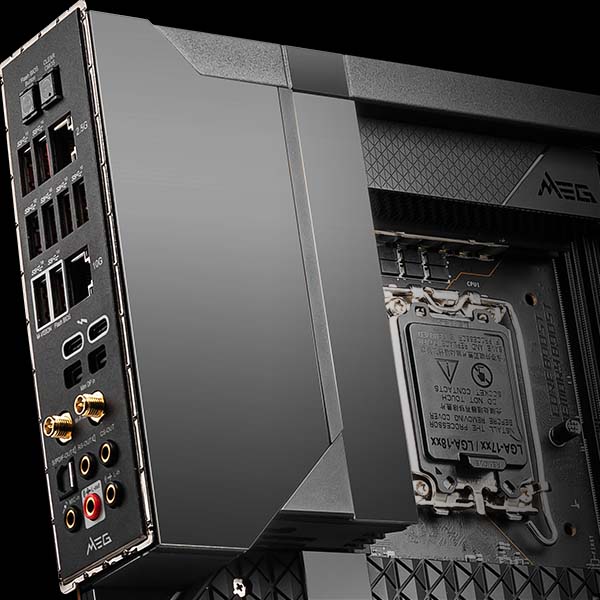

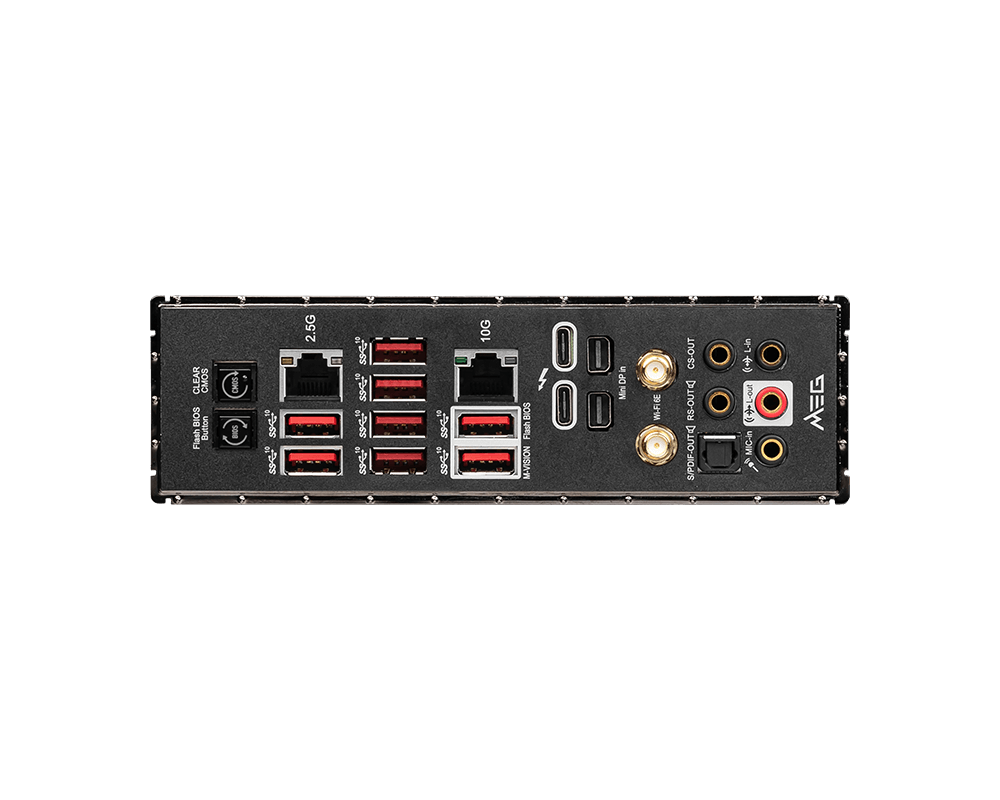

预装 IO 护盾
双前置 USB 20G Type-C
8 层服务器级PCB 2盎司铜加厚

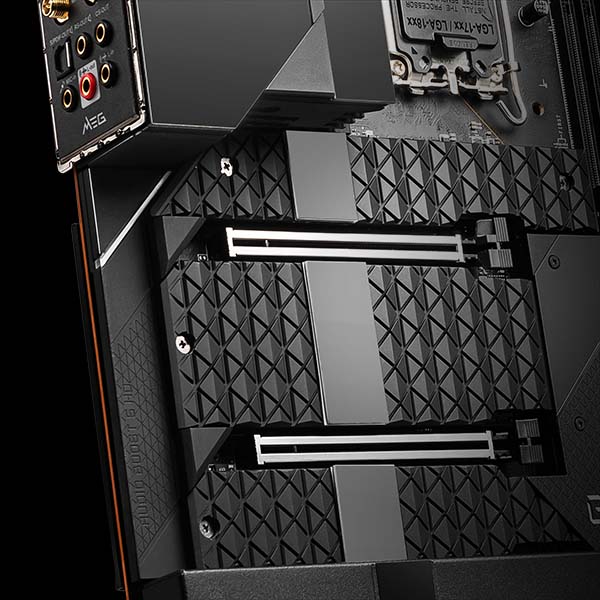

第五代电竞音效组件 HD

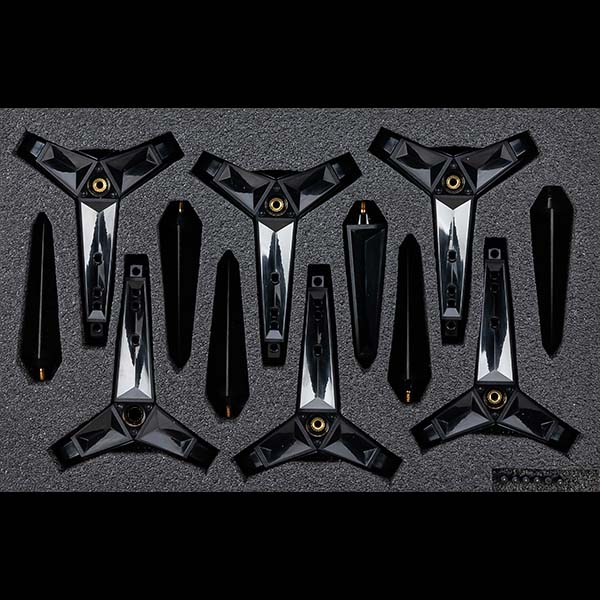

DIY标准化设置

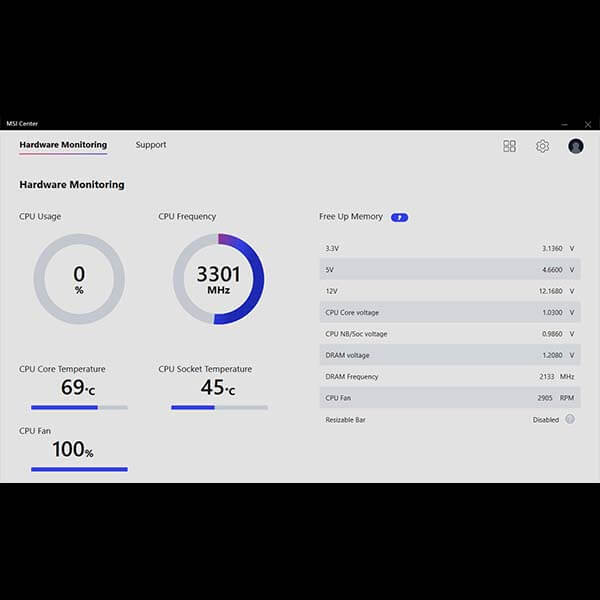

MSI Center

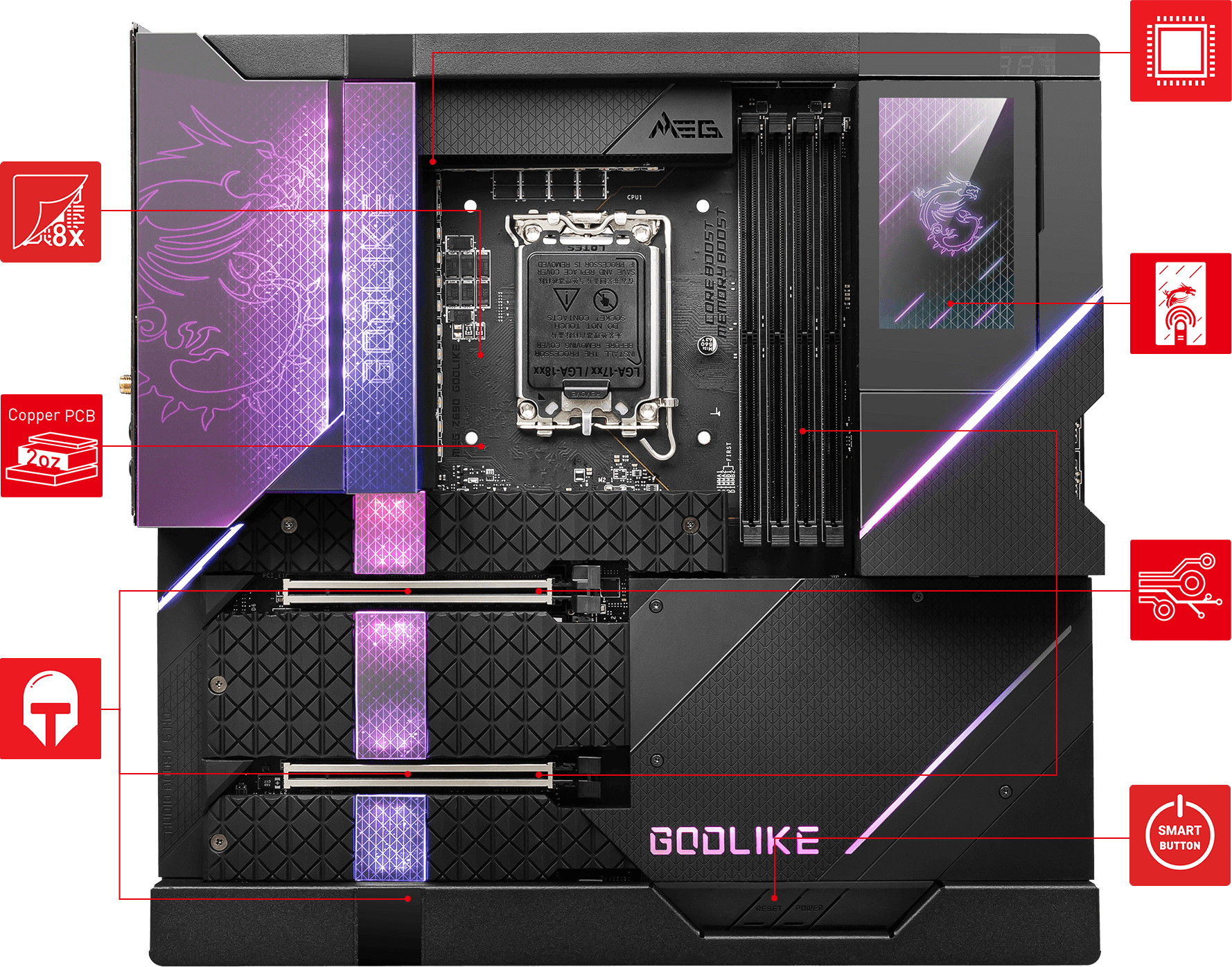

MEG Z690 GODLIKE
stable cornerstone of your system
8层服务器级PCB
2oz 加厚铜
.
PCIe钢铁装甲
20+2相105A直连供电设计
M-Vision 触摸式龙魂动态面板
高级SMT焊接工艺
智能调节按钮
8-层服务器级PCB
.
2oz 加厚铜
PCIe 钢铁装甲

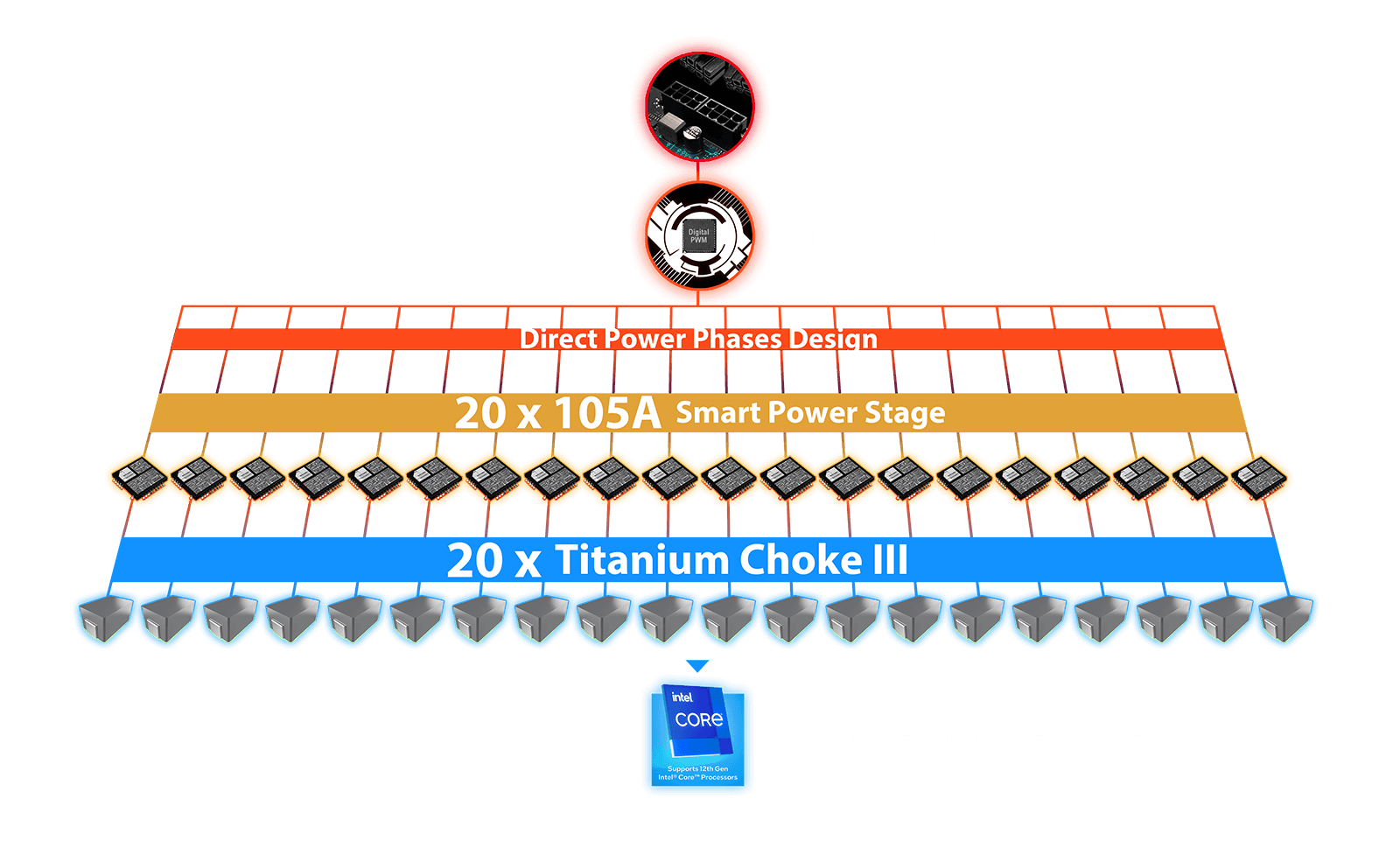

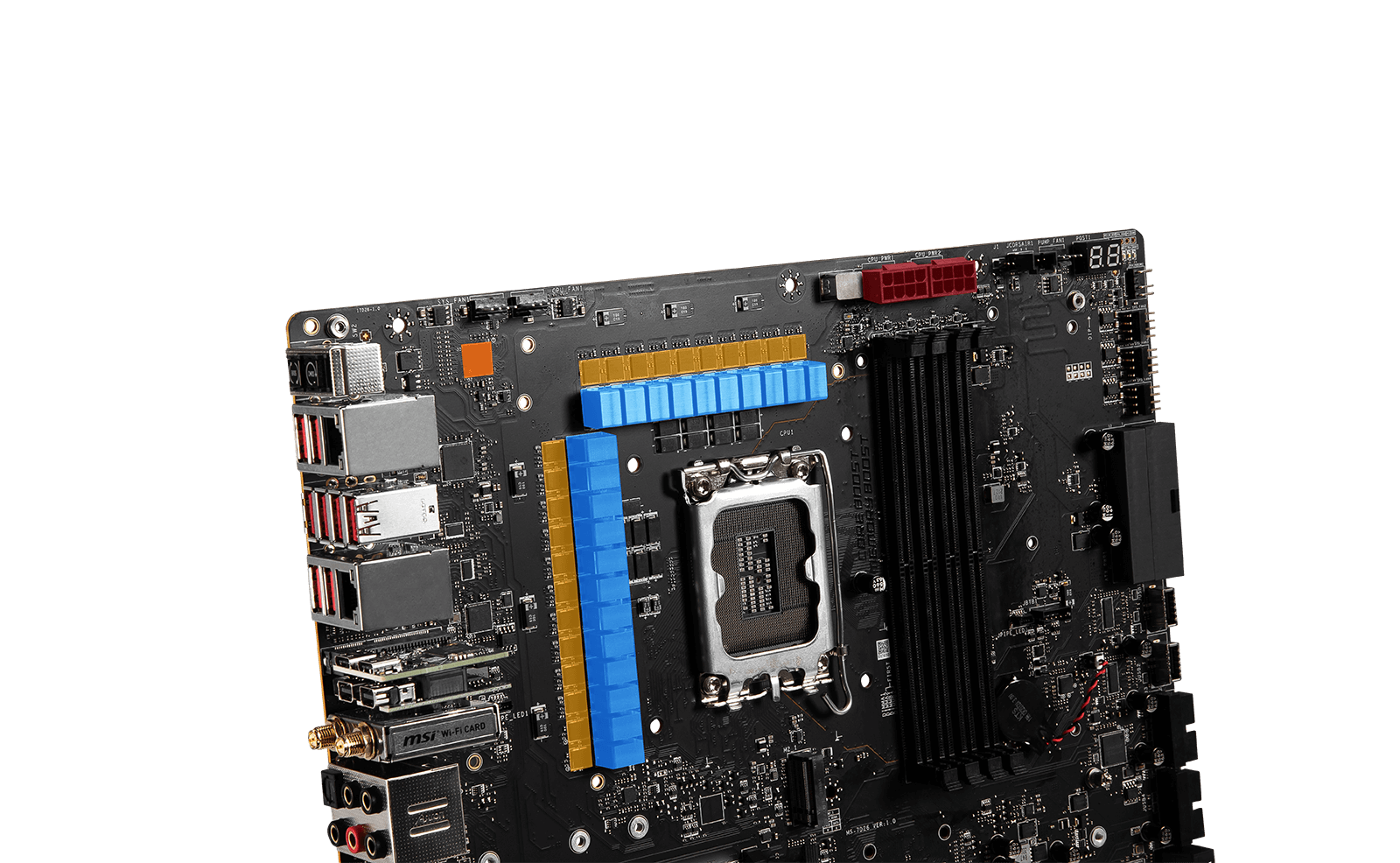

Direct 20+2 Phases with
105A Smart Power Stage
具有直接数字电源、105A SPS 和散热扼流圈 III 的高质量组件 制作 确保您的系统在各种的条件下平稳运行.
M-Vision 龙魂动态面板
.
高级SMT焊接工艺
智能调节按钮
MEG Z690 GODLIKE 超神

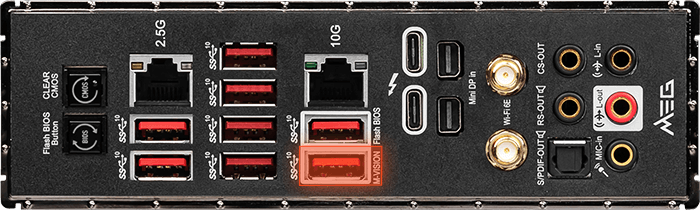

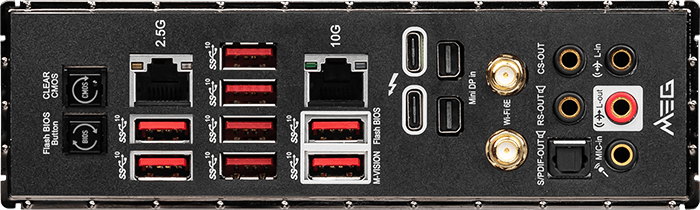

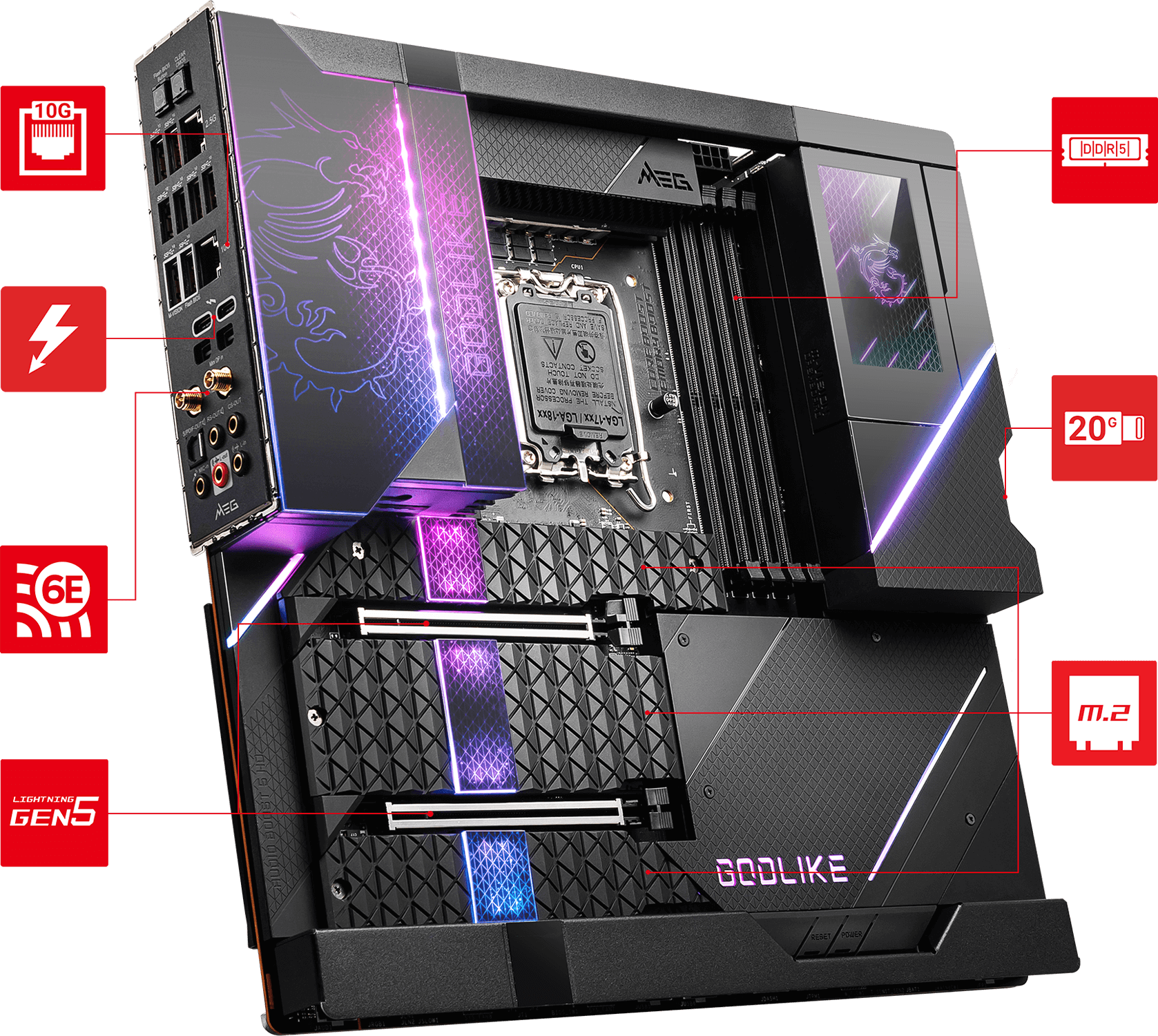

UNLIMITED CONNECTIVITY
10G 超高速有线网络 + 2.5G有线网络
双雷电™ 4接口
新一代Wi-Fi 6E 支持
PCI-E 5.0

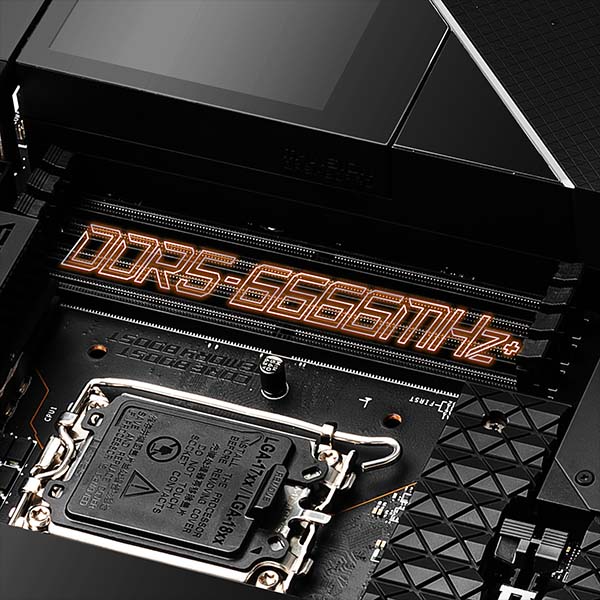

新一代 DDR5 内存
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

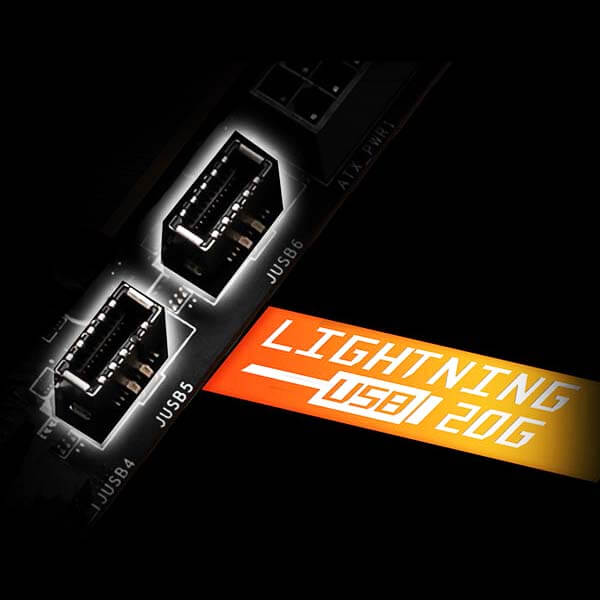

双前置 USB 20G
Lightning USB 3.2 Gen 2x2 port offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

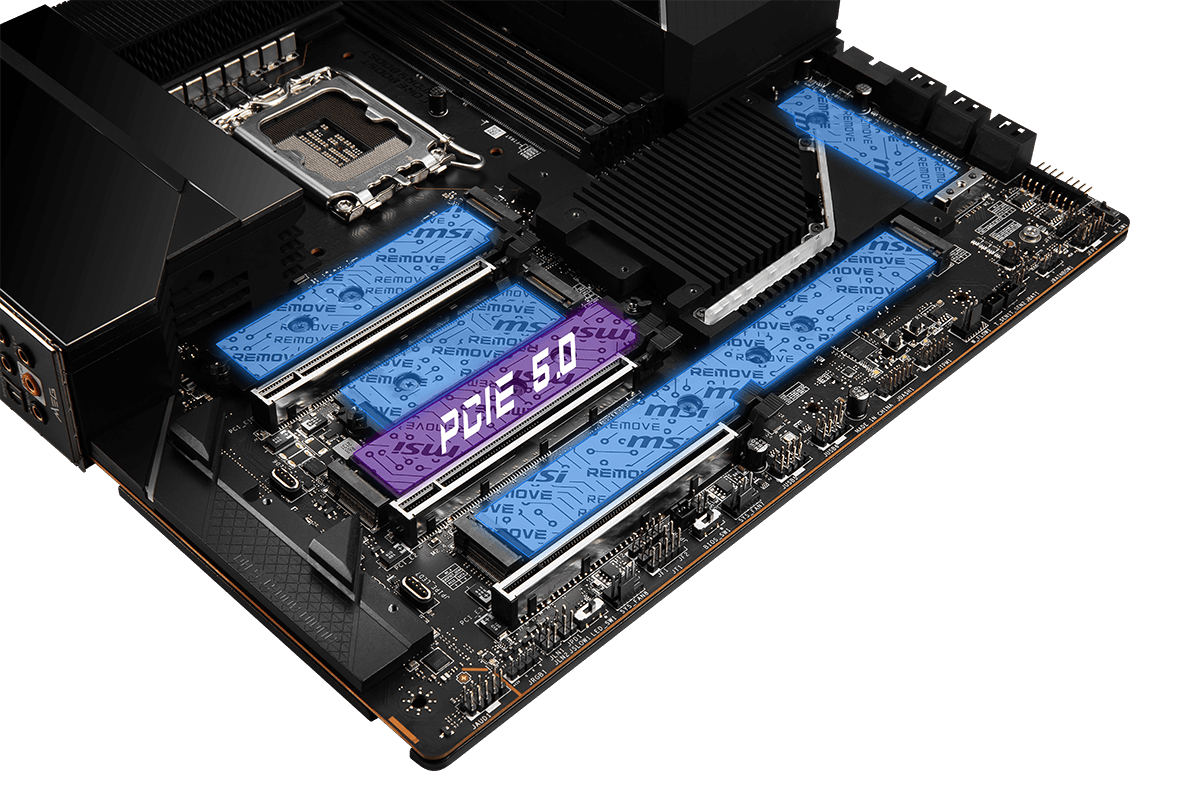

6 M.2 接口
10G 超高速有线网络 + 2.5G有线网络
双雷电™ 4 接口
新一代Wi-Fi 6E方案
Lightning Gen 5 PCI-E
新一代DDR5内存
双前置 USB 20G
多个M.2接口
MEG Z690 GODLIKE 超神

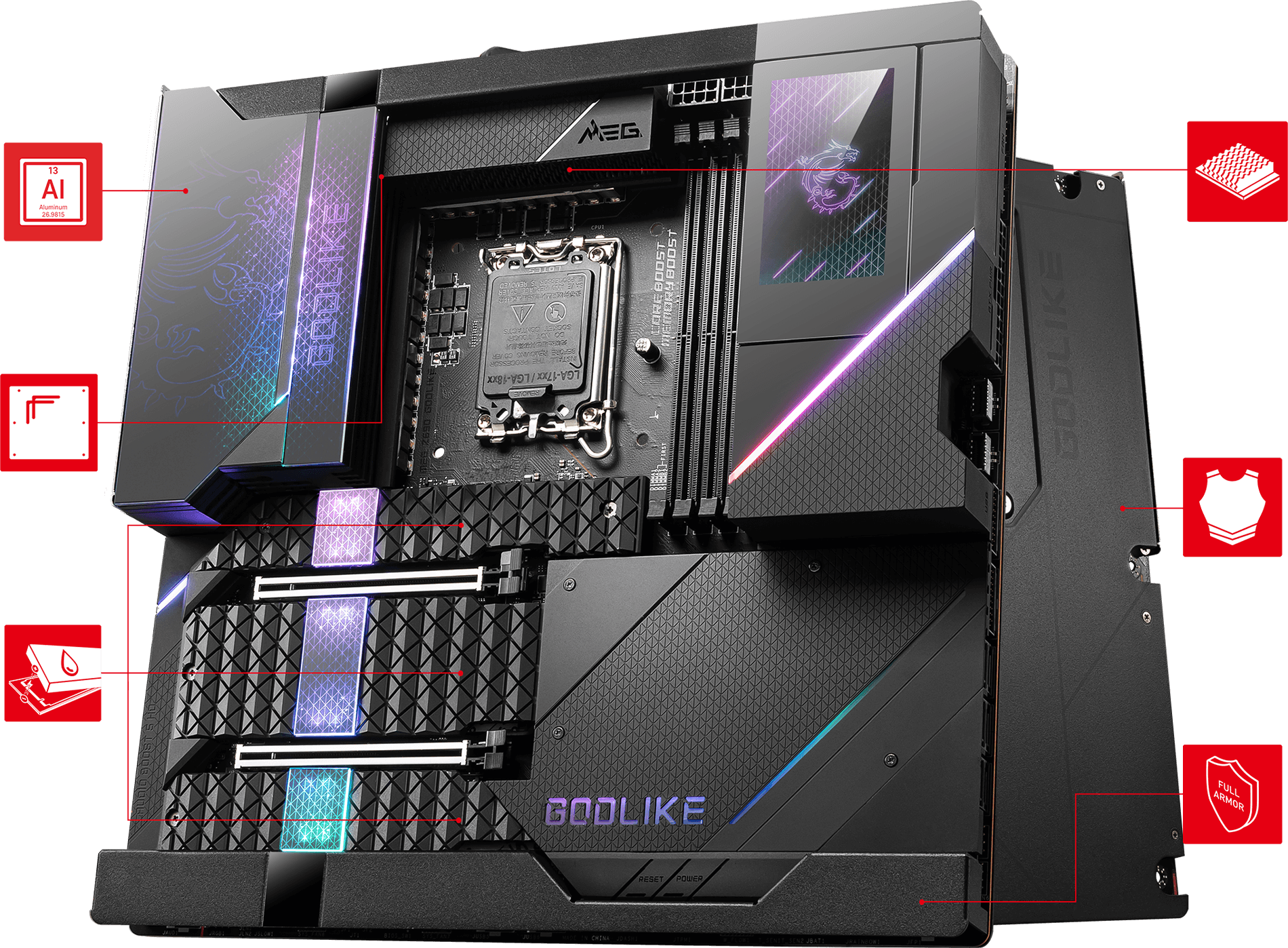

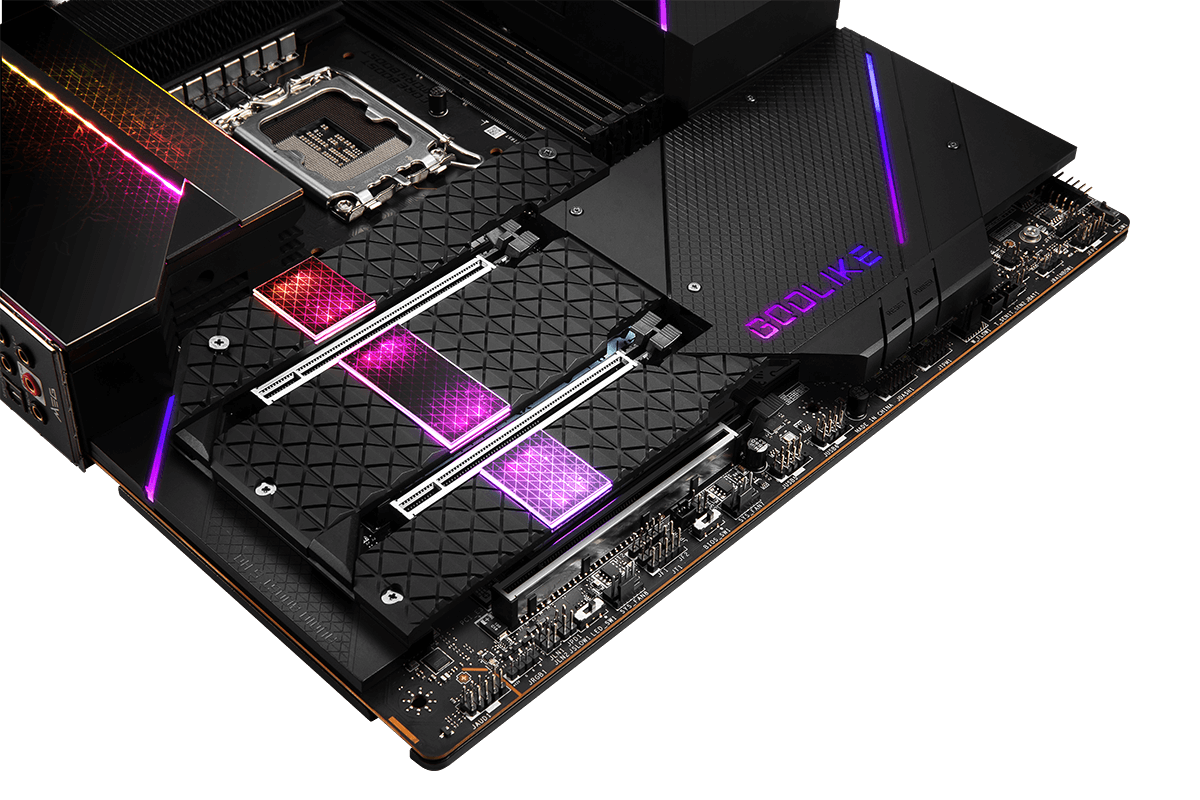

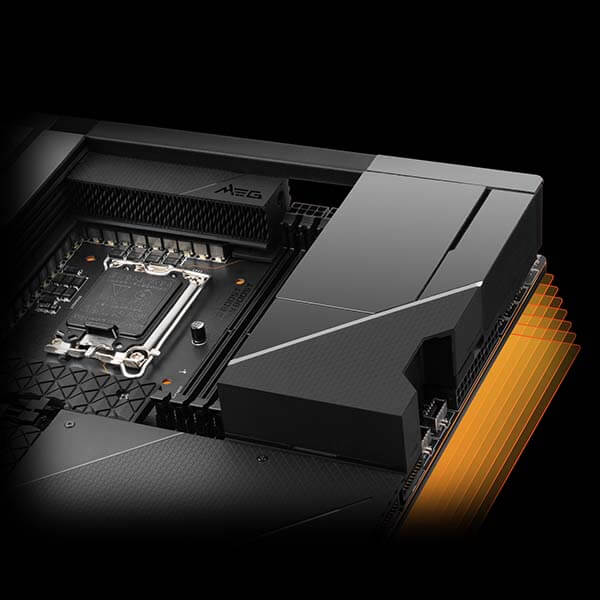

FULL ARMOR WITH PREMIUM COOLING
全金属覆盖
扩展型散热
板载导热热管
磁吸式双面
M.2 冰霜铠甲
鳍片式设计
7W/mK Thermal Pad

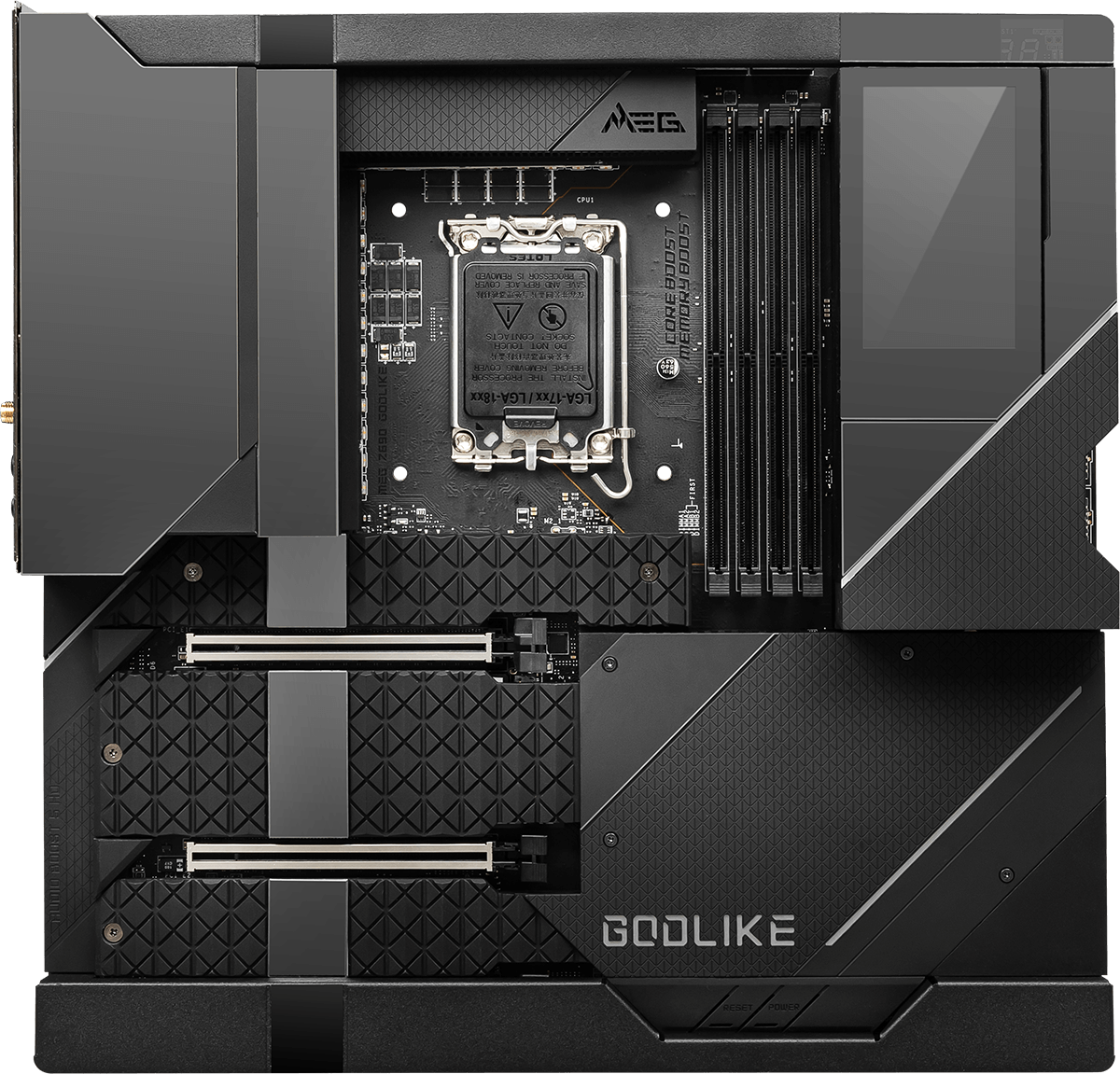

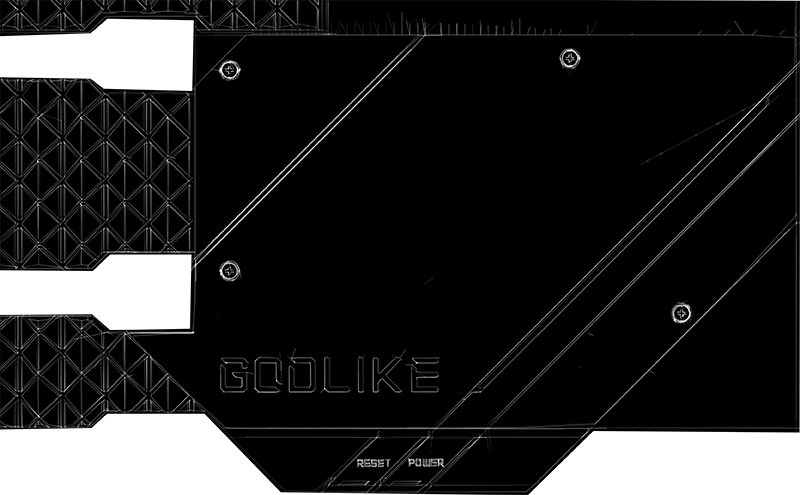

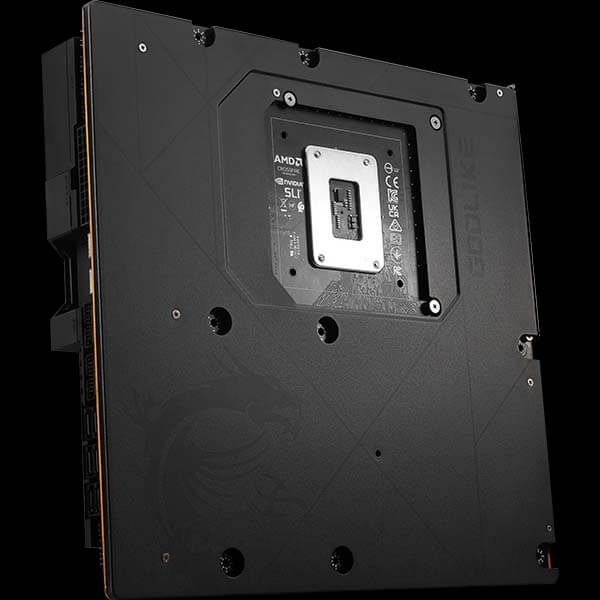

Chest Plate
全装甲覆盖
全金属覆盖散热片
板载导热热管
磁吸式双面 M.2 冰霜铠甲
带有 7W/mK 鳍片式散热垫
主板装甲
全装甲覆盖设计

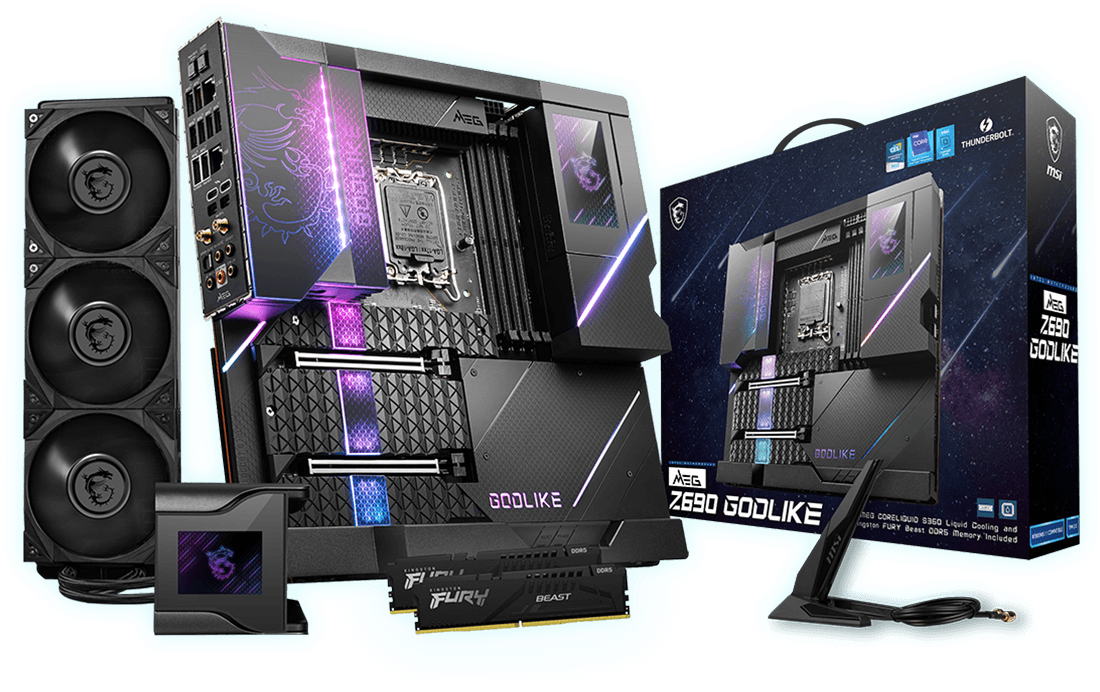

限量版 - 丰富的配件
主板: MEG Z690 GODLIKE超神
水冷: MEG CORELIQUID S360
内存: 2X KINGSTON FURY BEAST DDR5 16G
LEARN MORE

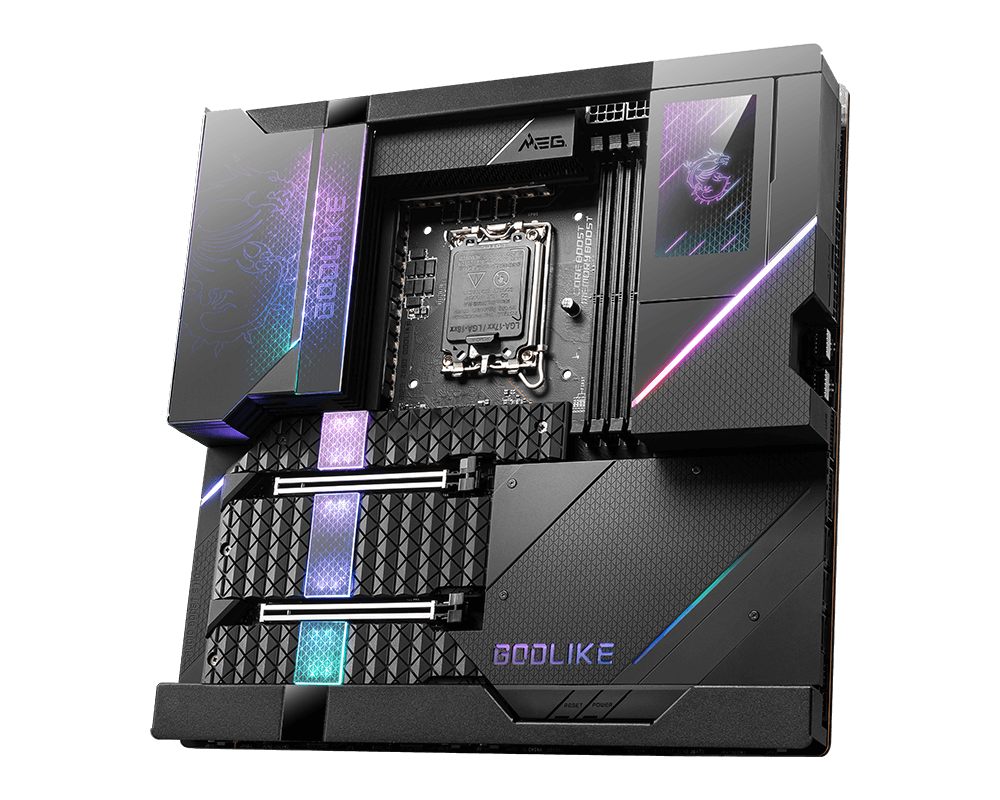

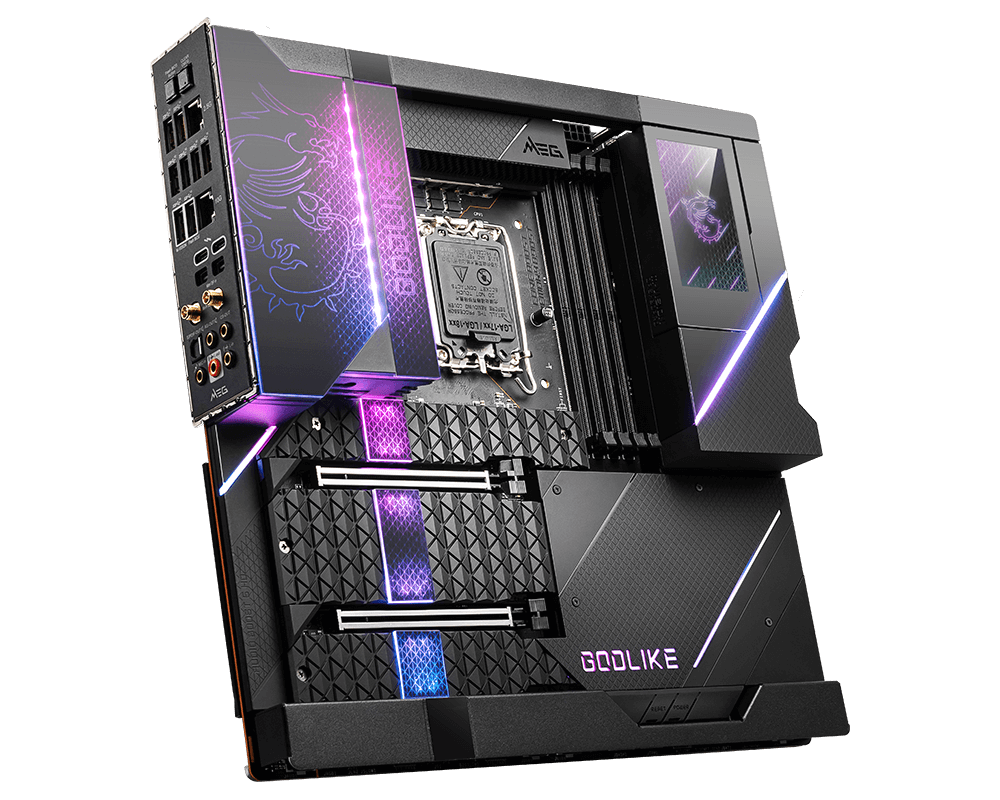

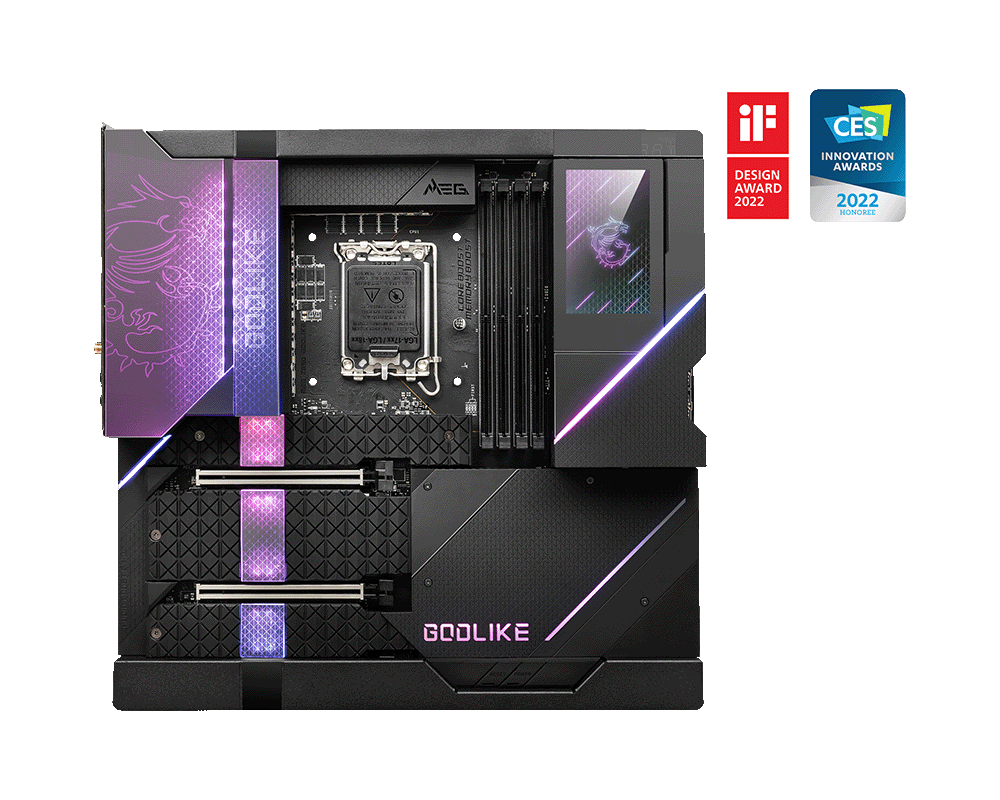

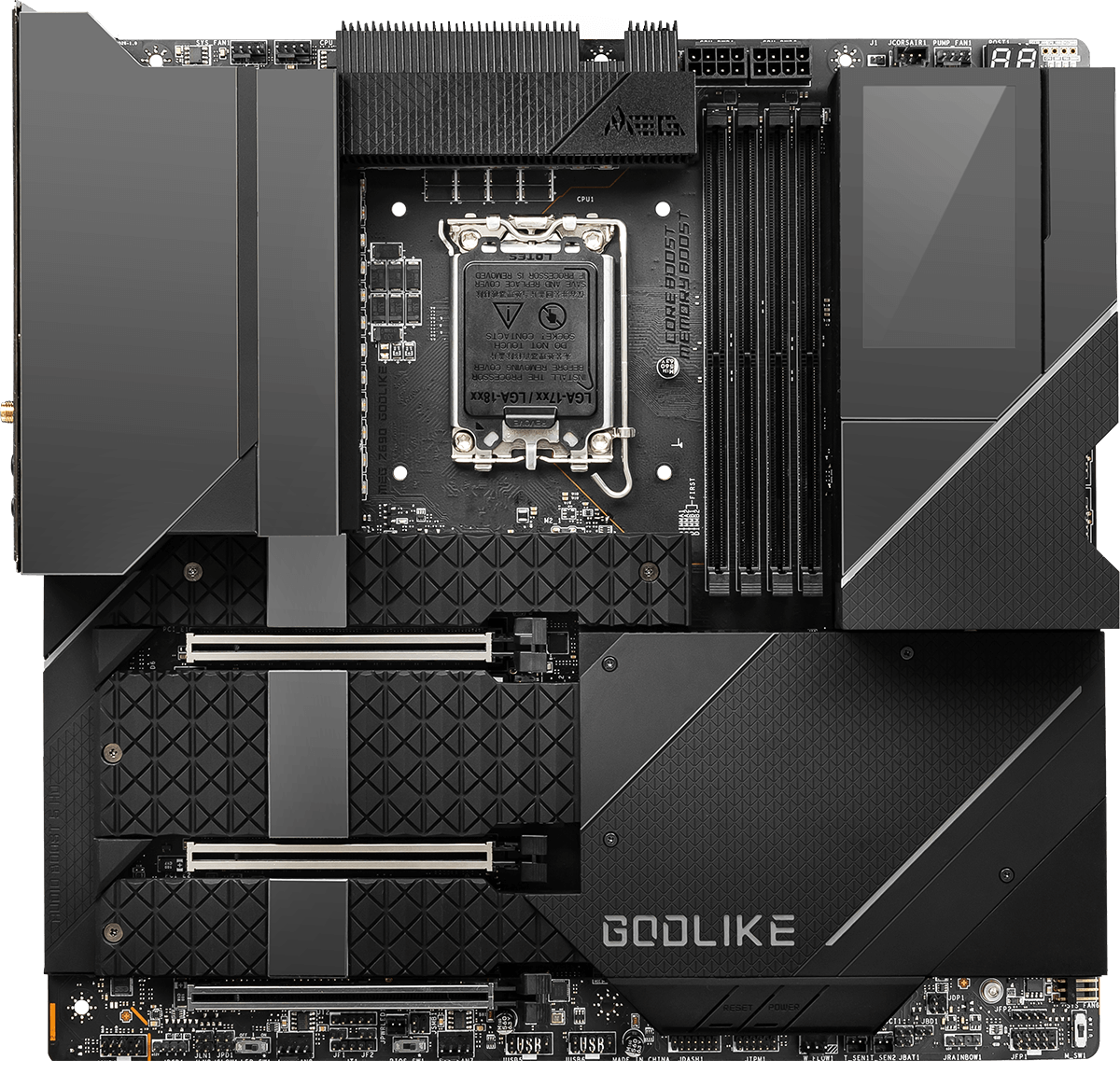

MEG Z690 GODLIKE
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- M-Vision Dashboard: Industry's first built-in touchable LCD on the motherboard, not only indicates the status of your gaming rig, but also allows system tuning with touch control.
- Extreme Power Design: Direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr ensure the extreme performance with low temperature.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.

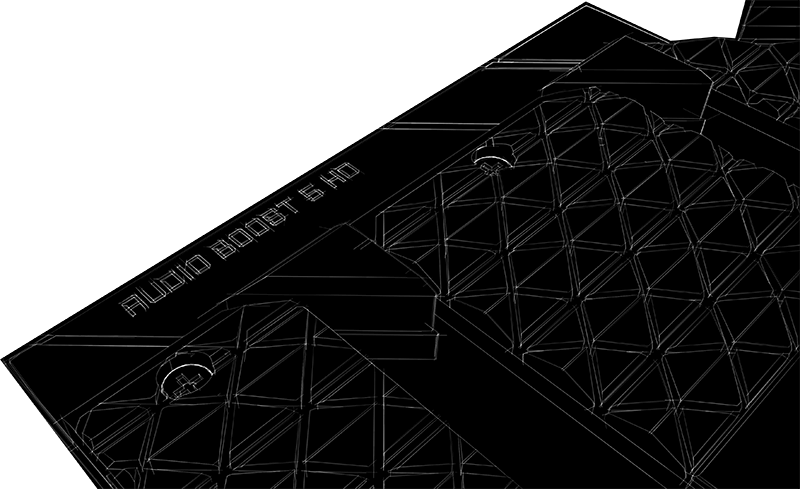

- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
- Full Armor Design: The revolutionary magnetic cover and Chest Plate allow you showing off your PC building without messy cable when installing great amount of devices.
