MEG Z690 GODLIKE 超神

MEG Z690 GODLIKE

CPU (最高支持)
DDR5 Memory
CPU 插槽
芯片组
Memory Channel
内存插槽数
最大内存 (GB)
RAID
M.2 接口
Thunderbolt 4
WiFi & Bluetooth
USB 3.2 ports (Front)
USB 3.2 ports (Rear)
PCI-E X16
USB 2.0 接口 (前置)
SATAIII 接口
网卡接口
Dimension
音频接口 (背板)
DirectX
SLI
交火
Operating System
尺寸规格
无线网卡

CPU (最高支持)

DDR5 Memory

6666+(OC) , 6600(OC) , 6400(OC) , 6200(OC) , 6000(OC) , 5800(OC) , 5600(JEDEC) , 5400(JEDEC) , 5200(JEDEC) , 5000(JEDEC) , 4800(JEDEC) MHz

CPU 插槽

1700

芯片组

Intel® Z690 Chipset

Memory Channel

Dual

内存插槽数

最大内存 (GB)

192

RAID

0/1/5/10

M.2 接口

Thunderbolt 4

2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports

WiFi & Bluetooth

Intel® Wi-Fi 6E module

USB 3.2 ports (Front)

2(Gen2x2, Type C), 4(Gen1, Type A)

USB 3.2 ports (Rear)

8(Gen2, Type A)

PCI-E X16

USB 2.0 接口 (前置)

SATAIII 接口

网卡接口

1x Aquantia® AQC113CS 10Gbps LAN controller
1x Intel® I225-V 2.5Gbps LAN controller

Dimension

12 in. x 12in. (30.5 cm x 31.0 cm)

音频接口 (背板)

7.1-Channel High Definition Audio+ Optical S/PDIF (Realtek® ALC4082 Codec)

DirectX

交火

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

尺寸规格

E-ATX

无线网卡

Processor

Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹
Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

Intel^® Z690 Chipset

Memory

4x DDR5 memory slots, supporting up to 128GB ¹
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6666+ MHz
- 1DPC 2R Max speed up to 5600+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Intel^® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory.

See supported memory

Expansion Slots

3x PCIe x16 slots
- Supports x16/x0/x4, x8/x8/x4
- PCI_E1 & PCI_E2 slots (From CPU)
  - PCI_E1 supports up to PCIe 5.0 x16
  - PCI_E2 supports up to PCIe 5.0 x8 ¹
- PCI_E3 (From Z690 chipset)
  - ▫Supports up to PCIe 4.0 x4 ²

M2_3 will be unavailable when installing device in the PCI_E2 slot.
PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.

Multi-GPU

Supports AMD^® CrossFire™ Technology
Supports NVIDIA^® SLI™ Technology

Thunderbolt 4

Intel^®JHL8540 Thunderbolt™ 4 Controller

2x Thunderbolt™ 4 (USB-C) ports on the back panel
- Supports up to 40Gbps transfer rate with Thunderbolt devices
- Supports up to 20Gbps transfer rate with USB4 devices
- Supports up to 10Gbps transfer rate with USB 3.2 devices
- Supports up to 5V/3A ,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)

Storage

6x SATA 6Gb/s ports (From Z690 chipset)
- SATA5~8 (From Z690 chipset)
- SATAA~B (From ASM1061)
6x M.2 slots (Key M)
- M2_1 slot (From CPU)
  - Supports up to PCIe 4.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports 2260/ 2280 storage devices
- M2_3 slot (From CPU) ²
  - Supports up to PCIe 5.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_4 slot (From Z690 chipset) ³
  - Supports up to PCIe 4.0 x4
  - Supports SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
- M2_5 slot (From Z690 chipset) ¹
  - Supports up to PCIe 4.0 x4
  - Supports SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
- M2_6 slot (From Z690 chipset)
  - Supports up to PCIe 3.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_2, M2_4, M2_5 and M2_6 slots support Intel^® Optane™ Memory
Supports Intel^® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
M2_3 will be unavailable when installing device in the PCI_E2 slot.
PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices ¹
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

SATAA & SATAB do not support RAID function.

USB

Intel^® Z690 Chipset
- 2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors
- 4x USB 3.2 Gen 2 10Gbps ports on the back panel
Hub-GL3590
- 4x USB 3.2 Gen 2 10Gbps ports on the back panel
ASM1074
- 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
Hub-GL850G
- 4x USB 2.0 ports through internal USB connectors

Audio

Realtek^® ALC4082 Codec + ES9218PQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Aquantia^® AQC113CS 10Gbps LAN controller
1x Intel^® I225-V 2.5Gbps LAN controller

Wireless LAN & Bluetooth

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2 ², FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Internal connectors

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
6x M.2 slots (M-Key)
2x USB 3.2 Gen 2x2 20Gbps Type-C ports
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x Water Flow meter connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1xTPM module connector
1x Tuning Controller connector

LED Feature

1x 2-Digit Debug Code LED
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector

Back panel ports

Clear CMOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
USB 3.2 Gen2 10Gbps (Type-A)
M-VISION Dashboard Port
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out

Dimensions

12 in. x 12 in. (30.5 cm x 31.0 cm)
E-ATX Form Factor

Mounting

9 mounting holes

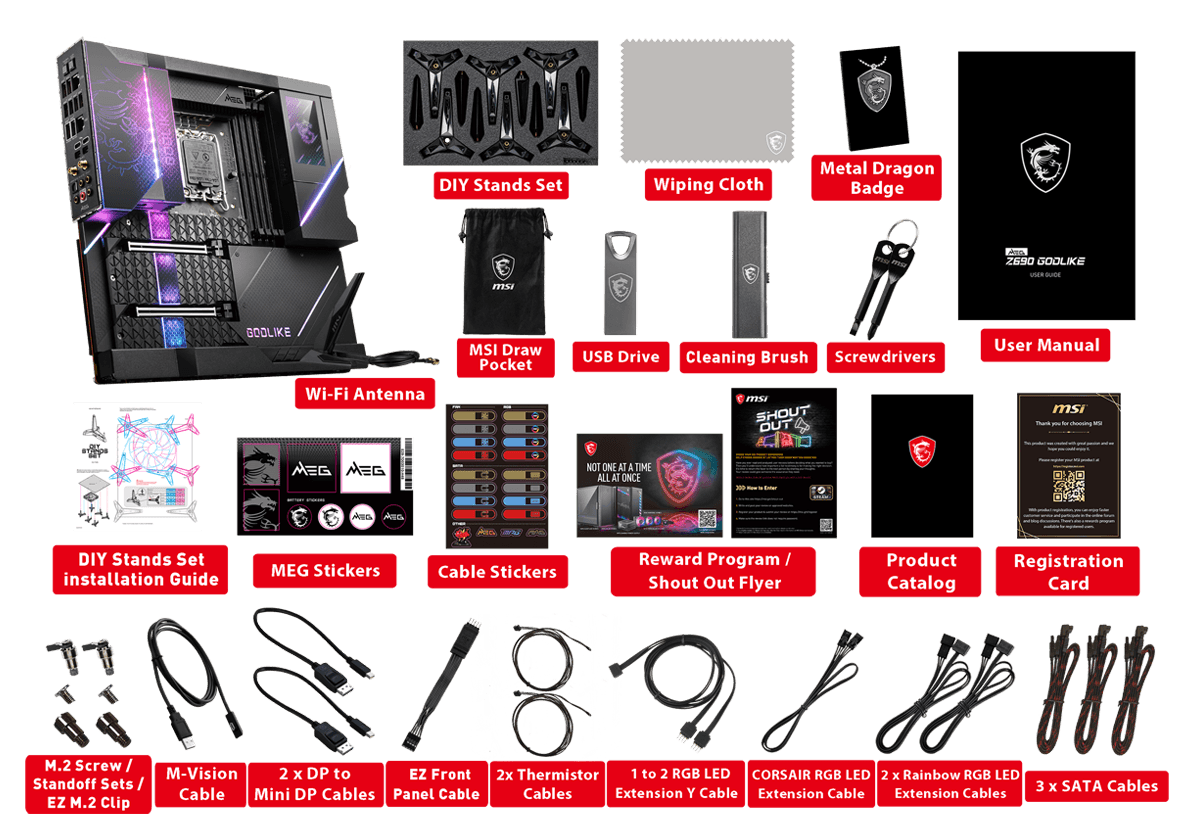

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

Intel, the Intel Logo, Intel Inside, Intel Core, and Core Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
