MPG A1000G
MPG A1000G
MPG A100G - Go Beyond With Power
GPU Support

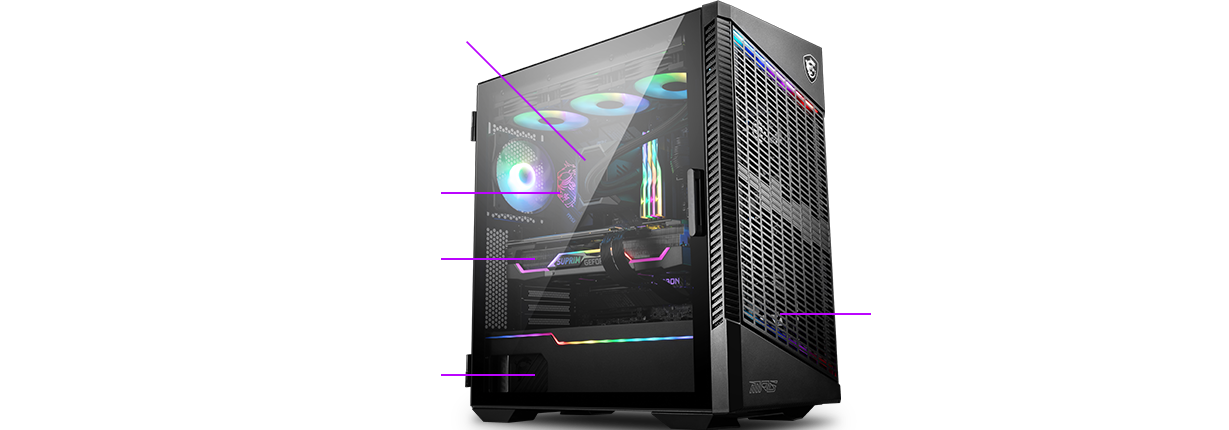

POWERED BY MSI

Create and establish the most powerful setup with Powered by MSI products,
including PC case, motherboard, liquid cooler, graphics card, and power supply unit.

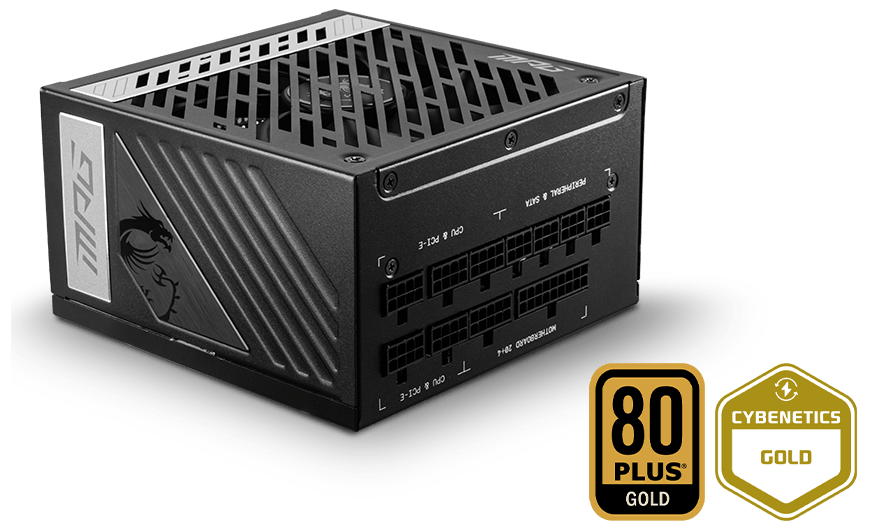

80 PLUS GOLD CERTIFIED

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

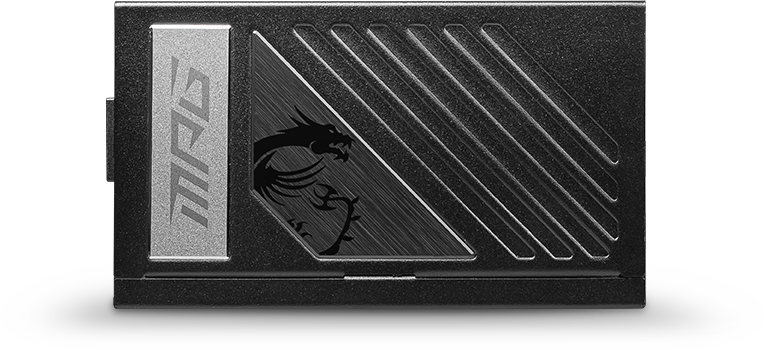

100% Japanese 105°C Capacitors

100% Japanese
105°C Capacitors

Aiming for unwavering product quality and performance stability, the MPG A1000G comes with 100% Japanese 105° C capacitors and solid capacitors.

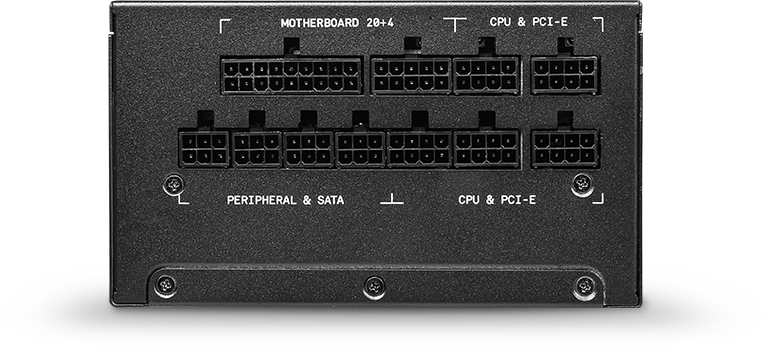

USE WHAT YOU NEED

Use What You Need

The MPG A1000G's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

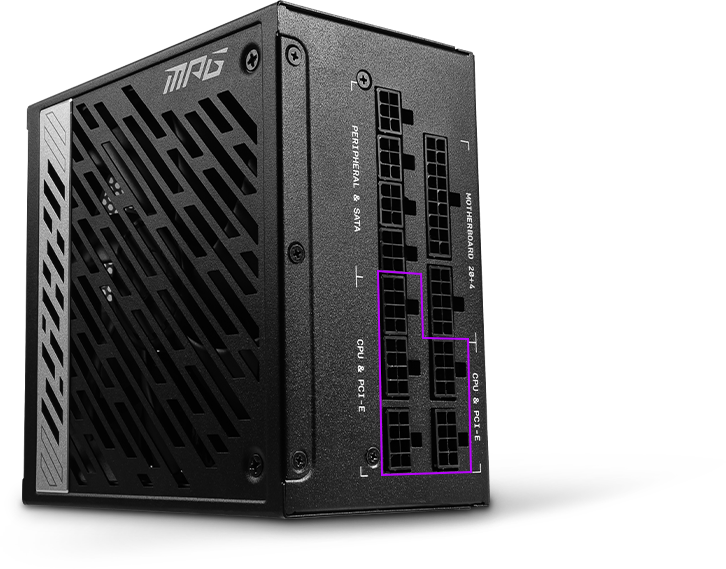

INGLE RAILED

SINGLE-RAILED

The MPG A1000G's single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, the MPG A1000G's 5 CPU & PCI-E slots are more than plenty.

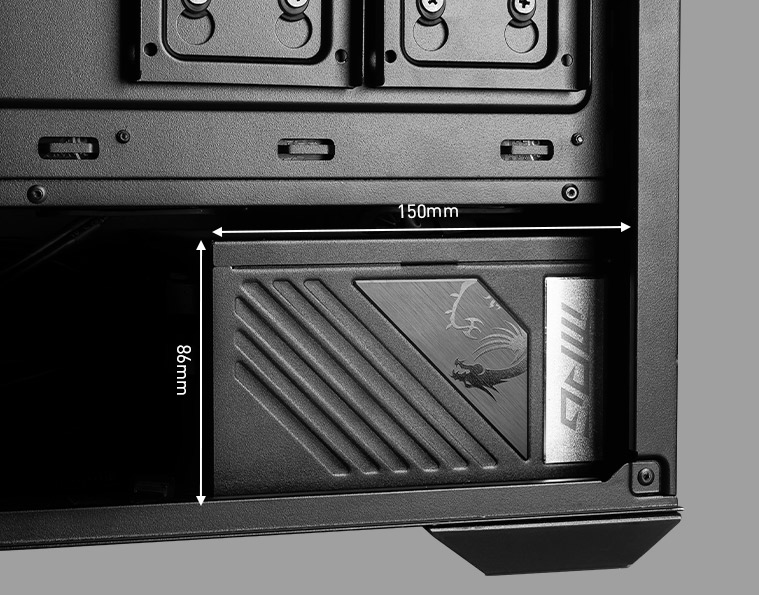

compact sizing

COMPACT SIZING

Smaller than typical PSUs on the market, the new ATX series PSU’s compact sizing makes it an excellent fit for more PC cases.

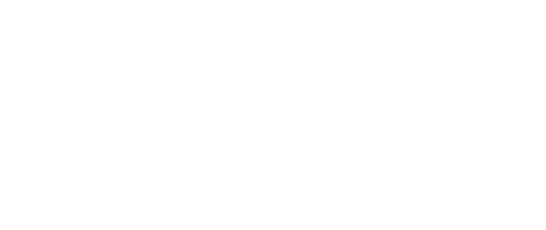

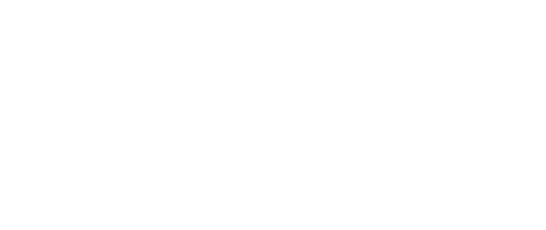

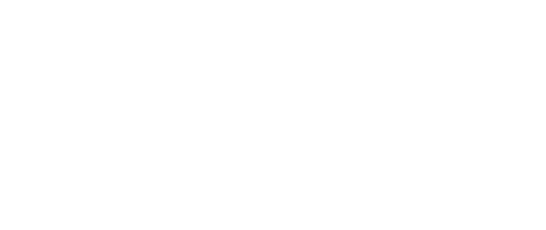

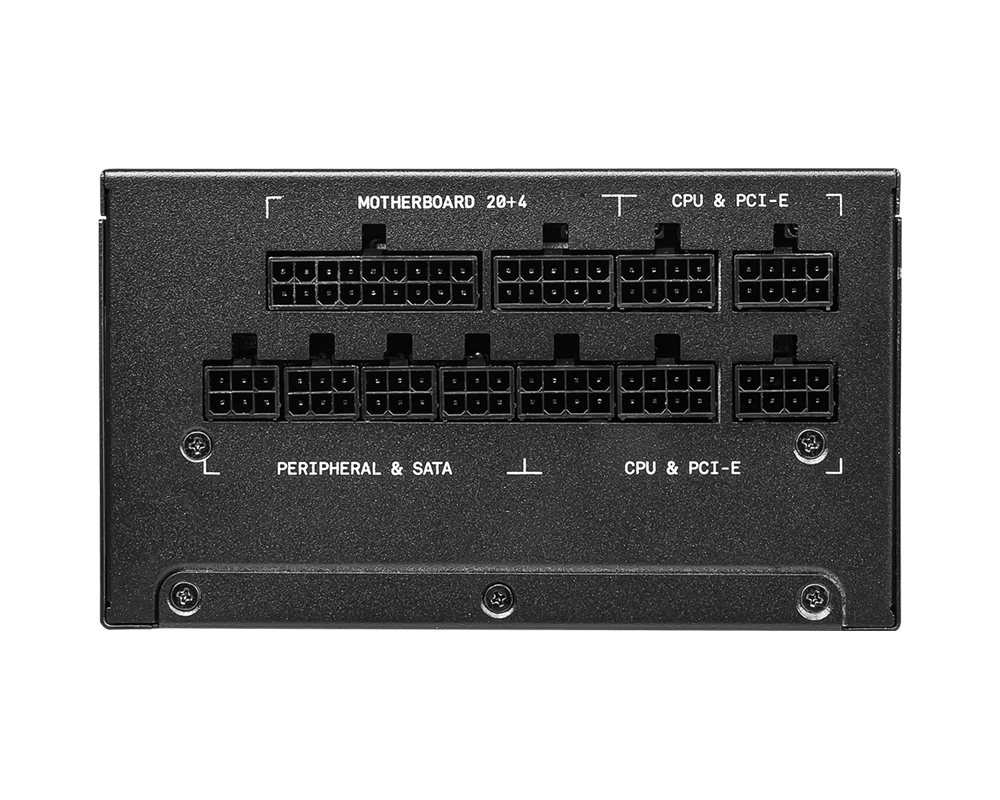

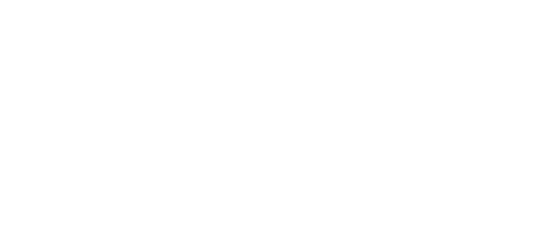

CONNECTORS

CONNECTOR
ATX(20+4 PIN) EPS(4+4 PIN) PCI-E(6+2 PIN) SATA MOLEX(PERIPHERAL) FDD
1 2 7 12 4 1
MPG A1000G
AC Input 100V-240V~, 13.0A/6.5A, 50~60Hz
DC Output +5V +3.3V +12V -12V +5Vsb
22.0A 22.0A 83.3A 0.3A 3.0A
Total Power 120W 1000W 3.6W 15W
1000W
  • Supports the NVIDIA GeForce RTX™ 30 Series GPUs
  • Full modular cable design
  • Flat cable equipment
  • 80 Plus Gold certified for high efficiency
  • 100% all Japanese 105oCcapacitor
  • Active PFC design
  • Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • LLC Half Bridge Topology with DC-DC module design
