PAG SHIELD M500L
基本
主板规格支持
Case Form Factor
Product Name
Drive Bays
Dimension
Weight
I/O Ports
Case Expansion Slots
Fan Support
Maximum PSU Length
Maximum GPU Length
Maximum CPU Cooler Length
Radiator Layout
Lightning
Power Supply
Gross Weight
主板规格支持
Regular:
Micro-ATX, Mini ITX
Case Form Factor
Mini Tower
Product Name
PAG SHIELD M500A
Drive Bays
2 x 2.5"
2 x 2.5" / 3.5" Combo Tray
Dimension
388 x 200 x 423 mm / 15.28 x 7.87 x 16.65 inches
Weight
4.40 kg / 9.70 lbs
I/O Ports
1 x Power Button
1 x Reset Button
1 x Audio Out
1 x Mic In
2 x USB (Type A)
1 x USB 5Gbps (Type A)
1 x LED On / Off Button
Case Expansion Slots
4
Fan Support
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Top: 2 x 120 mm
Side: N/A
Bottom: N/A
Maximum PSU Length
170 mm / 6.69 inches
Maximum GPU Length
300 mm / 11.81 inches
Maximum CPU Cooler Length
160 mm / 6.30 inches
Radiator Layout
Front: N/A
Rear: 120 mm
Top: 120 / 240 mm
Side: N/A
Bottom: N/A
Lightning
Front: 3 x 120 mm Auto RGB Fan
Rear: 1 x 120 mm Auto RGB Fan
Power Supply
Micro-ATX
Gross Weight
5.23 kg / 11.53 lbs

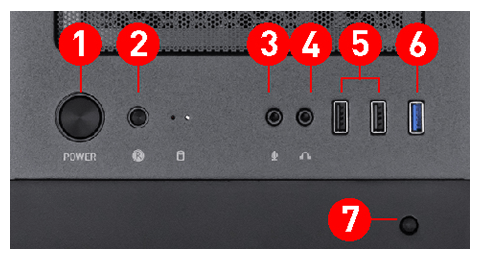

Connection
Power Button
Reset Button
Audio Out
Mic In
2 x USB (Type-A)
USB 5Gbps (Type-A)
LED On / Off Button
