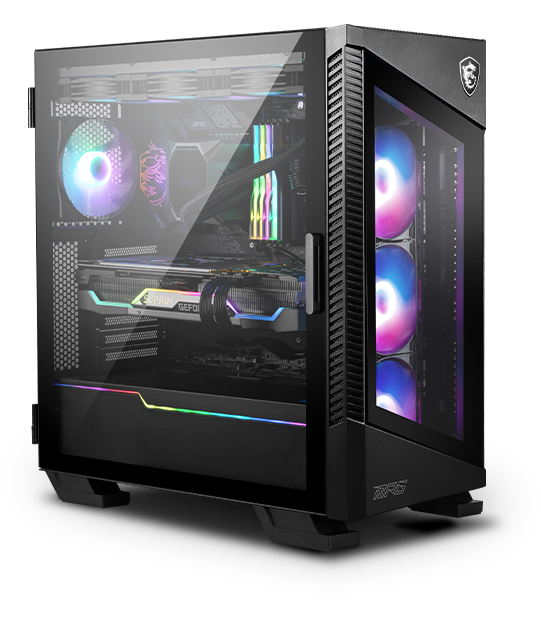

UNMATCHED POWER

MPG VELOX 100 让您装机与众不同列。 自定义生动的灯光效果, MPG VELOX 100 系列一定能助您横扫战场。

UNMATCHED POWER

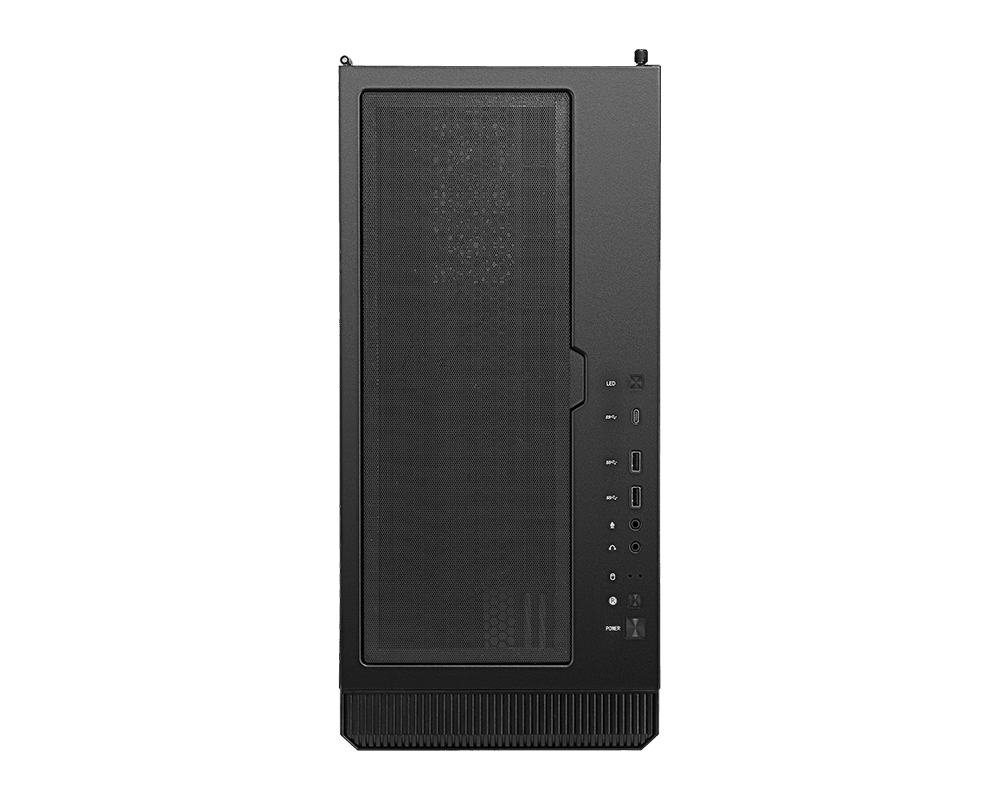

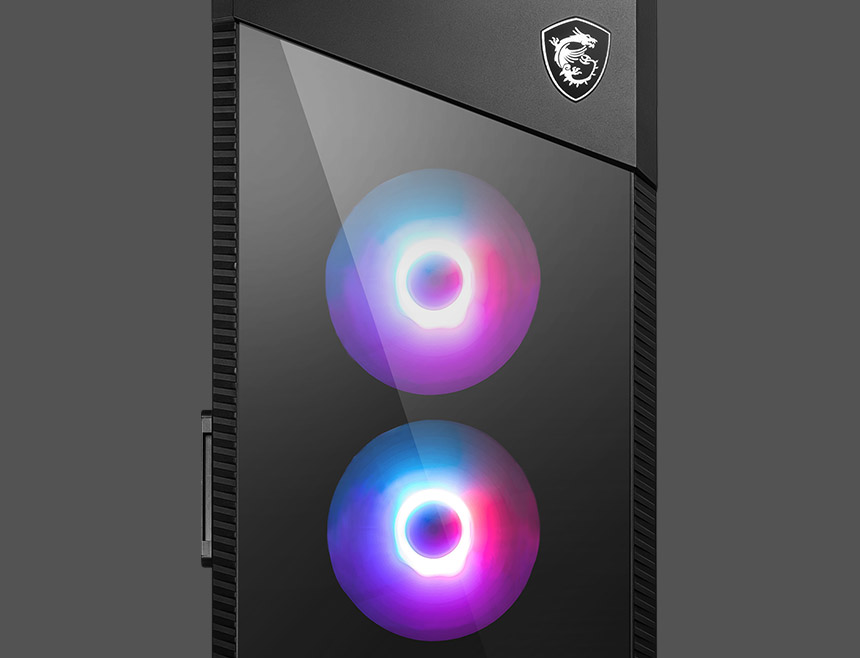

VENTILATED FRONT PANEL

MPG VELOX 100R 的前面板由钢化玻璃制成 可以清晰展示ARGB灯光。

VENTILATED FRONT PANEL

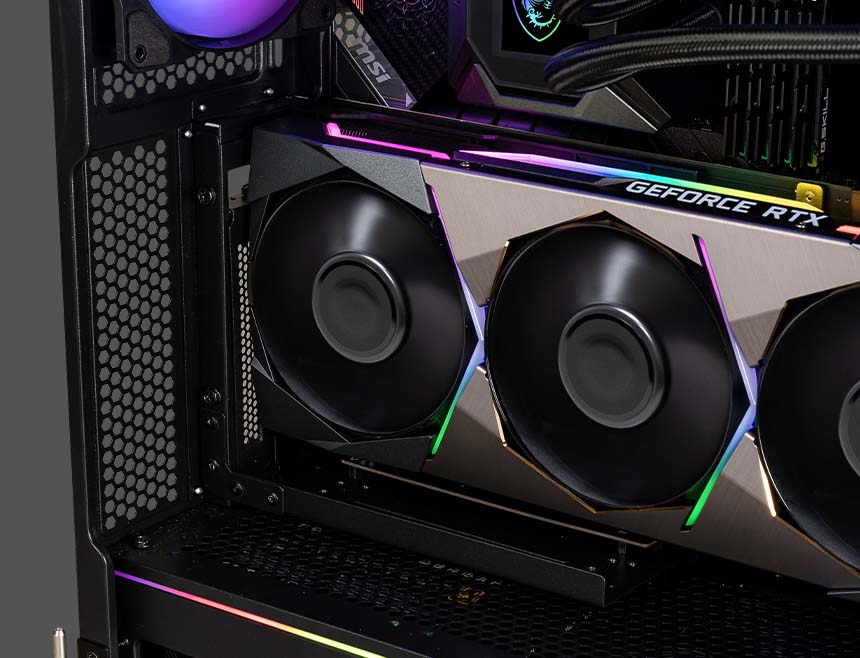

显卡直立设计

MPG VELOX 100 系列机壳搭载直立显卡支撑架,让您可以将显卡直立起来完整炫耀。

VERTICAL GPU MOUNT

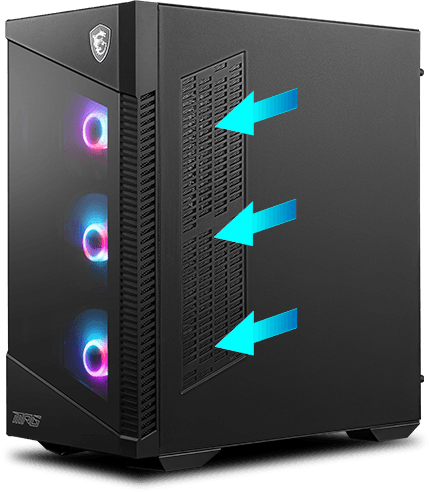

侧边通风口

MPG VELOX 100 系列侧边特别安排通风设计,最大可支援到2组风扇或240 mm水冷排。

*I在侧边安装风扇或水冷排前,需要先卸下正面风扇。

SIDE AIR VENTS

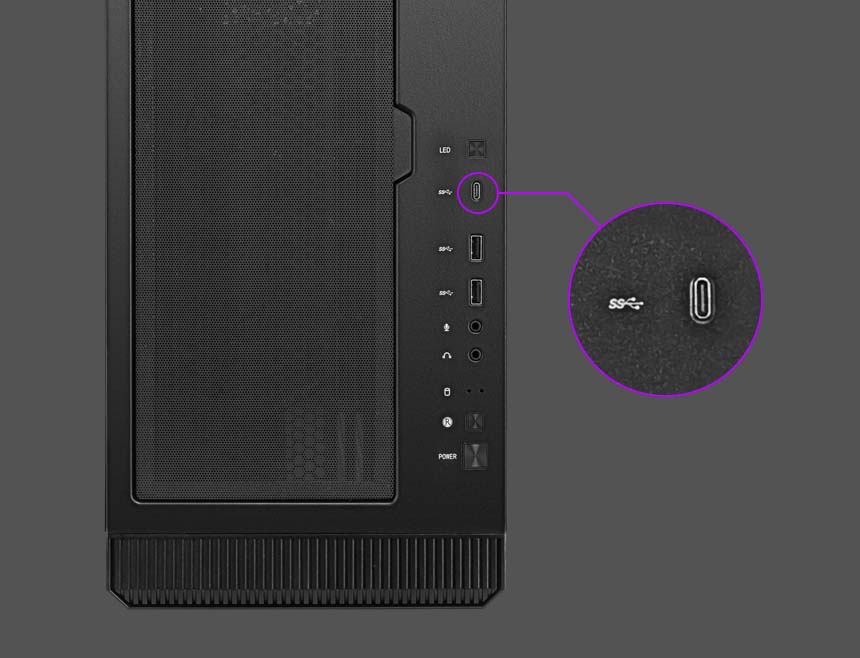

BETTER TOGETHER

Synergize the MPG VELOX 100 Series with a MSI motherboard by bridging a USB Gen2x2 Type-C port with 20 Gbps for convenient access. Establish a complete MSI gaming ecosystem with a graphics card, liquid cooler, and power supply.

BETTER TOGETHER

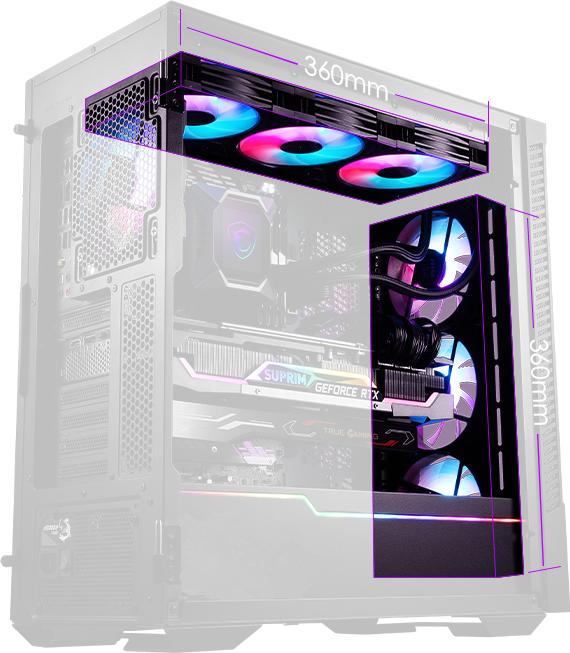

Big Volume

Big Volume

The MPG VELOX 100 Series provides excellent components clearance, capable of having 1 x 360mm radiator/3 x 120mm fans on both the top and the front.

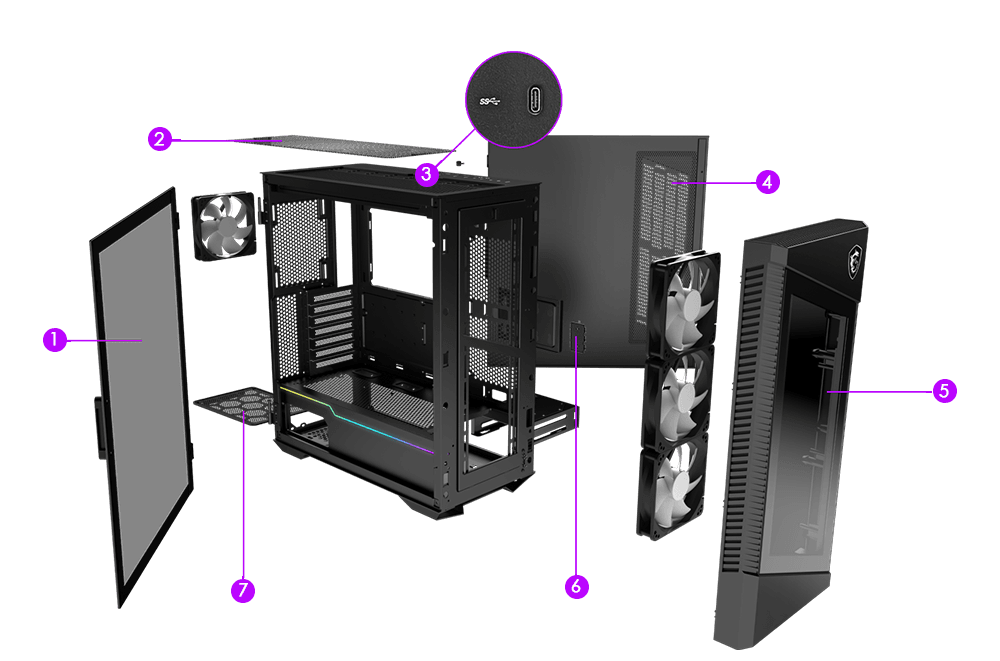

Hardware Capabilities

Hardware Capabilities
Hinged Tempered
Glass Window
Magnetic Dust Filter
Front USB 3.2 Gen 2x2 Type C
Side Ventilation
Ventilated Front Panel
1 to 6 Control Board
Dust Filter
Hardware Capabilities
  • Hinged Tempered Glass Window
  • Magnetic Dust Filter
  • Front USB 3.2 Gen 2x2 Type C
  • Side Ventilation
  • Ventilated Front Panel
  • 1 to 6 Control Board
  • Dust Filter

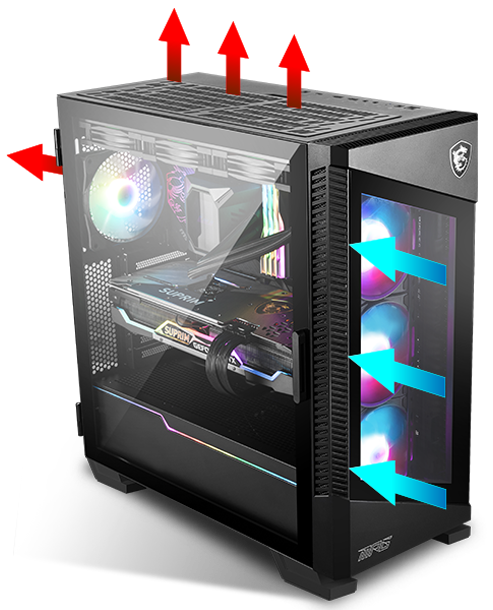

Optimized Airflow

The MPG VELOX 100 Series is optimized to provide generous and effective airflow for system cooling with vents built throughout the system. The MPG VELOX 100 Series comes with 4 fans and can mount up to 7.

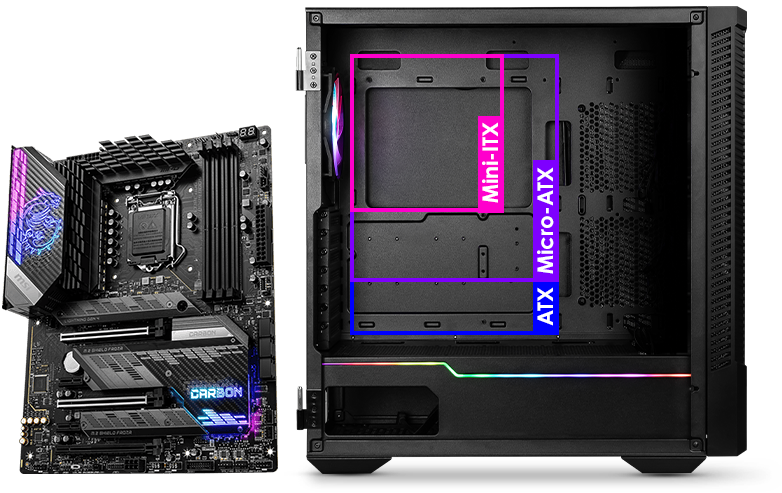

Components Clearance
Components Clearance

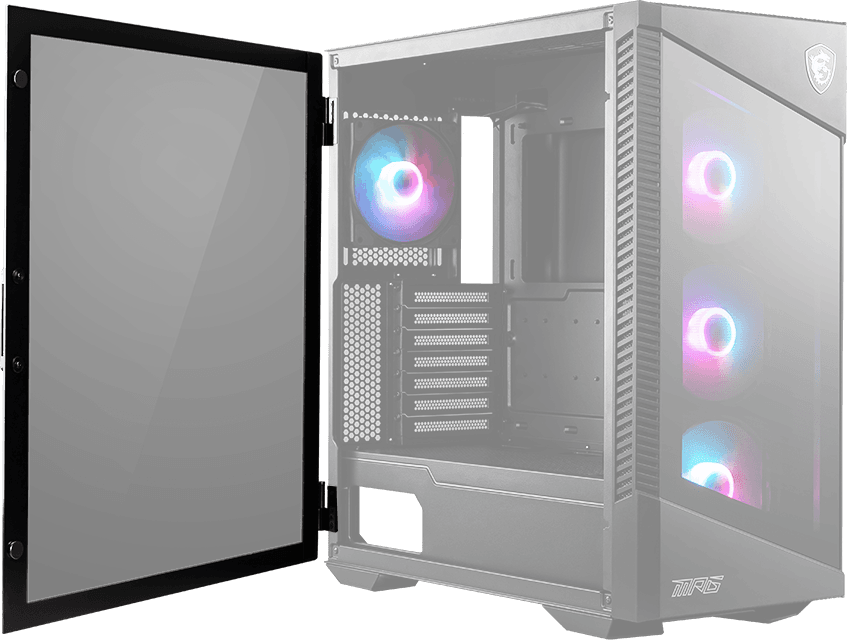

HINGED TEMPERED GLASS SWINGING WINDOW

The 3mm hinged tempered glass swinging window offers the best durability and system accessibility.

HINGED TEMPERED GLASS SWINGING WINDOW

直立排线

直立显卡支架可以协助显卡直立在支撑架上, MSI同时有推出MAG PCI-E 3.0 X16直立排线,可另外单独选购搭配显卡安装于MPG VELOX 100 机壳。

riser cable support

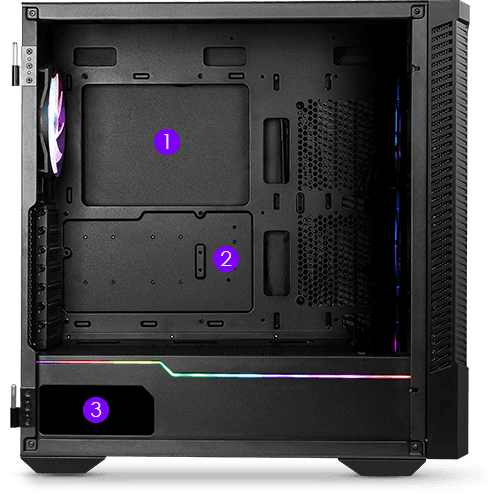

Components Clearance

Components Clearance
Components Clearance
  1. CPU Cooler Length: 175mm
  2. GPU Length: 380mm
  3. PSU Length: up to 220mm (without 3.5" HDD tray)

COMPONENTS CLEARANCE

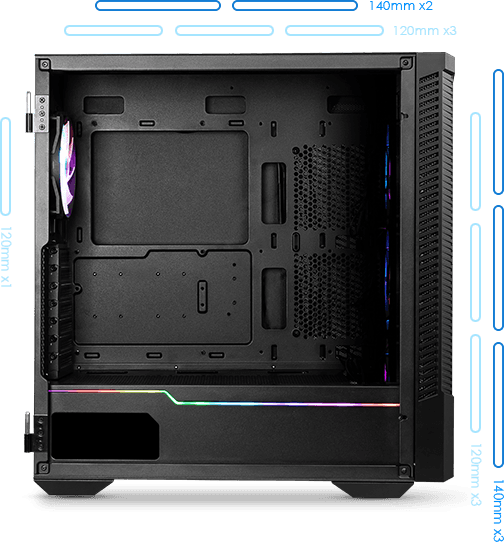

Fan Support

Hardware Capabilities

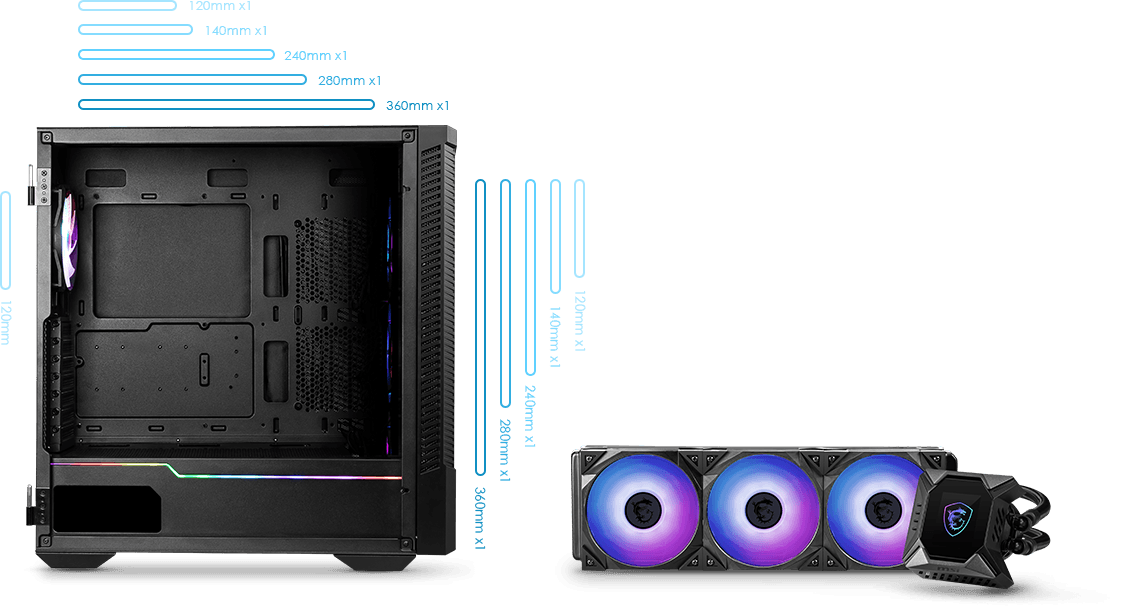

Radiator Support

CHardware Capabilities
MPG velox 100p

Product spec

Product Name

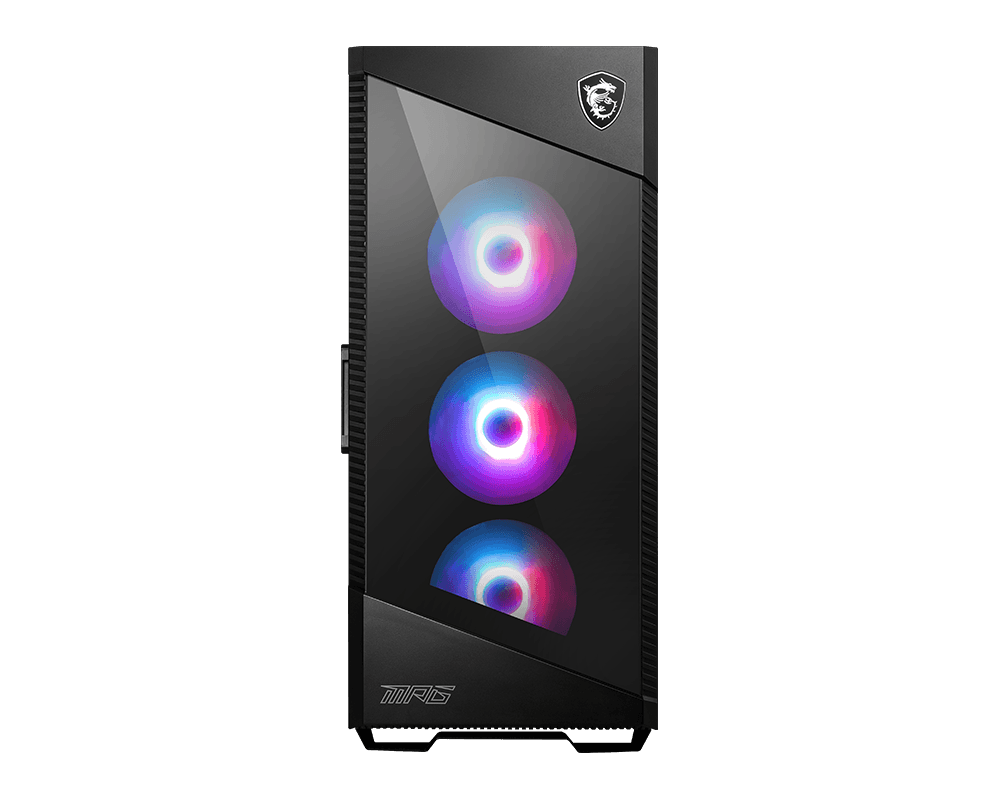

MPG VELOX 100R
Support MB Form Factor
E-ATX / ATX / M-ATX / ITX
Dimensions (W) x (D) x (H)
474 x 231 x 490 mm / 18.7 x 9.1 x 19.3 inches
Dimensions w/o Feet/Protrusions/Screws (DxWxH)
420 x 220 x 460 mm / 16.5 x 8.7 x 18.1 inches
I/O Ports
2 x USB 3.2 Gen 1 / 1 x USB 3.2 Gen 2x2 Type C /
1 x Audio / 1 x Mic
Driver Bays
2.5" SSD x 2 / 3.5" HDD x 2
VGA Card Support
380mm / 15inches
CPU Cooler Support
175mm / 6.9inches
Power Supply
Standard ATX, max up to 220mm (without 3.5" HDD tray installed)
Cooling Layout
Front: 120mm x 3 or 140mm x 3
Top: 120mm x 3 or 140mm x 2
Rear: 120mm x 1
Side: 120mm x 2
Radiator Layout
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120mm
Side: 120 / 240mm

Unmatched Power

  • 经过优化,可通过整个系统内置的通风口为系统冷却提供充足且有效的气流。
  • 附带一个垂直 GPU 支架作为附件,可让您垂直安装显卡。
  • 带有一个侧面通风口,最多可支持 2 个风扇/240 毫米散热器。
  • 3 毫米铰链钢化玻璃侧窗提供最佳的耐用性和系统可访问性。
  • MPG VELOX 100 刀锋系列最多可安装 7 个风扇。
产品规格 立即购买

产品规格与配置可能会随地区而有所不同,本公司保留变更规格不另行通知的权利。购买前请与当地经销商确认产品规格。
