MPG QUIETUDE 100S 暗黑

基本

主板规格支持
Case Form Factor
Product Name
Drive Bays
Dimension
I/O Ports
Case Expansion Slots
Fan Support
Maximum PSU Length
Maximum GPU Length
Maximum CPU Cooler Length
Radiator Layout
Lightning

主板规格支持

E-ATX / ATX / M-ATX / ITXX

Case Form Factor

Mid-Tower

Product Name

MPG QUIETUDE 100S

Drive Bays

2.5’ SSD x 2 + 3.5” with 2.5” combo tray x 2

Dimension

475 x 231 x 490 mm / 18.7 x 9.1 x 19.3 inches

I/O Ports

USB 3.2 Gen 1 Type A x 2
USB 3.2 Gen 2 Type C x1
Audio x1
Mic x1

Case Expansion Slots

Fan Support

Front: 120mm x 3 or 140mm x 3
Top: 120mm x 3 or 140mm x 2
Rear: 120mm x 1

Maximum PSU Length

Standard ATX, max up to 250mm (without 3.5'' HDD tray installed)

Maximum GPU Length

380mm / 15inches

Maximum CPU Cooler Length

175mm / 6.9inches

Radiator Layout

Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120 mm

Lightning

ARGB

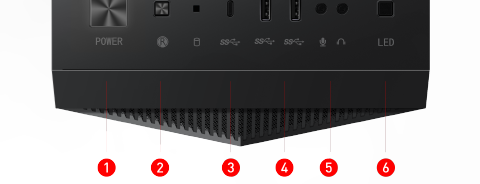

Connection

Power Button
Reset Button
USB 3.2 Gen2 Type C
USB 3.2 Gen 1 Type A x 2
Mic In/Audio Out
Insta-Light Loop Button

所有图片和描述仅用于说明目的。产品的视觉表现可能不完全准确。产品规格、功能和外观可能因型号和国家/地区而异。所有规格如有变更，恕不另行通知。尽管我们尽力在发布时提供最准确和最全面的信息，但少数项目可能包含版面设计或摄影错误。部分产品和配置可能不适用于所有市场，或上市时间有所不同。我们建议您与您当地的供应商核实确切的报价和详细规格。
