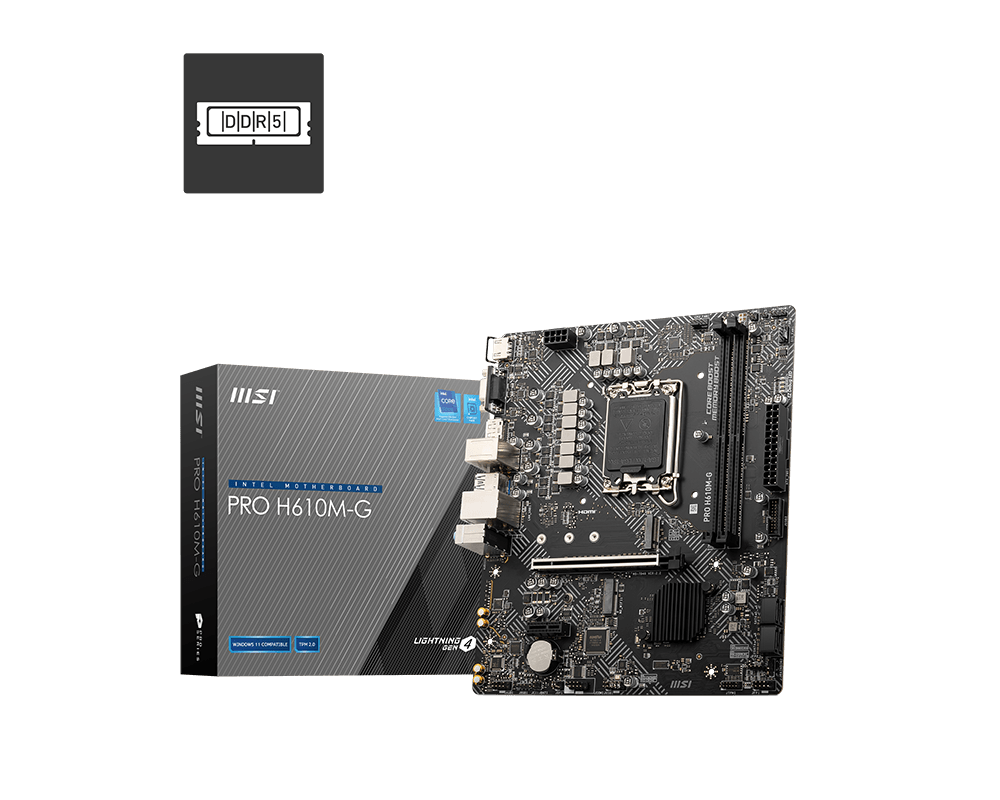

PRO H610M-G

Chipset INTEL H610
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 96GB
Memory 支持 DDR5 5600 MHz (by JEDEC & POR)
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 插槽（数量）
1x PCI-E x1 插槽（数量）
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2 slot with E-key for PCIe WiFi module only
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2 (Qty)
M.2_1 源 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
USB 4x USB 2.0 (后置)
2x USB 2.0 (前置)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Intel® I219V 1Gbps LAN controller
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 接口
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. HDMI™
  2. VGA
  3. DisplayPort
  4. Keyboard / Mouse
  5. USB 3.2 Gen 1 5Gbps (Type-A)
  6. LAN port
  7. Audio Connectors
  8. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

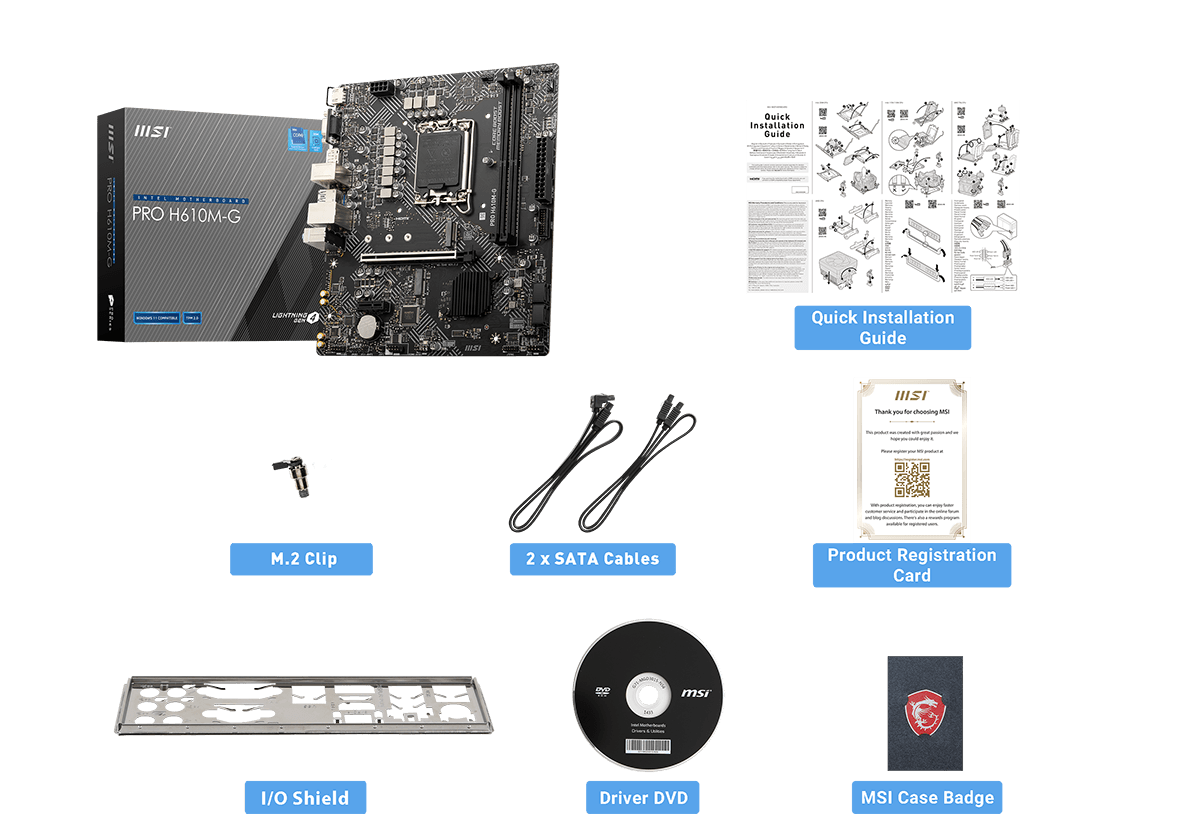

BOX CONTENT
PCB Info mATX
211mmx243.84mm
