PRO H610M-E

Chipset	INTEL H610
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory 支持 DDR5 5600 MHz (by JEDEC & POR) Supports Intel^® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 插槽（数量） 1x PCI-E x1 插槽（数量） PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 (Qty) M.2_1 源 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB	4x USB 2.0 (后置) 4x USB 2.0 (前置) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek^® RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 接口 2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit

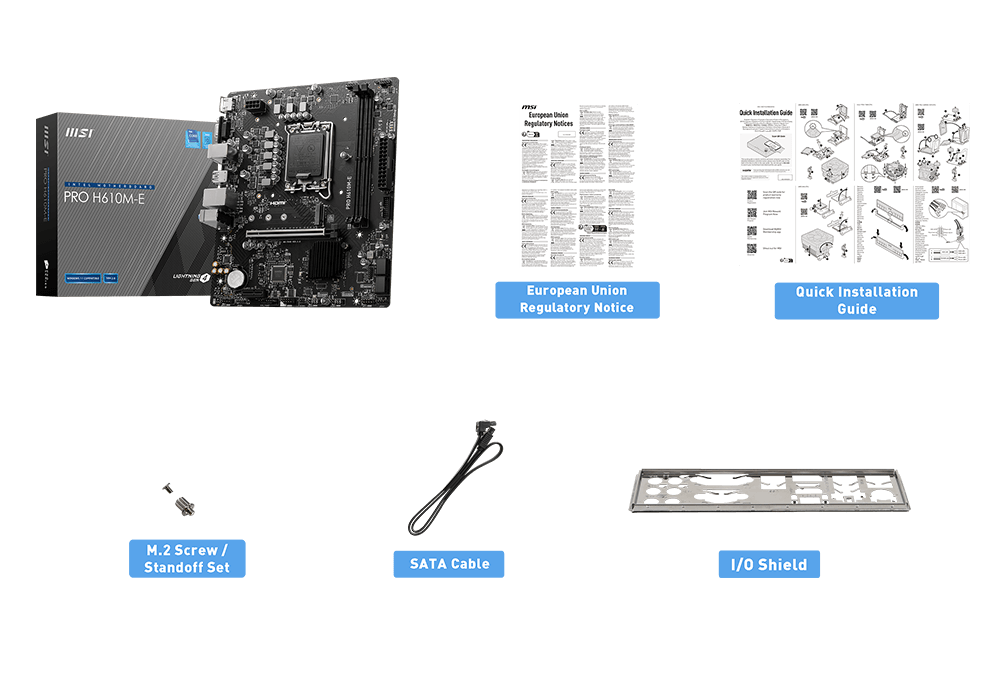

BOX CONTENT
PCB Info	mATX 200mmx236.16mm

Processor

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors ¹
Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

Intel^® H610 Chipset

Memory

2x DDR4 memory slots, support up to 64GB ¹
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
- Supports PCIe 3.0 x1

Onboard Graphics

1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz ¹ / ²
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz ¹ / ²

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

SATA Ports

4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD Slot

1x M.2 slot (Key M) (from CPU)
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices

Audio

Realtek^® ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Realtek^® RTL8111H 1Gbps LAN controller

Power Connectors

1x 24-pin ATX main power connector
1x 8-pin +12V power connector

Internal USB Connectors

1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
- Supports additional 4 USB 2.0 ports

Fan Connectors

1x 4-pin CPU fan connector
2x 4-pin system fan connectors

System Connectors

1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector

Jumpers

1x Clear CMOS jumper

LED Features

1x 4-pin RGB LED connector
4x EZ Debug LED

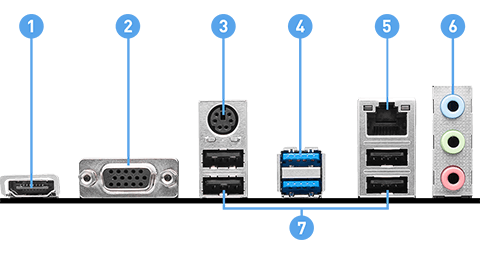

Back panel ports

HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0

Dimensions

M-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)

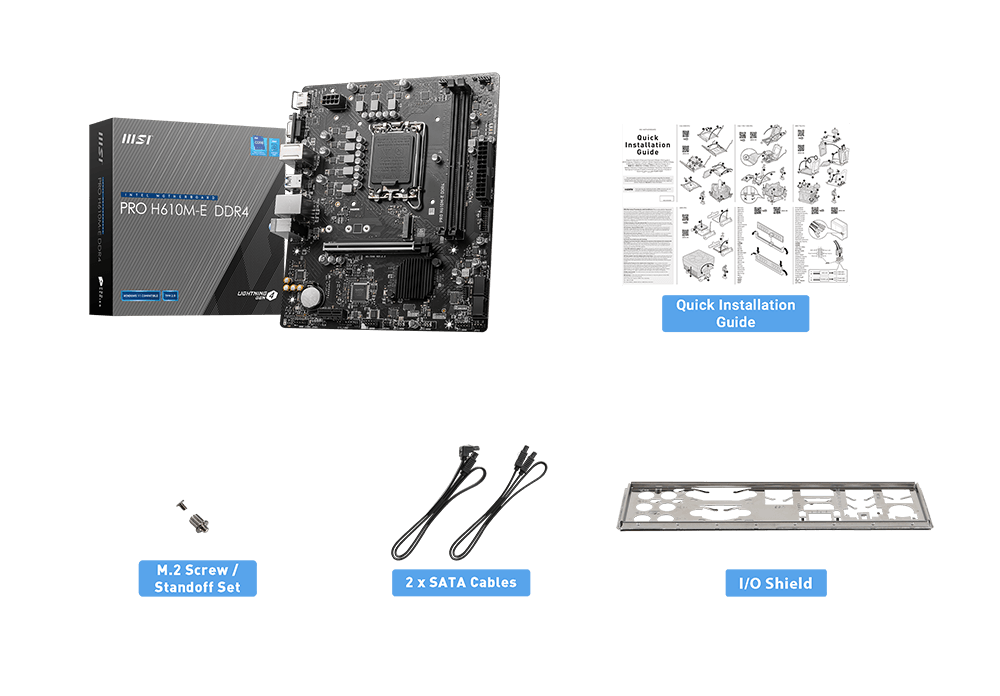

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
