PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

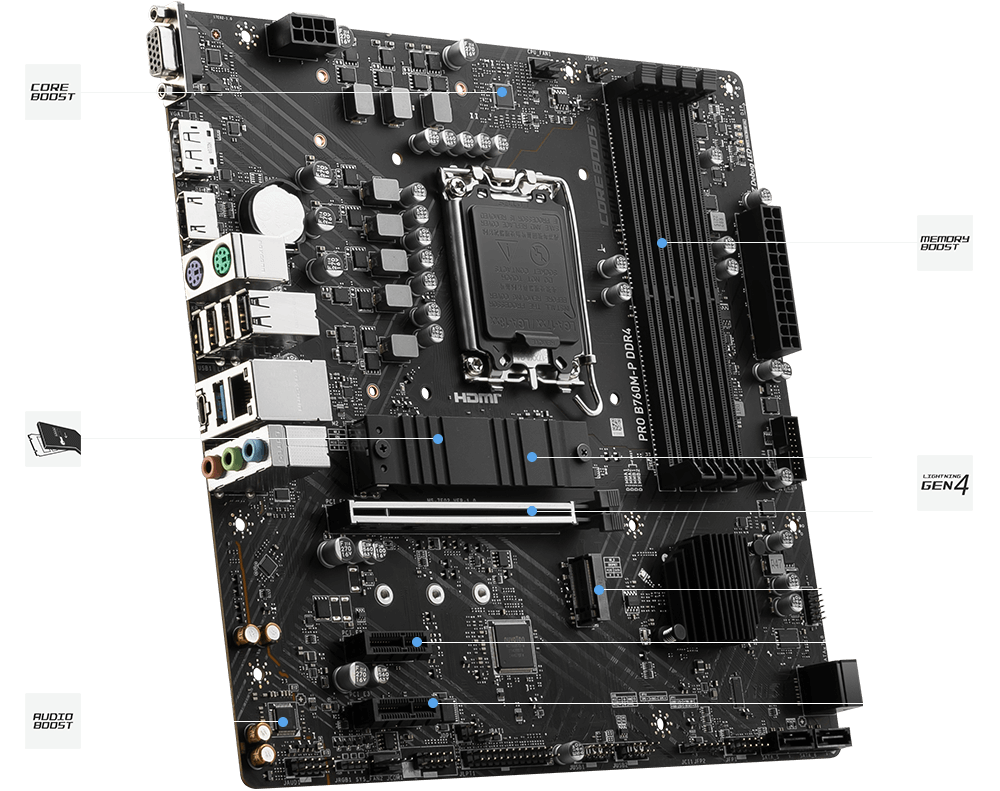

EXCLUSIVE FEATURES
Core Boost
M.2 Shield Frozr
Audio Boost
Memory Boost
Lightning Gen 4
硬件
- 散热
- 供电解决方案
- 友善设计
- cooling overview
- 完善风扇控制
Cooling Overview
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准，系统也将依照这温度标准自动调整风扇速度。
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
MSI 风扇接头可自动检测风扇将以直流或PWM哪种模式运行，视情况随时调整风扇转速和进行降噪。 Hysteresis也能使系统风扇的运转更为流畅，并确保系统随时处于安静的状态之中。
- EZ M.2 CLIP
- 驱动安装
EZ M.2 CLIP
锁螺丝常遇到问题吗？ MSI 独家EZ M.2 夹子可帮助您快速轻松地安装M.2 SSD。
驱动安装
一连接到网路，MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序，您只需点击几下即可下载和安装。 了解更多
* 请确保连接到网路，否则Driver Utility Installer 不会自动启动。
性能
- 扩充性
- 记忆体
- Bios & 软体
- LIGHTNING GEN 4 PCI-E
- STORAGE

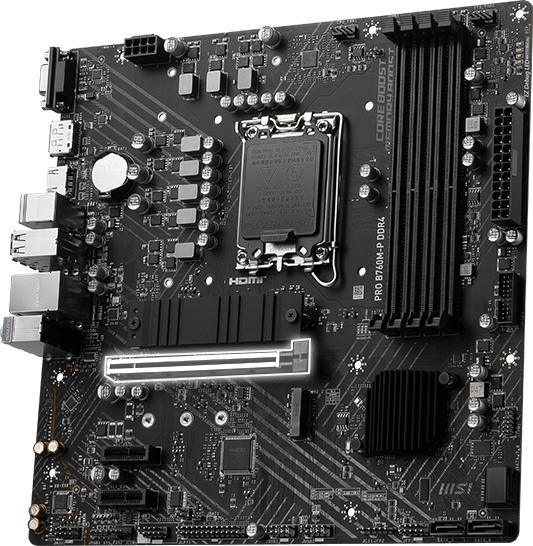

Lightning Gen 4 PCI-e with Steel Armor
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

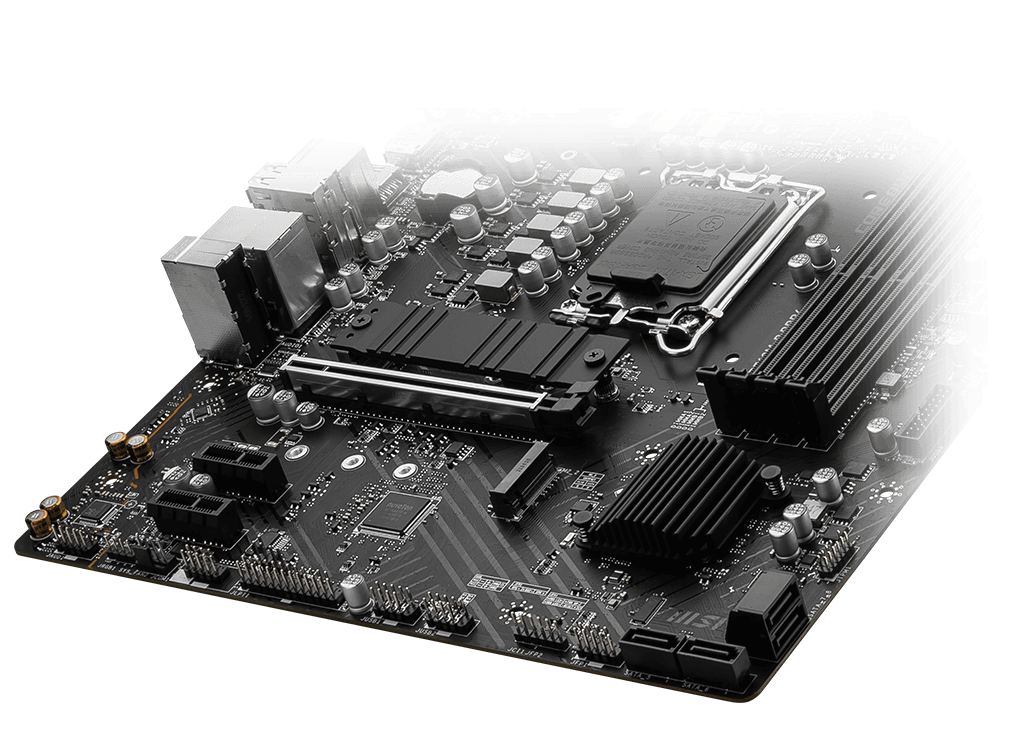

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
2x
4x
- DDR4

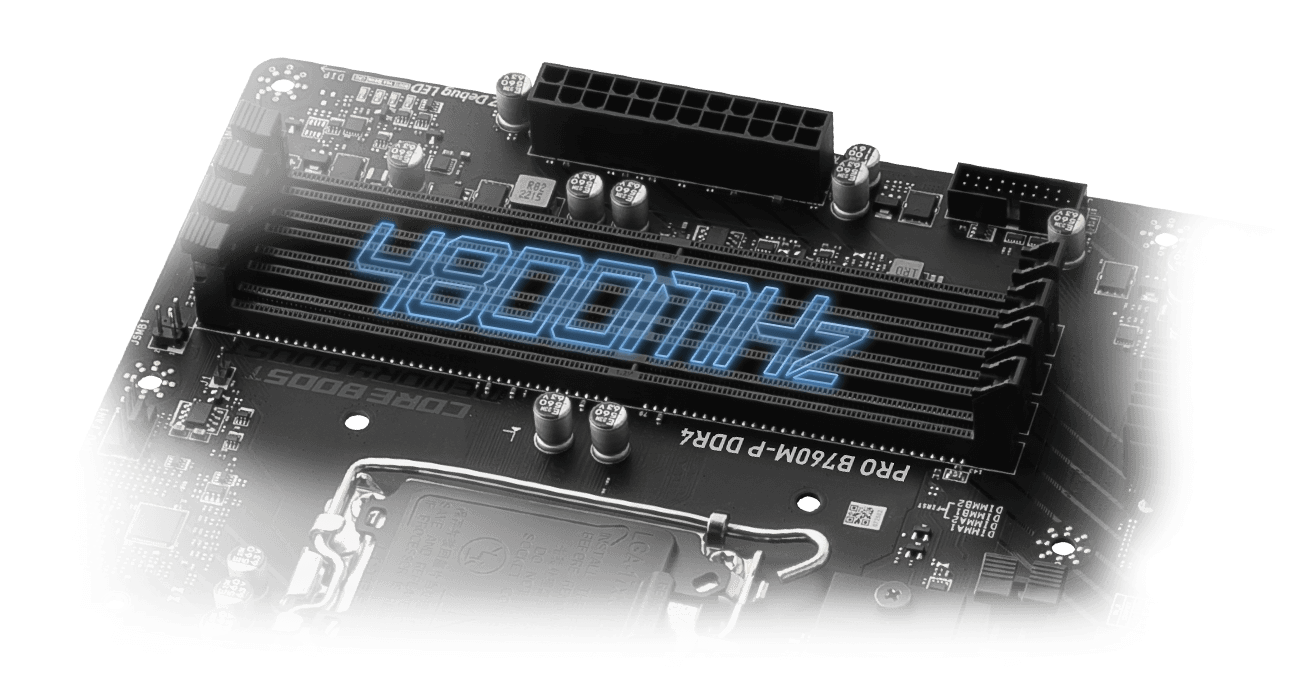

DDR4 Memory Solution
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
- MSI CENTER
- AIDA64
- CLICK BIOS 5
- System Safety
- RESIZABLE BAR
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体，您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯，并可储存CSV、HTML 等多种格式文件。
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
-
XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.
-
VMD (Volume Management Device)
Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
-
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
-
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
-
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
-
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
System Safety
MSI PRO 全系列主机板在BIOS中皆导入SECURITY 功能，不论在商务或日常使用上，皆能为您保护个资文件资料。
Secure Boot
Secure boot 是一项安全标准，确保装置仅受可信任的软体启动。当主机启动时，韧体将会检测每个启动软体的讯号，包含UEFI 韧体驱动、EFI 应用程式和操作系统。当讯号是有效时，主机将会启动。
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能，可以让CPU一次完整存取GPU的记忆体，减少与GPU的来回沟通，进而改善许多游戏的效能。
连接性
- 音效
- mystic light
- Audio Boost
Audio boost
- 高清晰度音频处理器
- 高品质音效电容
- 高品质音效接头
- AUDIO 线路独立区域
- DE-POP 保护机制
- Synchronize
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

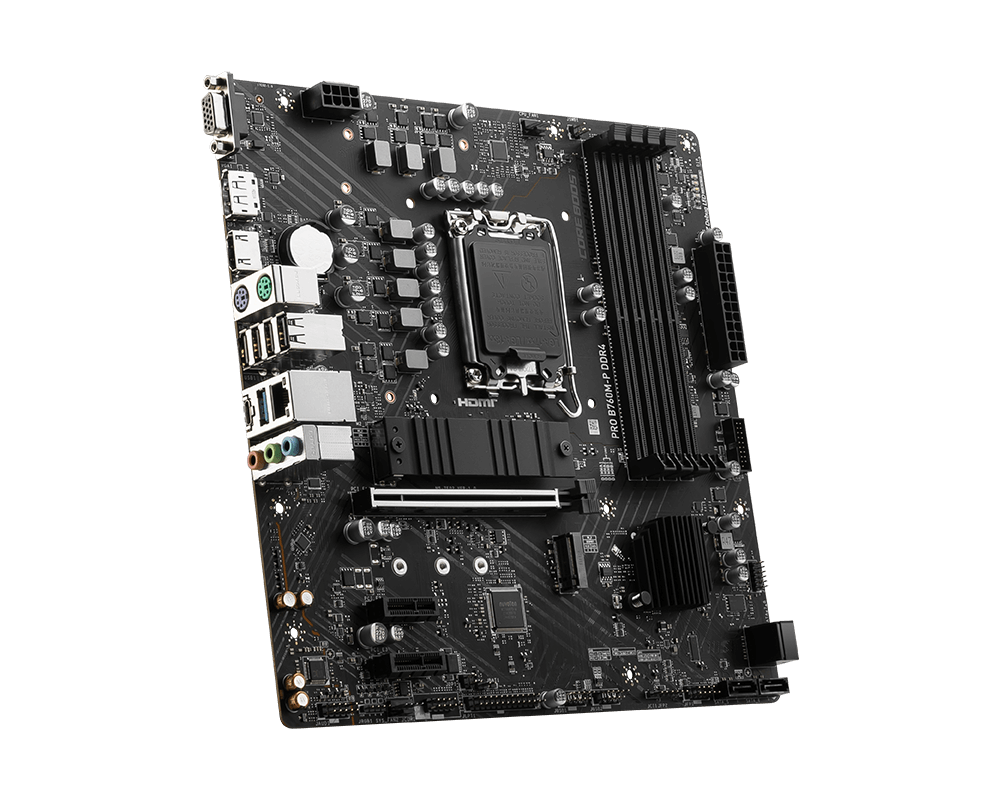

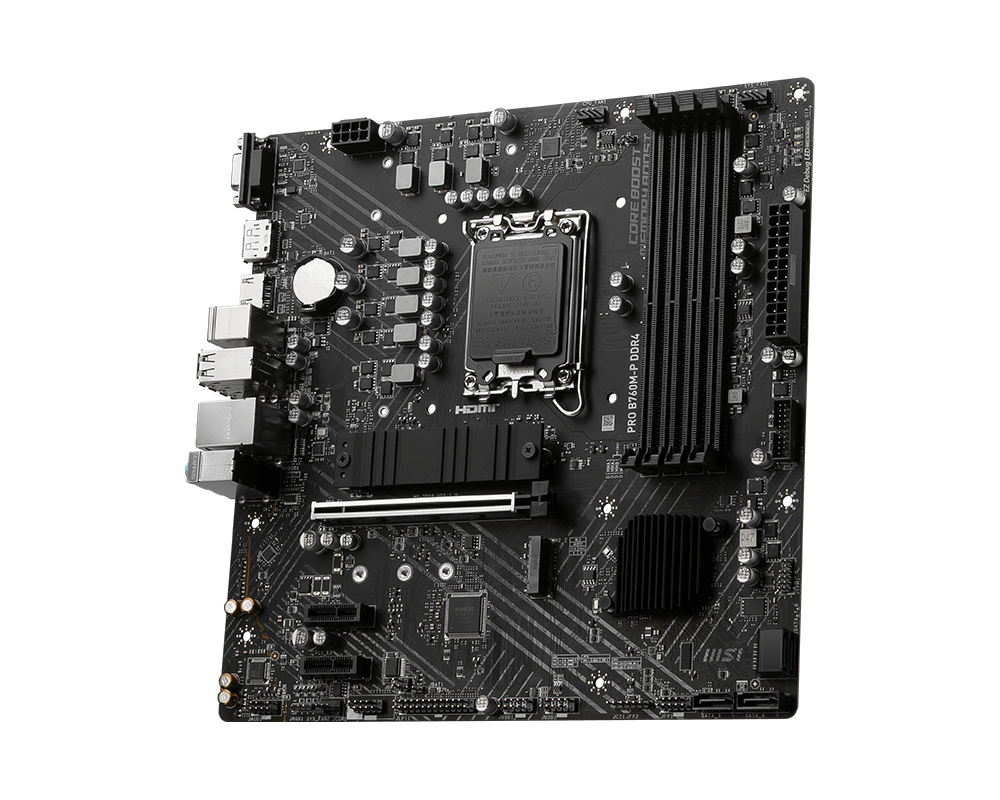

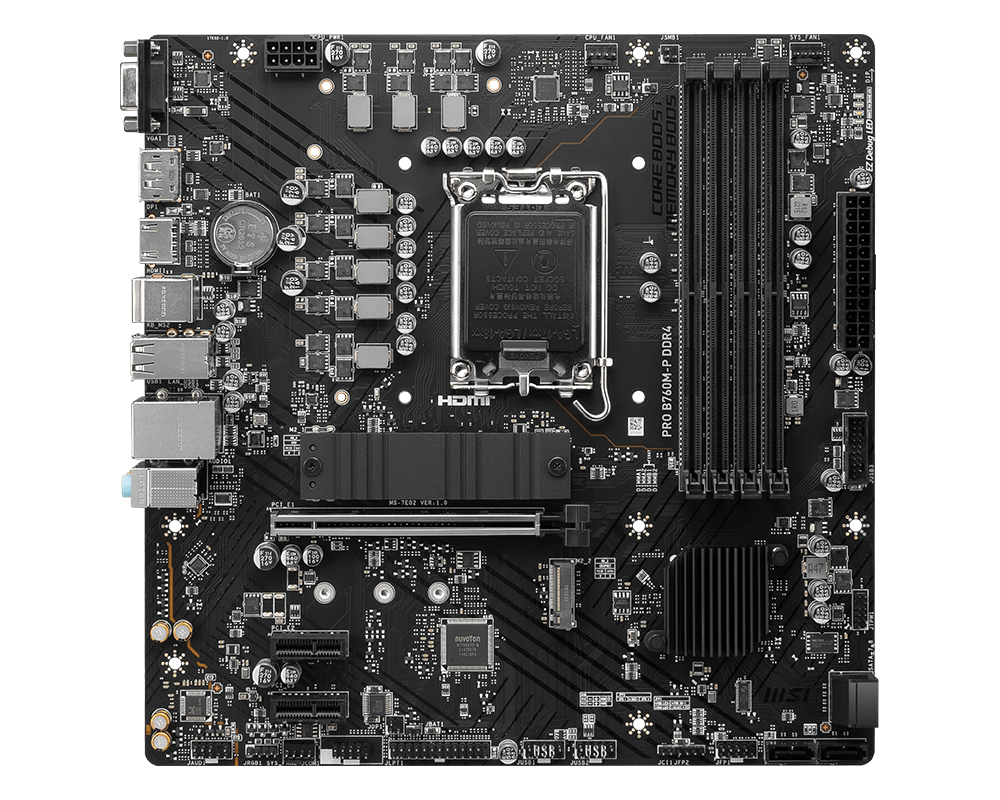

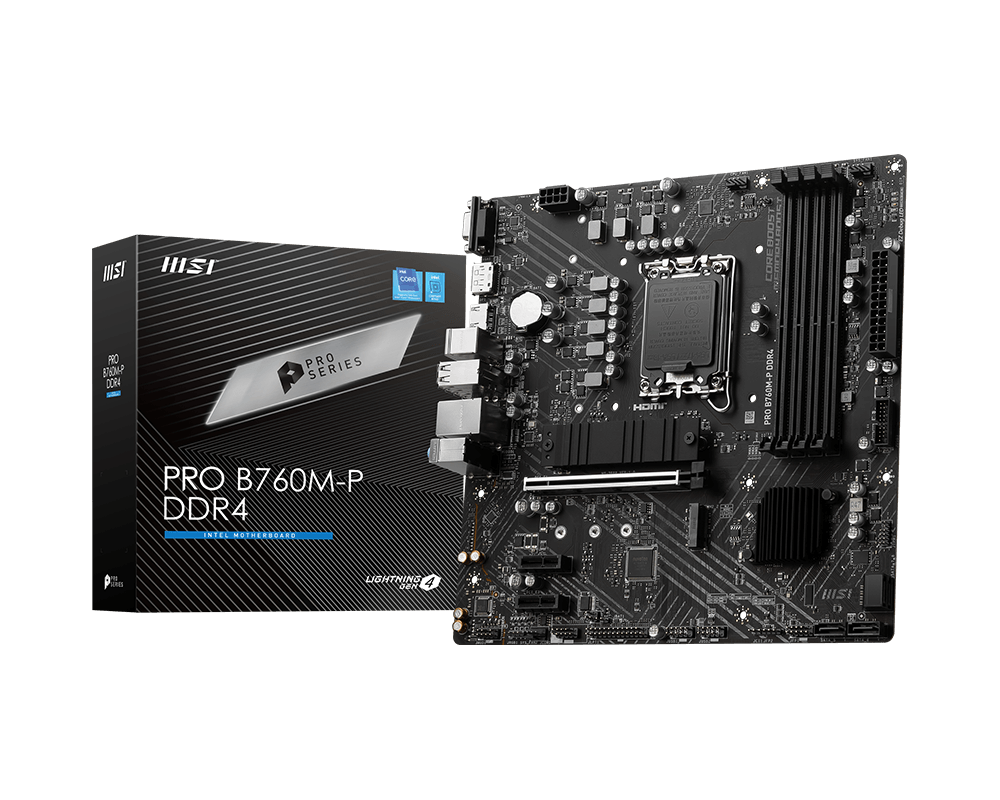

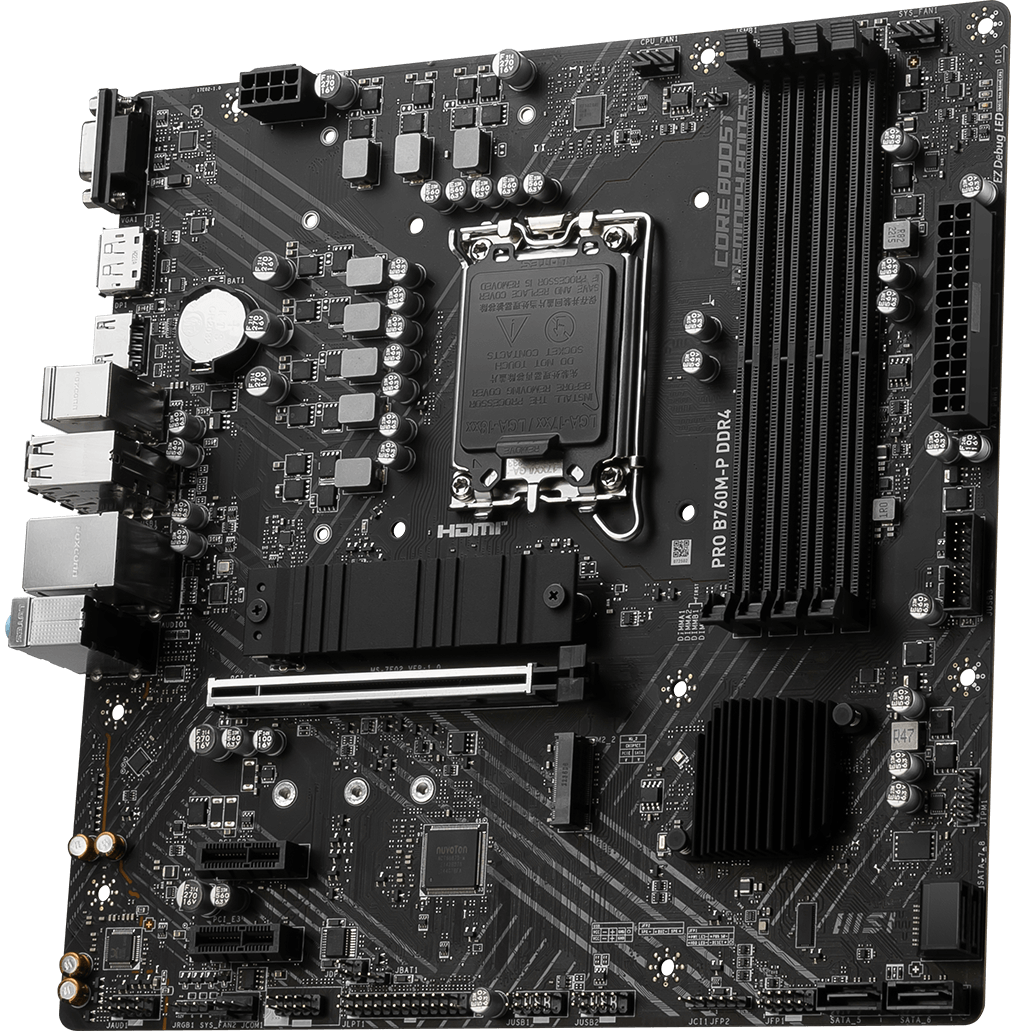

PRO B760M-P DDR4
- Supports 12th/13th Gen Intel ® Core™, Pentium ® Gold and Celeron ® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
