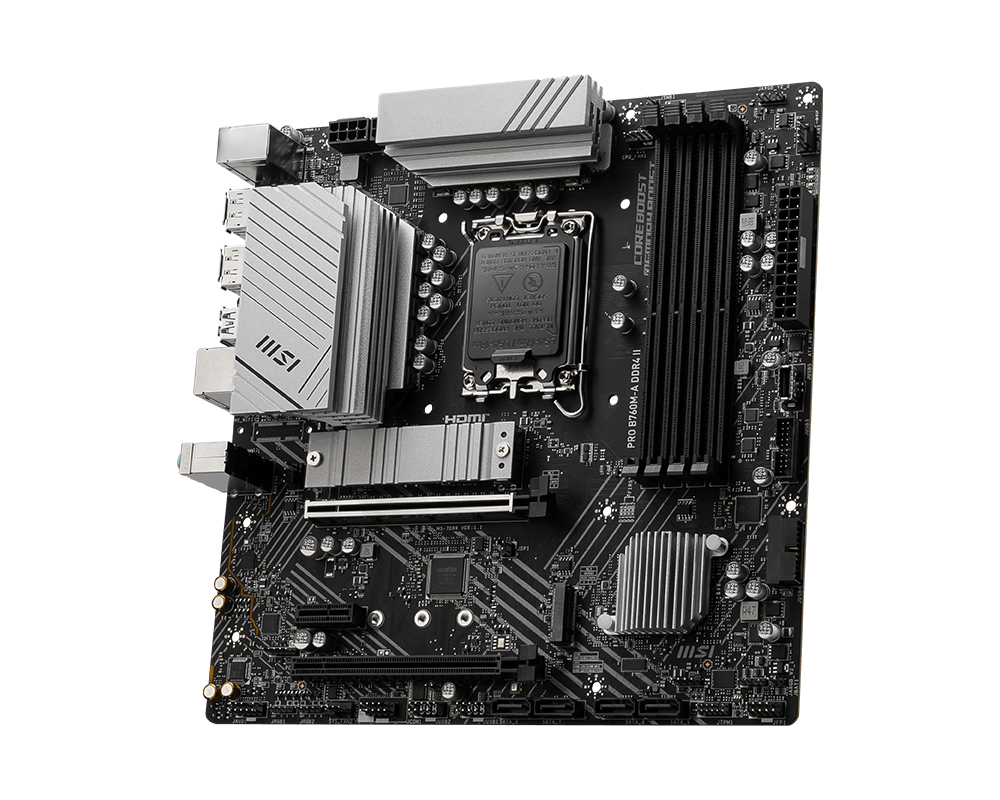

PRO B760M-A DDR4 II is designed with tons of flexible tools with DDR4 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
EXCLUSIVE FEATURES
Extended Heatsink
2.5G Network Solution
Memory Boost
M.2 Shield Frozr
Lightning Gen 4
硬件
- 散热
- 供电解决方案
- 友善设计
- cooling overview
- 完善风扇控制
- 水冷散热

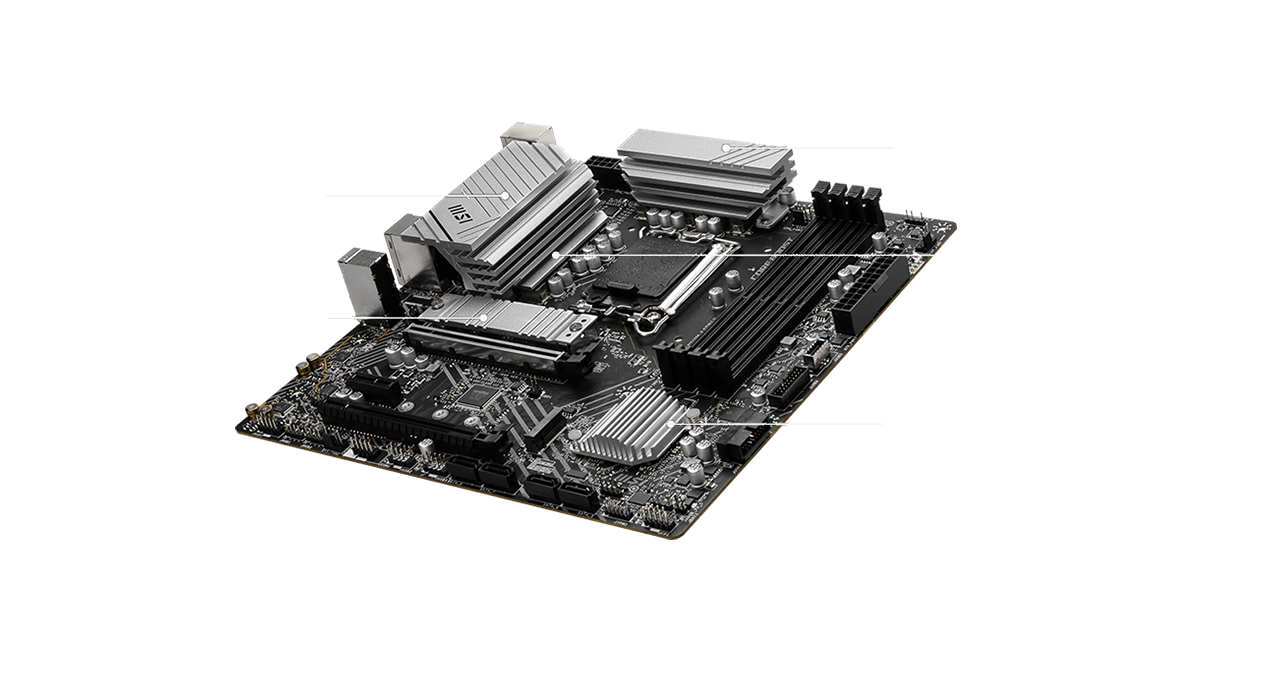

Cooling Overview
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
-
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
-
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
-
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
-
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准，系统也将依照这温度标准自动调整风扇速度。
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
MSI 风扇接头可自动检测风扇将以直流或PWM哪种模式运行，视情况随时调整风扇转速和进行降噪。 Hysteresis也能使系统风扇的运转更为流畅，并确保系统随时处于安静的状态之中。
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出，让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
- STRUCTURE
- PCB DESIGN
12+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
POWER
POWER

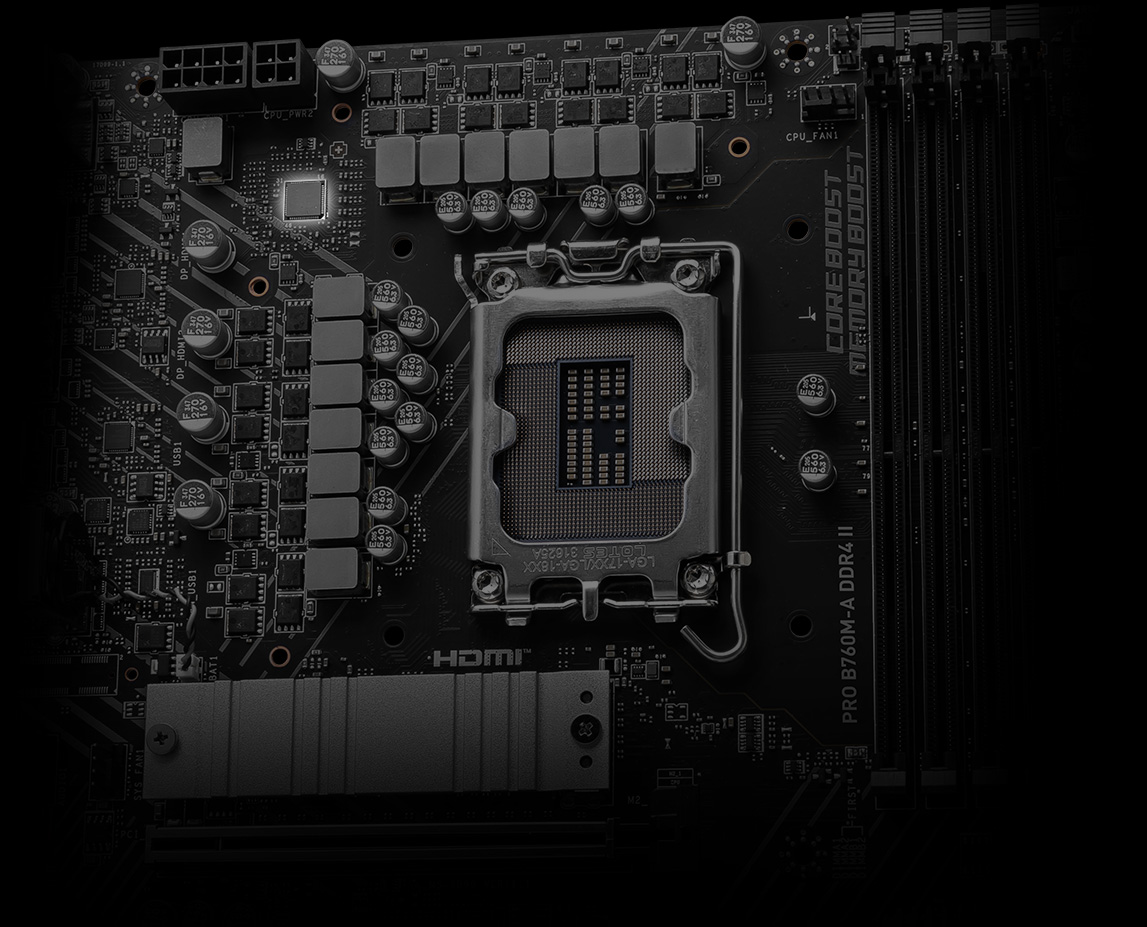

DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

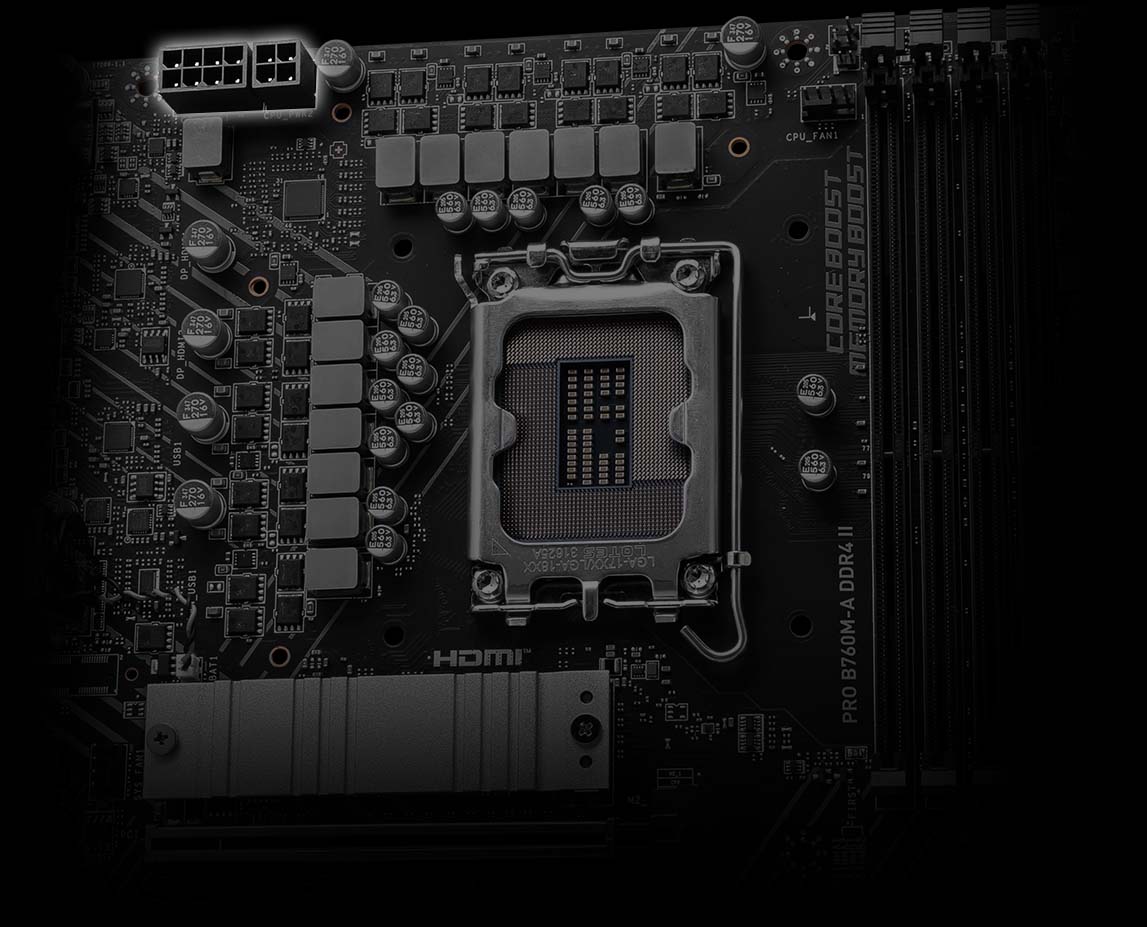

DOUBLE POWER CONNECTORS
The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU.

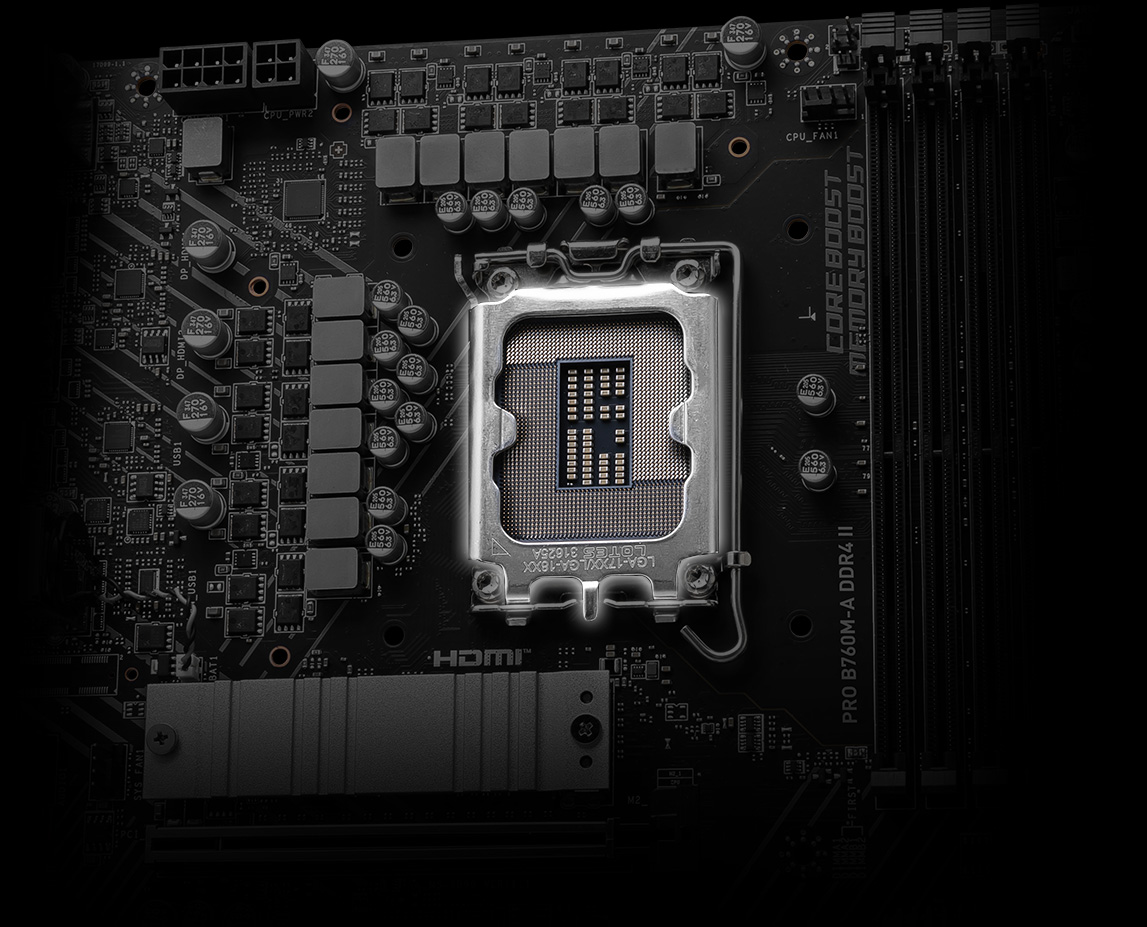

CORE BOOST
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

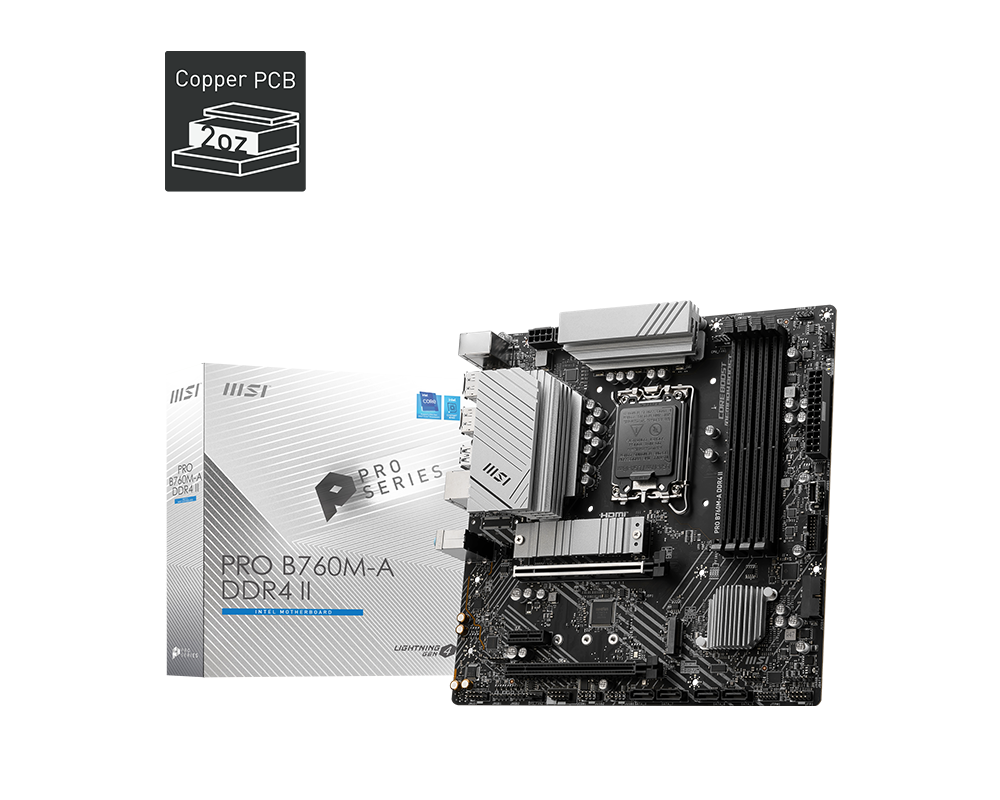

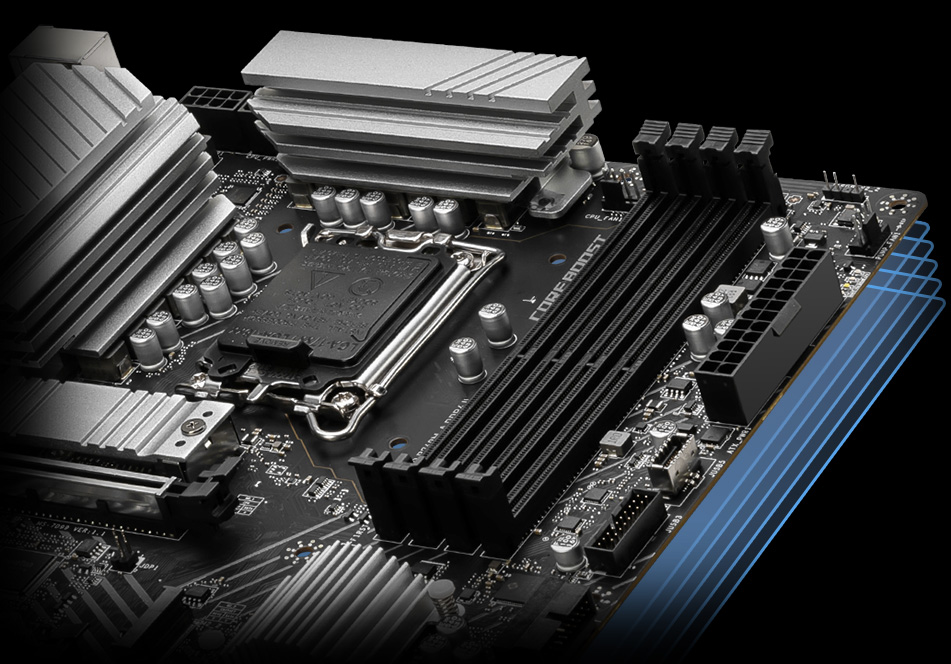

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 6 PCB layers
- 2oz Thickened Copper
- EZ M.2 CLIP
- 驱动安装
- 更多友善设计
EZ M.2 CLIP
锁螺丝常遇到问题吗？ MSI 独家EZ M.2 夹子可帮助您快速轻松地安装M.2 SSD。
驱动安装
一连接到网路，MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序，您只需点击几下即可下载和安装。 了解更多
* 请确保连接到网路，否则Driver Utility Installer 不会自动启动。
更多友善设计
* 将主机板装入机壳时，请确保移除不必要的安装支架。
性能
- 扩充性
- 记忆体
- Bios & 软体
- LIGHTNING GEN 4 PCI-E
- STORAGE
- USB

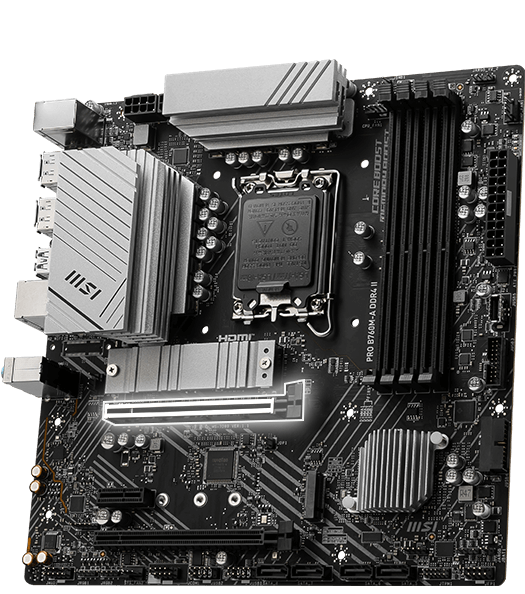

Lightning Gen 4 PCI-e with Steel Armor
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

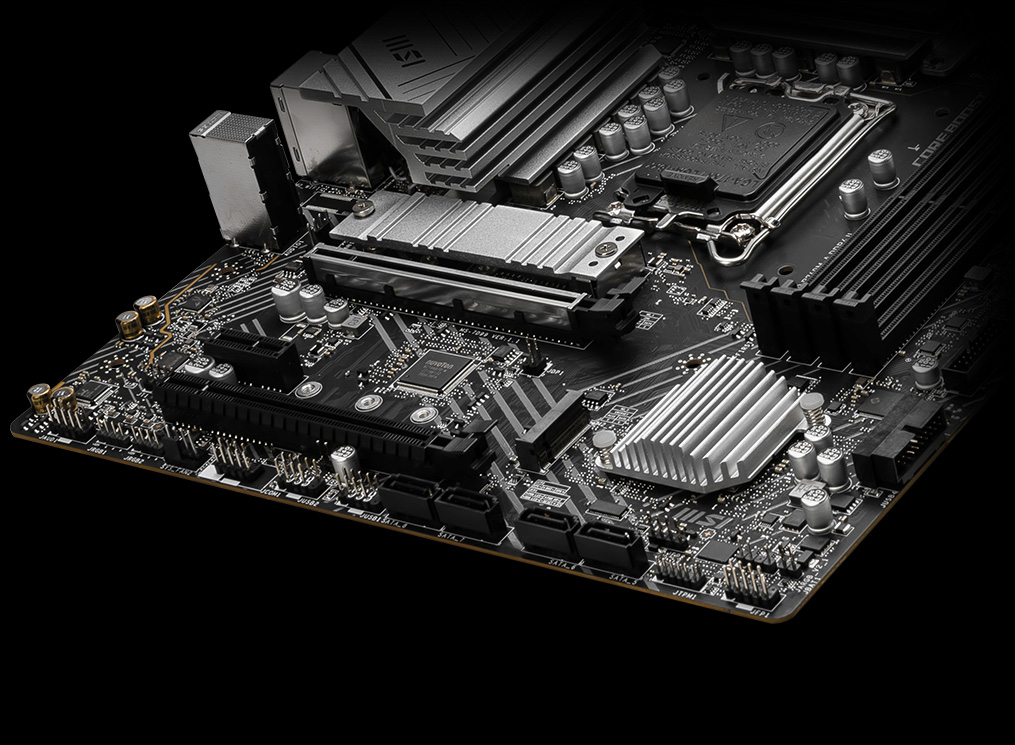

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
2x
4x
前置USB TYPE-C
MSI PRO 机板支援前置USB Type-C，相容最新最快速的USB 装备。再搭配微星机壳，更好的整合性，将带给您最方便的使用体验。
- DDR4

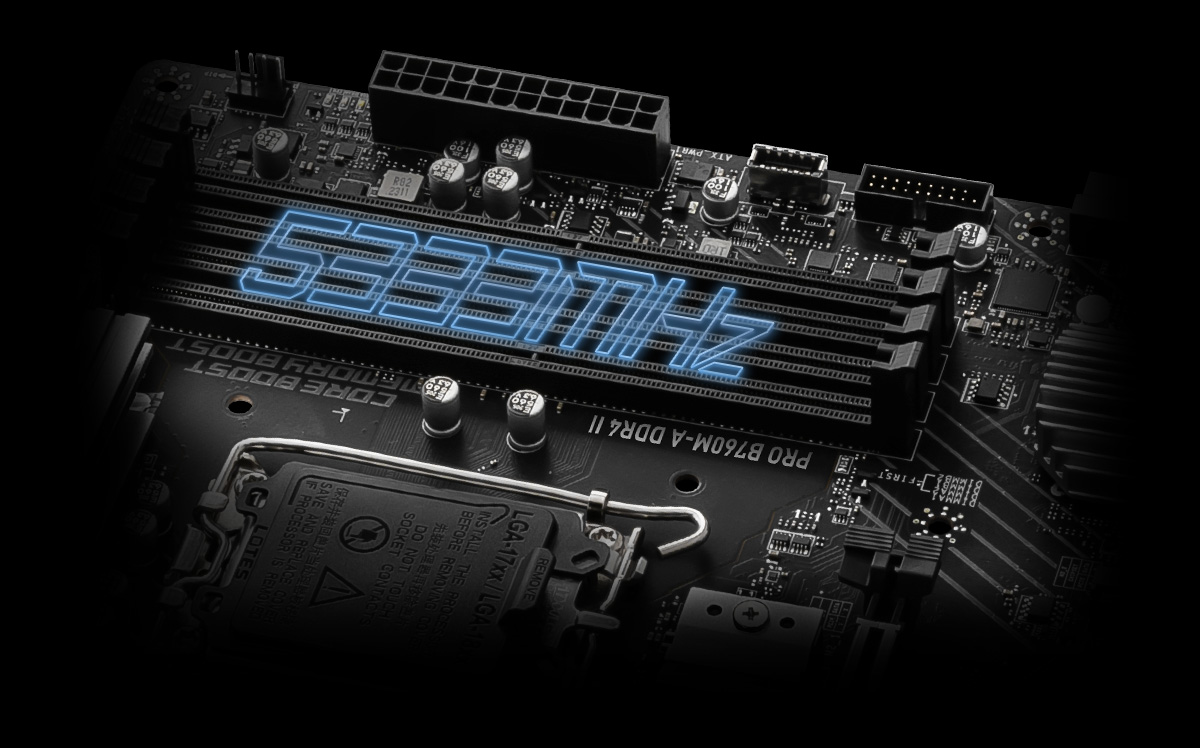

DDR4 Memory Solution
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
- MSI CENTER
- AIDA64
- CLICK BIOS 5
- System Safety
- RESIZABLE BAR
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体，您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯，并可储存CSV、HTML 等多种格式文件。
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
-
XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.
-
VMD (Volume Management Device)
Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
-
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
-
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
-
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
-
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
System Safety
MSI PRO 全系列主机板在BIOS中皆导入SECURITY 功能，不论在商务或日常使用上，皆能为您保护个资文件资料。
Secure Boot
Secure boot 是一项安全标准，确保装置仅受可信任的软体启动。当主机启动时，韧体将会检测每个启动软体的讯号，包含UEFI 韧体驱动、EFI 应用程式和操作系统。当讯号是有效时，主机将会启动。
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能，可以让CPU一次完整存取GPU的记忆体，减少与GPU的来回沟通，进而改善许多游戏的效能。
连接性
- 音效
- mystic light
- 网路连线
- Audio Boost
Audio boost
- 高清晰度音频处理器
- 高品质音效电容
- 高品质音效接头
- AUDIO 线路独立区域
- DE-POP 保护机制
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽，可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面，更方便您操作控制，无需再另外单购RGB控制器。
* Gen2 设备仅支援7 种RGB 灯效

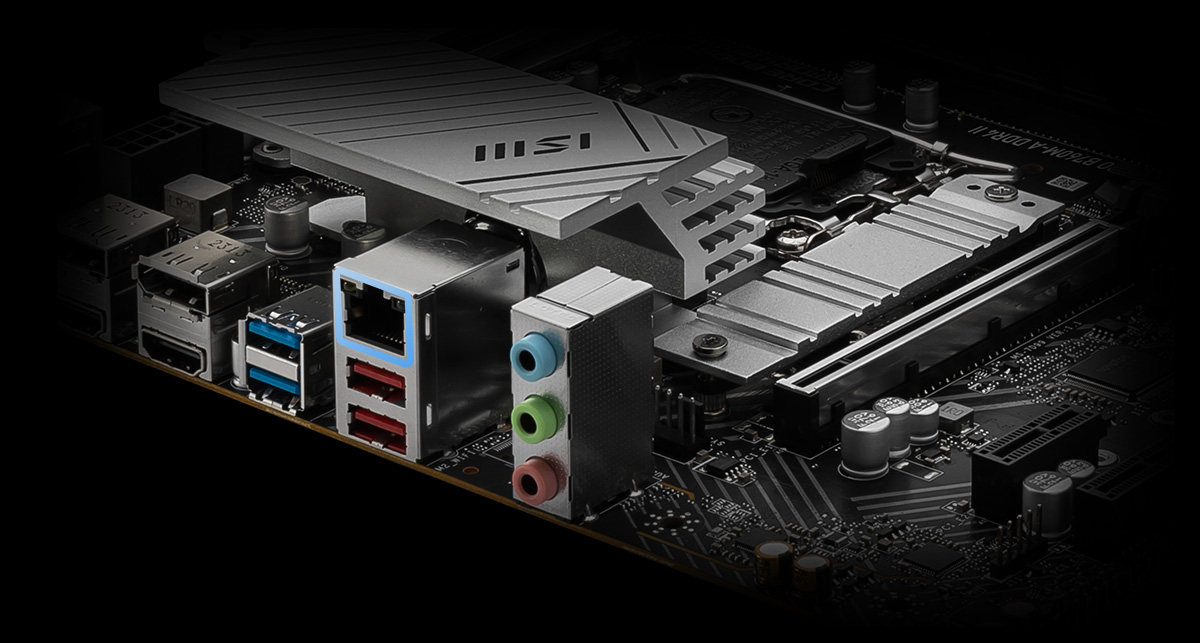

- 2.5G LAN
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

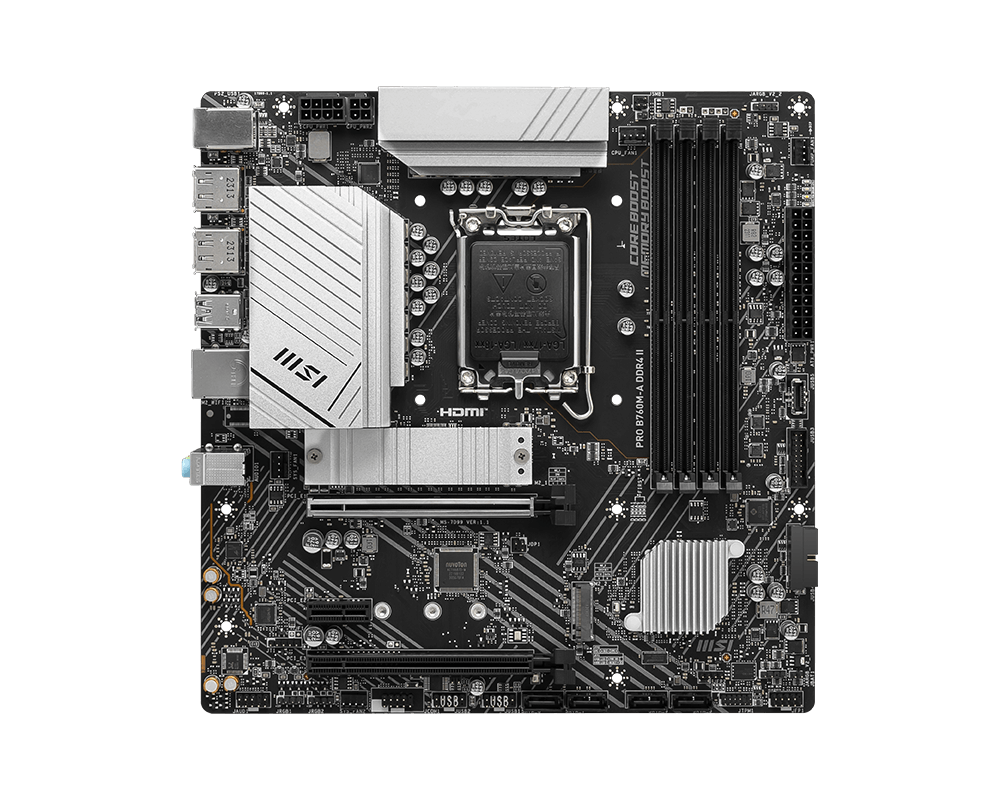

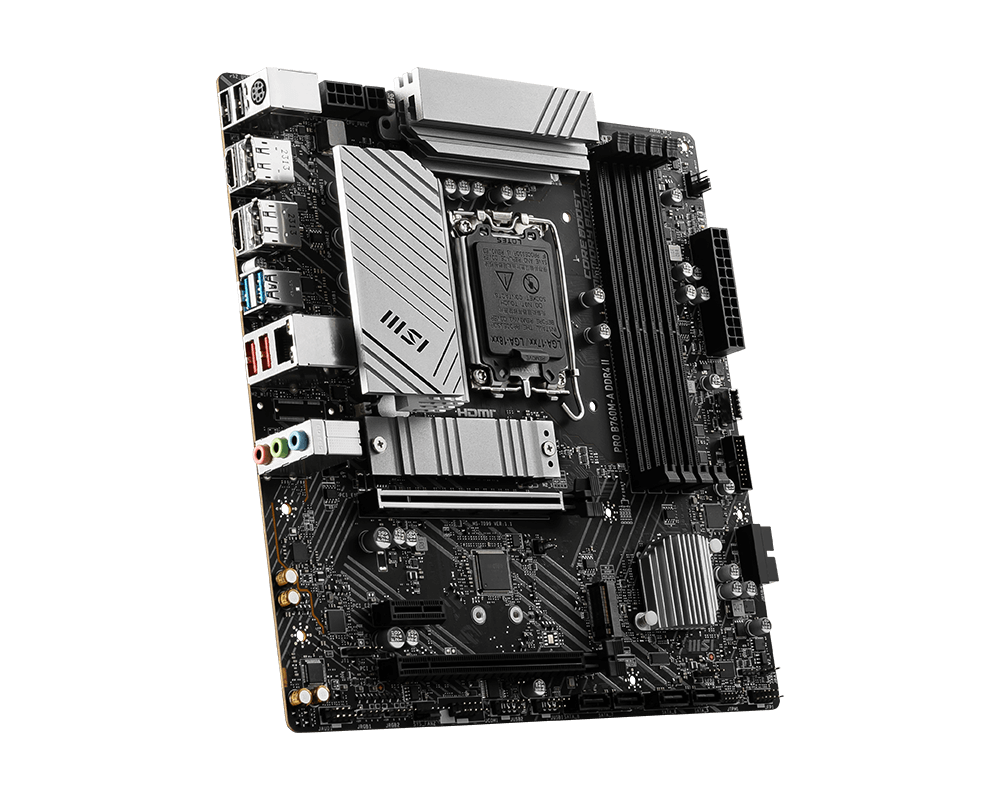

PRO B760M-A DDR4 II
PRO B760M-A DDR4 II
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
