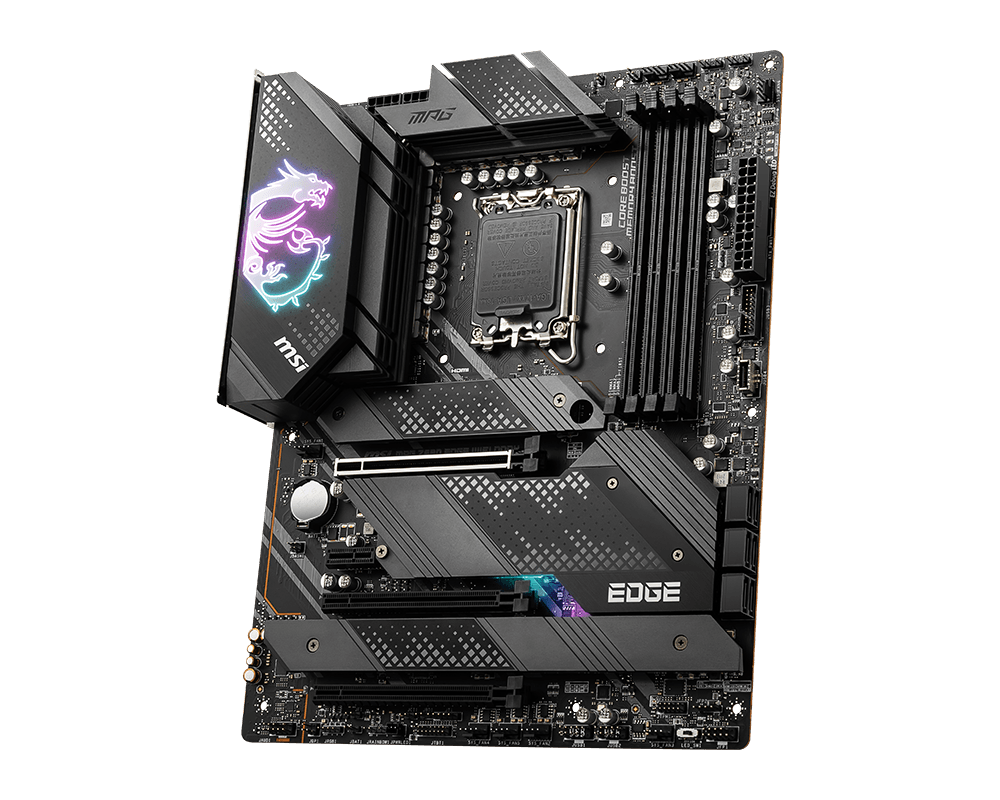

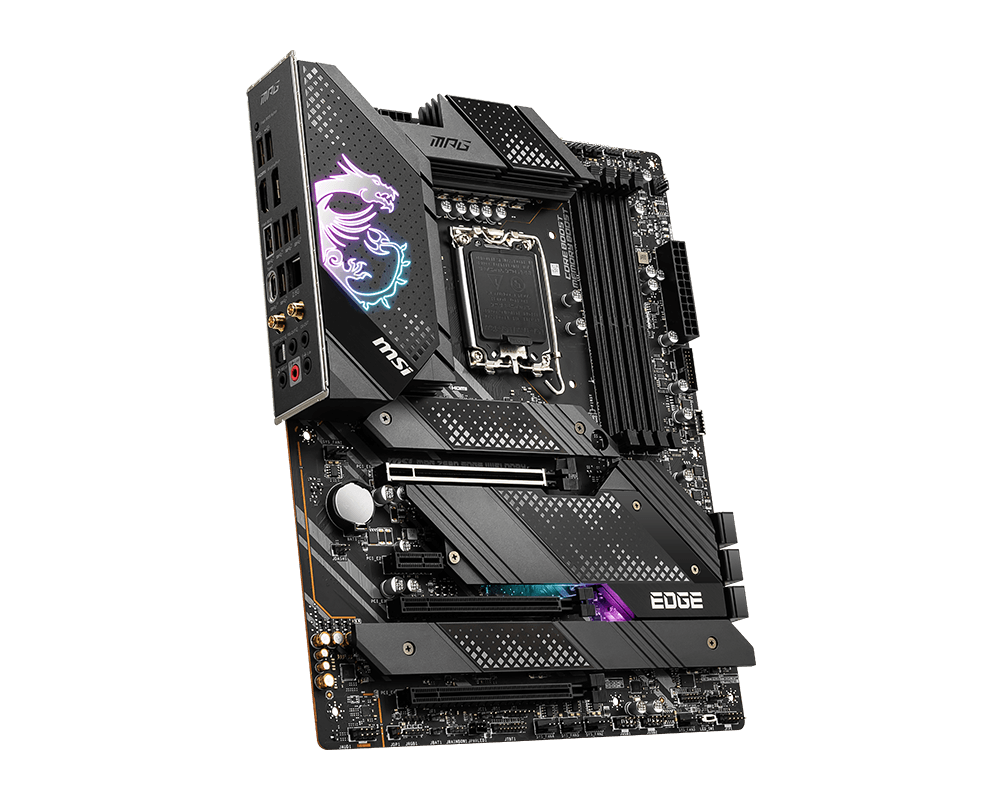

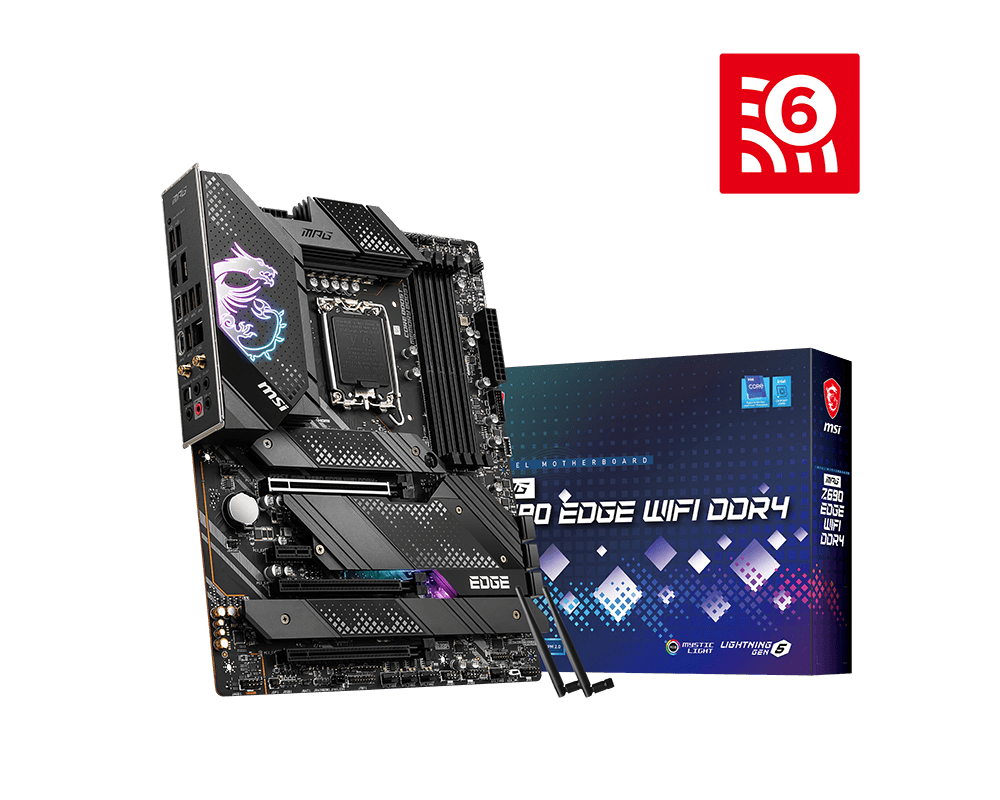

MPG Z690 EDGE WIFI DDR4
EXCLUSIVE FEATURE

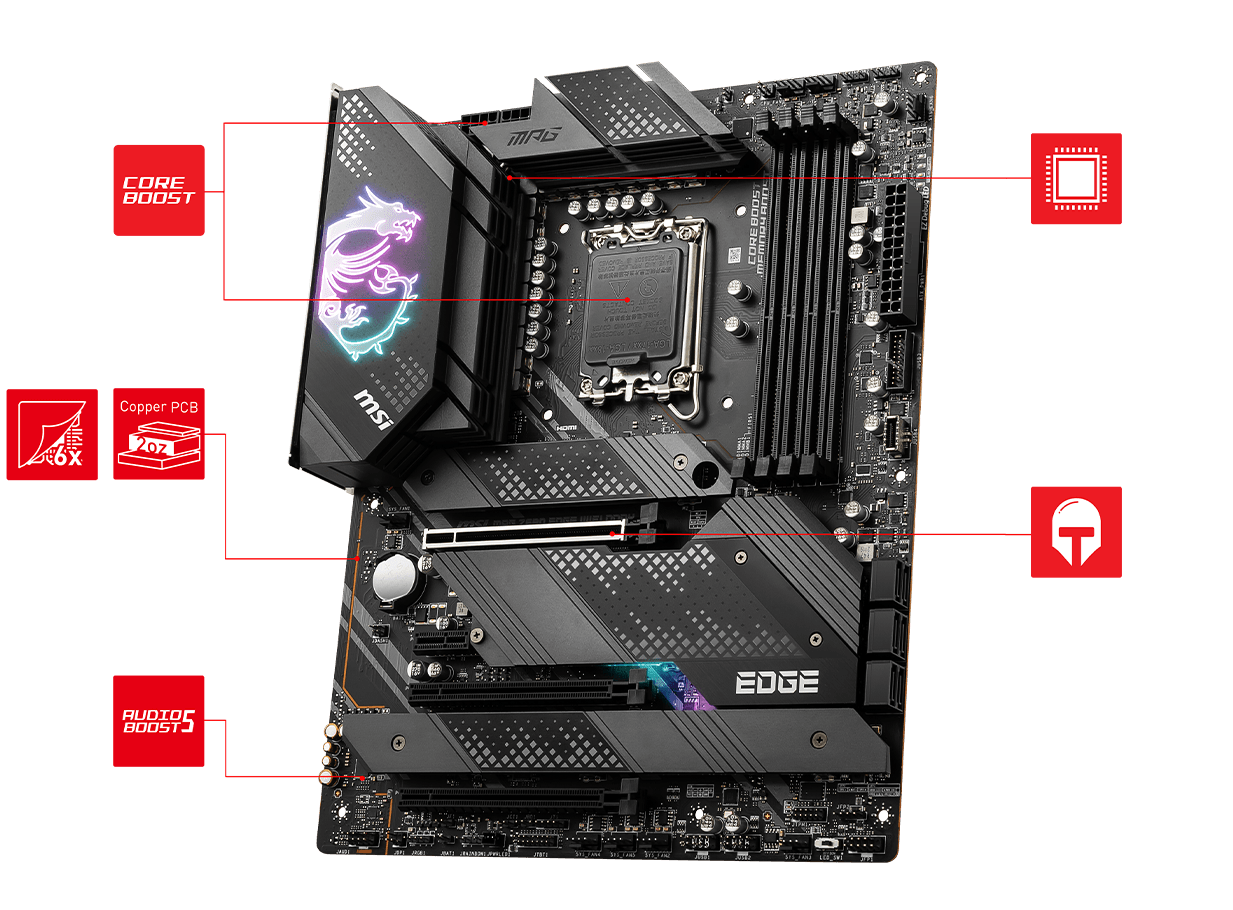

Core Boost Technology
Combining 2x 8-pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
Premium PCB Material
6 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

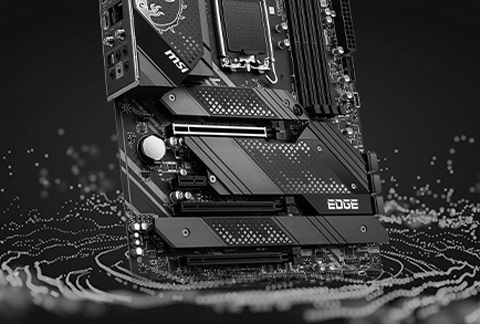

Audio Boost 5
Isolated audio with high quality audio processor & amp for the most immersive gaming experience.

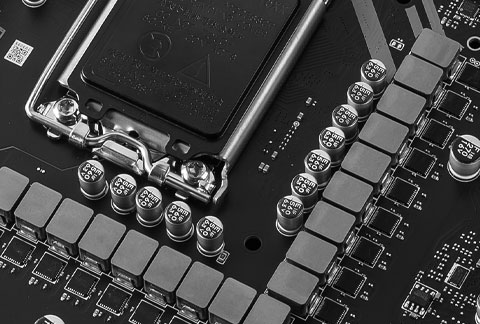

Direct 16+1+1 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC and direct 16 phases power system with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MPG Z690 EDGE WIFI DDR4
premium thermal solution

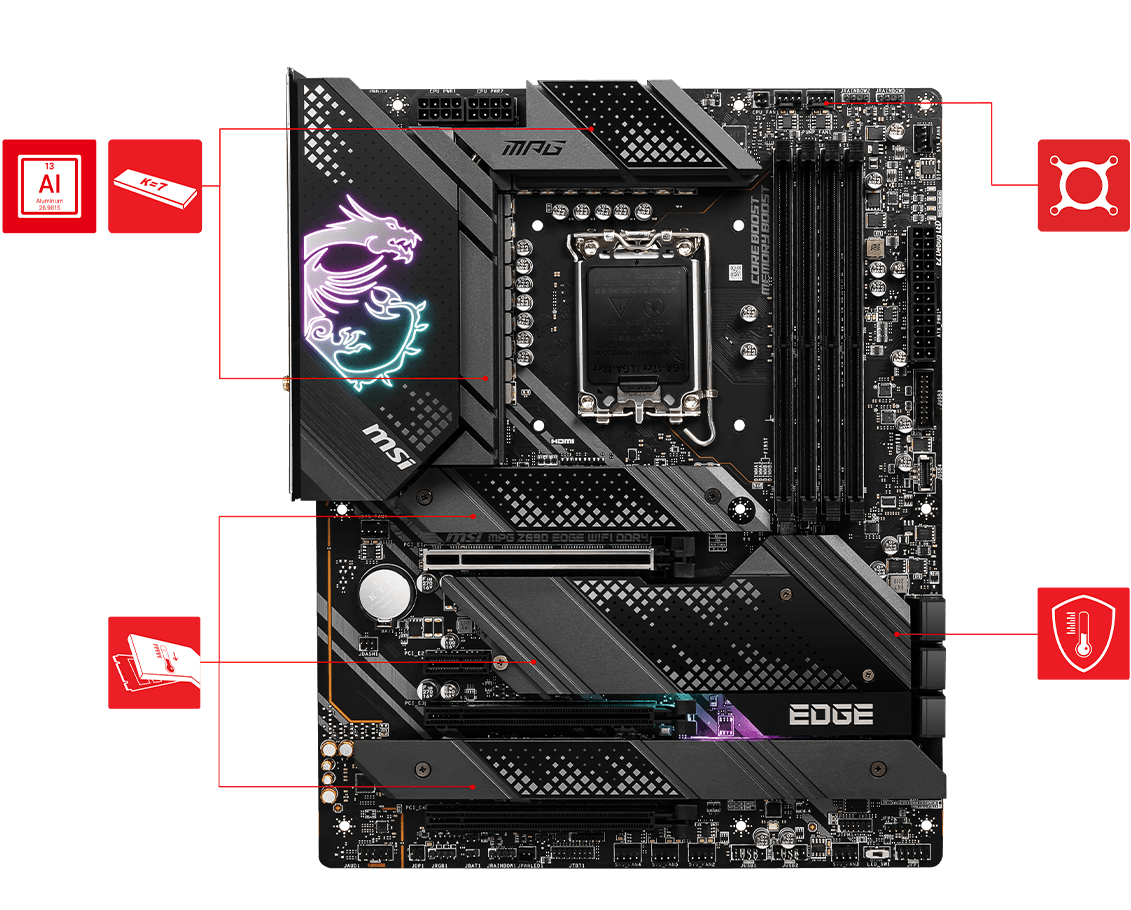

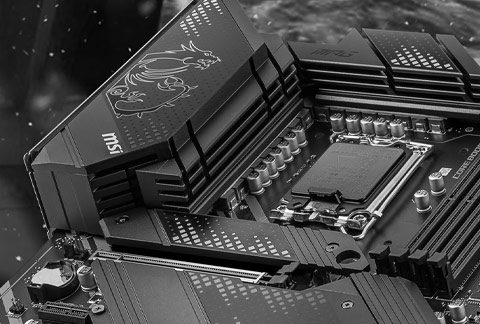

Premium Thermal Design
Aluminum Cover with heatsink, heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Enlarged Chipset Heatsink
Larger heatsink for chipset ensures better heat dissipation and cooling effects.

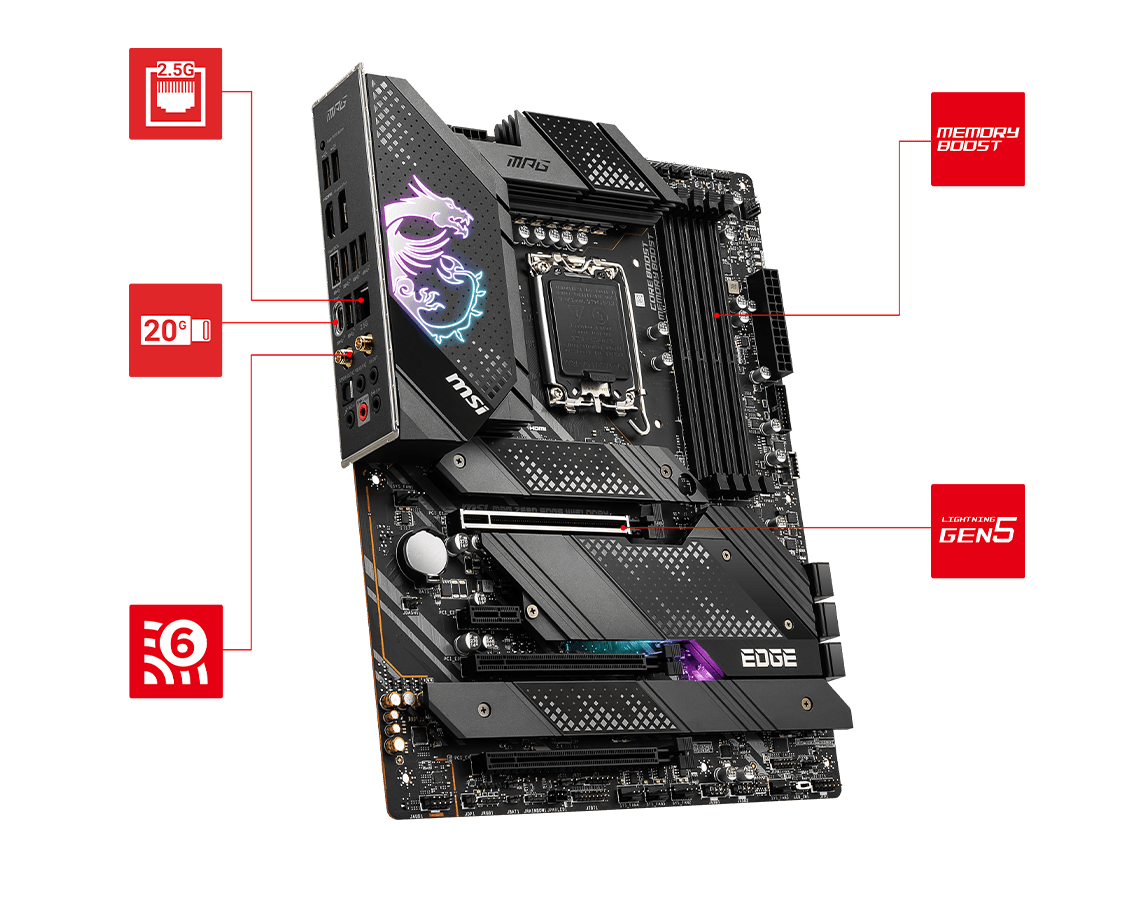

MPG Z690 EDGE WIFI DDR4
HIGH-SPEED TRANSMISSION

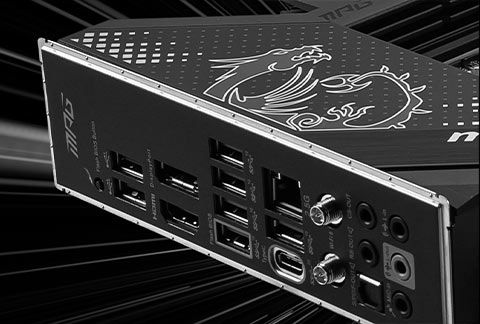

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
Intel Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

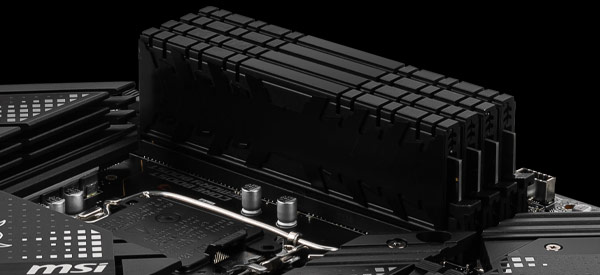

Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

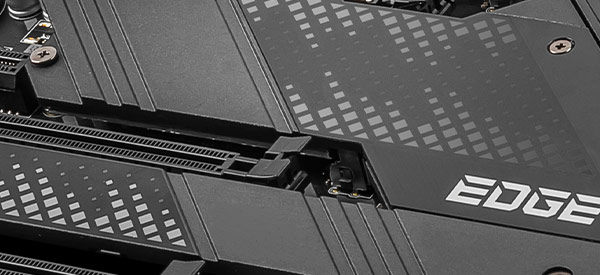

Lightning Gen 5 Solution
The latest Gen 5 PCI-E slot with up to 128GB/s bandwidth for maximum transfer speed.
PREMIUM
HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
ENHANCED
PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

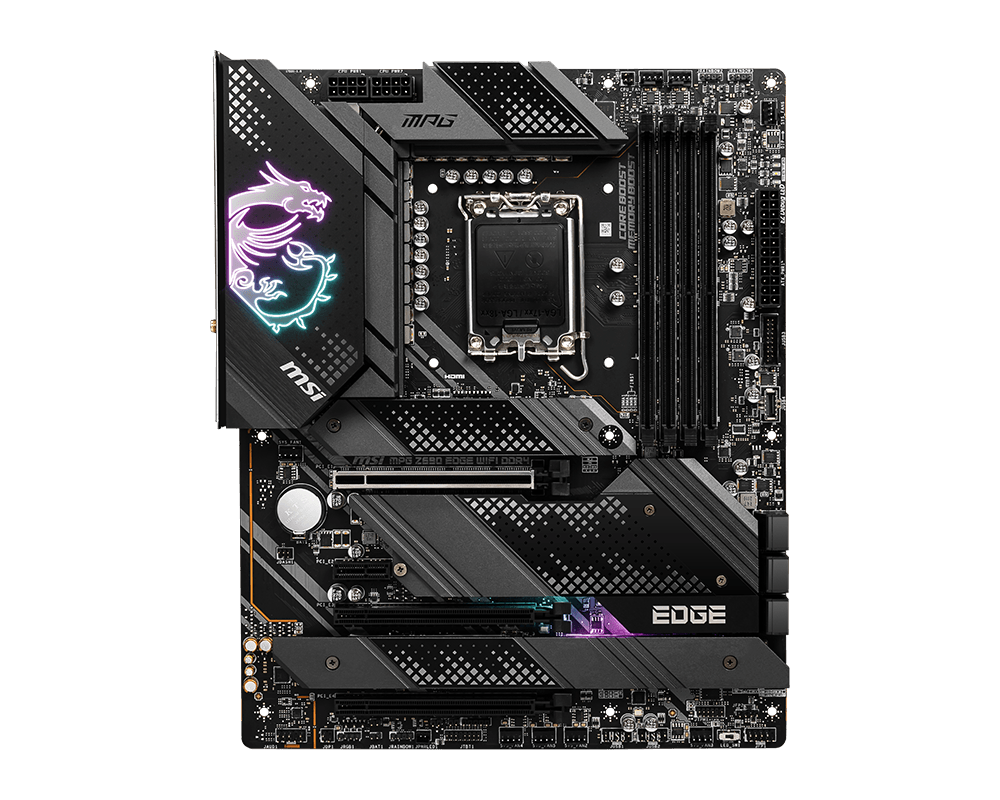

MPG Z690 EDGE WIFI DDR4
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

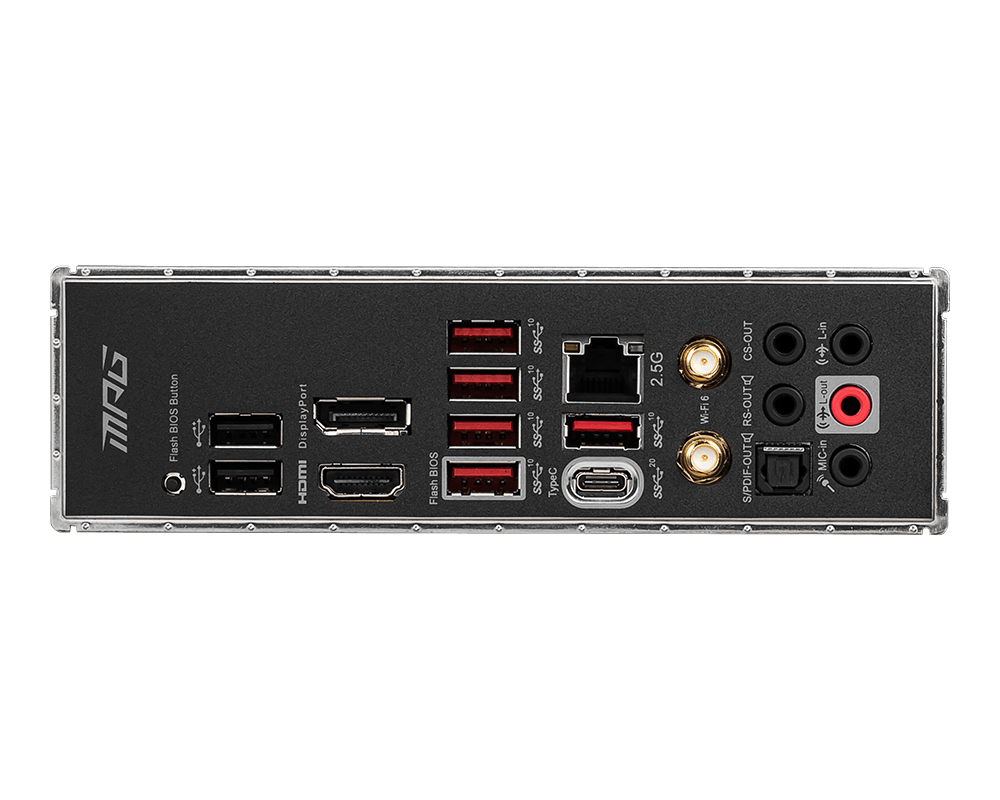

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
