CPU (最高支持)

Ryzen 9

芯片组

AMD X570 Chipset

DDR4 内存

5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz

内存插槽数

最大内存 (GB)

128

M.2 接口

WiFi & Bluetooth

Intel® Wi-Fi 6E AX210

USB 3.2 ports (Front)

1(Gen 2, Type C), 4(Gen 1, Type A)

PCI-E X1

USB 3.2 ports (Rear)

1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)

PCI-E X16

USB 2.0 接口 (前置)

USB 2.0 接口 (背板)

SATAIII 接口

网卡接口

1x Realtek® 8125B 2.5G LAN

Dimension

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

音频接口 (背板)

5+ Optical S/PDIF (Realtek® ALC4080 Codec)

HDMI 接口

DirectX

交火

尺寸规格

ATX

无线网卡

Processor

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors¹
Supports Socket AM4

Please go to msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

AMD X570 Chipset

Memory

4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC¹
Max frequency by A-XMP OC mode:
- For Ryzen^™ 5000 G-Series & 4000 G-Series processors
  - 1DPC 1R Max speed up to 5300 MHz
  - 1DPC 2R Max speed up to 4266 MHz
  - 2DPC 1R Max speed up to 4400 MHz
  - 2DPC 2R Max speed up to 3600 MHz
- For Ryzen™ 5000 Series & 3000 Series processors
  - 1DPC 1R Max speed up to 5100 MHz
  - 1DPC 2R Max speed up to 4000 MHz
  - 2DPC 1R Max speed up to 4000 MHz
  - 2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory

See supported memory

Expansion Slots

Supports PCIe 4.0 / PCIe 3.0
- PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
- PCI_E1 supports PCIe 4.0/ 3.0 x16
- PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen™ 3000 G-and 2000 G- series desktop processors
1x PCIe x16 slot (From X570 chipset)
- PCI_E4¹ supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)

* The PCI_E4 slot will be unavailable, when installing M.2 SSD into the M2_4 slot.

Onboard Graphics

1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz¹/ ²

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the processor installed.

Multi-GPU

Supports AMD CrossFire™ Technology

Storage

8x SATA 6Gb/s ports (From X570 chipset)
4x M.2 slots (Key M)
- Supports PCIe 4.0 / PCIe 3.0
- PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
- M2_1 (From processor)
  - Supports 2242/ 2260/2280/22110 storage devices
  - Supports up to SATA 6Gb/s
- M2_2, M2_3¹ and M2_4 slots (from AMD X570 Chipset)
  - M2_2 & M2_4 slots support 2242/ 2260/ 2280 storage devices
  - M2_3 slot supports 2242/ 2260/2280/22110 storage devices
  - M2_2 & M2_3 slots support up to SATA 6Gb/s

SATA5-6 will be unavailable when installing SATA SSD in the M2_3 slot; SATA5-8 will be unavailable when installing PCIe SSD in the M2_3 slot.

RAID

AMD X570 Chipset

Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

1x USB 3.2 Gen 2 10Gbps Type-C internal connector
4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors
2x USB 2.0 ports on the back panel
Asmedia^® 1074 Chipset
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
GL850G Hub
- 4x USB 2.0 ports are available through the internal USB connectors

AMD Processor

4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel

Audio

Realtek^® ALC4080 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Realtek^® RTL8125B 2.5 Gbps LAN controller

WiFi & Bluetooth

Intel^® Wi-Fi 6E AX210

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz¹ (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth^® 5.2², FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
Bluetooth 5.2 will be ready in WIN10 21H1.

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
8x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 2-pin Thermal sensor connector
1x TPM module connector
1x Clear CMOS jumper

LED Feature

1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
4x EZ Debug LED
1x 2-Digit Debug Code LED
1x EZ LED Control switch

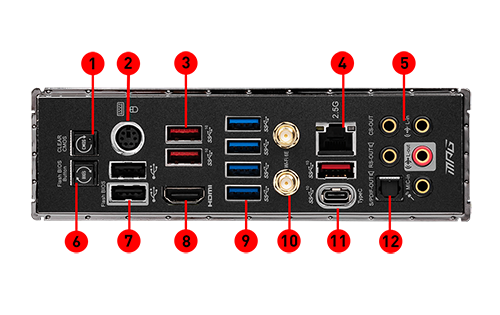

Back panel ports

Clear CMOS Button
Keyboard / Mouse
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi / Bluetooth
USB 3.2 Gen 2 10Gbps Type-A/C
Optical S/PDIF Out

Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit
