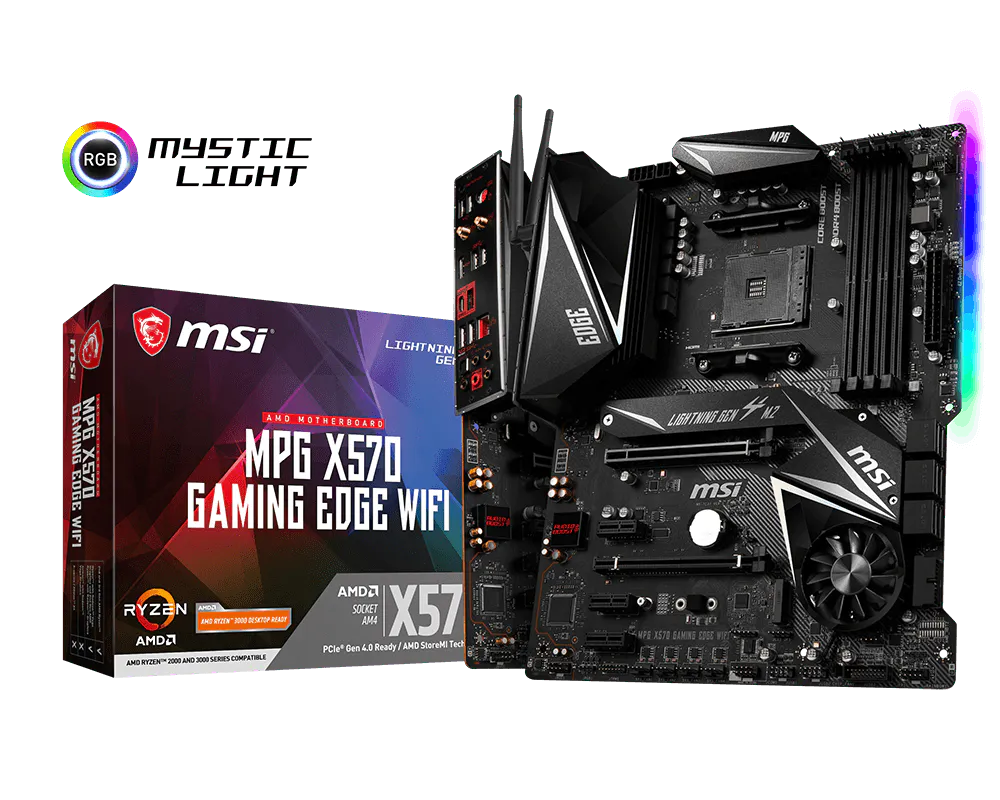

MPG X570 GAMING EDGE WIFI

CPU (最高支持)
CPU 插槽
芯片组
DDR4 内存
内存插槽数
最大内存 (GB)
M.2 接口
串口 (前置)
USB 3.2 ports (Front)
PCI-E X1
USB 3.2 ports (Rear)
PCI-E X16
PCI-E X4
USB 2.0 接口 (前置)
USB 2.0 接口 (背板)
SATAIII 接口
网卡接口
TPM
音频接口 (背板)
HDMI 接口
DirectX
交火
尺寸规格
无线网卡

CPU (最高支持)

RYZEN 9

CPU 插槽

AM4

芯片组

AMD® X570 Chipset

DDR4 内存

1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE

内存插槽数

最大内存 (GB)

128

M.2 接口

串口 (前置)

USB 3.2 ports (Front)

4(Gen1, Type A)

PCI-E X1

USB 3.2 ports (Rear)

1(Gen2, Type C), 3(Gen2, Type A), 2(Gen1, Type A)

PCI-E X16

PCI-E X4

USB 2.0 接口 (前置)

USB 2.0 接口 (背板)

SATAIII 接口

网卡接口

1x Realtek® 8111H Gigabit LAN Controller

音频接口 (背板)

5+ Optical S/PDIF (Realtek® ALC1220 Codec)

HDMI 接口

DirectX

交火

尺寸规格

ATX

无线网卡

Processor

Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket

See supported processors

Chipset

AMD^® X570 Chipset

Memory

4x DDR4 memory slots, support up to 128GB
- s3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slots

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
- Ryzen™ 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
3x PCIe 3.0 x1 slots¹

PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
The speeds may vary for different devices

Onboard Graphics

1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz¹
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3

Only support when using Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Maximum shared memory of 2048 MB

Multi-GPU

Supports 2-Way AMD^® CrossFire™ Technology

Storage

AMD^® X570 Chipset

4x SATA 6Gb/s ports(SATA3-SATA6)
2x M.2 slots (Key M)
- M2_1 slot (from AMD^® Processor)
  - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
  - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
  - Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD^® X570 Chipset)
  - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series,Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061

ASMedia ASM1061

2x SATA 6Gb/s ports (SATA1, SATA2)

RAID

AMD^® X570 Chipset

Supports RAID 0, RAID 1 and RAID 10

USB

AMD^® X570 Chipset

2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD^® Processor

2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek^® ALC1220 Codec

7.1-Channel High Definition Audio
Supports Optical S/PDIF output

LAN

1x Realtek^® 8111H Gigabit LAN Controller

WiFi & Bluetooth

Intel^® Dual Band Wireless-AC 3168

Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
The Wireless module is pre-install in the M2_3 (Key-E) slot

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LEDs

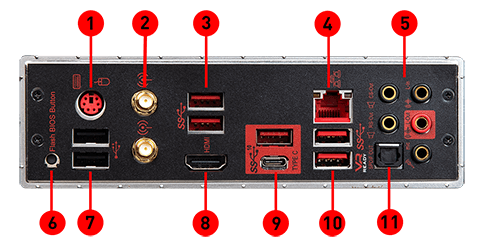

Back panel ports

Keyboard / Mouse
Wireless / Bluetooth
USB 3.2 Gen1 Type-A
LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen2 Type-A + C
USB 3.2 Gen2 Type-A
Optical S/PDIF out

Dimensions

12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

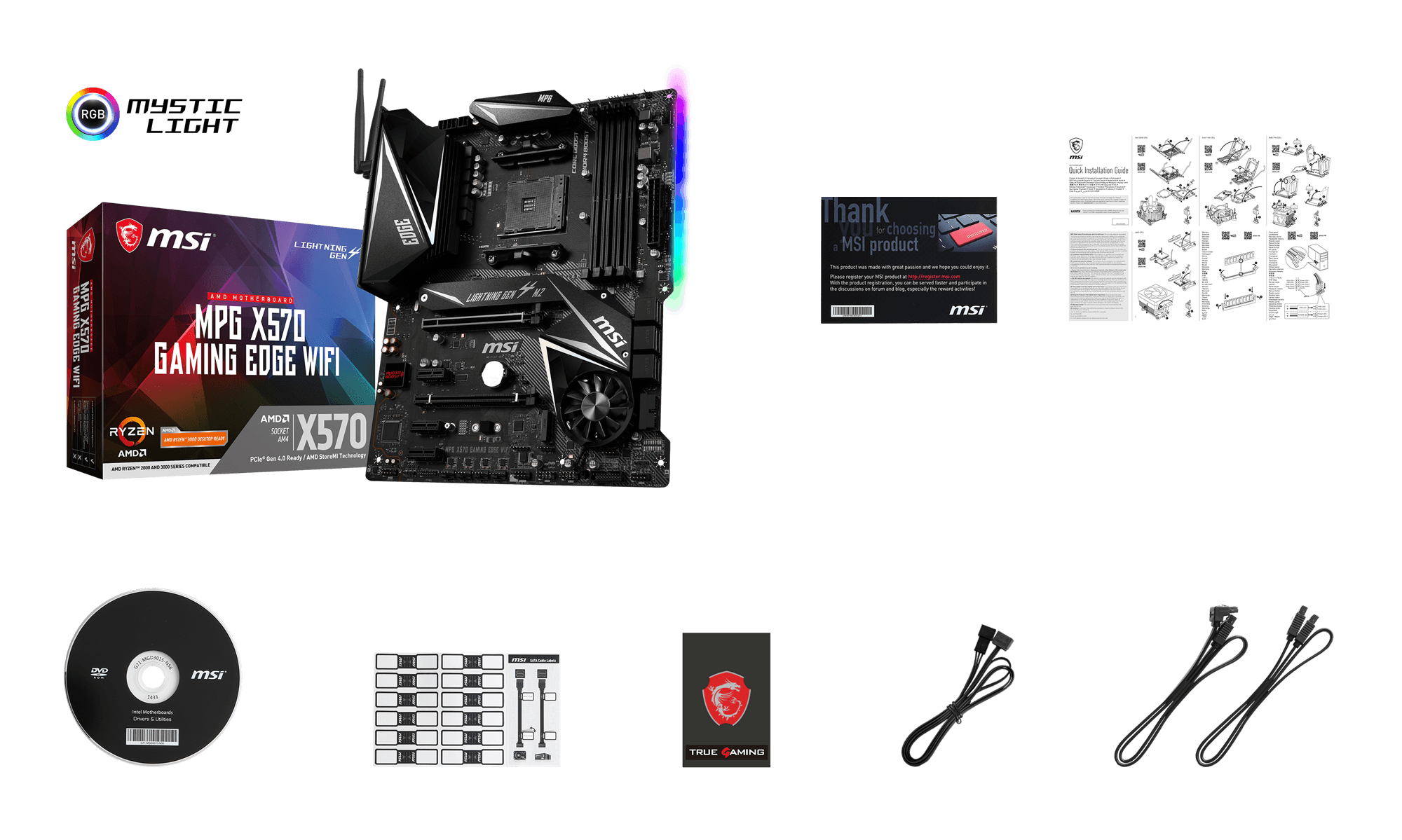

Box content

MSI^® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
