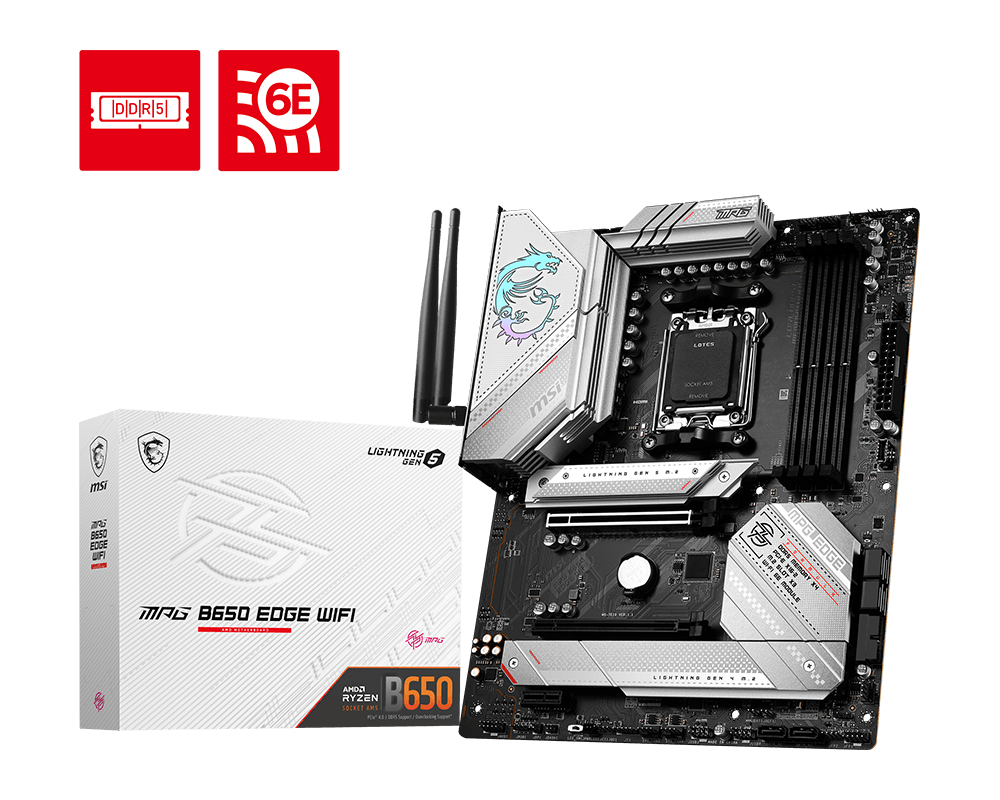

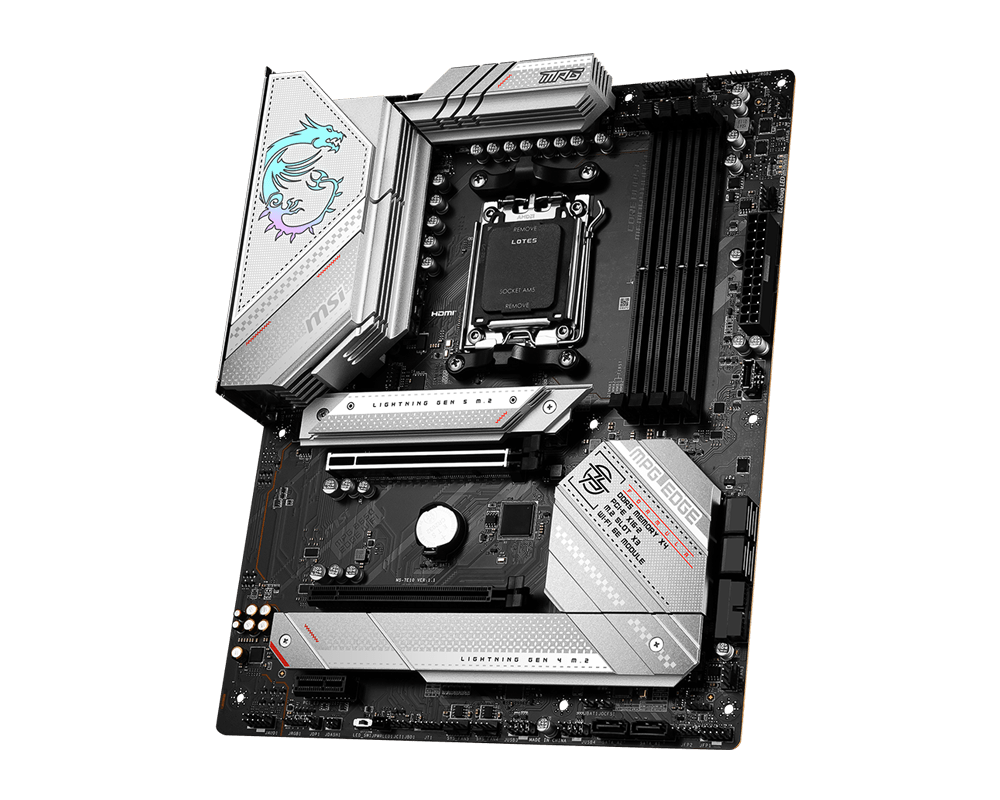

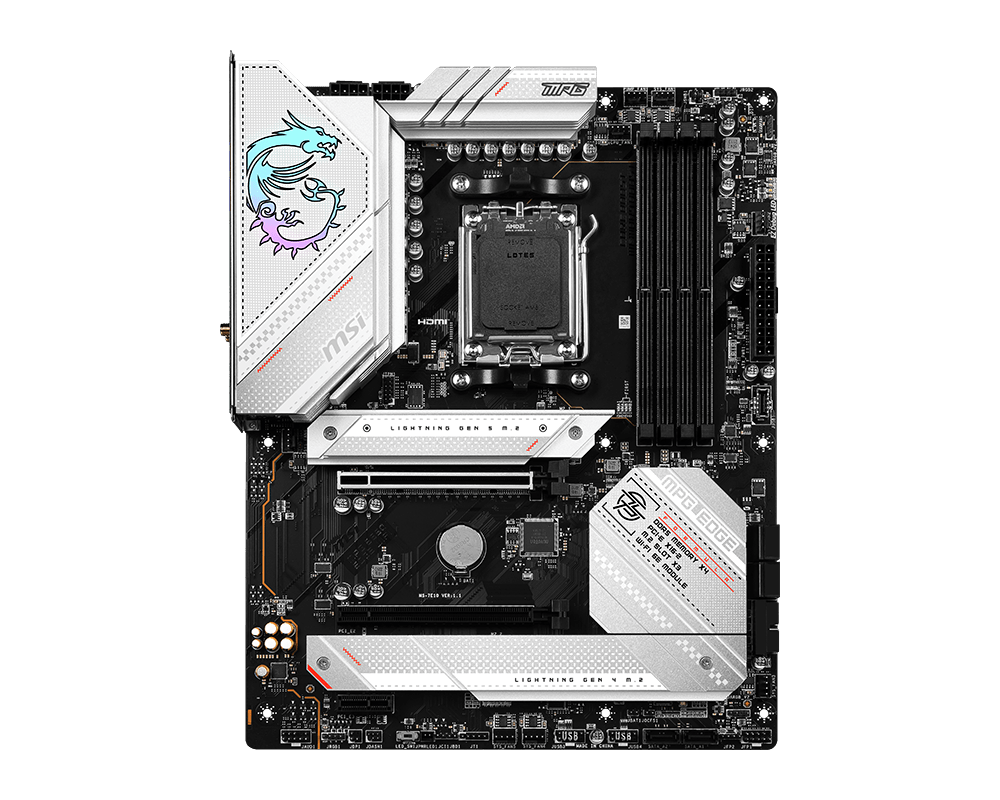

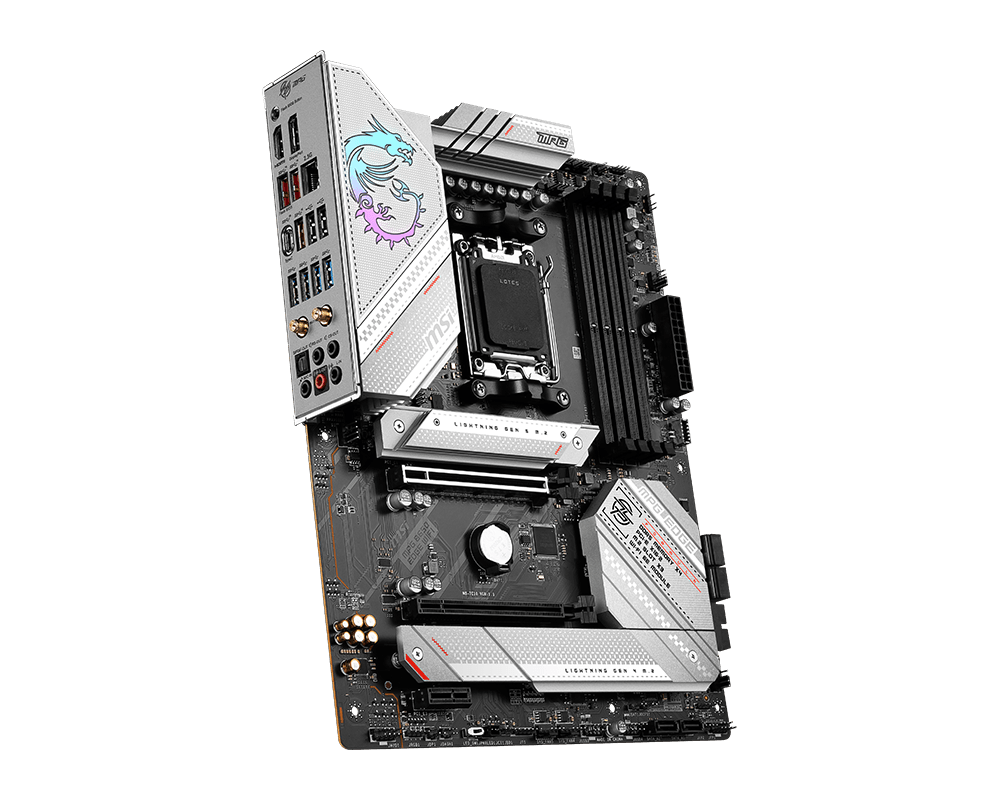

MPG B650 EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
PREMIUM THERMAL SOLUTION
Extended Heatsink
M.2 Shield Frozr
7W/mK MOSFET Thermal Pads
Enlarged Chipset Heatsink
HIGH-SPEED TRANSMISSION
2.5G LAN
Lightning USB 20G
Latest Wi-Fi 6E
Lightning Gen 4 PCI-E
Latest DDR5 Memory
1x PCI-E 5.0 M.2 Slots
2x PCI-E 4.0 M.2 Slots
EASY TO USE, STABLE AND DURABLE

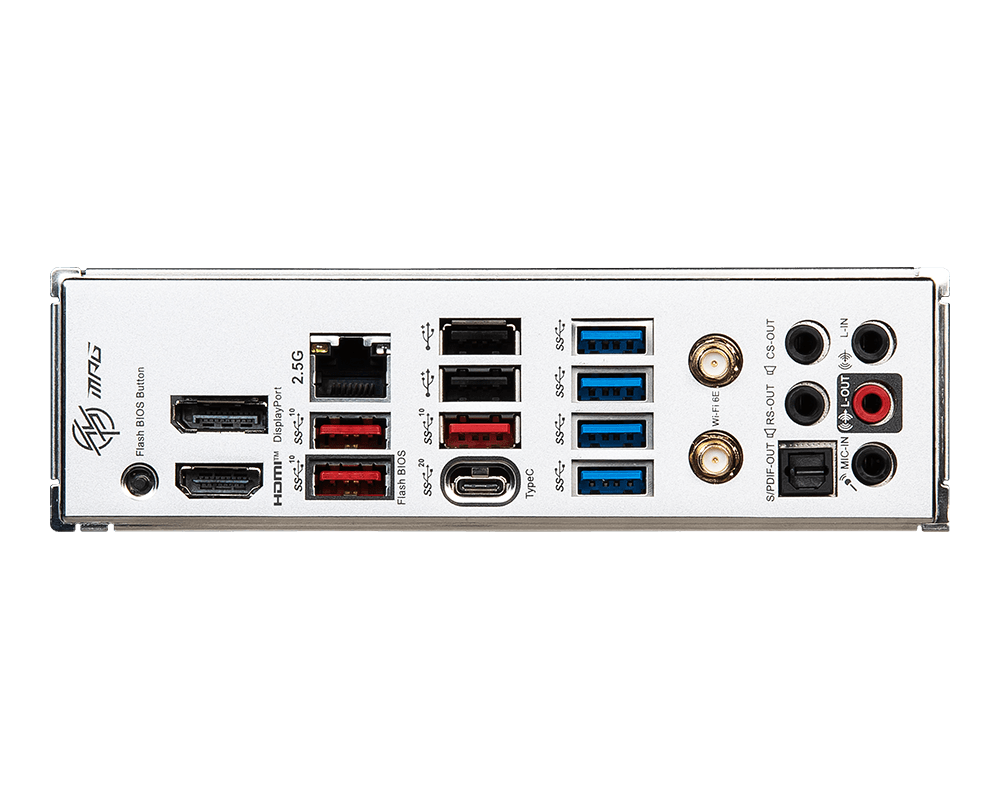

Pre-installed I/O Shield
Steel Armor
14+2+1 Phases VRM Power
6-Layer Server Grade PCB with 2oz Thickened Copper
硬件
- 散热
- 供电解决方案
- 友善设计
- cooling overview
- System Cooling
- 水冷散热
Cooling Overview
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
-
Double-sided M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
-
M.2 Shield Frozr
M.2 thermal accessory. Keeps M.2 SSDss safe while preventing throttling, making them run faster.
-
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
-
6-Layer Server Grade PCB
6-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
FOR CPU COOLER
FOR WATERBLOCK COOLER
FOR TOP SYSTEM FAN
FOR FRONT SYSTEM FAN
FOR REAR SYSTEM FAN
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出，让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。
- STRUCTURE
- PCB DESIGN
14+2+1 Duet Rail Power system
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System (DRPS). Combining dual power connectors and 80A Smart Power Stage, MPG B650 EDGE WIFI is ready for the challenge of high-end processors.
POWER
POWER
DOUBLE POWER CONNECTORS
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.
CORE BOOST
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 6 PCB layers
- IT-170 Server-grade PCB material
- 2oz Thickened Copper
- M.2 DESIGN
- 驱动安装
- MORE FOR DIY FRIENDLY
EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
驱动安装
一连接到网路，MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序，您只需点击几下即可下载和安装。 了解更多
* 请确保连接到网路，否则Driver Utility Installer 不会自动启动。
MORE FOR DIY FRIENDLY
The design protect your IO ports and makes your installation process easier and safer.
* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
性能
- 扩充性
- 记忆体
- Bios & 软体
- LIGHTNING GEN 4 PCI-E
- STORAGE
- USB
Lightning Gen 4 PCI-e with Steel Armor
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
1x
2x
6x
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! MPG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
- DDR5
- EXPO
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B650 EDGE WIFI is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
使用EXPO 参数设定轻松超频
微星在极端条件下对主流记忆体品牌进行严苛测试，以确保系统在任何情况下都能稳定运作。并透过电源自动设置轻松启用EXPO 设定参数，以获得最佳的记忆体读取速度和稳定性。
- CLICK BIOS 5
- MSI CENTER
- RESIZABLE BAR
CLICK BIOS 5
主机板所搭载的BIOS调整系统，方便使用，可以从中获得游戏性能、优异的使用效率，甚至挑战超频世界纪录！
EXPO（专为超频设计的EXTENDED PROFILES ）
可从预设的EXPO 资料夹中直接选择设定参数，让记忆体轻松自动超频，获得最好的相容性。
Game Boost
单一键即可让CPU快速超频，提高性能。
M-FLASH
从CMOS设定，即可在几分钟内刷新或升级BIOS，轻松方便。
HARDWARE MONITOR
可即时性观看您的主要硬体资讯，包括温度、记忆体容量，时脉速度和电压。
MEMORY TRY IT
从系统记忆体中获得极致速度，以及更高性能。
SEARCH & FAVORITES
右上角的搜寻和收藏选项可让您快速进入BIOS选单
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能，可以让CPU一次完整存取GPU的记忆体，减少与GPU的来回沟通，进而改善许多游戏的效能。
连接性
- 音效
- mystic light
- Audio Boost 5
audio boost 5
- HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR
- HIGH QUALITY AUDIO CAPACITORS
- HIGH QUALITY AUDIO JACKS WITH S/PDIF
- ISOLATED AUDIO SIGNAL
- DE-POP PROTECTION
- Mystic Light
- Synchronize
挥洒主机的炫彩灯效
MSI Mystic Light 拥有1680万种颜色和各种鲜艳的RGB LED 效果。可以轻松透过软体进行控制调整。
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽，可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面，更方便您操作控制，无需再另外单购RGB控制器。
* Gen2 设备仅支援7 种RGB 灯效
MPG B650 EDGE WIFI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6600+(OC) MHz
- Enhanced Power Design: DRPS 14+2+1 VRM power, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
