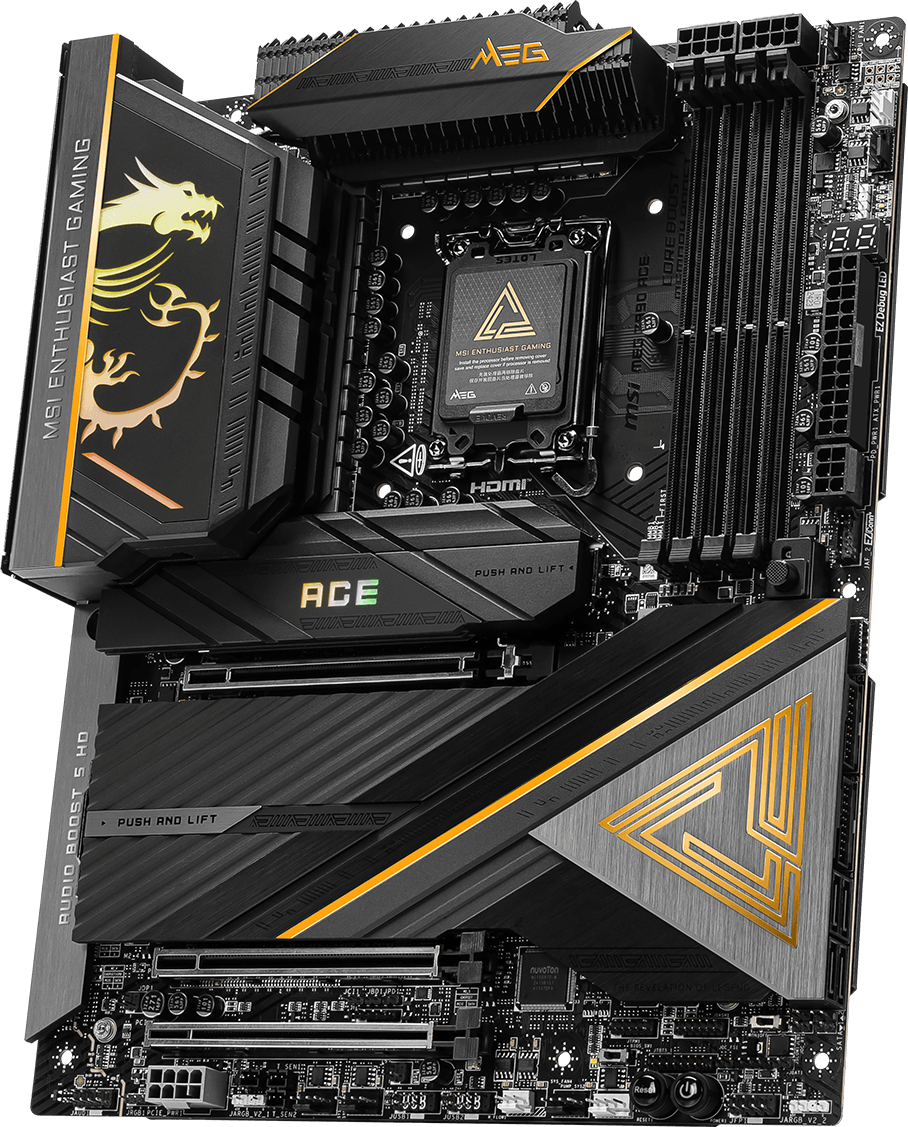

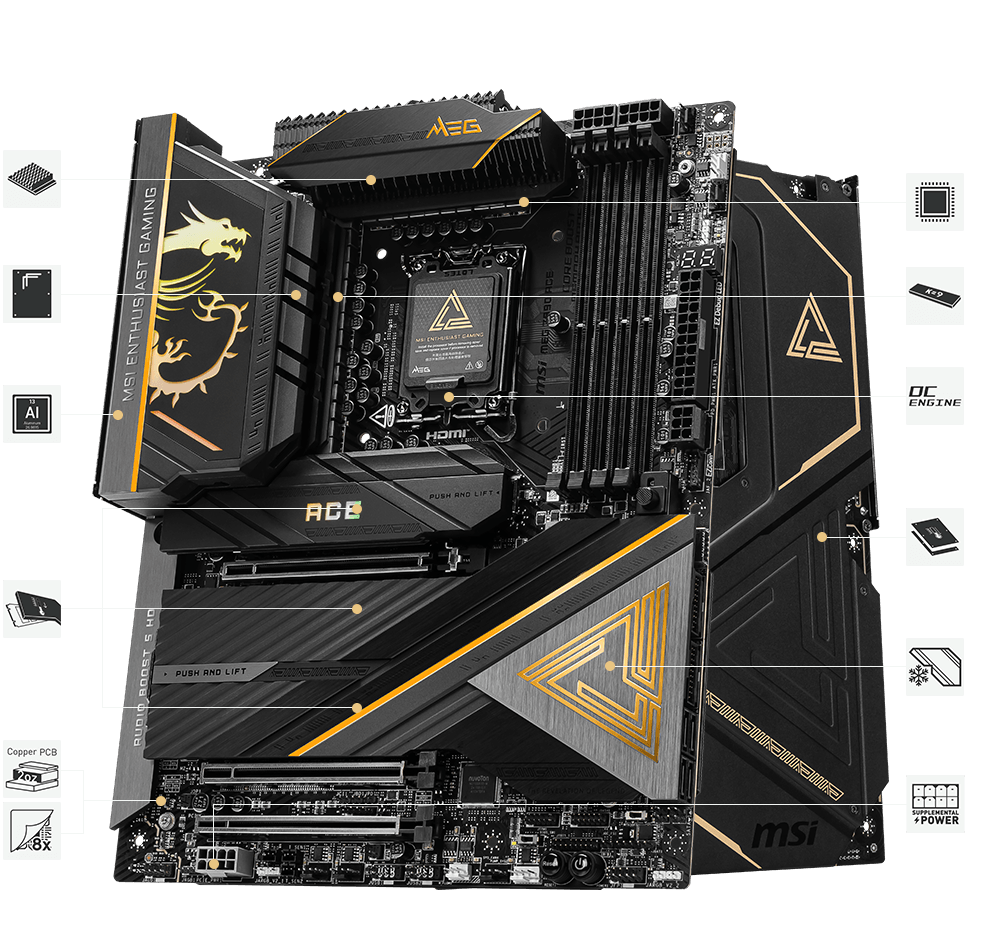

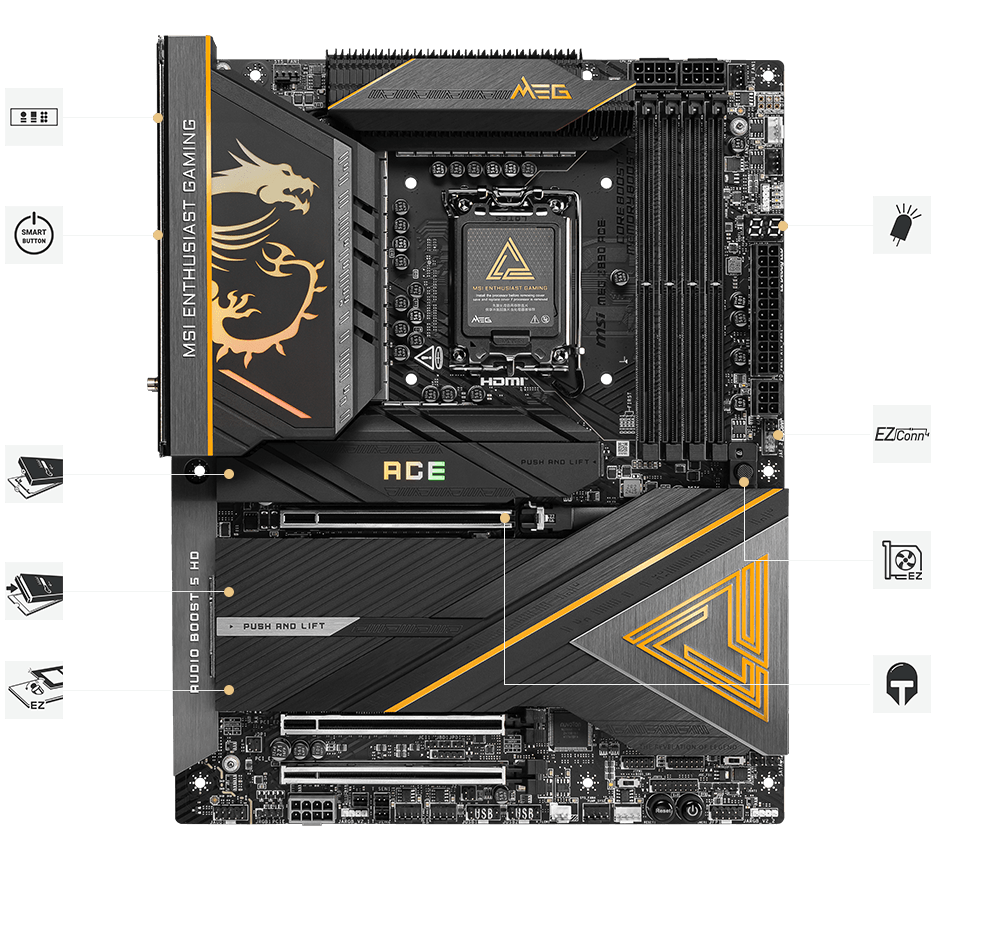

MEG Z890 ACE ，黑金设计、高端简约奢华。专为释放Intel Core Ultra 处理器全部潜力而设计，结合顶规硬体系统和卓越的耐用性，确保处理器在极限环境下，让DDR5 记忆体和显示卡稳定超频发挥极致效能。
步骤更少控制更容易
24+2+1+1 DRPS
一键超频
优异散热设计
完整传输解决方案
UI /UX 最佳化设计
AWARDS
MEG系列主机板搭载多项独家技术，揭开真正的极限体验，挑战巅峰、永垂不朽，打开谜样的经典传奇。
最佳效能
Wavy Fin Design
直触式交叉导热管
铝合金上盖
双面
M.2 Shield Frozr
8 层伺服器等级PCB
加入2oz 厚度铜
24+2+1+1 供电项数
9W/mK MOSFET 导热垫
OC Engine
金属背板
加大PCH 散热片
PCIE 拓源架构设计

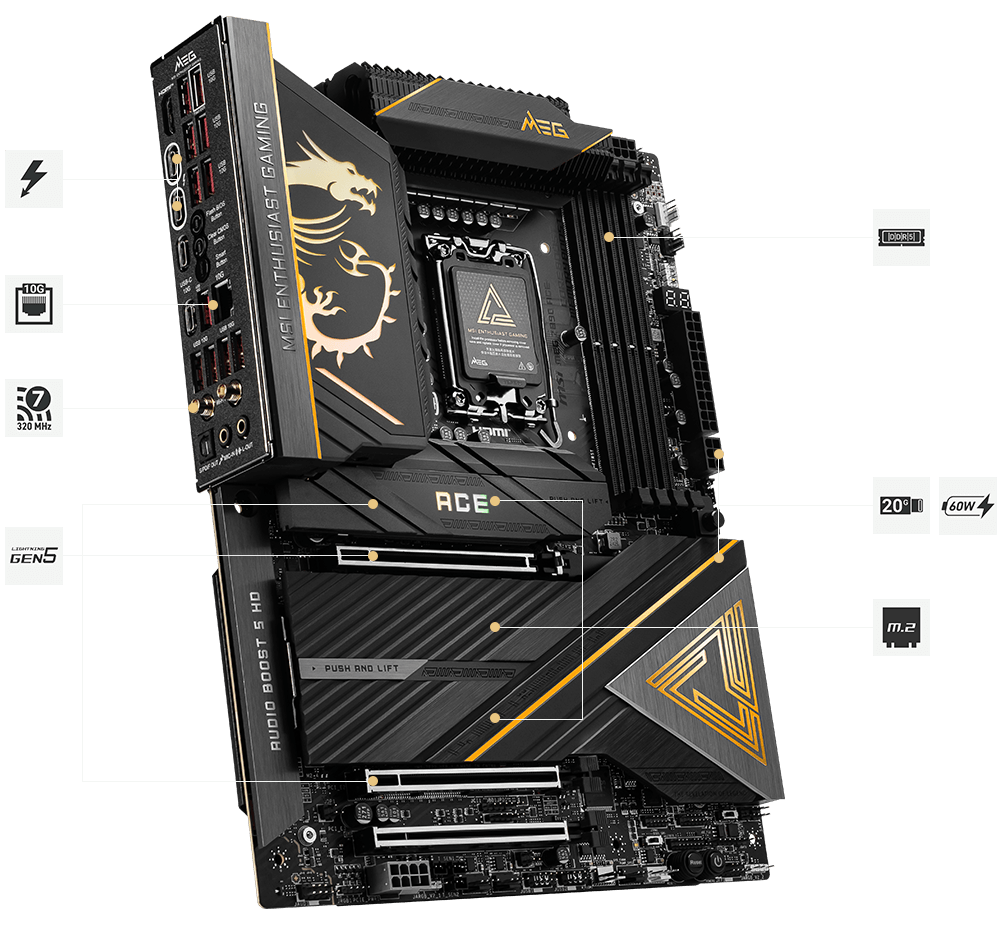

高速传输
双Thunderbolt 4 连接埠
10G Super LAN
全速Wi-Fi 7
Lightning Gen 5
PCIe & M.2 插槽
最新DDR5
前置USB 20G Type-C
with 60W PD
五组M.2 插槽
轻松组装
预装I/O 遮盖

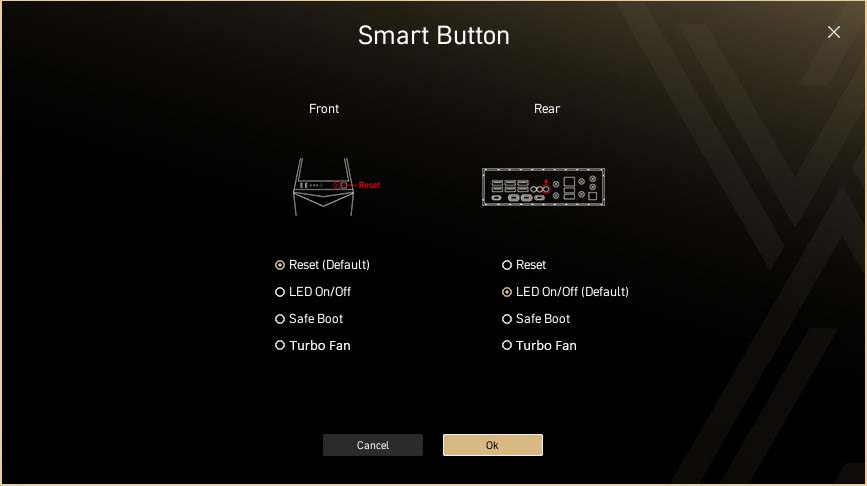

智能按钮
EZ 磁吸
M.2 Shield Frozr II
EZ M.2 Shield Frozr II
EZ M.2 Clip II
EZ 数位除错LED
EZ Conn 设计
EZ PCIe 快拆
第二代钢铁装甲
Ready for AI PC
微星主机板结合强悍的硬体配置与独家先进技术，满足游戏玩家与AI 使用者的需求。同时，MSI 将AI 功能融入MSI Center 与BIOS，使操作更加直观方便。
AI Engine
提供多项同步专案，自动优化应用程式运行，营造流畅舒适的使用体验。
AI LAN MANAGER
针对网路性能进行优化，减少延迟，带来流畅的线上体验。
Frozr AI Cooling
智能调节风扇速度，确保系统在凉爽稳定的高性能状态下运行。
AI Boost
MSI 独家技术，透过超频NPU 提升AI 性能。
EZ DIY
- ONE-FINGER
- ONE HAND
- ONE STEP
- ONE GLANCE
- ONE CLICK

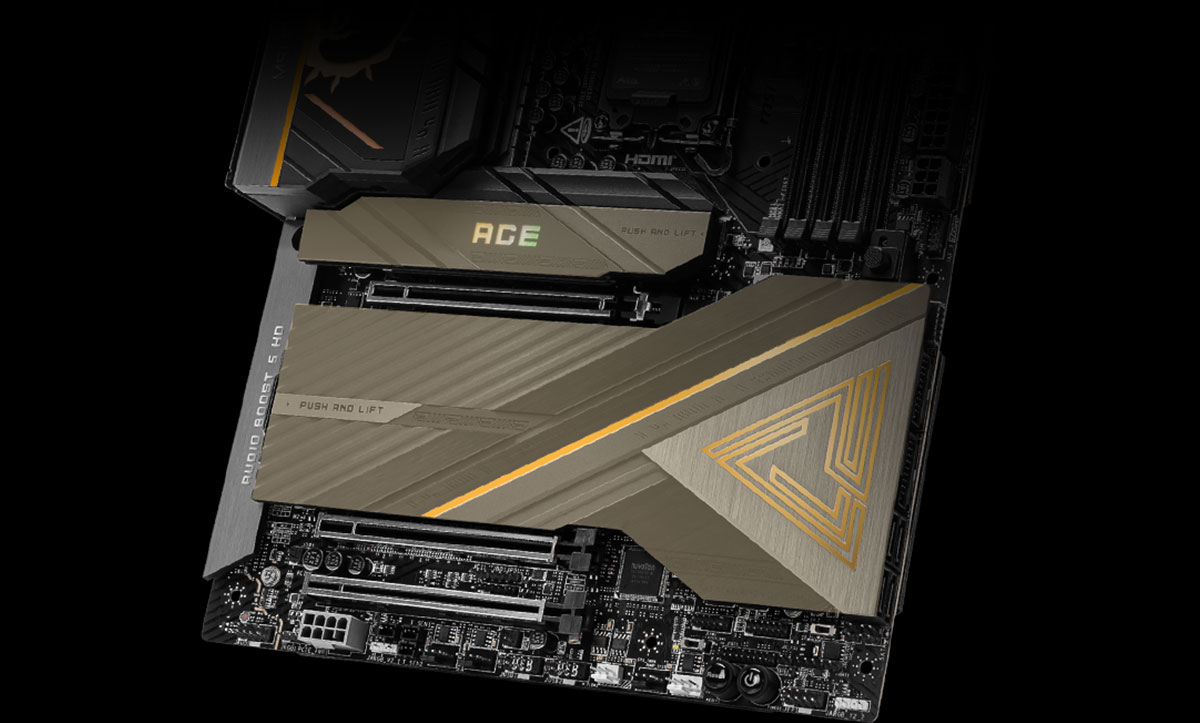

- EZ M.2 INSTALLATION
- EZ 显示卡拆装
- EZ 按钮
- EZ Switch
The MEG Z890 ACE boasts multiple M.2 DIY-friendly designs, including EZ Magnetic M.2 Shield Frozr II and EZ M.2 Clip II. Simply insert the SSD into the slot, press it down, and lock it with the clip—no tools required. The process is seamless, making installation smoother than ever.
Introducing MSI’s EZ M.2 CLIP II Remover, a handy tool designed to simply switching or repositioning the EZ M.2 CLIP II on your motherboard. This tool allows users to effortlessly detach the EZ M.2 CLIP II from the motherboard and reattach it to any desired M.2 slot. It is included in the accessory kit that comes with MSI motherboards.
EZ PCIe 拆卸设计
只要轻轻一按即可移除显示卡，不论是升级安装还是拆卸，都可轻松完成
MORE FOR DIY FRIENDLY
EZ Switch

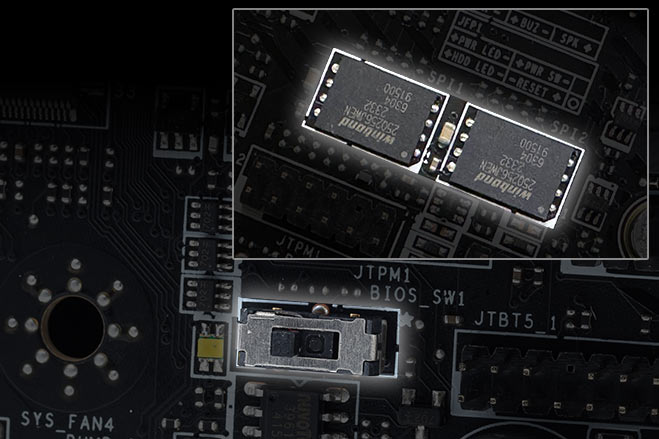

Dual BIOS Switch
Switching to backup BIOS ROM in one second while the main BIOS ROM got wrong.
EZ LED Switch
Tuning off all LEDs connected to motherboard by just one click.

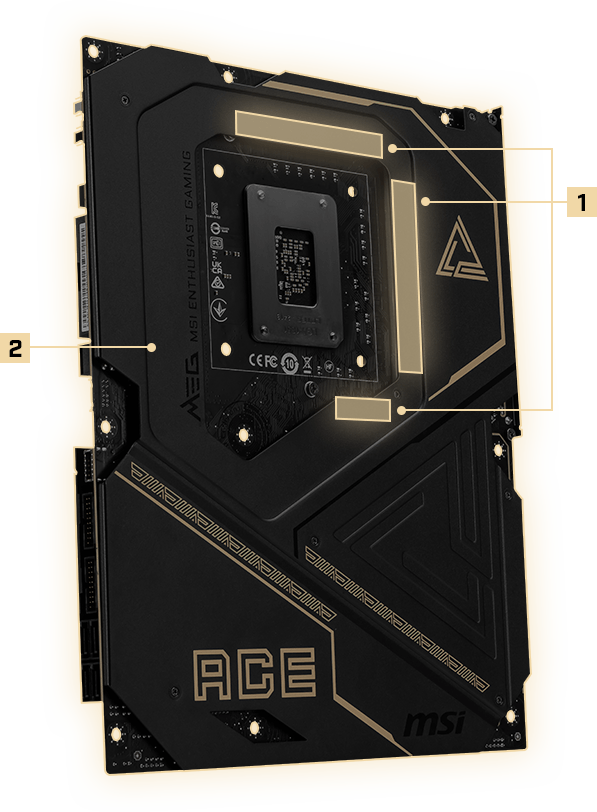

- METEL BACKPLATE

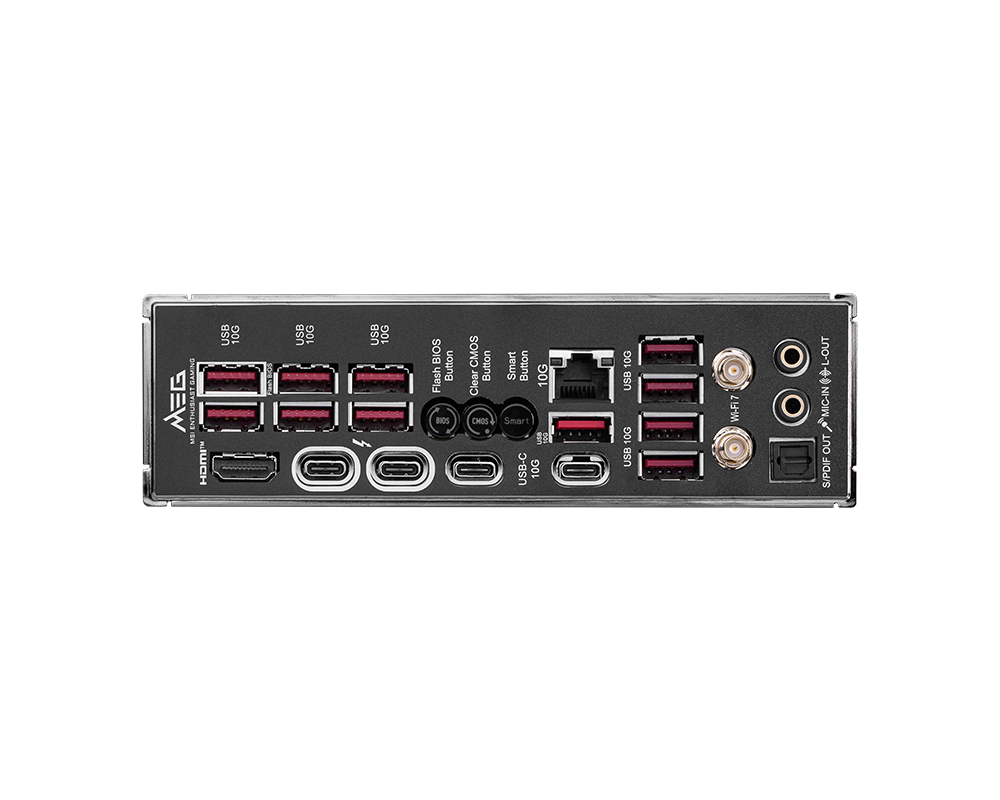

- PRE-INSTALLED I/O SHIELD
- EZ Mounting
The heavy metal backplate not only cools down your MOSFET with dedicated thermal pad, but also strengthens the motherboard, protects components, and prevents PCB bending, making installation more convenient.
- Dedicated Thermal Pad
- Heavy Metal Design

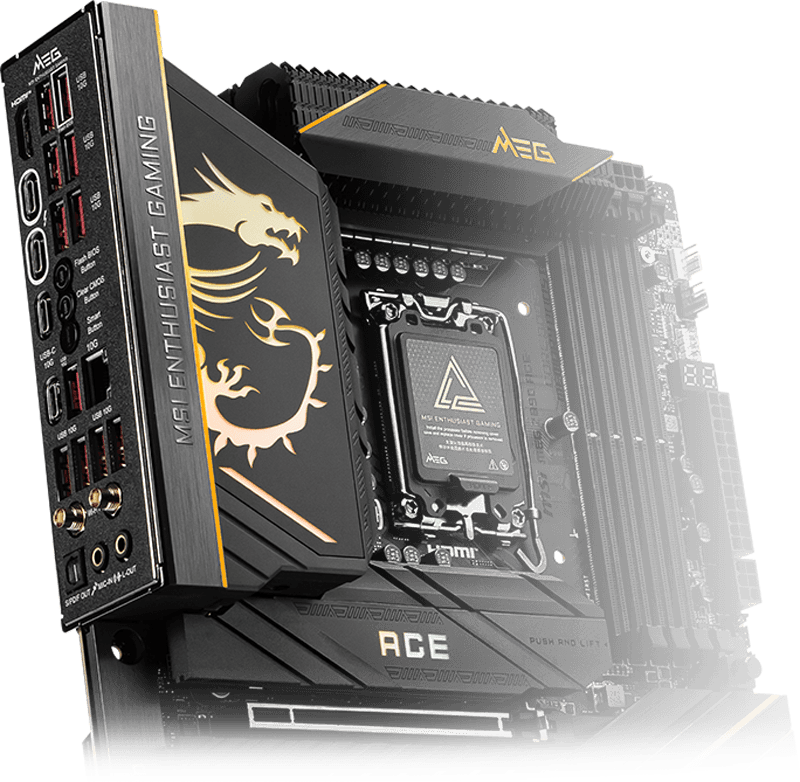

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ MOUNTING
MSI主机板电路区域清楚标示机壳螺丝锁点须避开的位置，让此区域净空。每个螺丝孔都有附加保护漆，防止零组件刮伤或损坏主机板。
防刮保护
区域净空
双重防静电保护
- EZ 天线
- EZ Conn-Design
- EZ Front Panel Cable
- EZ Driver Installation
微星EZ 天线，不需旋转即可紧密接上，轻松完成安装。
EZ Conn header (JAF_2)
MSI's EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.
ARGB + SYS FAN + USB
MSI LIQUID COOLING
MSI EZ SERIES FAN
附赠线材可快速直接串接主机板前方面板。
MSI Driver Utility Installer automatically detects and presents suitable drivers and utilities once connected to the internet, install them with just a few clicks. Learn more
USB Drive includes the utilities and drivers for setup process. It can also be the USB drive to store BIOS files for BIOS update.
- EZ DEBUG

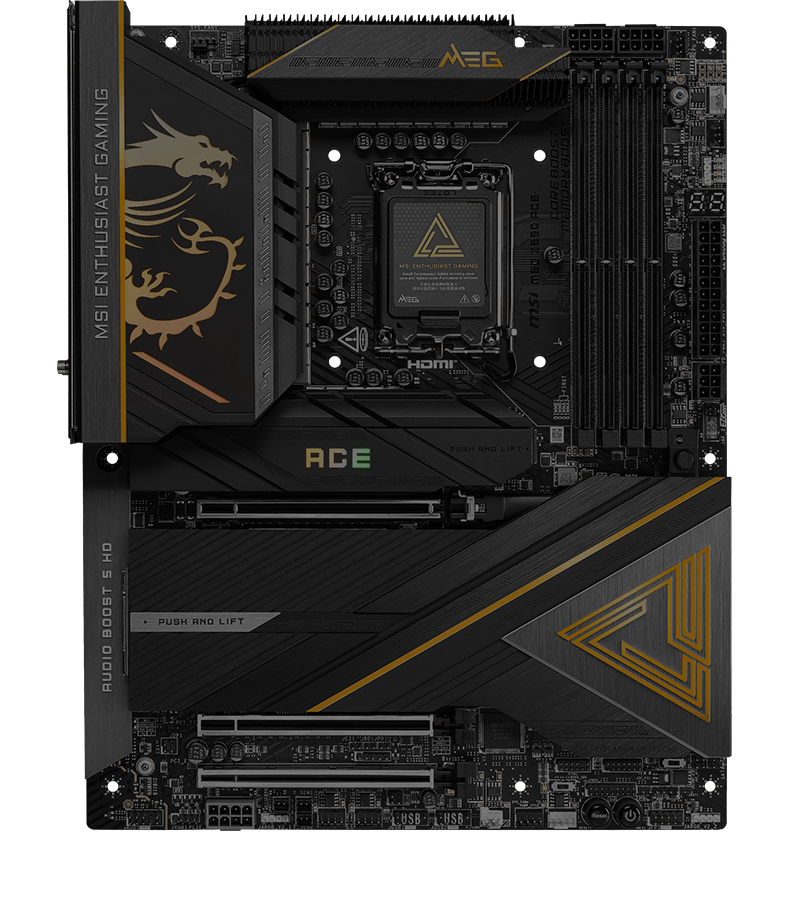

- EZ Identify
EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
EZ DIGI-DEBUG LED
Displays the error code for troubleshooting. Also functions as temperature monitor!
EZ MEMORY DETECTION LED
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.
- EZ 优化
多款功能为您的运算体验注入人工智能，实现更智慧的即时优化。 MSI Center 介面简洁清楚，让您轻松订义并管理电脑设定。例如: AI 引擎能根据您使用的应用程式自动调整设定，确保流畅的效能表现。
ULTRA PERFORMANCE
- 供电解决方案
- 记忆体
- 保护装置
- POWER DESIGN
- OC Engine
- PCB DESIGN
- 更多效能优化

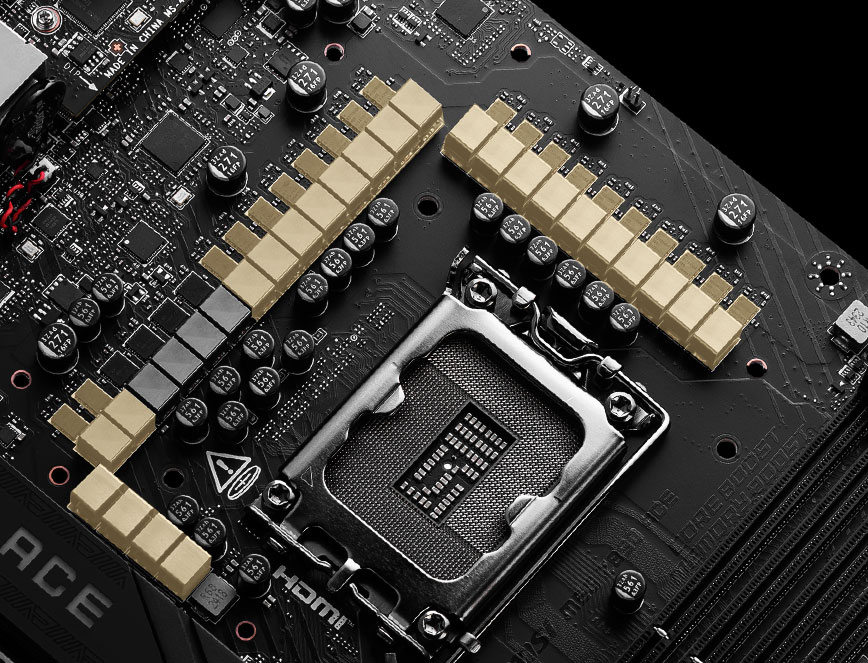

24+2+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 24+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 ACE is ready for the challenge of high-end processors.
24
PHASES
2
PHASE
1
PHASE
1
PHASE
CPU Power
Core Boost
Digital Power
OC Engine 是一款专为极限超频设计的时脉生成器，可独立调整基准时脉(BCLK) 频率，以提升CPU 性能。再推进系统极限的同时，仍能维持系统的可调性与稳定性，创造新纪录。

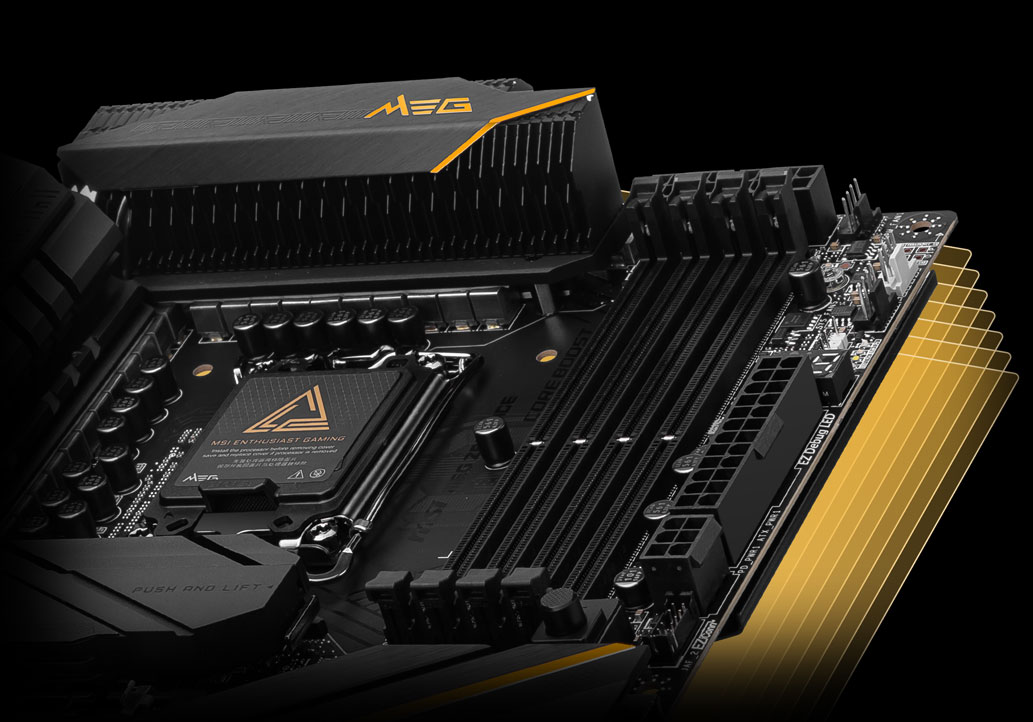

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 8 PCB layers
- NPG-170D Server-grade PCB material
- 2oz Thickened Copper
更多效能优化
- DDR5
- memory support stand

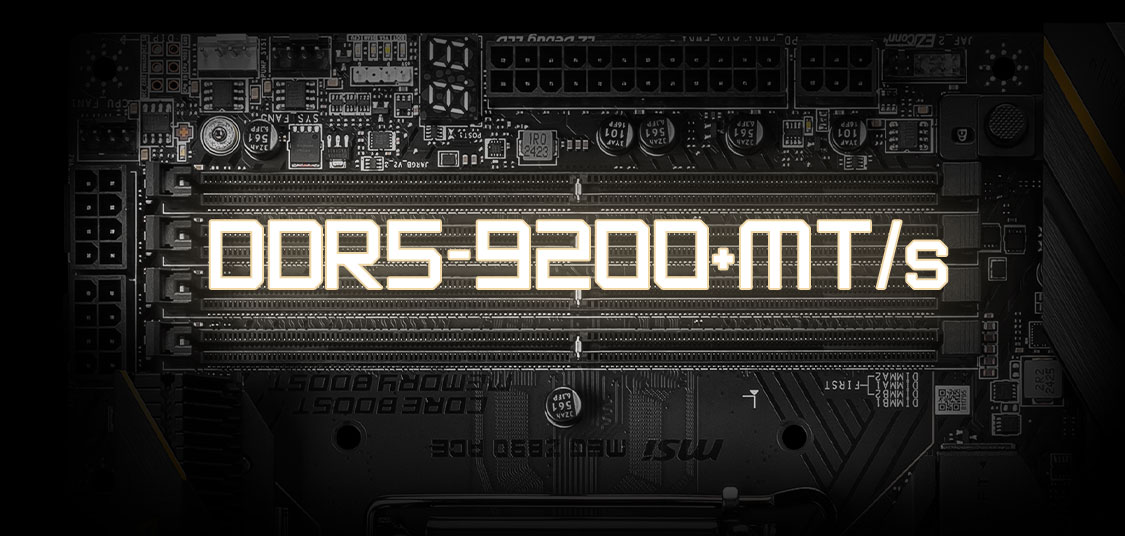

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z890 ACE is ready to deliver the world class memory performance.

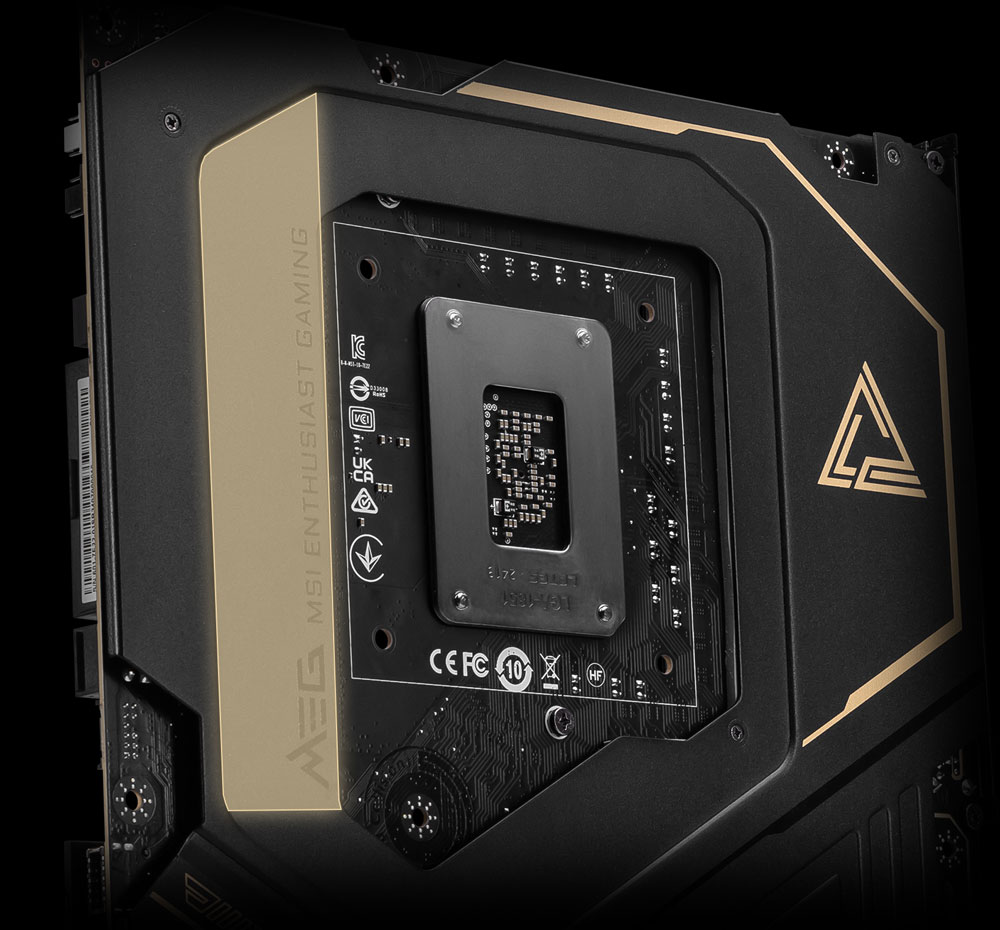

The metal backplate cools down your motherboard, while the dedicated sunken design strengthens the memory slot area to prevent PCB bending and to protect surrounding components.
- TVS
- 实心针脚设计
- STAINLESS STEEL IO
- OCP Protection
- GROUNDING STRUCTURE
瞬态电压抑制器(TVS) )
瞬态电压抑制器(TVS) 是用来防止电压过高的安全装置。微星所有主机板均配置TVS。当电压异常升高时，TVS从高电阻状态切换到低电阻状态，将过高的电压转移到地上，有助于防止高电压造成的电路损坏。 .
实心针脚设计
MSI 主机板4-pin、8-pin 和24-pin 电源接头均采用实心针脚设计。实心针脚设计优点在于处理高电流负载时，能更安全且稳定地将12V 电力传输至处理器。
实心针脚电源连接埠的优势
- 提升稳定性：较大的接触面积，强化电力传输的稳定性。
- 低阻抗：实心针脚拥有低阻抗优势，实现高效能电流传输。
- 强韧耐用：实心针脚设计具有出色的耐用性，能够应对严苛的使用环境。
- 适用于高电流应用。
防锈不锈钢IO 保护盖
加上额外一层海绵和防锈不锈钢IO 保护盖，减少静电和系统的电磁辐射噪音，与传统IO 保护盖相较， 更耐用。
* The image above is an illustrative reference. Please refer to specification pages for more details.
过电流保护
MSI 主机板内建过电流保护(OCP) 优先考虑安全性，确保USB 连接埠、DDR 记忆体、PWM IC 和CPU 等关键组件免受过电流影响。这种主动防御机制可降低因过多电流突然涌入而造成损坏或故障的风险，从而促进系统的长期稳定性。让MSI 玩家使用的更安心。
电源相位的接地架构
电源相位的接地架构是微星独家设计。这项专利设计能够抑制电源相位所产生的电磁干扰（EMI），并有助于有效地将热能传导到具有接地特性的铜平面。
FROZR DESIGN
- FROZR GUARD
- FROZR SYNC
- FROZR CONTROL
- cooling overview
- K9 PAD

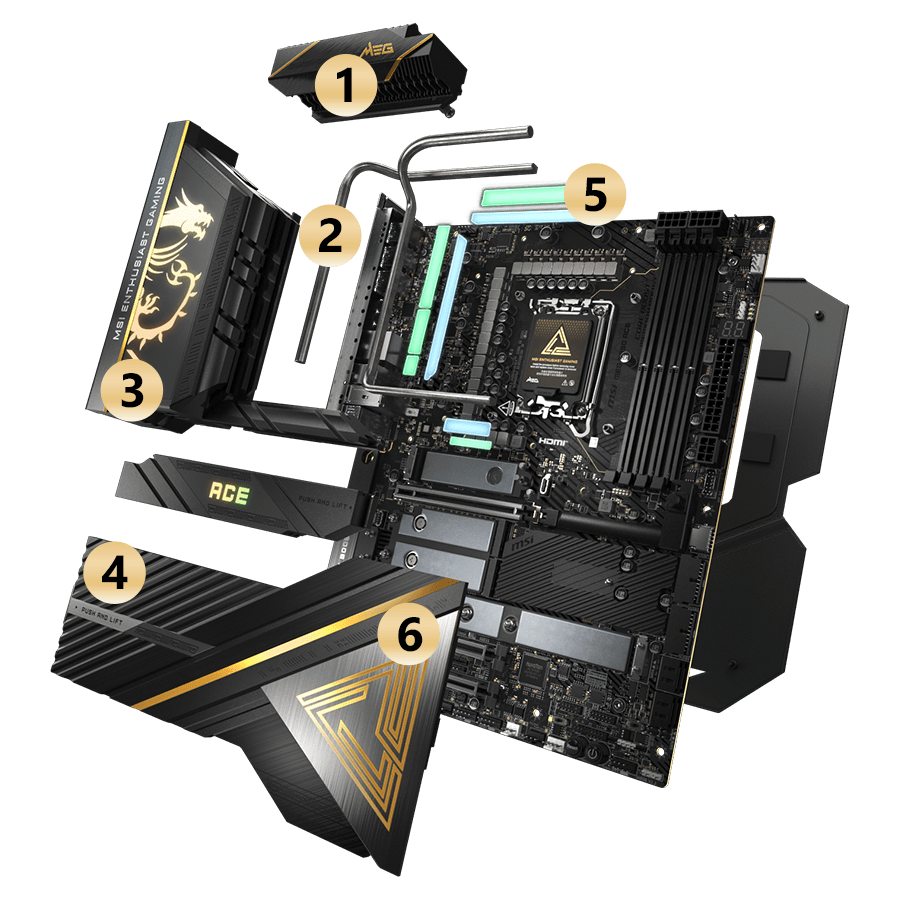

Cooling Overview
-
Wavy Fin Design
Wavy fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.
-
Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
-
Aluminum Cover
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
-
Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
-
9W/mK Thermal Pad
High quality 9W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
-
Metal Backplate
The metal baseplate cool down the MOSFET temperature with dedicated thermal pads.
-
Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

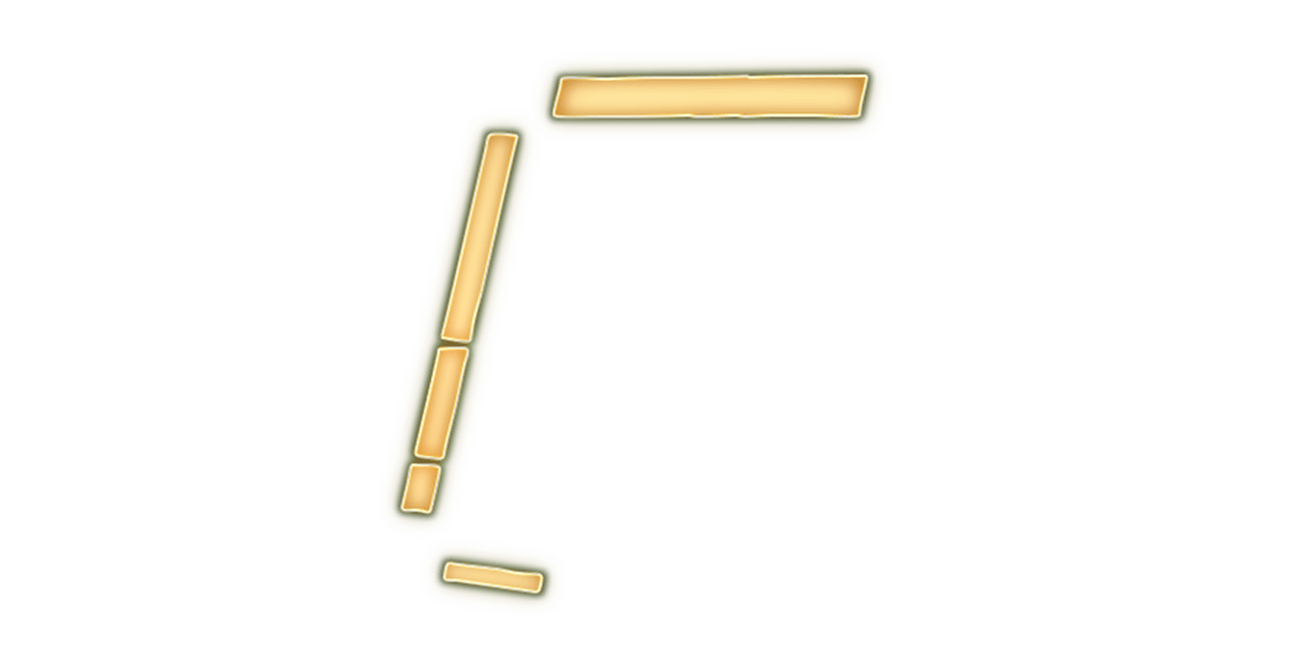

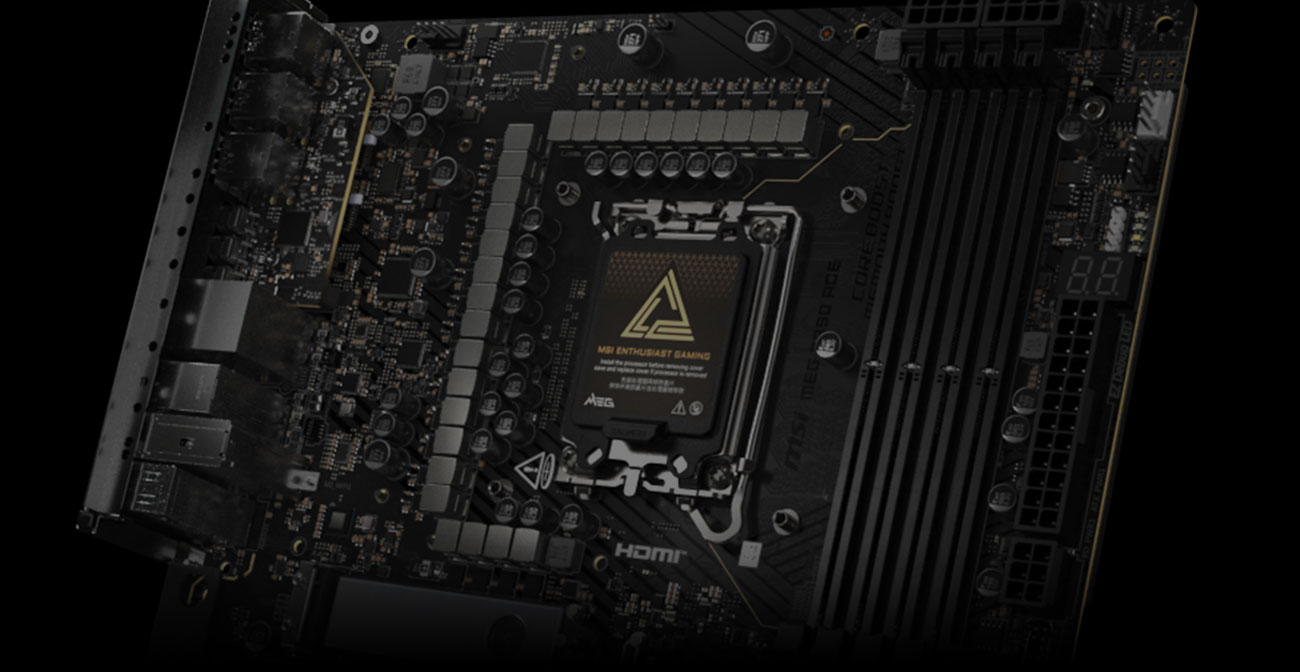

9W/mK MOSFET Thermal Pad
MSI MEG series motherboards are equipped with a 9W/mK MOSFET thermal pad to achieve the highest cooling performance. Compared to the previous generation's 7W/mK thermal pad, the average temperature is reduced by approximately 2.5°C.

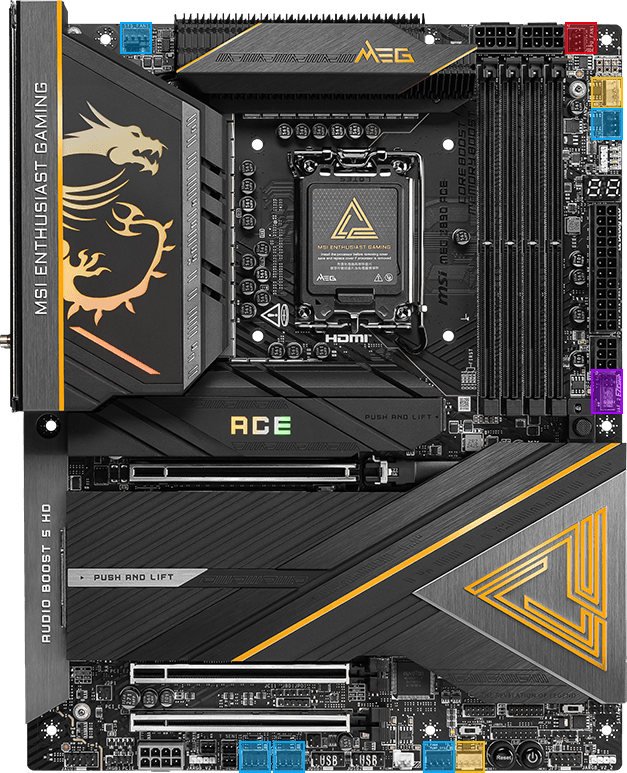

- SYSTEM COOLING
- COMBO FAN

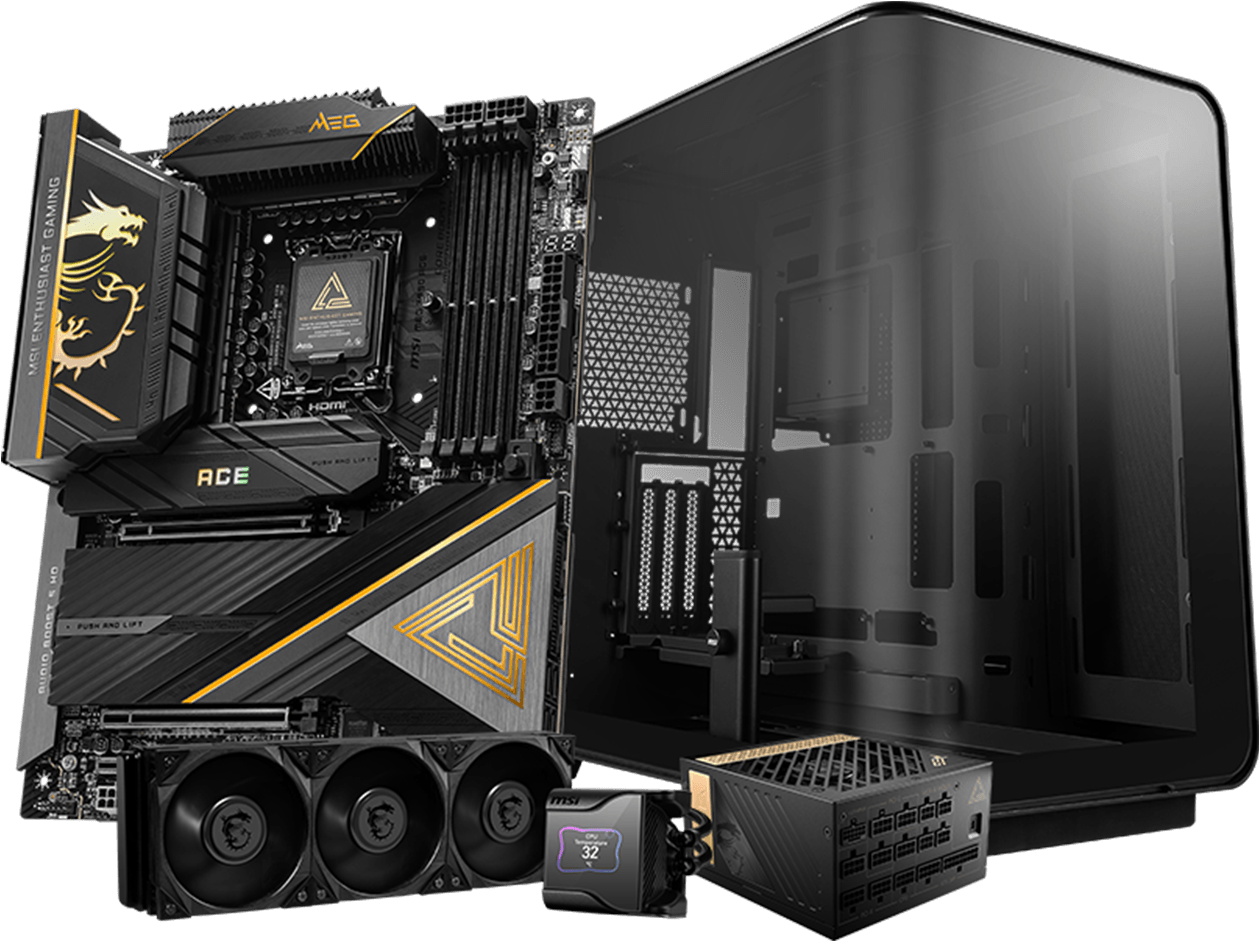

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
FOR CPU COOLER
FOR LIQUID COOLER
3A power deliver / Supports auto-detect
FOR SYSTEM FAN
Supports auto-detect
EXCLUSIVE EZ CONN. - JAF_2
3A power deliver(fan) / Supports dedicate MSI PC components.
Lean more
多功能风扇连接埠
MSI 风扇连接埠拥有多用途，既可作为帮浦连接埠，也可作为风扇连接埠。此连接埠会自动侦测是否为帮浦或PWM/DC 风扇，其独特的灰色设计，更容易辨识。
- 散热精灵
- FROZR AI COOLING
- 自动侦测风扇
Cooling Wizard 是一个全面的风扇设定管理解决方案，并适用于所有MSI 产品。不论是系统风扇、PWM/DC 风扇还是帮浦…等，都可自行调整，让性能和噪音达到自己可以接受的平衡点，只需一键即可轻松控制。
多情境设定
最多可储存5 组不同情境设定档
智能风扇和手动风扇
Smart Fan
用户可设定四组温度与风扇转速节点，并允许手动调整温度曲线。
手动风扇
允许用户手动设定风扇转速百分比
使用情境
Follow MSI Center 模
根据使用的情境，自动调整风扇设定。
BIOS 模
在BIOS 中调整风扇设定。
自定义
允许玩家自行定义风扇设定。
Frozr AI 散热系统针对CPU 与GPU 温度进行调校。 AI 系统会侦测CPU 和GPU 的温度，自动调整系统风扇的转速，确保最佳效能。
MSI 风扇接头可自动侦测风扇将以直流或PWM哪种模式运行，视情况随时调整风扇转速和进行降噪。 Hysteresis也能让系统风扇的运转更为流畅，并确保系统随时处于安静的状态。
TRILINK
- 网路连线
- 储存
- 扩充性
- FLAWLESS CONNECTION
- WI-FI 7 解决方案
- Intel Killer

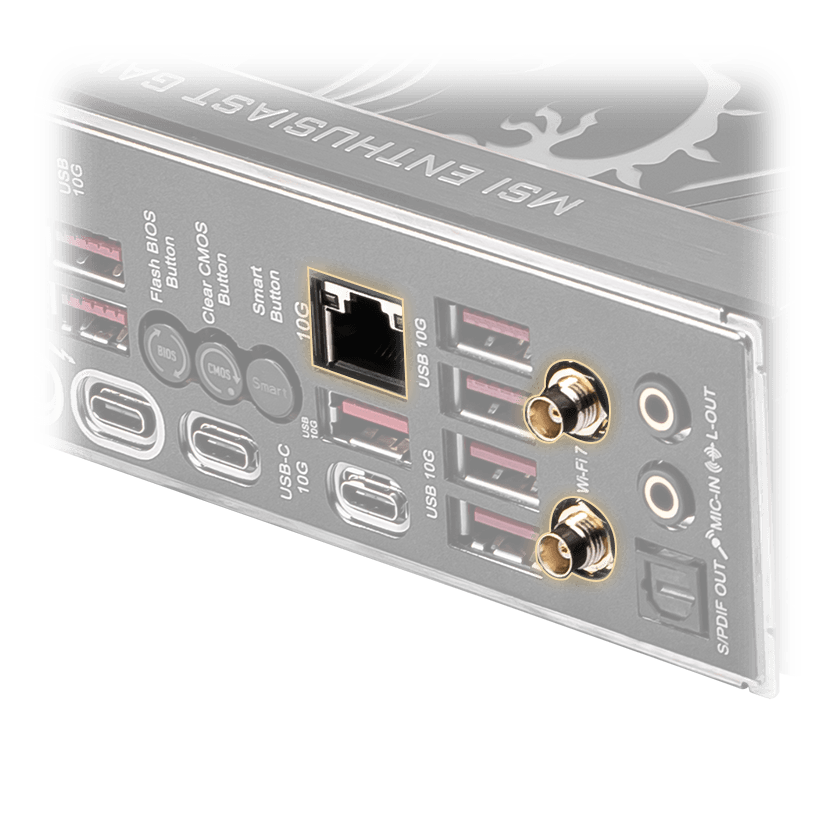

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
10G LAN
Wi-Fi 7
EZ Antenna with Magnetic Stand
最新的无线解决方案WI-FI 7
最新的无线解决方案Wi-Fi 7 ，新一代大跃进，多项改良技术，满足时下越来越多无线装备对庞大频宽的渴望。
与Wi-Fi 6 (802.11ax) 相较，Wi-Fi 7 (802.11be)提供更高的速度、更大的频率，大幅降低延迟问题，并拥有更好的连线效率。并提供更长的电池使用寿命，在拥挤环境中也能提供更佳性能。
Wi-Fi 7 连线速度高达5.8 Gbps ！ 比之前的Wi-Fi 6/6E 标准快2.4 倍， Wi-Fi 7 将成为未来的连线主流。
前几代Wi-Fi 频宽为160MHz 。 Wi-Fi 7 将频率提升至320MHz（6GHz ）－确保在最大速度传输时，也能同时拥有高稳定性
更高的正交振幅调变（QAM，Quadrature Amplitude Modulation），每个数据包可以携带的资料就越多。 Wi-Fi 7 将调变方案从1024-QAM 增加至4096-QAM，进而提高峰值传输速率和网路流量。
Wi-Fi 7 可使设备能够在多个频段和通道中同时发送和接收数据，满足未来扩充无线设备时，也能应付庞大的流量需求。
Intel KiLLER 效能套件
搭载Intel Killer LAN / Killer Wi-Fi配置，即可使用Intel Killer效能套件针对常用的应用程式作优先排序，同时，还能提供良好网路连线的选择建议。
- 应用程式优先权自动检测
- 自动进行频宽分析与管理
- 智能AP选择，快速切换至连线分数较高的网路
- 依据CPU体质侦测提供最佳AI超频性能推荐（仅适用于K系列处理器）
- STORAGE

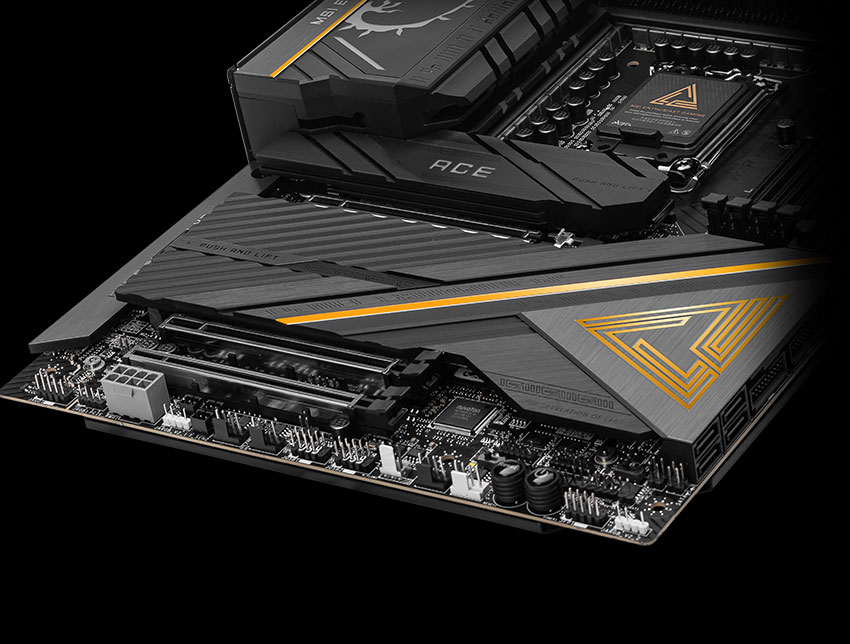

FAST AND FUTURE-READY STORAGE
MSI MEG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
1x
4x
*M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
- LIGHTNING GEN 5 PCI-E
- PCIe SUPPLEMENTAL POWER
- 支援TBT4
- SUPER CHARGER +
- TBT5 就绪
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

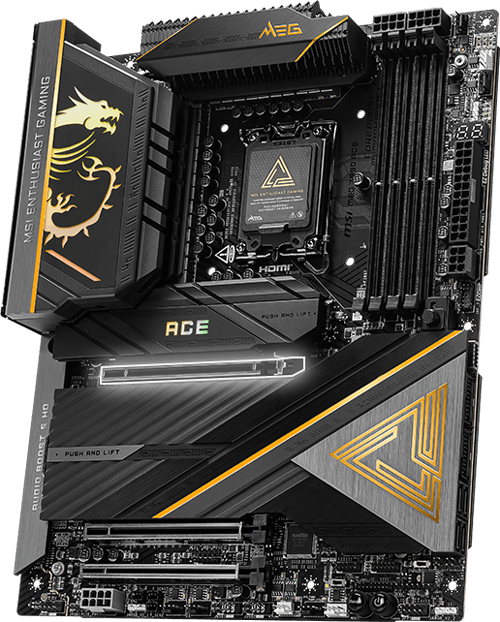

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
1.2X WEIGHT ENDURANCE
Steel Armor II
Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.

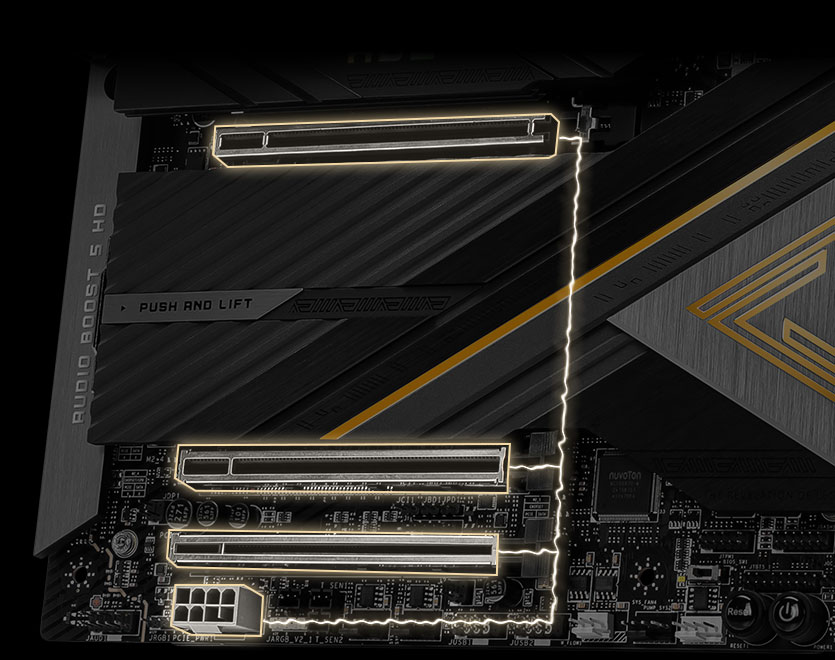

PCIe Supplemental power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance. Learn more about chassis compatbility.
以菊花链方式连接多个Thunderbolt™ 设备，允许数据、电源和影音讯号从电脑传输到五组周边。或者使用Thunderbolt™ HUB 或扩展座整合所有装置传输到一台电脑。
Thunderbolt™ 拥有40Gbps频宽传输，适用于高负载、极速传输使用需求。玩家可以直接从外接硬碟玩大型资料片游戏，释放电脑存储空间。创作者可以快速备份大量影音和照片，使用上更安心有保障。
丰富的显示选项：可支援两个4K 60Hz 显示器或一个8K 60Hz 显示器。

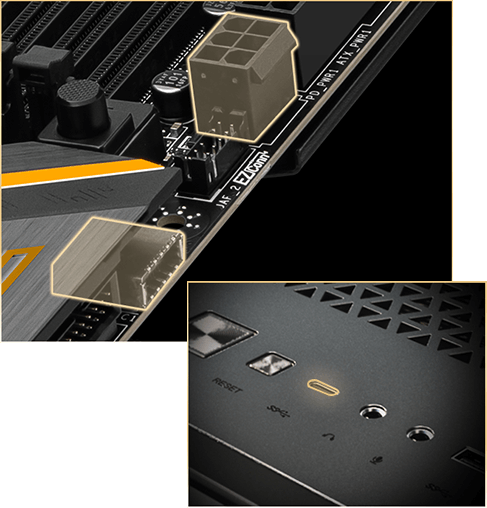

Super Charger + makes fast charging (PD 60W) available on the dedicated front USB port for your PD-compatible devices. Besides charging efficiency optimization, it monitors USB output power, voltage and current in real-time.
* Without connecting 6-pin power to PSU, the Type-C connector only supports up to 27W.
Thunderbolt 5 准备就绪
提供高达160Gbps的总频宽传输，适用全新一代超高装置和硬碟。这些连接埠可连接多个外接8K 显示器，供率高达27W。
*The MSI THUNDERBOL™ 5 card is for illustrative purposes only and is not included in the package.
高达160Gbps 传输速度
比以往更快地传输大量文件。
频宽分配最佳化
支援数据、图像、影像等同时传输。
27W 电力发送
提供高达27W 的快速充电
Experience
- audio
- mystic light
- BIOS
- 软件
- AUDIO BOOST 5 HD
- 独立类比结构
Audio Boost HD
-
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
-
ESS AUDIO DAC
Recreates the optimal natural analogue sound with ultra-low distortion to ensure a perfect, realistic display of sound.
-
DEDICATED HEADPHONE AMPLIFIER
A dedicated headphone amplifier can drive audiophile headphones with up to 600Ω impedance
-
HIGH DEFINITION ALC4082 AUDIO PROCESSOR
From HD-A to USB Interface, twice the DAC format from 32-bit/192kHz to 32-bit/384kHz, deliver the highest sound quality.
-
ISOLATED AUDIO SIGNAL
aLike a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated, and with the use of separated layers in the PCB for left and right audio channel for pristine sound quality.
-
GOLDEN AUDIO JACKS WITH S/PDIF
Keep your sound perfect by transmit your audio with pure digital signal
-
DE-POP PROTECTION
The De-pop circuit protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

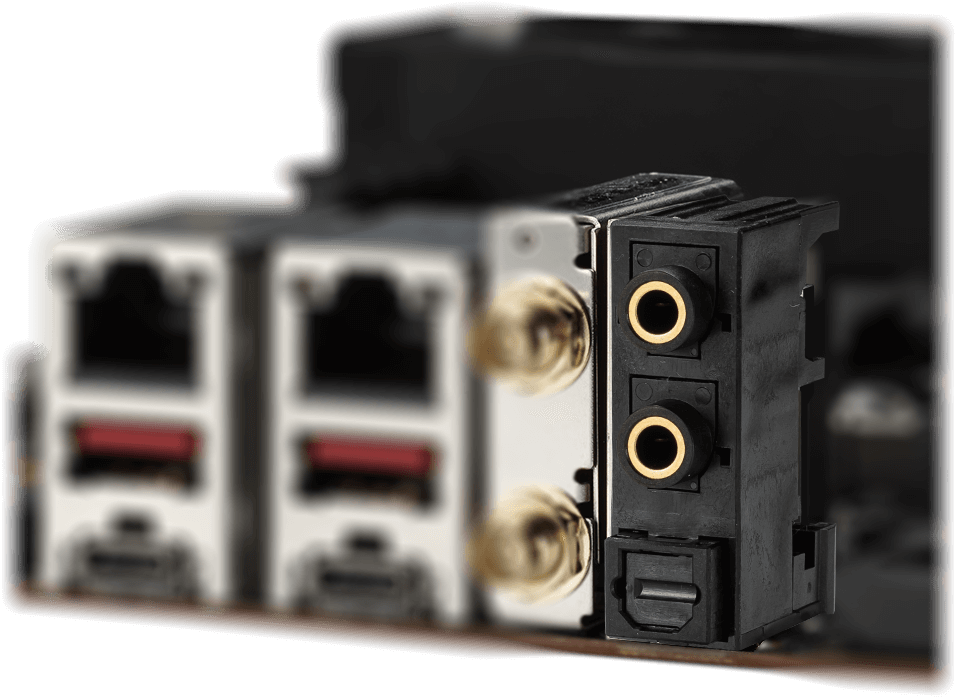

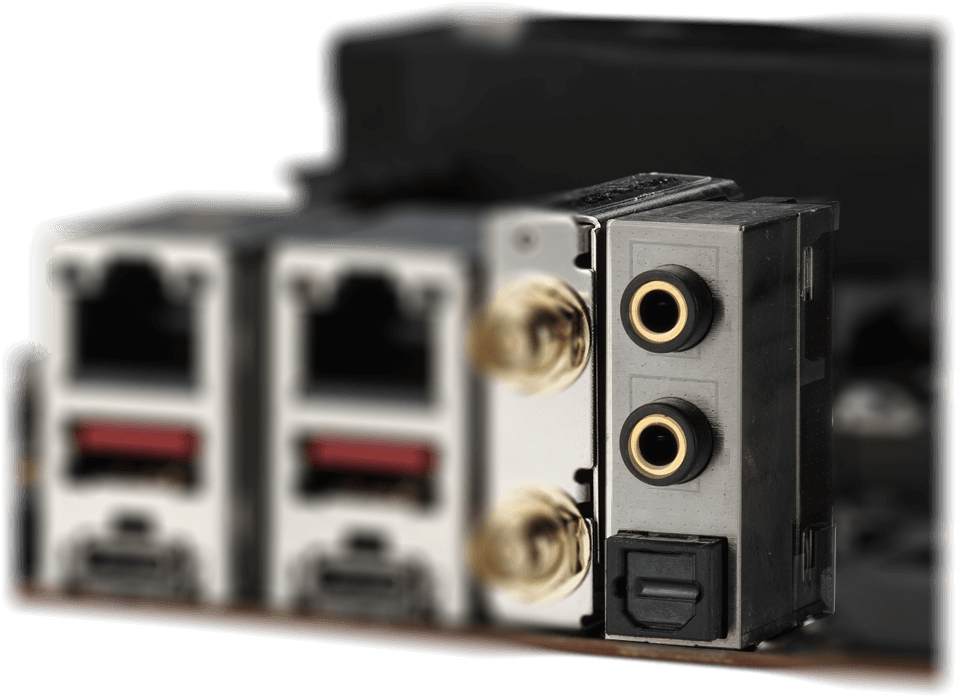

音效连接埠的隔离架构设计
为了提供清晰的语音，微星设计独特的——隔离结构设计。音效连接埠加上金属框架，与内部构造完全隔离，让音质更新清脆无杂讯。
* The image above is an illustrative reference. Please refer to specification pages for more details.
- Mystic Light
- Synchronized
尽情挥洒彩色世界
透过MSI Center 的Mystic Light 工具，为你的桌机增添色彩和充满活力的RGB 灯效。拥有上百万种颜色选择与多样炫酷的LED 效果，任您选、任您配、自由随意!
波浪
稳重
火焰
呼吸
处理器温度
色环
闪焰
娱乐
流星
默认
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽，可增添RGB 灯条或其他RGB装置装置。 Mystic Light 软体直觉式界面，更方便您操作控制，无需再另外单购RGB控制器。
* Gen2 装置仅支援7 种RGB 灯效
- MSI CENTER
- AIDA64
- NORTON 360
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。透过该软体，您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯，并可储存CSV、HTML 等多种格式档案。
选择使用NORTON 360 DELUXE 加入网路安全
为您的装置提供多层保护、线上隐私功能包含安全VPN，以及暗网监测，并全数整合在单一解决方案中。使用MSI 主机板，即可免费试用Norton 360 Deluxe 60 天。
- 提供高达50 GB云端备份空间
- 即时威胁防护和智慧防火墙
- 密码管理员
- PC SafeCam
MSI 试用优惠不适用于现有的诺顿客户。如果您已订购诺顿方案，则需要选择退出订购才有资格享受此优惠。有关重要的订阅、订价和优惠详情，请参阅NortonLifeLock 授权和服务协议。 NortonLifeLock 产品和服务隐私权声明。

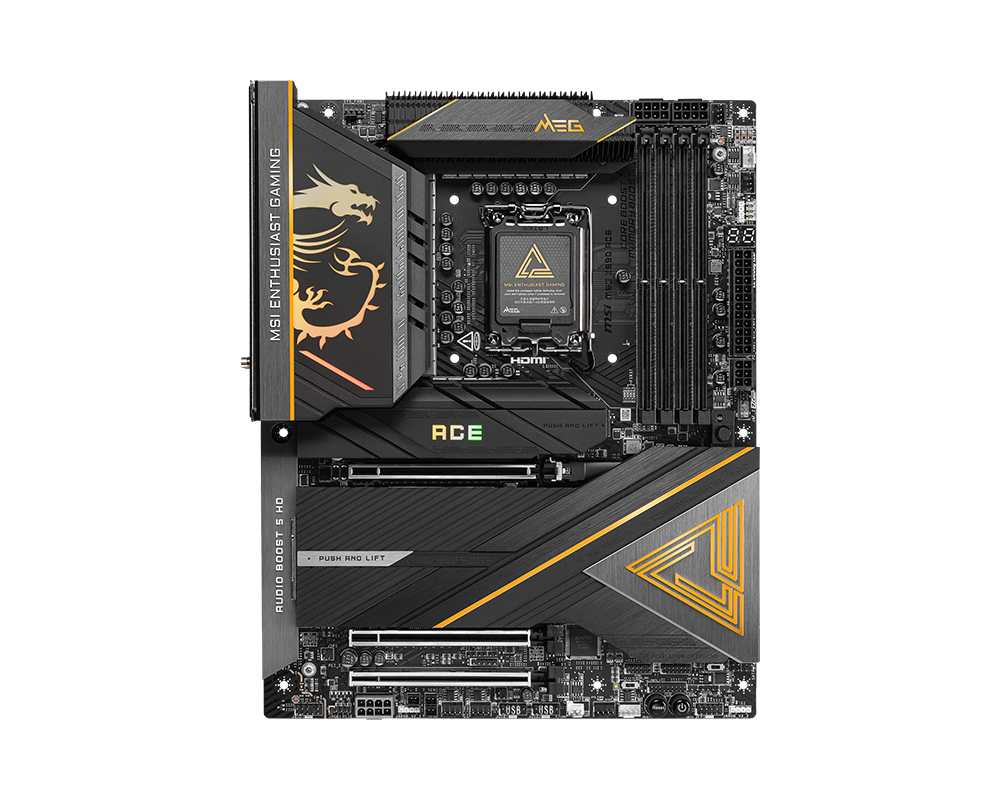

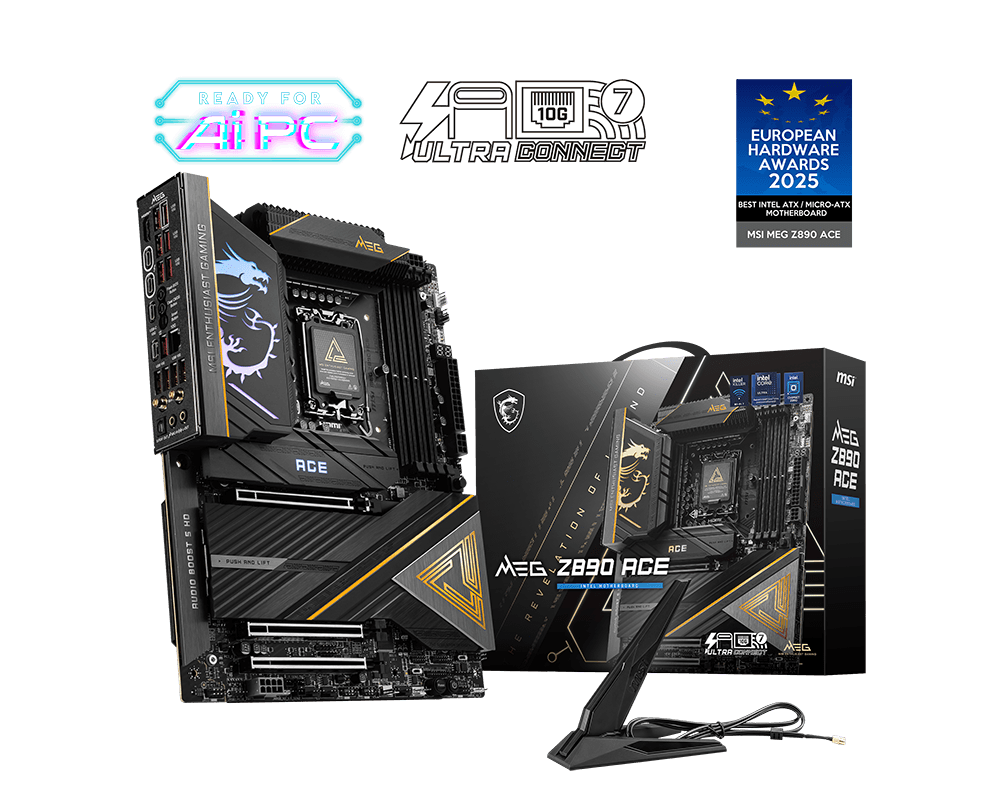

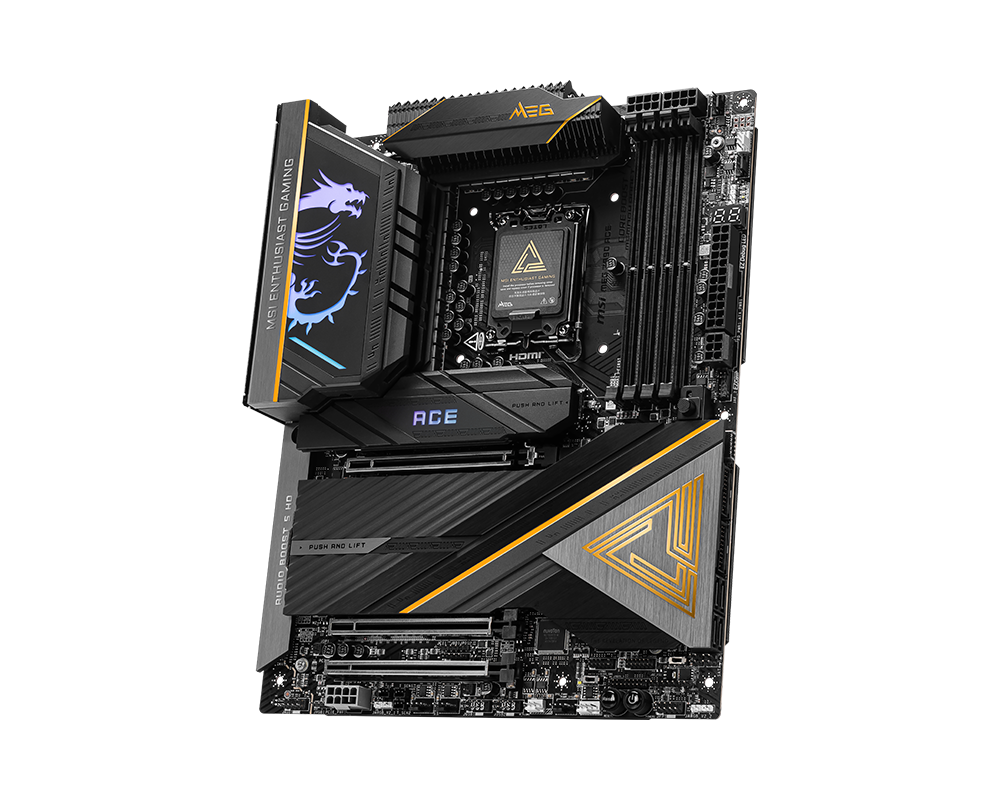

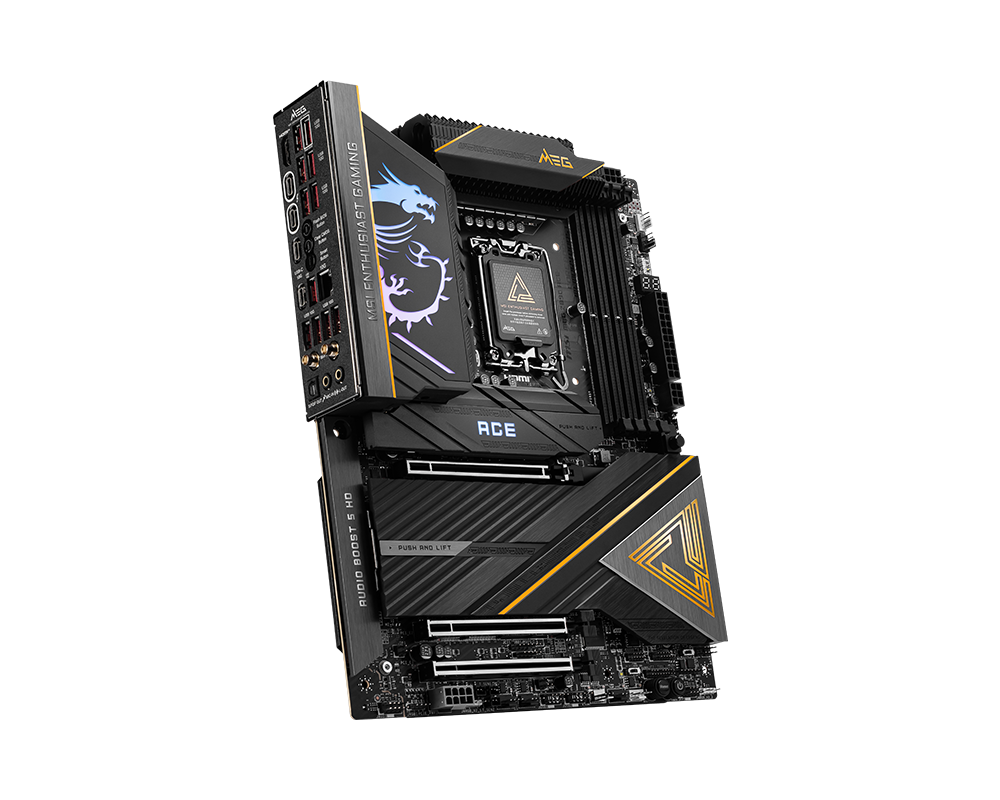

MEG Z890 ACE
- 支援LGA 1851 脚位的Intel ® Core™ Ultra 处理器(Series 2)
- 支援DDR5 记忆体，双通道DDR5 9200+ MT/s (OC)
- 超性能: 24+2+1+1 Duet Rail 电源系统110A SPS、OC Engine、双8-pin CPU 电源连接埠、Core Boost、Memory Boost、采用2oz 厚度铜的8 层伺服器等级PCB。
- 散热护甲设计: 波浪式鳍片设计、直触交叉导热管、MOSFET 底板, 9W/mK MOSFET 散热垫片、双面M.2 Shield Frozr 散热铠甲和AI 软体，提供出色的散热效果。
- EZ DIY: EZ PCIe 快拆设计, 第二代EZ M.2 Shield Frozr 散热铠甲, EZ M.2 Clip II 和EZ 天线。
- 超功率技术: Thunderbolt™ 4 连接埠、10G LAN 和Full-speed Intel ® Killer™ Wi-Fi 7 解决方案，为专业工作者和创意工作者提供安全、稳定和高速的连线解决方案。
- 闪电般的游戏体验：PCIe 5.0 插槽、内建5 组M.2 插槽，并搭载Lightning Gen 5 解决方案。此外，前置USB 20G 连接埠还具备60W USB 快速充电技术，提供极速快感。
- Audio Boost 5 HD: 搭载最新高端ALC4082 音效处理器，结合ESS 音效DAC 和放大器，提供令人惊艳的极致音效体验。
