MEG X670E ACE

Chipset AMD X670
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory 支持 DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x Type-C 视频接口
Slot 3x PCI-E x16 插槽（数量）
• Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x0/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x0/x2 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)

* This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.
Audio Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 4x M.2 (Qty)
M.2_1 源 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
6x SATA 6G (Qty)
Multi-GPU AMD MULTI-GPU 支持
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*SATA_A1~A2 do not support RAID function.
**RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
***RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB 4x USB 2.0 (前置)
4x USB 2.0 接口（前部）
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
2x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN Marvell® AQC113CS-B1-C 10Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x 前置 Type-C 快充支持(PD_PWR1)
1x CPU Fan
2x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x 水冷连接器
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 接口
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

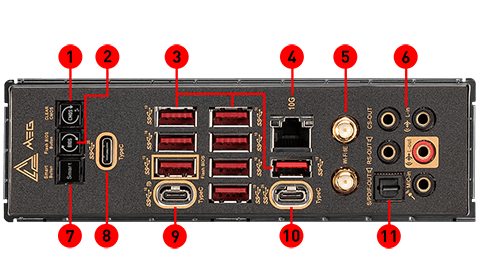

BACK PANEL PORTS
  1. Clear CMOS Button
  2. Flash BIOS Button
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. 10G Super LAN
  5. Wi-Fi / Bluetooth
  6. HD Audio Connectors
  7. Smart Button
  8. USB 3.2 Gen 2x2 20Gbps (Type-C)
  9. USB 3.2 Gen 2 10Gbps (Type-C Display port)
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)
  11. Optical S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

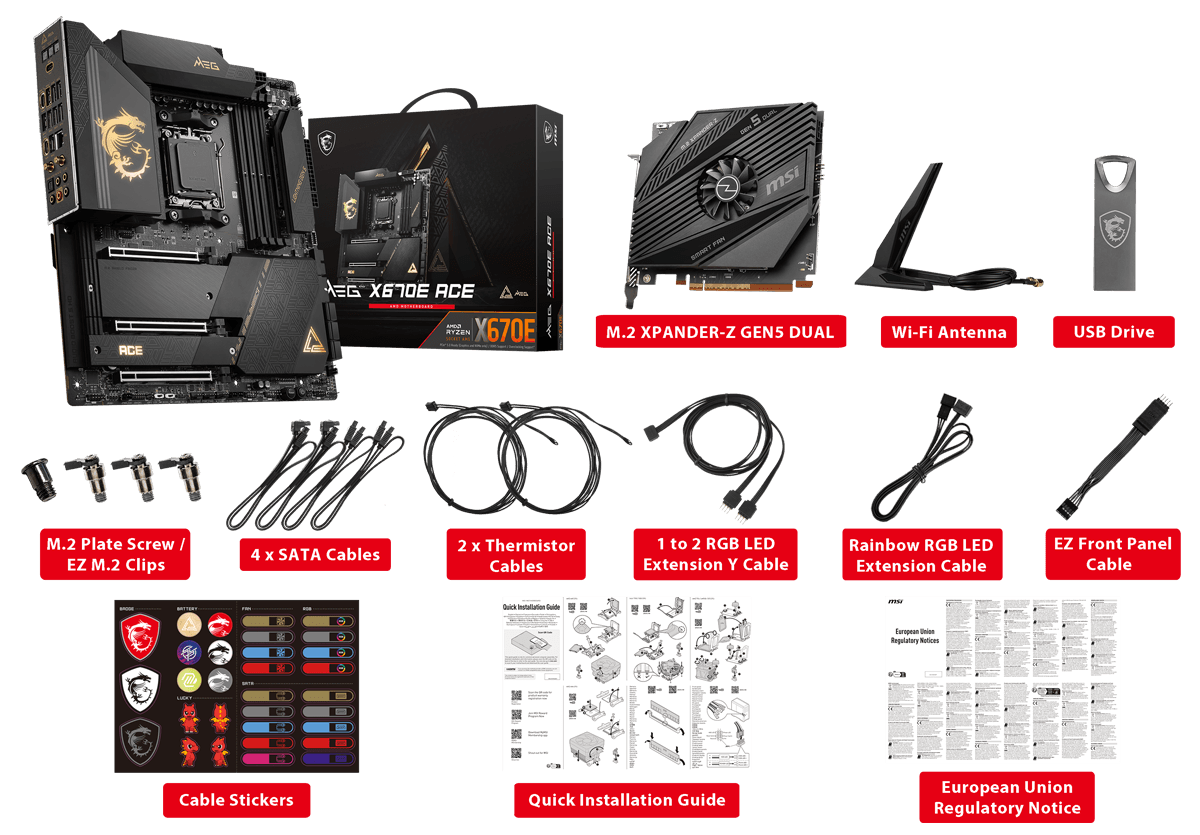

BOX CONTENT
PCB Info E-ATX
277mmx304.8mm
