CPU

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors ¹
• Supports Socket AM4

1. Please refer www.msi.com for more information on compatible memory.

Chipset

AMD X570 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB
• Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC ¹
• Max frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
    • 1DPC 1R Max speed up to 5300 MHz (support overclocking up to 5500+ MHz)
    • 1DPC 2R Max speed up to 4266 MHz
    • 2DPC 1R Max speed up to 4400 MHz
    • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
    • 1DPC 1R Max speed up to 5100 MHz
    • 1DPC 2R Max speed up to 4000 MHz
    • 2DPC 1R Max speed up to 4000 MHz
    • 2DPC 2R Max speed up to 3600 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory

Expansion Slots

• Supports PCIe 4.0 / PCIe 3.0
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
• 2x PCIe x16 slots (From processor)
  • PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
  • PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
• 1x PCIe x16 slot (From X570 chipset)
  • PCI_E4 supports x8 ¹
• 1x PCIe x1 slot (From X570 chipset) ²

1. PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.
2. The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you can not use both of them simultaneously, and the default setting is the Wi-Fi module for the system. Please disable the Onboard Wi-Fi Module Control in BIOS if you want to use the PCIe x1 slot.

Multi-GPU

• Supports NVIDIA^® SLI^® Technology
• Supports AMD CrossFire™ Technology

LAN

• 1x Realtek^® RTL8125B 2.5 Gbps LAN controller

Wireless LAN & Bluetooth^®

Intel^® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹
  (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2 ², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

Audio

Realtek^® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

Storage

• 8x SATA 6Gb/s ports (From X570 chipset) ¹
• 4x M.2 slots (Key M)
  • Supports PCIe 4.0 / PCIe 3.0
    • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support SATA 6Gbps (For M2_1, M2_3 & M2_4)
  • M2_1 (From processor)
    • Supports 2280/ 22110 storage devices
  • M2_2 (From X570 chipset)
    • Supports 2260/ 2280 storage devices
  • M2_3 ¹ (From X570 chipset)
    • Supports 2280/ 22110 storage devices
  • M2_4 ¹ (From X570 chipset)
    • Supports 2260/ 2280 storage devices

1. PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.

RAID

AMD X570 Chipset

• Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

• 1x USB 3.2 Gen 2 10Gbps Type-C internal connector
• 4x USB 3.2 Gen 1 5Gbps ports available through internal USB connectors
• 1x USB 2.0 port on the back panel
• Asmedia^® 3241 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
• USB 3.0 Hub
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• USB 2.0 Hub
  • 7x USB 2.0 ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD Processor

• 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

Internal connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 8x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 2x USB 2.0 connectors (support additional 4 USB ports)
• 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports)
• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 2x 2-pin Thermal sensors connectors
• 1x Water Flow Meter connector
• 1x Tuning Controller connector

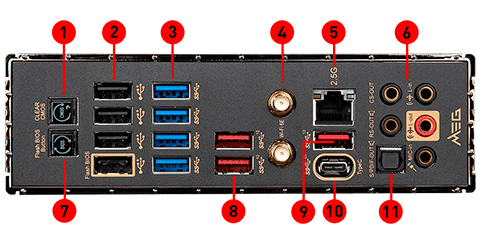

Back panel ports

LED Features

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR connector
• 1x EZ LED Control switch
• 1x 2-Digit Debug Code LED
• 4x EZ Debug LEDs

I/O Controller

NUVOTON NCT6687D Controller Chip

Hardware Monitor

• CPU/ System/ Chipset temperature detection
• CPU/ System/ Pump fan speed detection
• CPU/ System/ Pump fan speed control

Form Factor

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

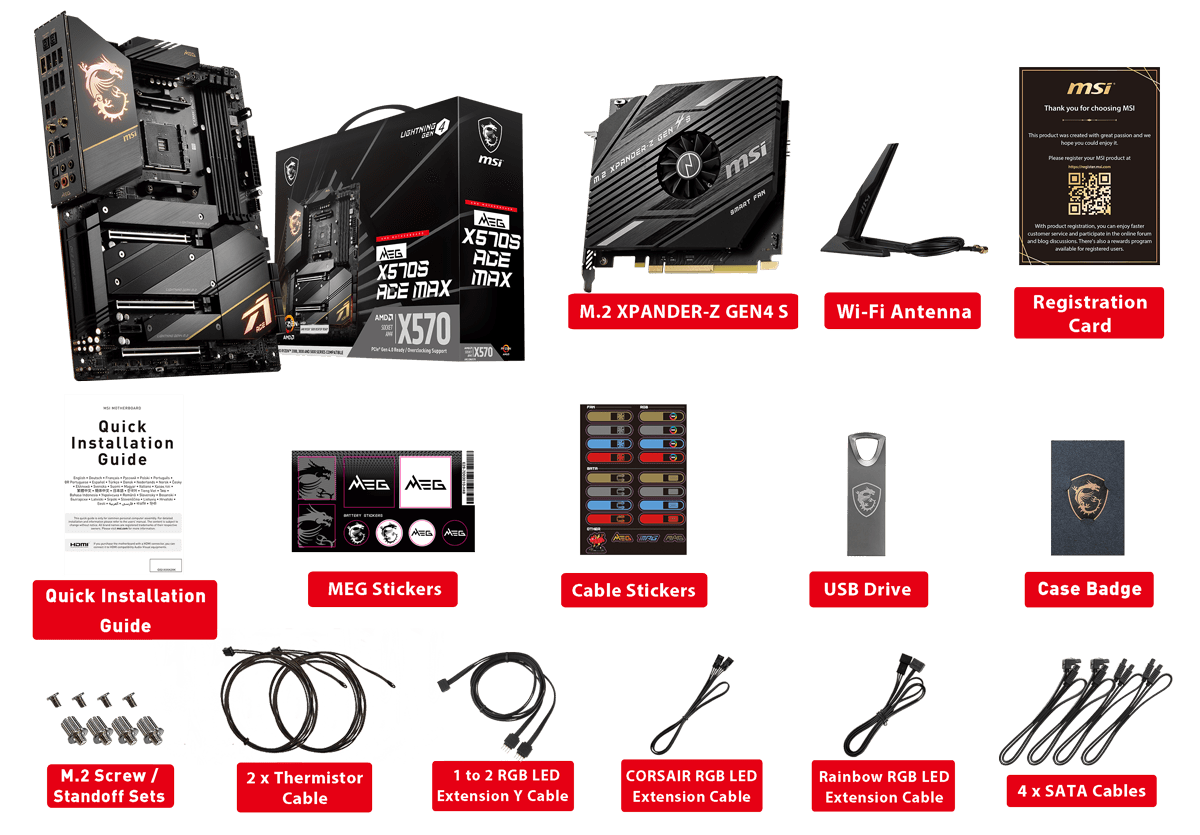

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
