MAG Z690 TOMAHAWK WIFI
EXCLUSIVE FEATURE

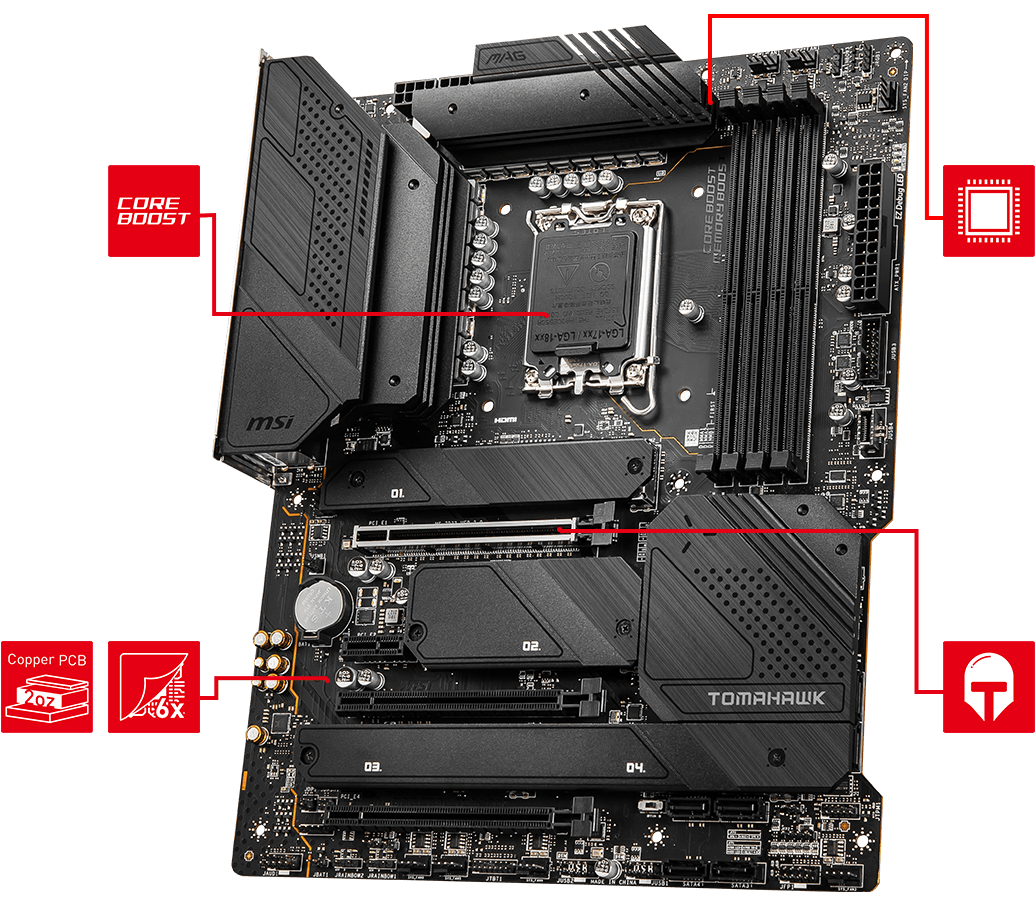

Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
16+1+1 Duet Rail Power System
An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MAG Z690 TOMAHAWK WIFI

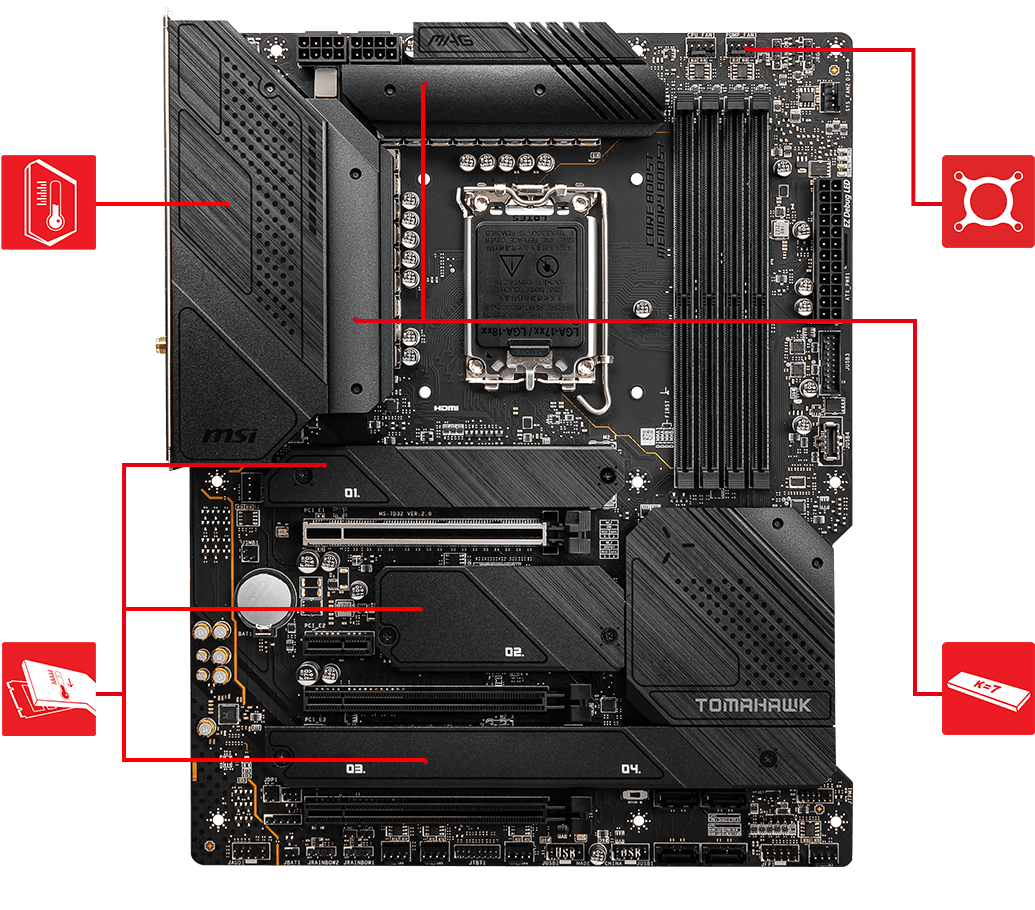

premium thermal solution
Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.

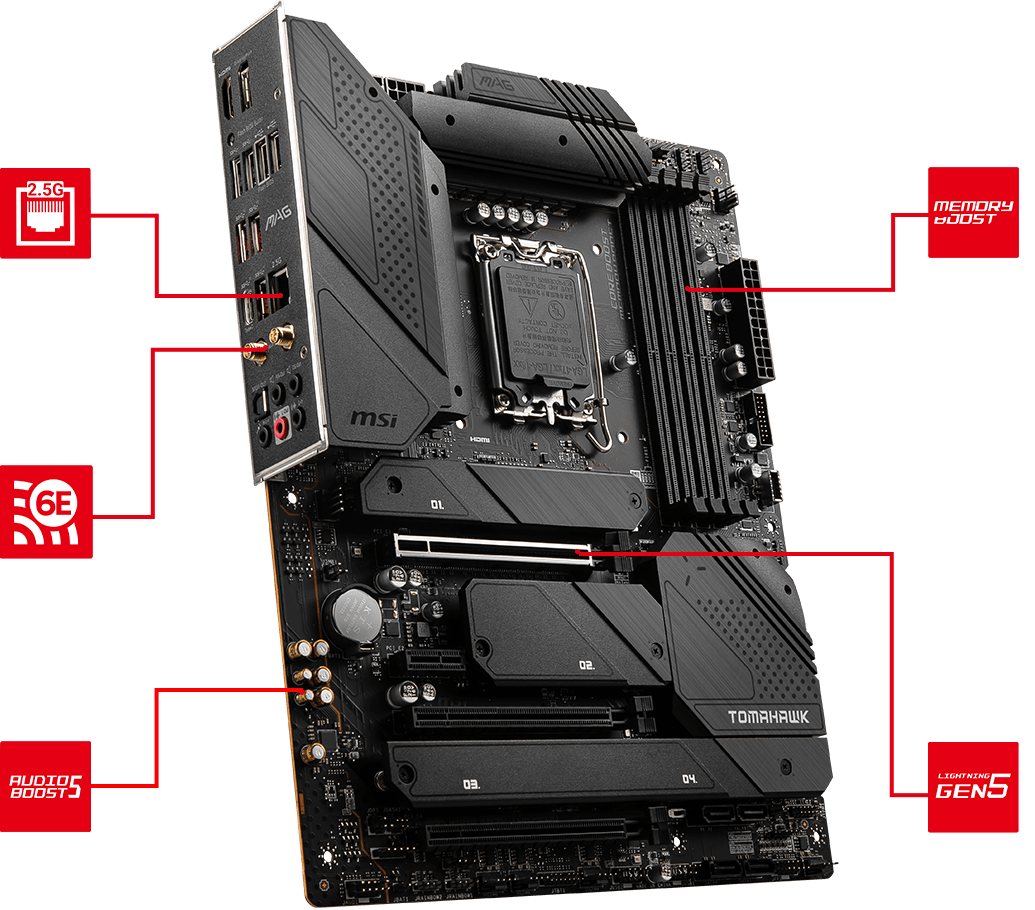

MAG Z690 TOMAHAWK WIFI

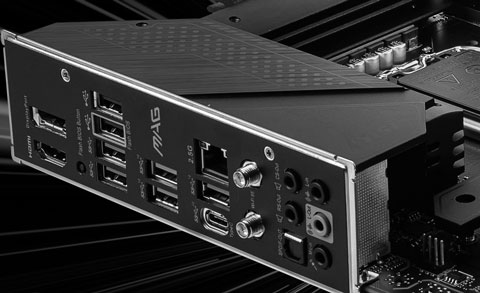

HIGH-SPEED TRANSMISSION
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

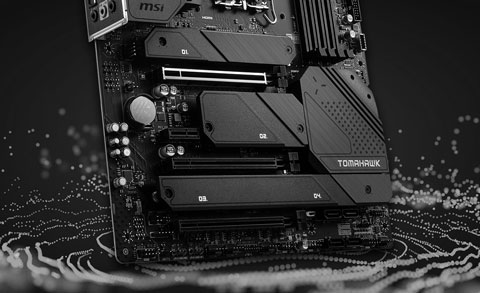

Audio Boost 5
ALC4080 Codec with top quality caps for the most immersive gaming experience.

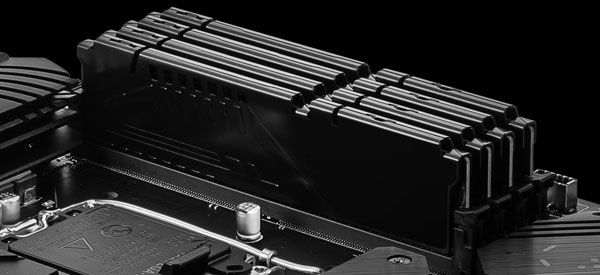

Memory Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

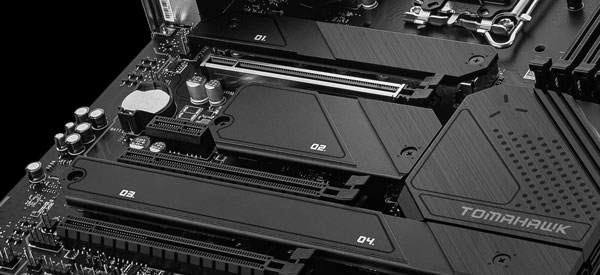

Lightning Gen 5 Solution
The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
连接性
MSI 主板内建各种连接埠，满足游戏玩家的需求。强化的音频、新一代LAN 网路技术、USB 和Mystic Light 等，让玩家更沉浸在游戏体验中。

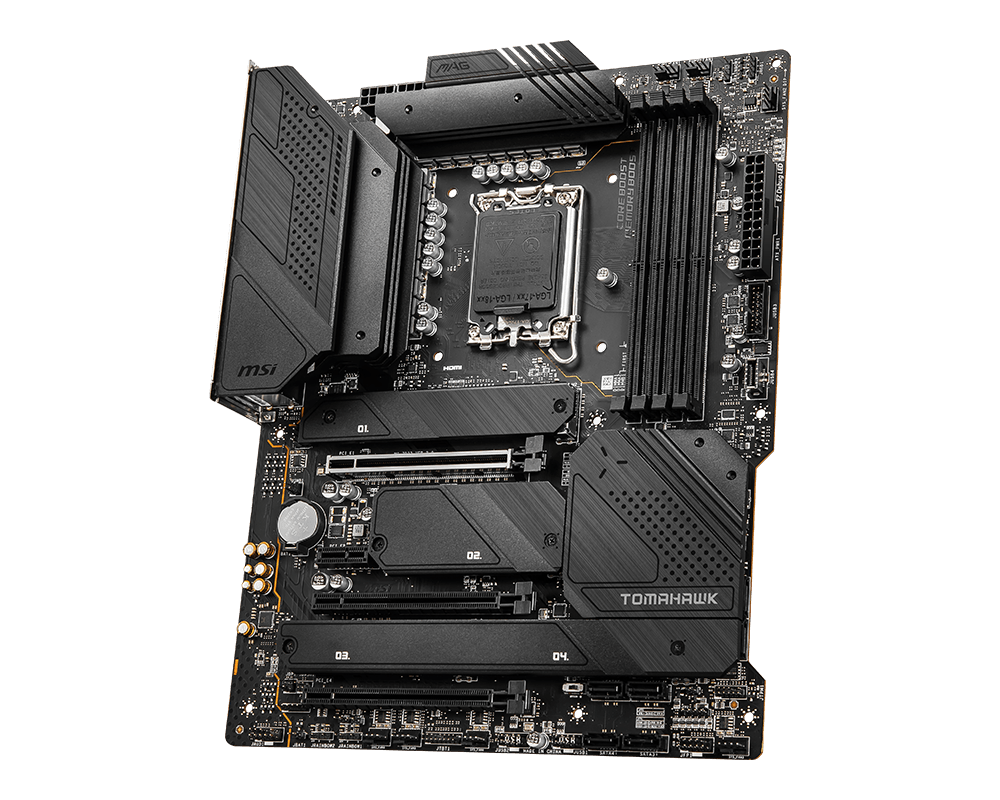

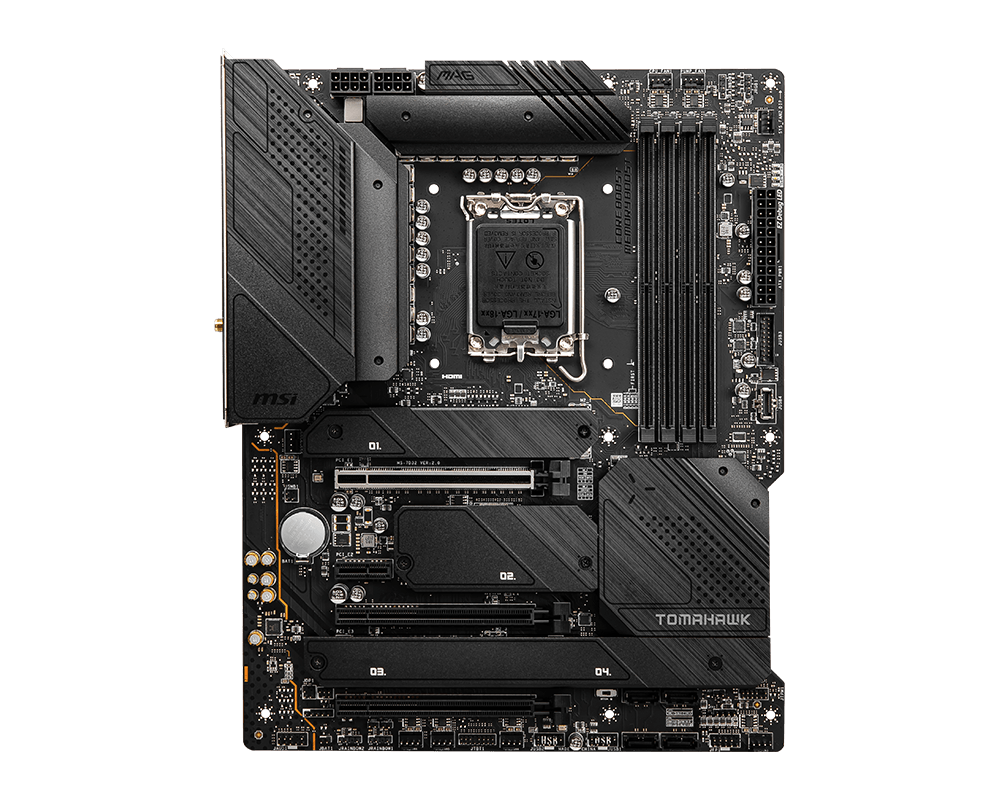

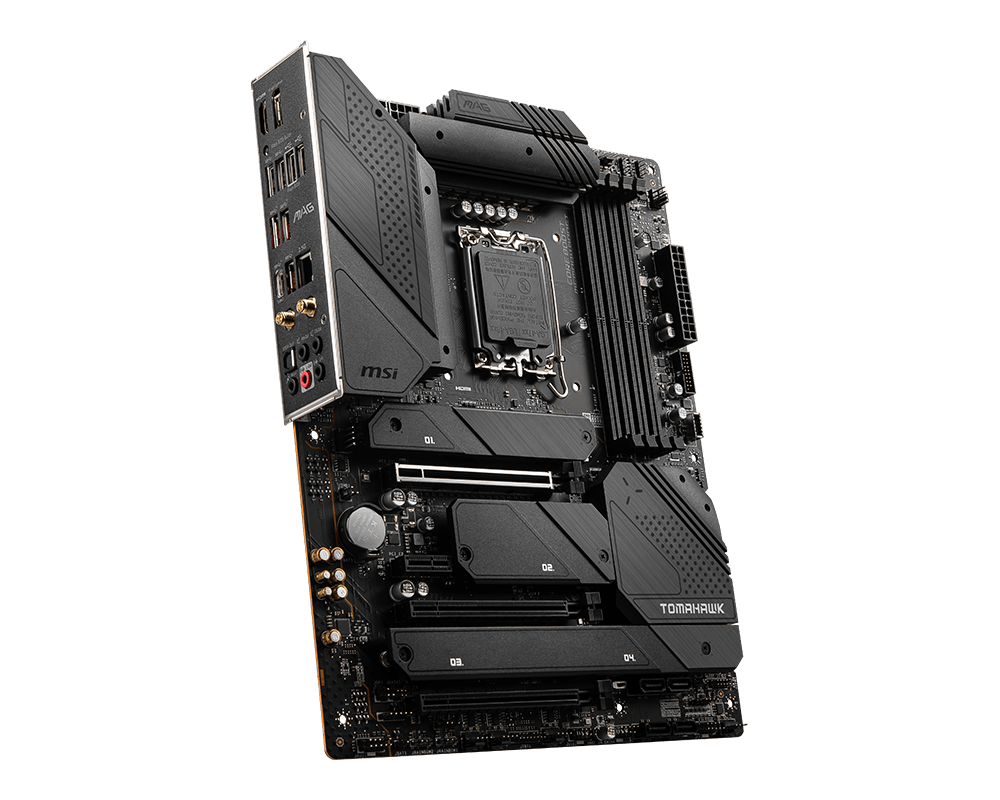

MAG Z690 TOMAHAWK WIFI
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
