MAG B760m Mortar
b760m badge and hdmi icon

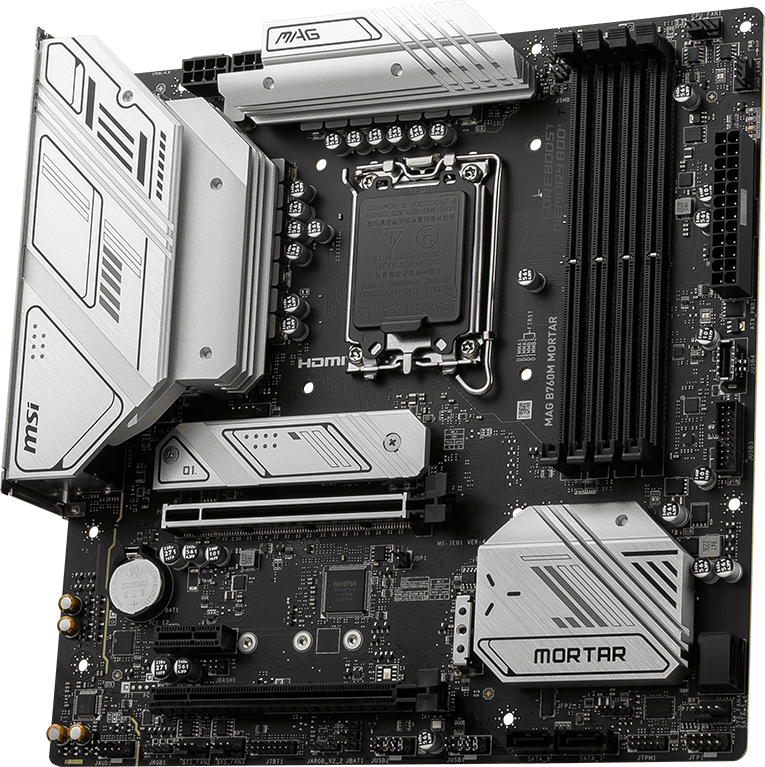

MAG B760M morta

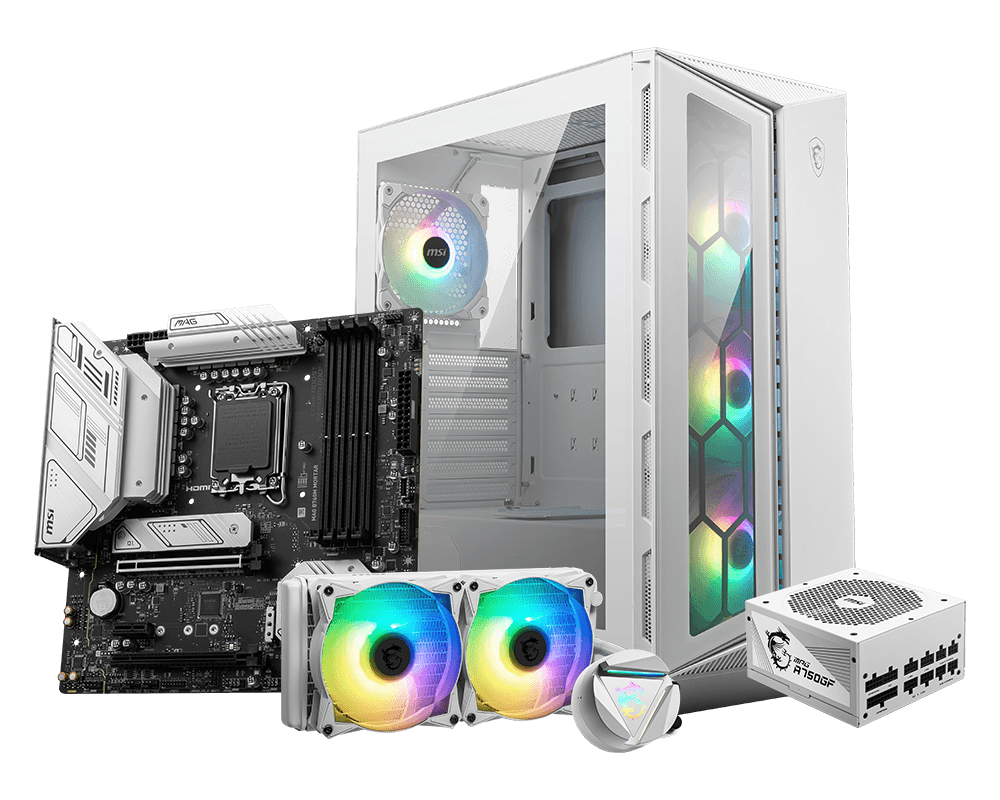

MSI MAG Case with MIS Products

unite as one

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

EXCLUSIVE FEATURE
THERMAL SOLUTION
CONNECTIVITY

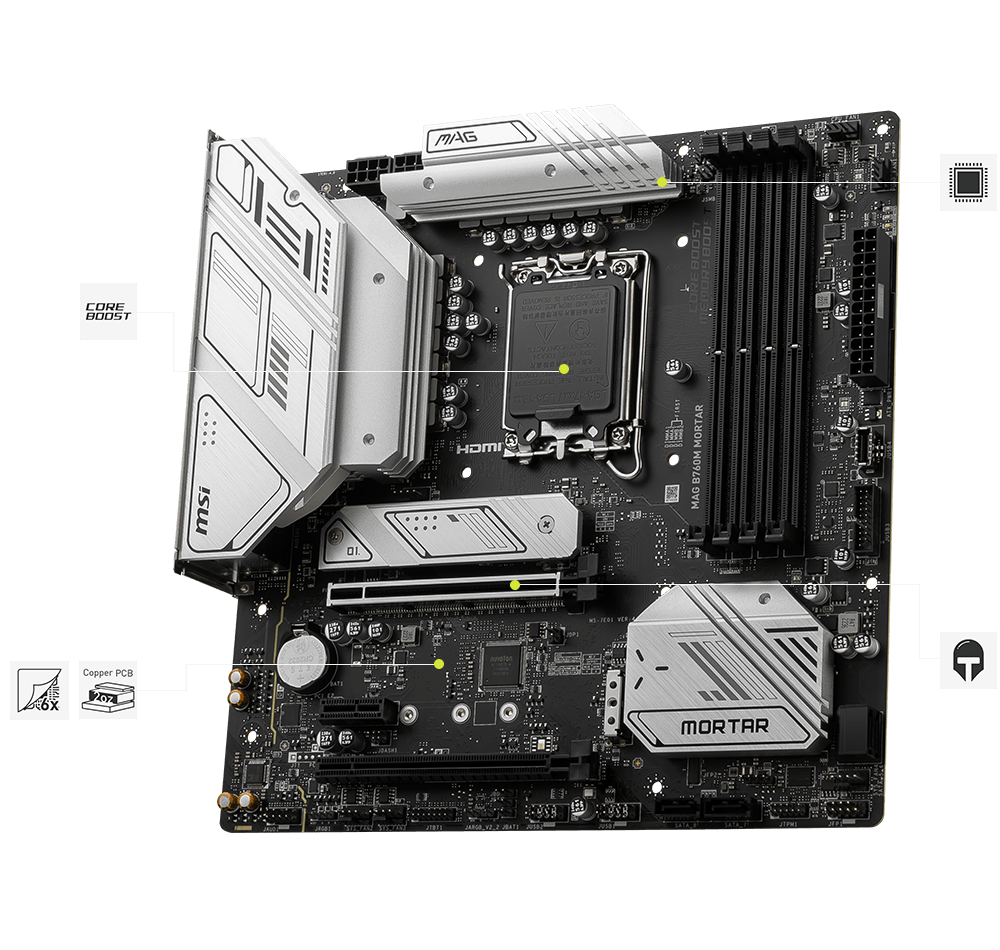

EXCLUSIVE FEATURES

Core Bost Technology

Core Boost Technology

msi 6 layer PCB icon cooper pcb PCB 20z icon

6 Layer PCB with
2oz Thickened Copper

Direct 16+1+_1 Power Phases with 90A SPS

Digital PWM

Steel Armor

Steel Armor

premium thermal solution

Extended Heatsink

Extended Heatsink

M.2 Shield Frozr

M.2 Shield Frozr

Pump Fan Support

Pump Fan Support

Heatsink with 7W/mK Thermal Pad

Heatsink with 7W/mK Thermal Pad

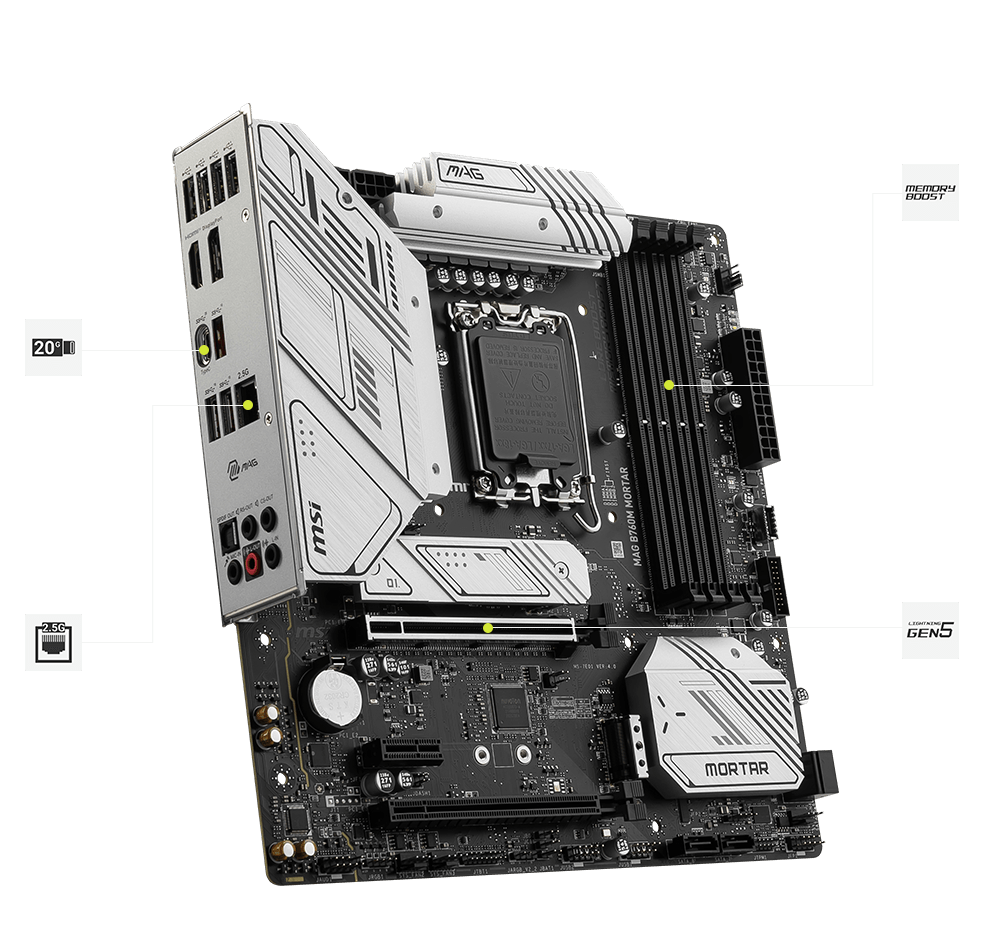

HIGH-SPEED TRANSMISSION

Lightning USB 20G

Lightning USB 20G

2.5G Network Solution

2.5G Network Solution

Memory Boost

Memory Boost

Lightning Gen 5

Lightning Gen 5

硬件

Hardware
  • 散热
  • 供电解决方案
  • 友善设计
  • cooling overview
  • 水冷散热

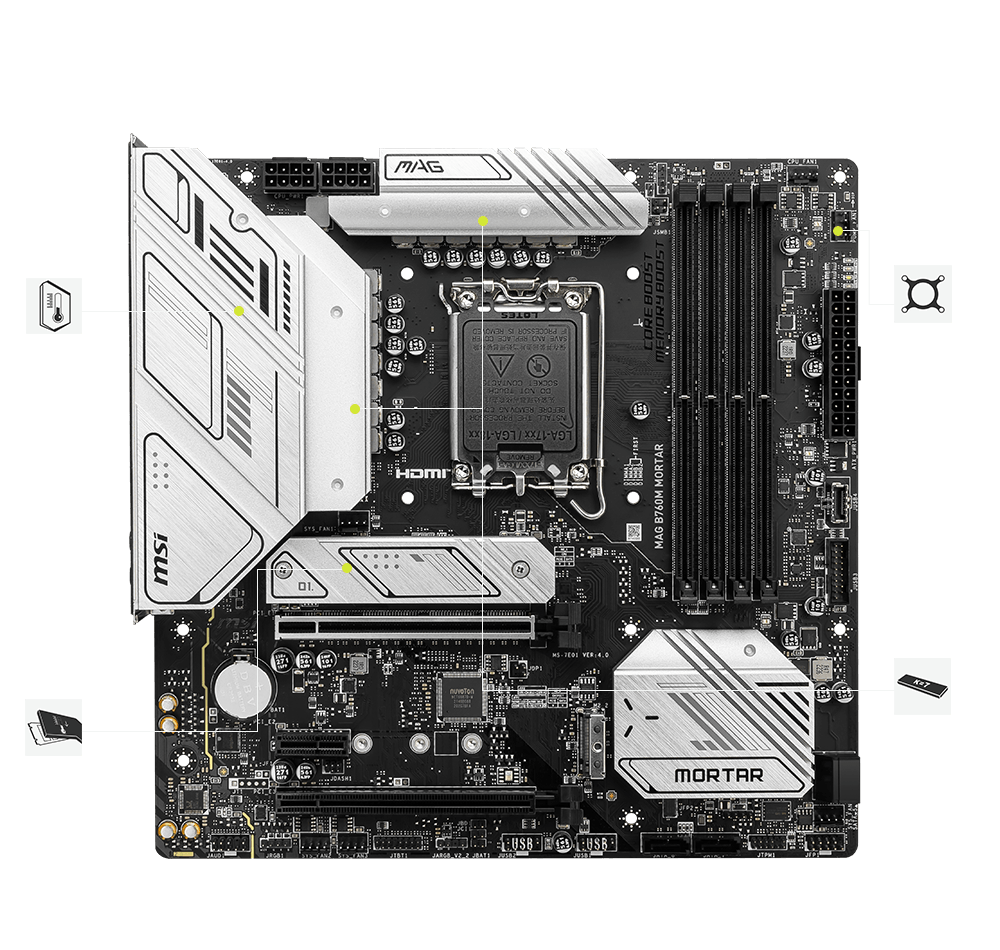

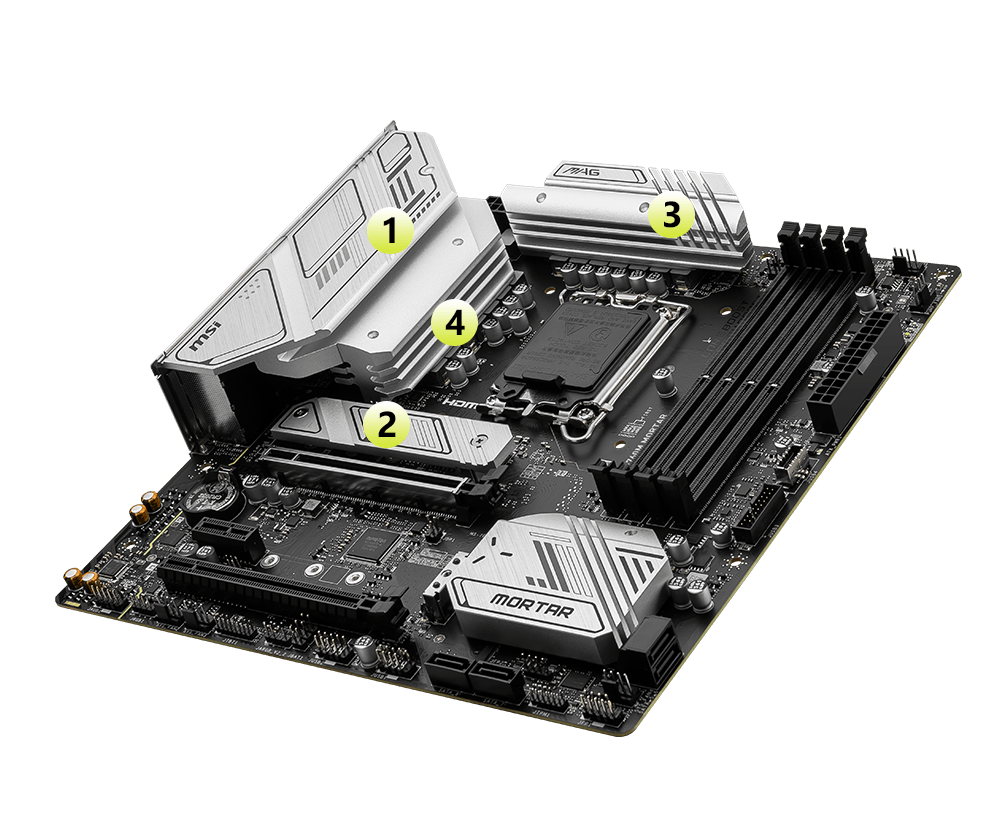

Cooling Overview

msi MAG B760M Mortar cooling overview mobile
  1. Extended Heatsink

    Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

  2. M.2 Shield Frozr

    Keeps M.2 SSDs safe while preventing throttling, making them run faster.

  3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upperMOS and helps dissipate the heat.
  4. 7W/mK Thermal Pad &Additional Choke Pad

    High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

优化水冷

支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出，让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。

msi x670 system cooling none atx
— 与以下品牌完成相容测试—
msi x670 system cooling none atx support branding icons
  • PCB DESIGN

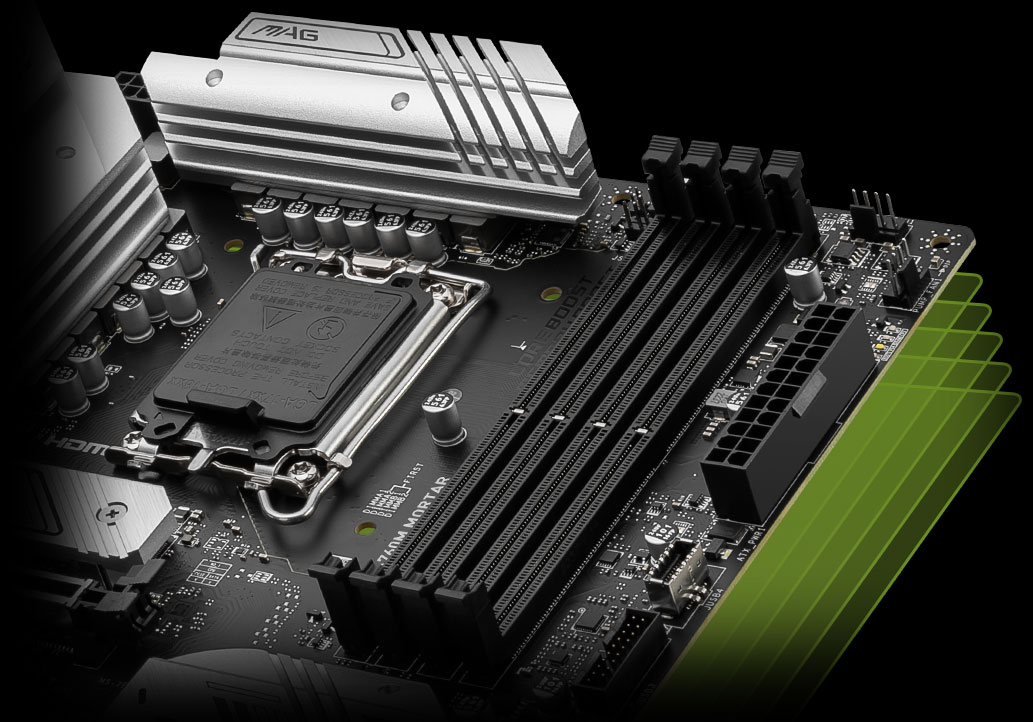

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

OPTIMIZED PCB Design solution
  • 6 PCB layers
  • IT150GS Server-grade PCB material
  • 2oz Thickened Copper
  • EZ M.2 CLIP
  • 驱动安装
  • MORE FOR DIY FRIENDLY

EZ M.2 CLIP

锁螺丝常遇到问题吗？ MSI 独家EZ M.2 夹子可帮助您快速轻松地安装M.2 SSD。

EZ M.2 CLIPEZ M.2 CLIP

驱动安装

一连接到网路，MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序，您只需点击几下即可下载和安装了解更多

* 请确保连接到网路，否则Driver Utility Installer 不会自动启动。
* MSI Driver Utility Installer 将会内建在Windows 11 build 22H2 中。

MSI DRIVER UTILITY INSTALLER (DUI)

MORE FOR DIY FRIENDLY

WINDOWS 11 CERTIFIED
PRE-INSTALLED I/O SHIELD
XL CLIP
EZ DEBUG LED
keep out zone
WINDOWS 11 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

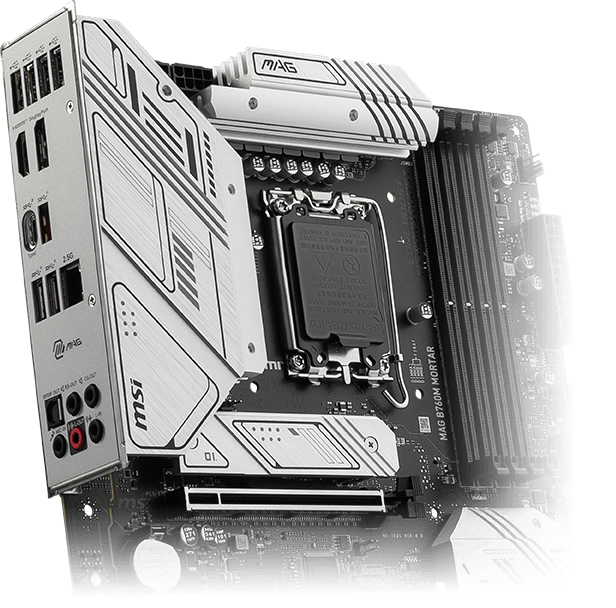

MSI B760m mortar pre-installed
PRE-INSTALLED IO background

The design protect your IO ports and makes your installation process easier and safer.

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.

性能

Performance
  • 扩充性
  • 记忆体
  • Bios & 软体
  • LIGHTNING GEN 5 PCI-E
  • STORAGE
  • USB

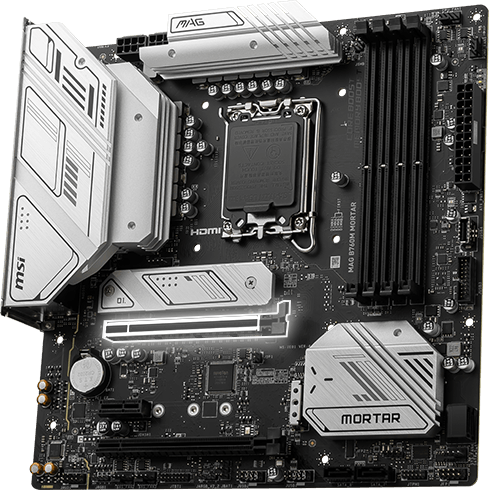

Lightning Gen 5 PCI-e with Steel Armor

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Msi B760m Mortar lighting gen 5 pce-e with steel armor
MSI STEEL ARMOR
REINFORCED,
HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

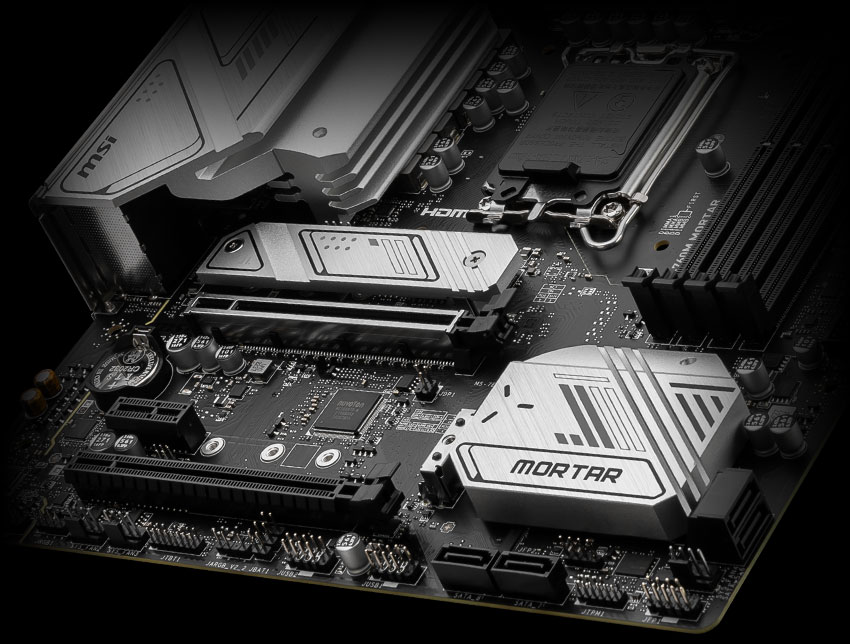

FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

2x

lightening gen 4 m2
64 Gbps

4x

6 Gbps
MAG B760M Mortar storage overview
lightning usb 20G
FRONT USB TYPE-C

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

  • DDR5
  • XMP

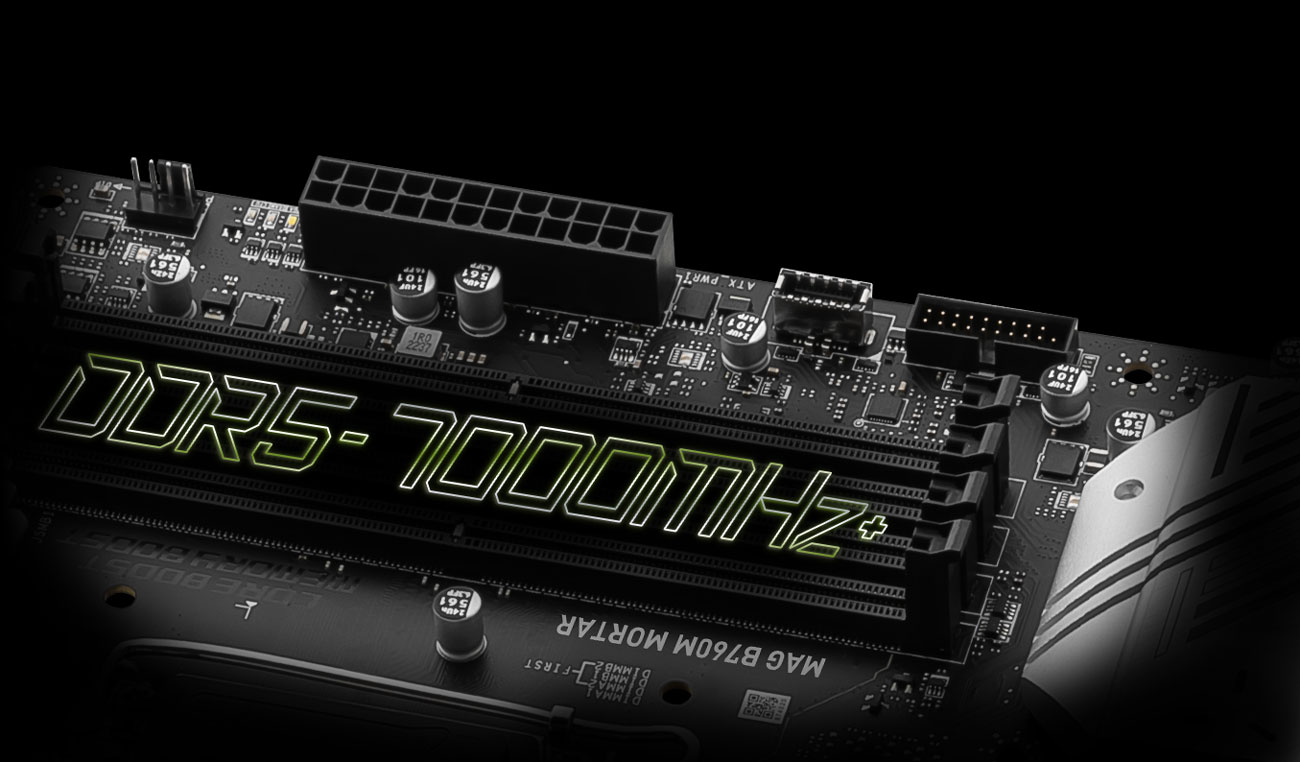

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B760M MORTAR is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

LATEST DDR5 MEMORY WITH SMT SLOT
LATEST DDR5 MEMORY WITH SMT SLOT

XMP PROFILE 简易超频

BIOS里内建EASY XMP (Extreme Memory Profiles) ，经由MSI OC lab 测试认证，更容易自动启用电源设定，以获得最佳的记忆体存取速度和稳定性。

  • MSI CENTER
  • CLICK BIOS 5
  • AIDA64
  • RESIZABLE BAR

MSI CENTER

MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。

Mystic Light
True Color
使用环境
硬体监控
资料夹设定
Fan Center
系统诊断
Mystic Light
轻松制订自己的灯效杰作。只需点击几下即可呈现您所需要的任何颜色！
True Color
针对不同情况、多种模式下，优化显示器的亮度和色彩，您也可以自行定义自己希望的模式。
User Scenario
一键设置您的电脑，甚至可以根据自己的喜好自行定义。
Hardware Monitoring
针对不同情况在多种模式下优化了显示器的亮度和色彩，也可以自行定制。
Profile Setting
在OC 设定选单中，在直觉式介面中可以轻松调整主机板设定，以提高核心性能和优化系统散热。
Fan Center
可使用Fan Control 来控制您的风扇。最多可以设定四组CPU 温度值，主机板即可依据温度自动调整风扇转速。
System Diagnosis
单键即可重置和备份您的MSI 储存装置，提供稳定的系统使用环境。同时，还可以监控储存状态，防止系统崩溃或资料遗失。

CLICK BIOS 5

MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。

EZ-mode
Advanced mode
MSI EZ Mode Pro SeriesMSI Advanced Mode Pro series

  • XMP

    从预设的XMP资料夹中选择，并可自动超频相容的DDR记忆体。

  • VMD (Volume Management Device)

    可透过PCIe汇流排直接控制与管理NVME SSD，而不需额外的硬体交换

  • M-FLASH

    从CMOS设定，即可在几分钟内刷新或升级BIOS，轻松方便。

  • HARDWARE MONITOR

    可即时性观看您的主要硬体资讯，包括温度、记忆体容量，时脉速度和电压。

  • MEMORY TRY IT

    从系统记忆体中获得极致速度，以及更高性能。

  • SEARCH & FAVORITES

    右上角的搜寻和收藏选项可让您快速进入BIOS选单

AIDA64 EXTREME 独家版本

微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体，您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯，并可储存CSV、HTML 等多种格式文件。

RESIZABLE BAR

Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能，可以让CPU一次完整存取GPU的记忆体，减少与GPU的来回沟通，进而改善许多游戏的效能。

连接性

Connectivity
  • 音效
  • mystic light
  • 网路连线
  • Audio Boost

Audio boost

  • 高清晰度音频处理器
  • 高品质音效电容
  • 高品质音效连接埠
  • AUDIO 线路独立区域
  • DE-POP 保护机
Msi X670 Audio Boost 3
Msi Z790 high quality audio capacitors
Msi x670 audio high quality audio jacks
Msi x670 audio isolated audio signal
Msi x690 Audio de-pop
  • Synchronize

轻松延伸您的RGB体验

利用Mystic Light 扩充插槽，可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面，更方便您操作控制，无需再另外单购RGB控制器。

  • A-RAINBOW V2
  • RGB
  • 同步周边装置
Msi X670 motherboard with a-rainbow v2
支援5V 可编程RGB 装置，同时可相容ARGB Gen2 / Gen1 设备。
* Gen2 设备仅支援7 种RGB 灯效
Msi X670 RGB
支援12V RGB 装置
Msi x670 rgbsync ambient device image
可与相容的装备进行灯效同步。
  • 2.5G LAN

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

msi lan 2.5g icon
lan 2.5g wifi low-latency network
  • 2.5G LAN

MAG B760M MORTAR

  • 支援LGA 1700 脚位的第12 代/第13 代Intel ® Core™, Pentium ® Gold 和Celeron ®处理器
  • 支援DDR5 记忆体，高达7000+(OC) MHz
  • 强化供电设计: 12+1+1 Duet Rail 电源系统、dual 8-pin CPU 供电连接埠、Core Boost、Memory Boost
  • 闪电极速游戏体验：PCIe 5.0插槽、Lightning Gen 4 x4 M.2、USB 3.2 Gen 2x2
  • 优质散热解决方案: 加大散热片设计和M.2 Shield Frozr，提供不间断的高性能体验
  • AUDIO BOOST: 让您的耳朵沉浸在录音室等级的音效品质。
  • 高品质PCB : 6 层PCB 采用2oz 厚度铜和伺服器等级料件。
