团结合击
MAG 系列主机板为荣誉而生，与玩家一同并肩作战。 MSI主机板增添浓浓军事元素，提供坚实稳定最佳平台。
独家技术
Core Boost 技术
6 层PCB 加入2oz厚度铜
数位PWM
钢铁装甲

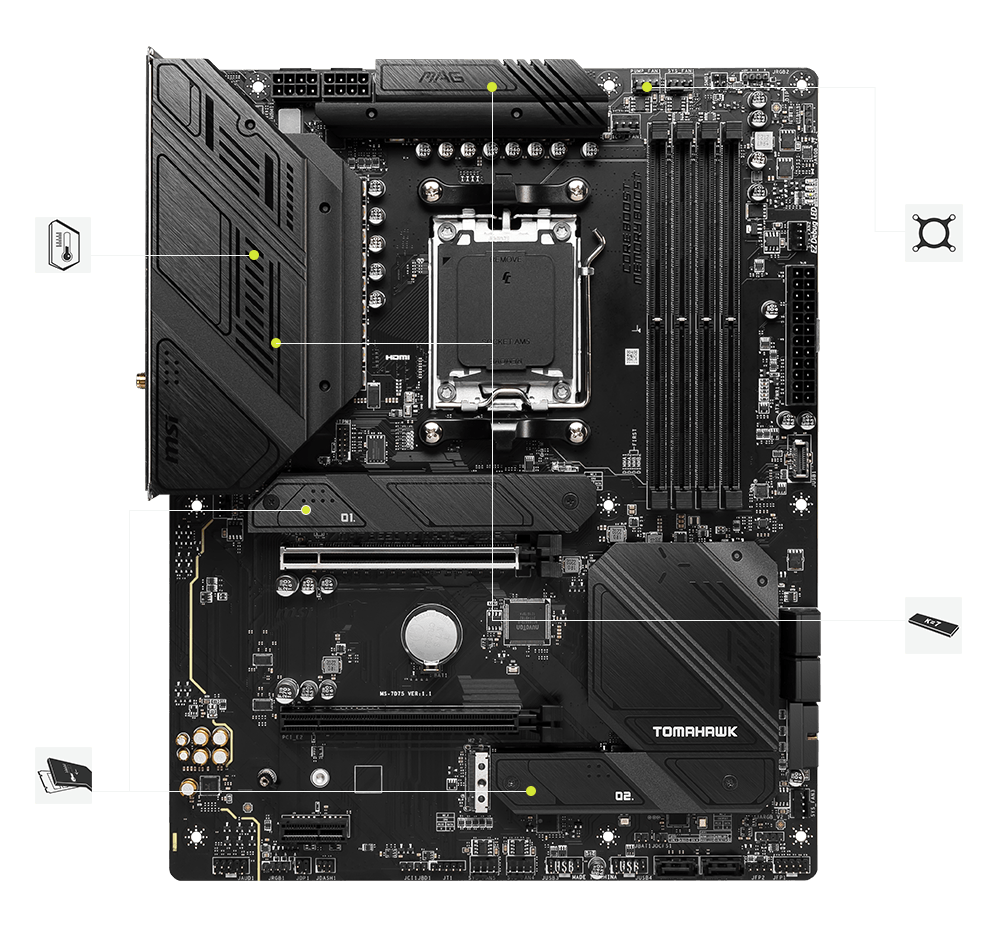

优异散热解决方案
加大散热片
M.2 Shield Frozr
帮浦风扇支援
搭载7W / mK 导热垫的散热片

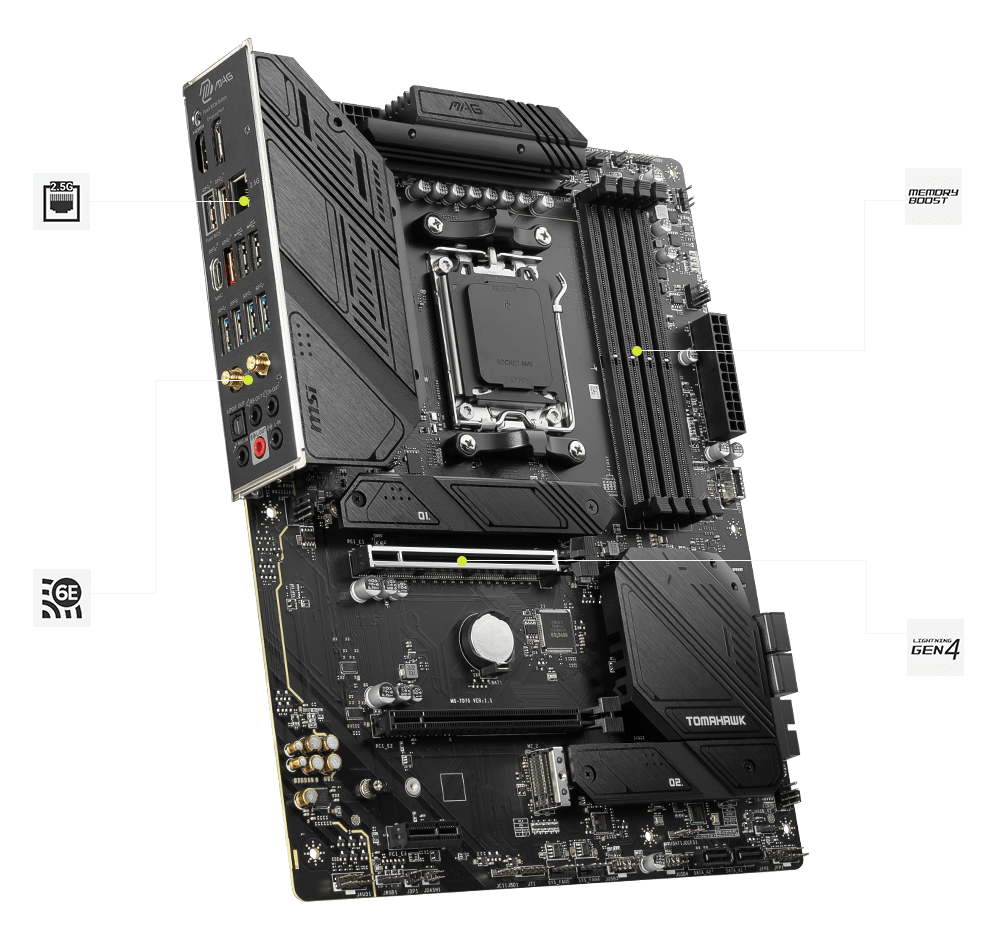

高速传输
2.5G 网路解决方案
Wi-Fi 6E
Memory Boost
Lightning Gen 4
硬件
- 散热
- 供电解决方案
- 友善设计
- 完善风扇控制
- cooling overview
- 水冷散热
- System Cooling
完善风扇控制
MSI主板可让您管理所有系统和CPU风扇的速度和温度。 Total Fan Control让您在直觉式的介面中检查主要系统项目。您还可以为CPU和主板设置最多4个温度标准，系统也将依照这温度标准自动调整风扇速度。
使用MSI AI 引擎可检测CPU 和GPU 温度并自动将系统风扇负载调整为适当的值。
MSI 风扇接头可自动检测风扇将以直流或PWM哪种模式运行，视情况随时调整风扇转速和进行降噪。 Hysteresis也能使系统风扇的运转更为流畅，并确保系统随时处于安静的状态之中。

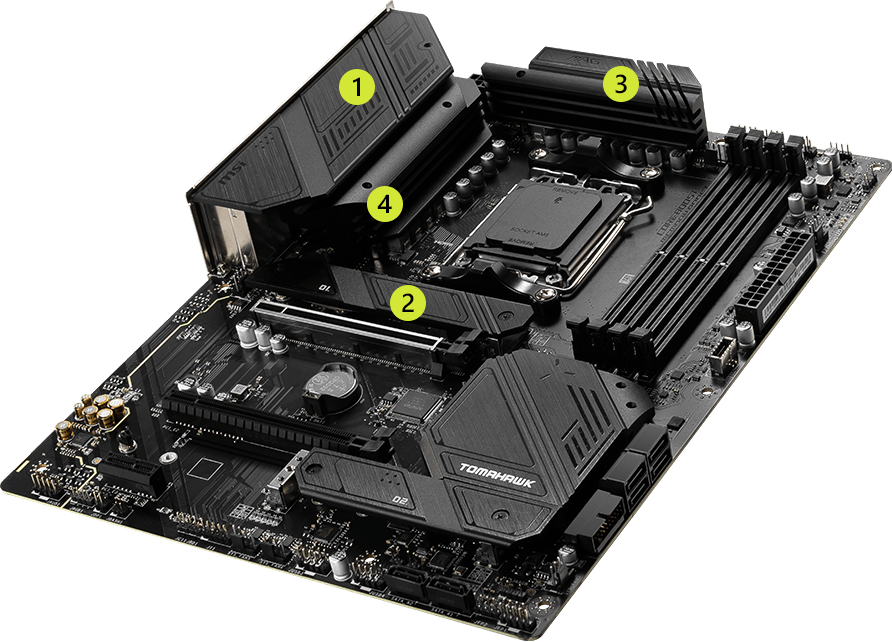

Cooling Overview
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
-
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
-
7W/mK Thermal Pad & Additional
Choke PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
优化水冷
支援市场主流一体式和客制化水冷解决方案。专用的水泵供电接头可支援到最大3安培电流输出，让您可以完全控制水泵的速度。清楚标注的“ 禁制区”可以让玩家很简单又很安全地进行水冷设备的安装。

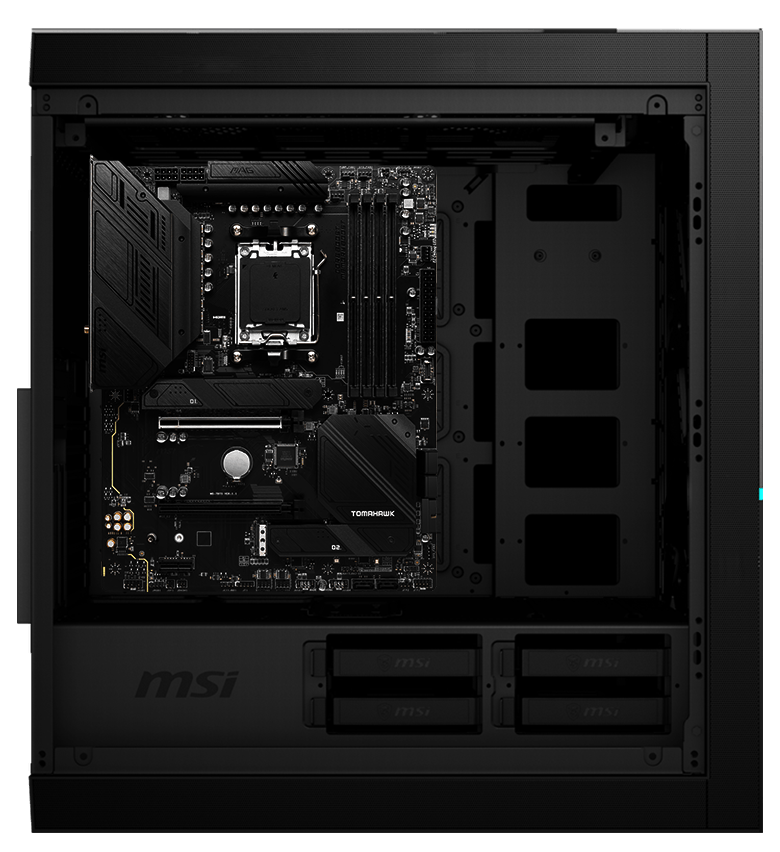

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

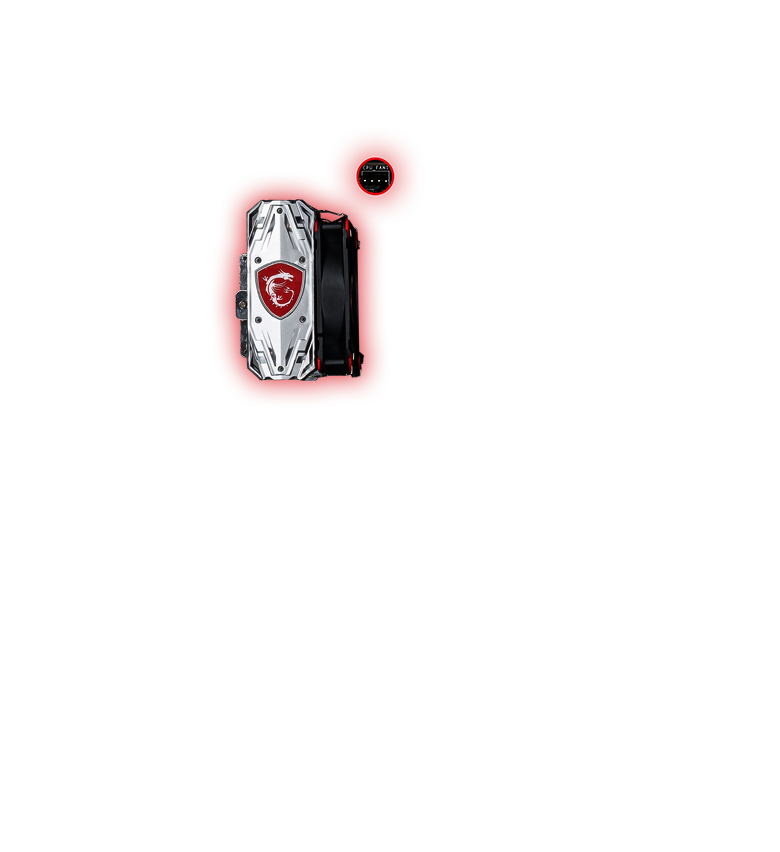

FOR CPU COOLER

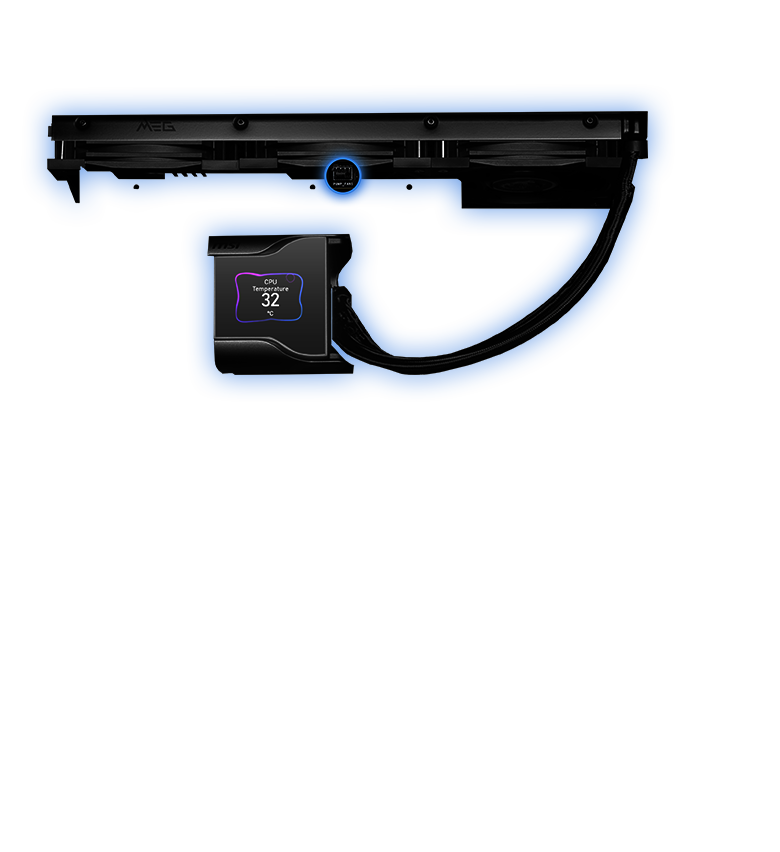

FOR WATERBLOCK COOLER
FOR TOP SYSTEM FAN
FOR FRONT SYSTEM FAN
FOR REAR SYSTEM FAN
- STRUCTURE
- PCB DESIGN
- EZ OC TUNING
- 效能优化

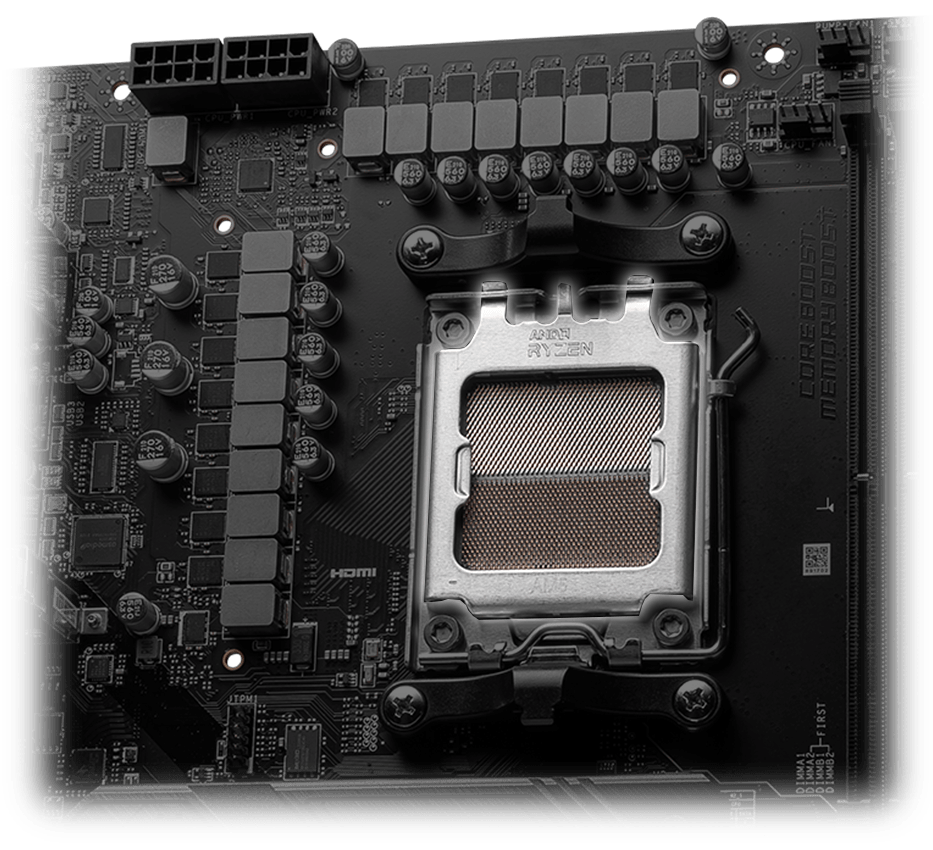

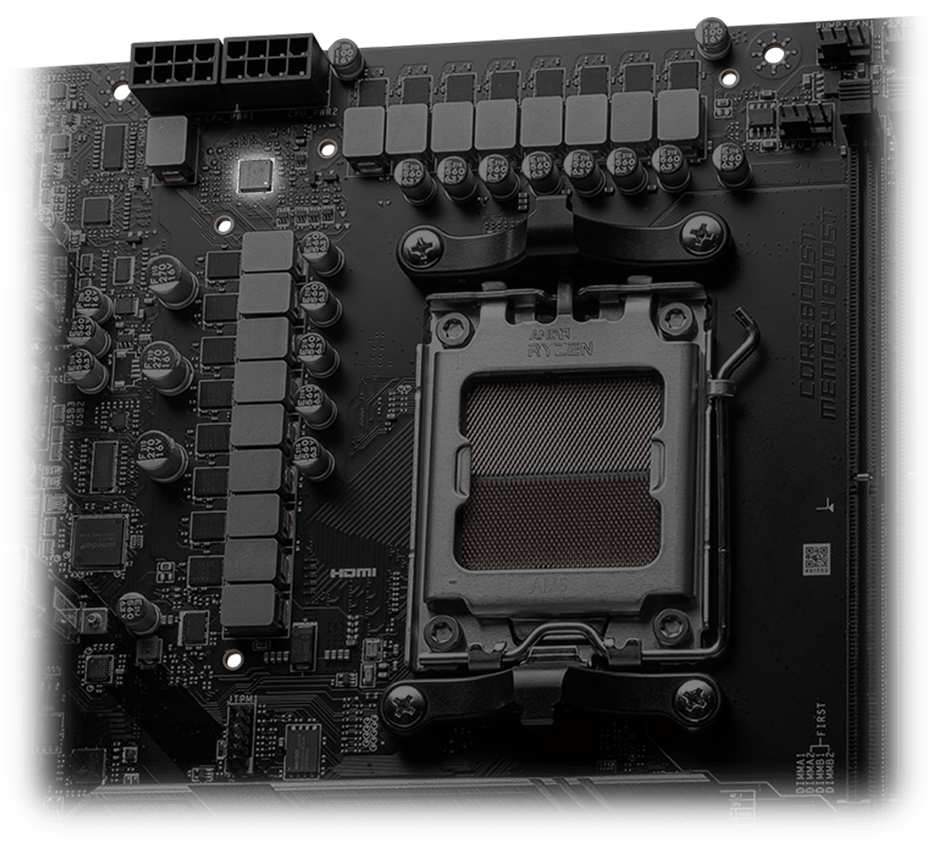

14+2+1 DUET rAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
POWER
POWER
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

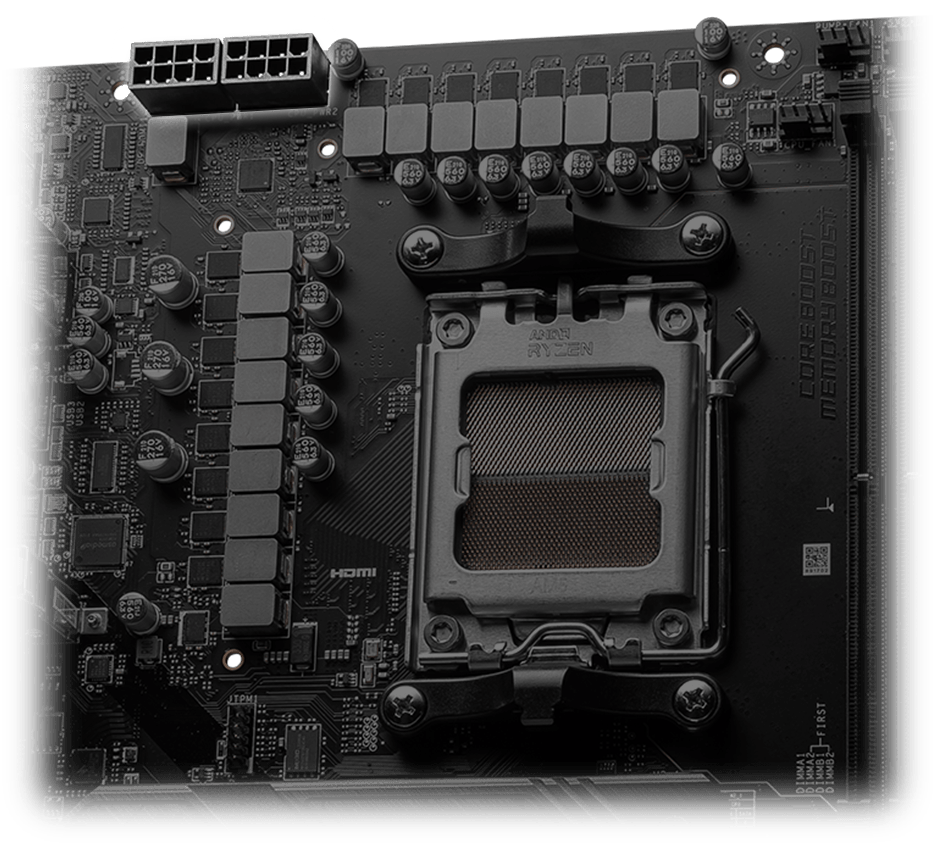

DOUBLE POWER CONNECTORS
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

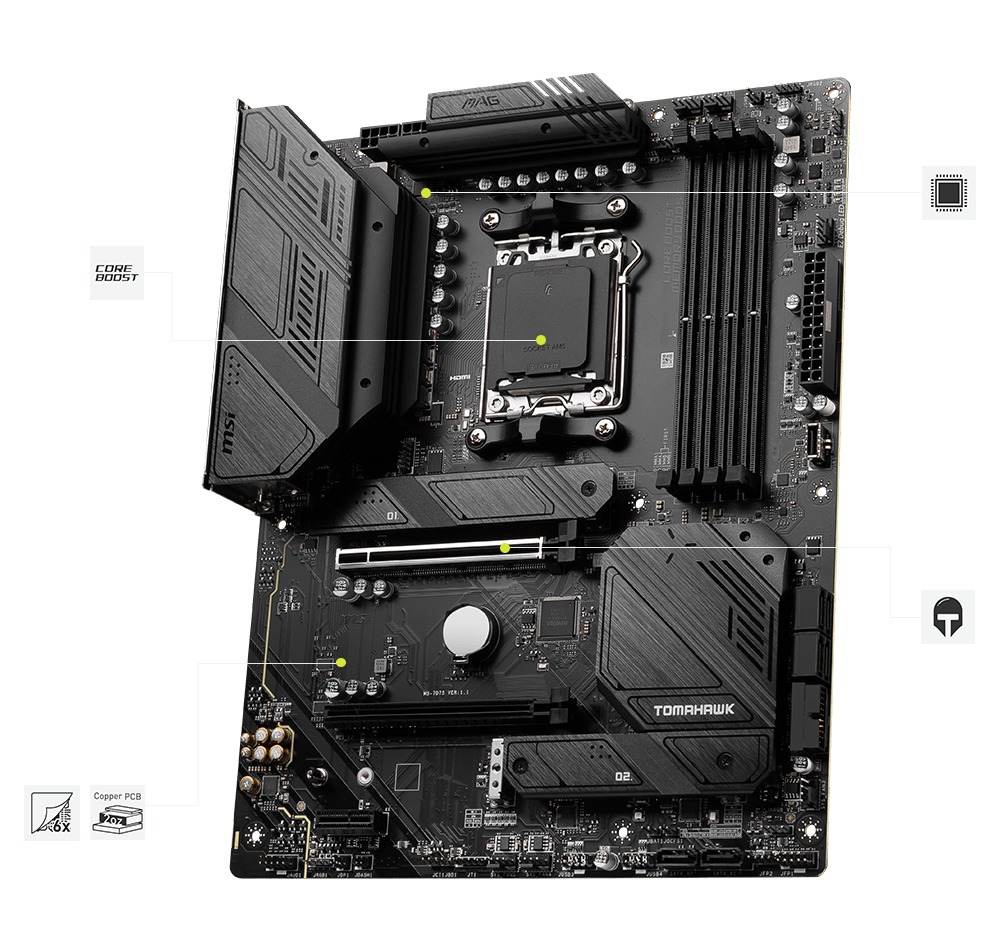

CORE BOOST
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

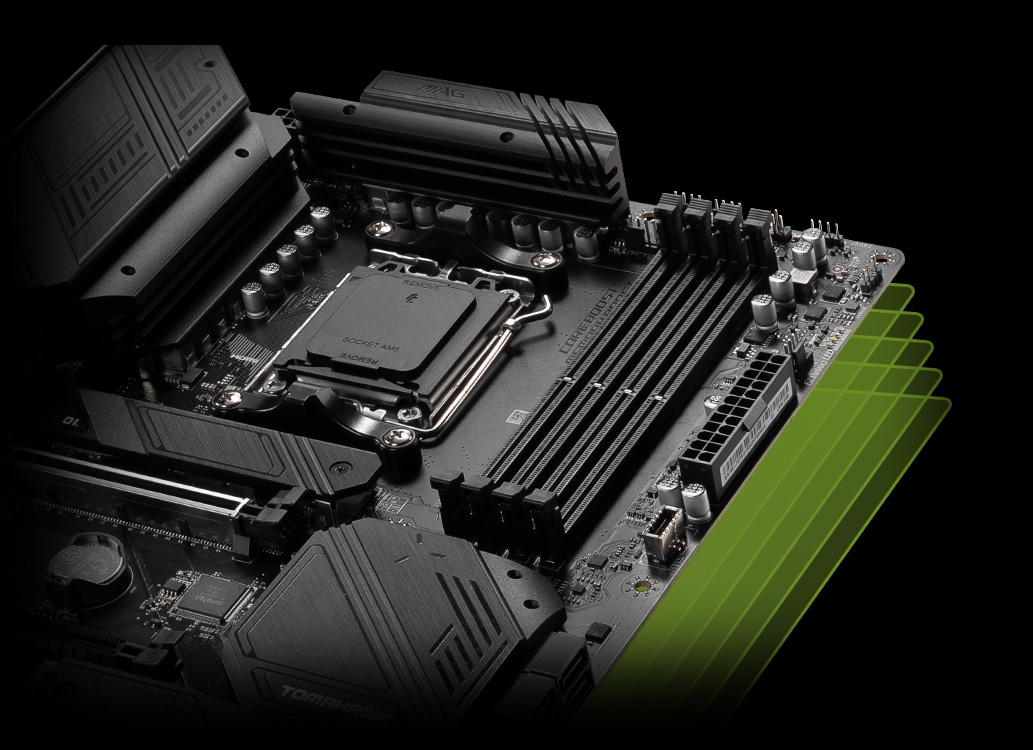

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 6 PCB layers
- IT-150GS PCB material
- 2oz Thickened Copper
EZ OC TUNING
Performance Switch 结合了AMD 预设的PBO（Precision Boost Overdrive）和MSI 自己的OC 设定优点，在单核和多核状态下都能提供更高的CPU 性能。很适用敢于挑战最大性能的玩家。
MSI PBO 资料夹中的热点设定，将CPU 最高温度设为85°C、75°C 和65°C 。藉由精准的测试调教，CPU 可以在较低的电压和温度下运行，并维持性能表现不受影响。
Config TDP 旨在为进阶用户提供ECO 模式(65W) 或不同的TDP (PPT/TDC/EDC) 参数设定。在Click BIOS 5 中提供多组参数设定可定义不同的TDP 设置，使TDP参数设定更加容易，不需要为每个细项一一手动修改。
效能优化
- EZ M.2 CLIP
- 驱动安装
- FLASH BIOS BUTTON
- MORE FOR DIY FRIENDLY
EZ M.2 CLIP
锁螺丝常遇到问题吗？ MSI 独家EZ M.2 夹子可帮助您快速轻松地安装M.2 SSD。
驱动安装
一连接到网路，MSI Driver Utility Installer 将自动检测并显示合适的驱动程序和实用程序，您只需点击几下即可下载和安装。 了解更多
* 请确保连接到网路，否则Driver Utility Installer 不会自动启动。

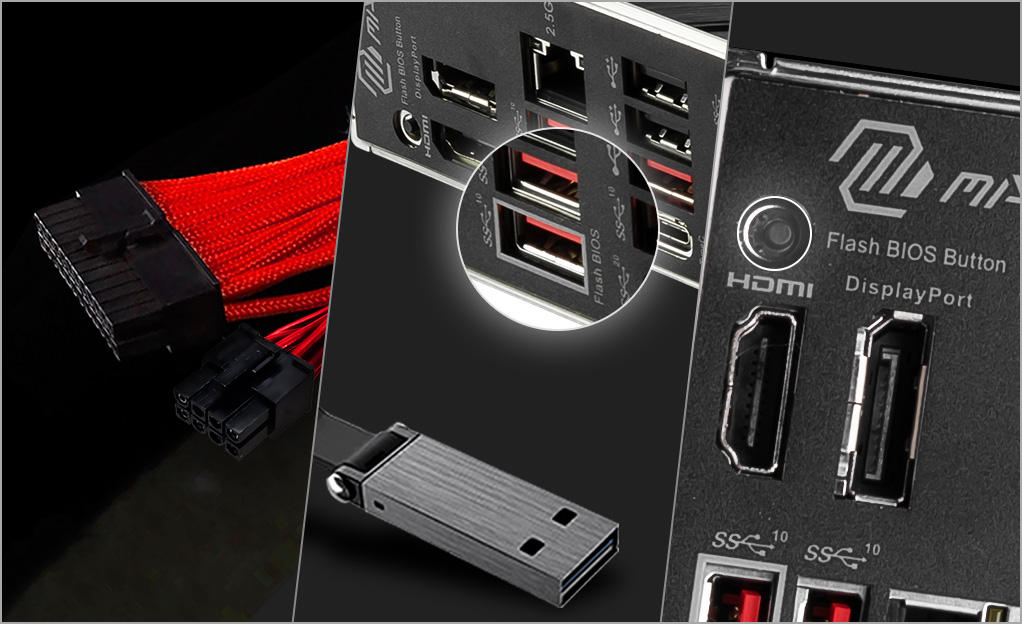

BOOT UP GUARANTEED
Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.

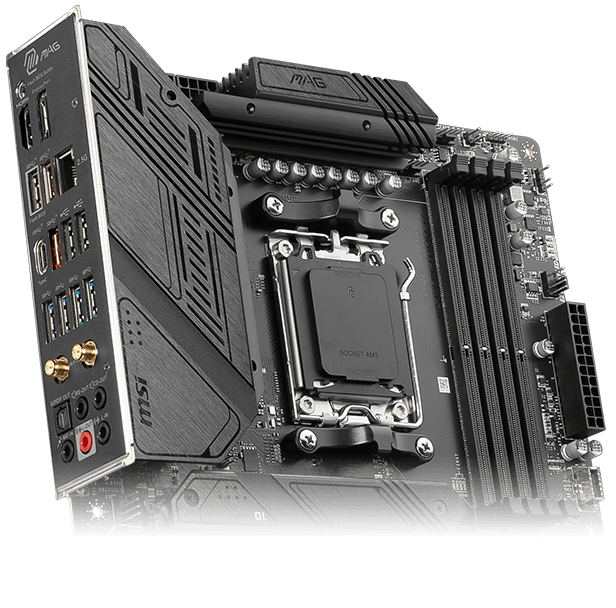

MORE FOR DIY FRIENDLY

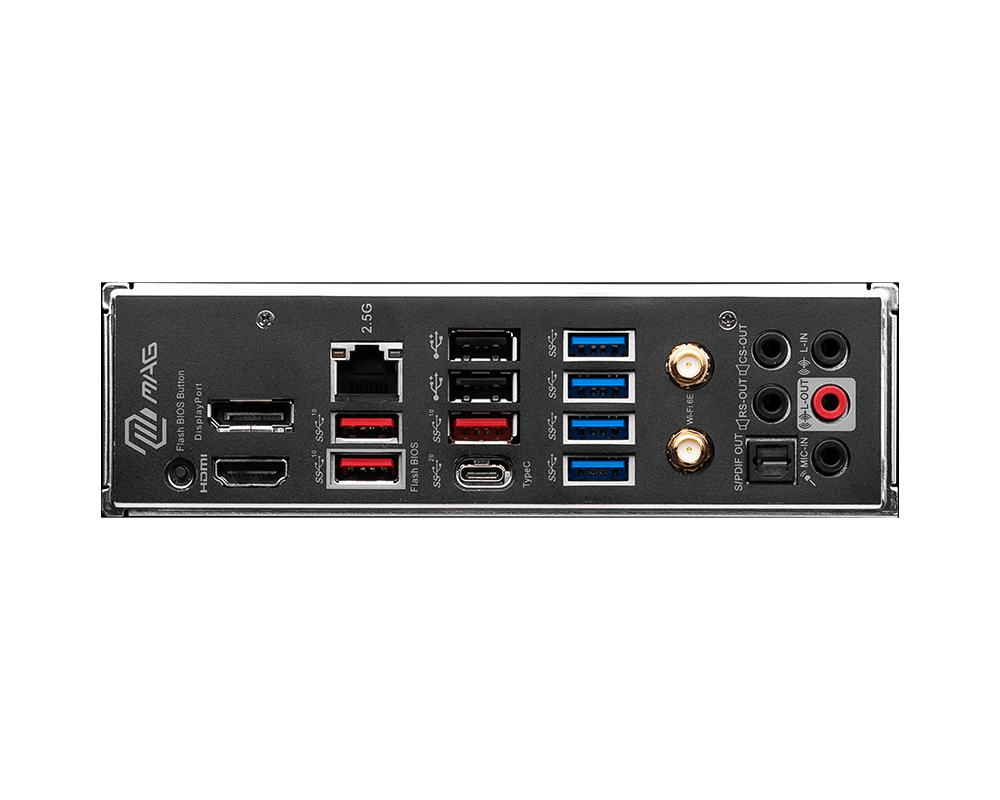

The design protect your IO ports and makes your installation process easier and safer.
* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
性能
- 扩充性
- 记忆体
- Bios & 软体
- LIGHTNING GEN 4
- STORAGE
- USB

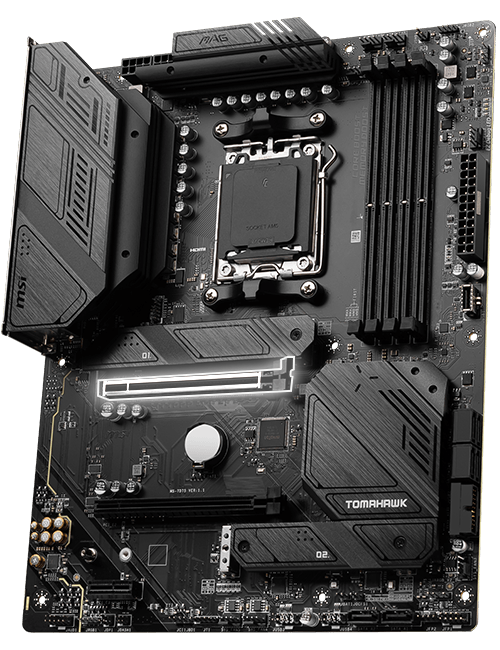

Lightning Gen 4 PCI-e with Steel Armor
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

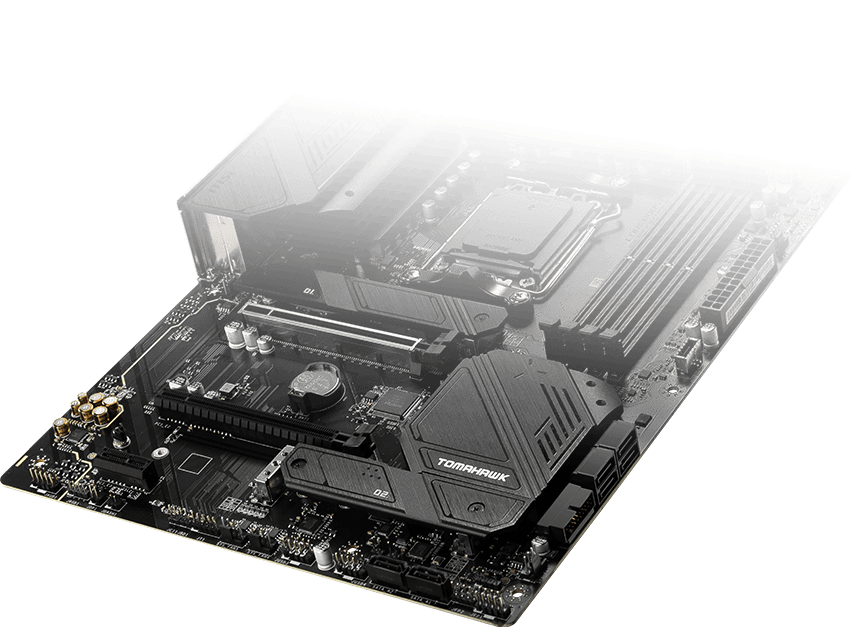

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
3x
6x

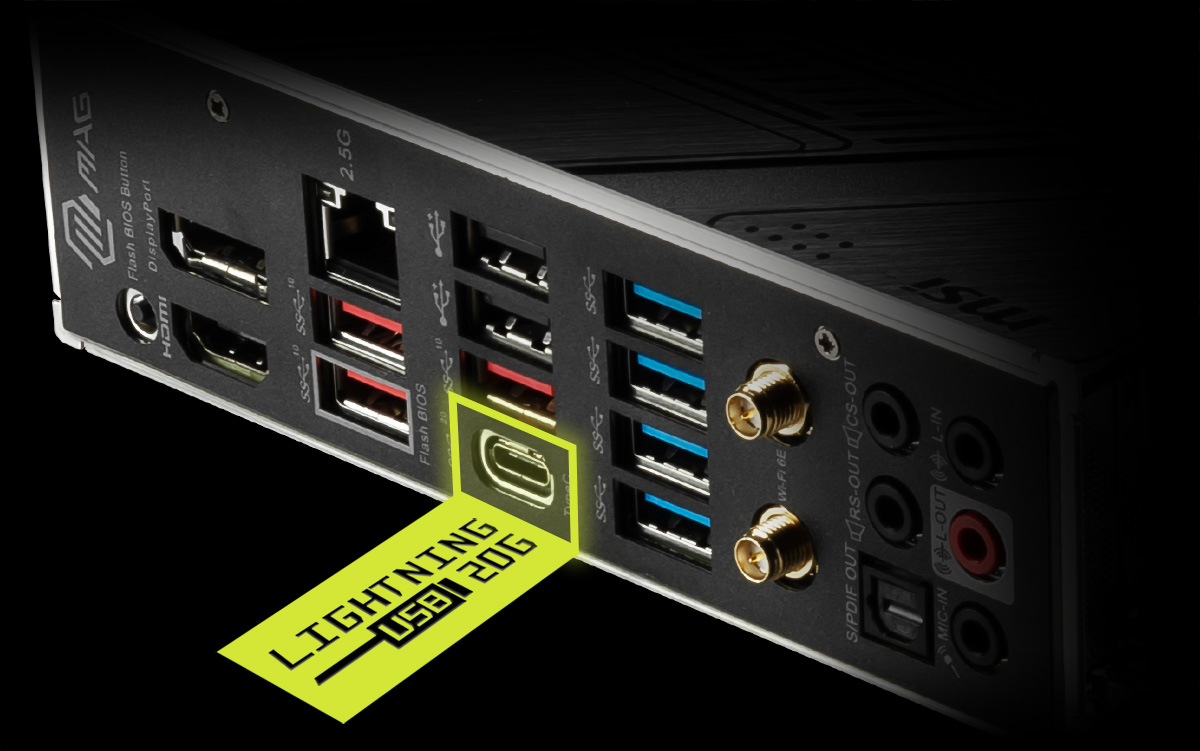

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

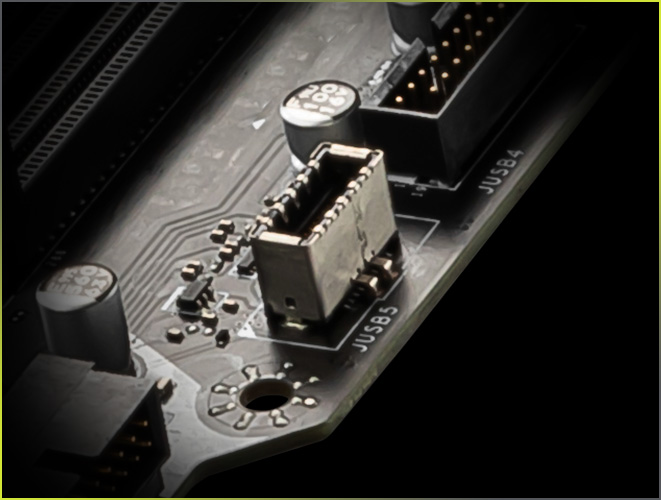

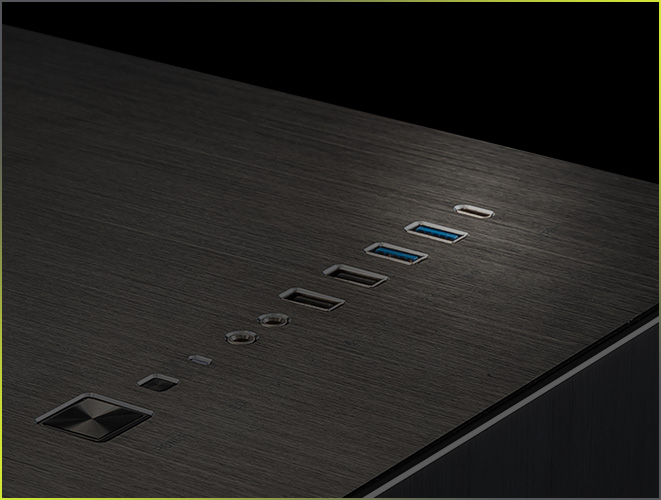

USB FRONT TYPE-C

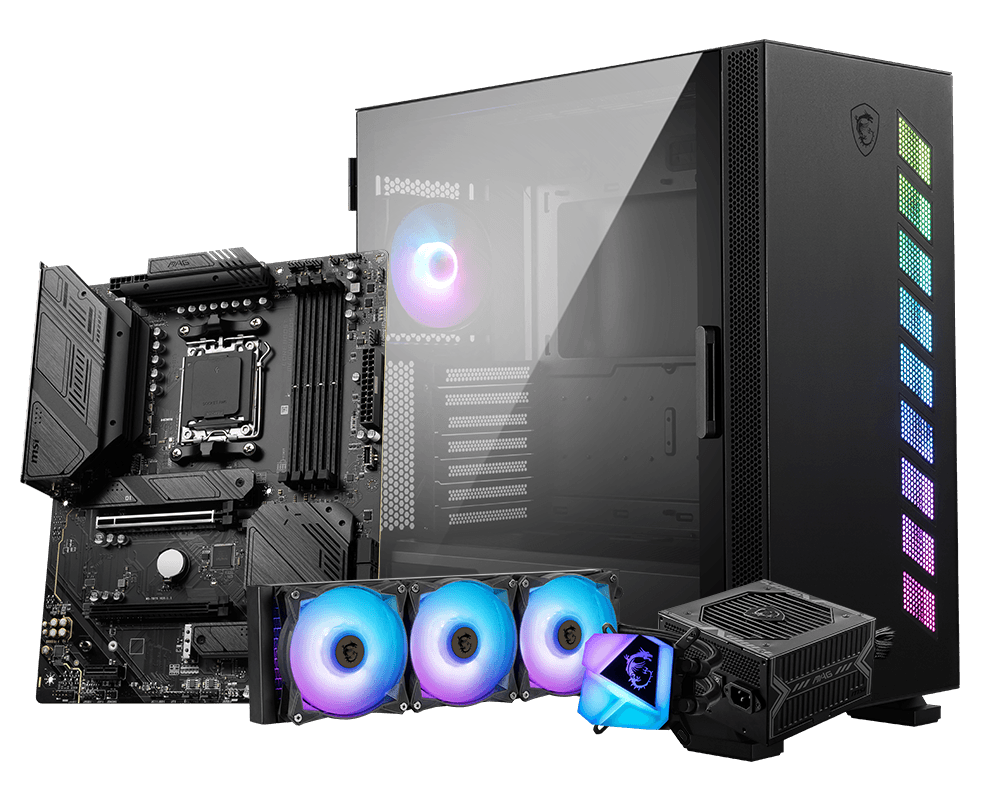

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
- DDR5
- EXPO

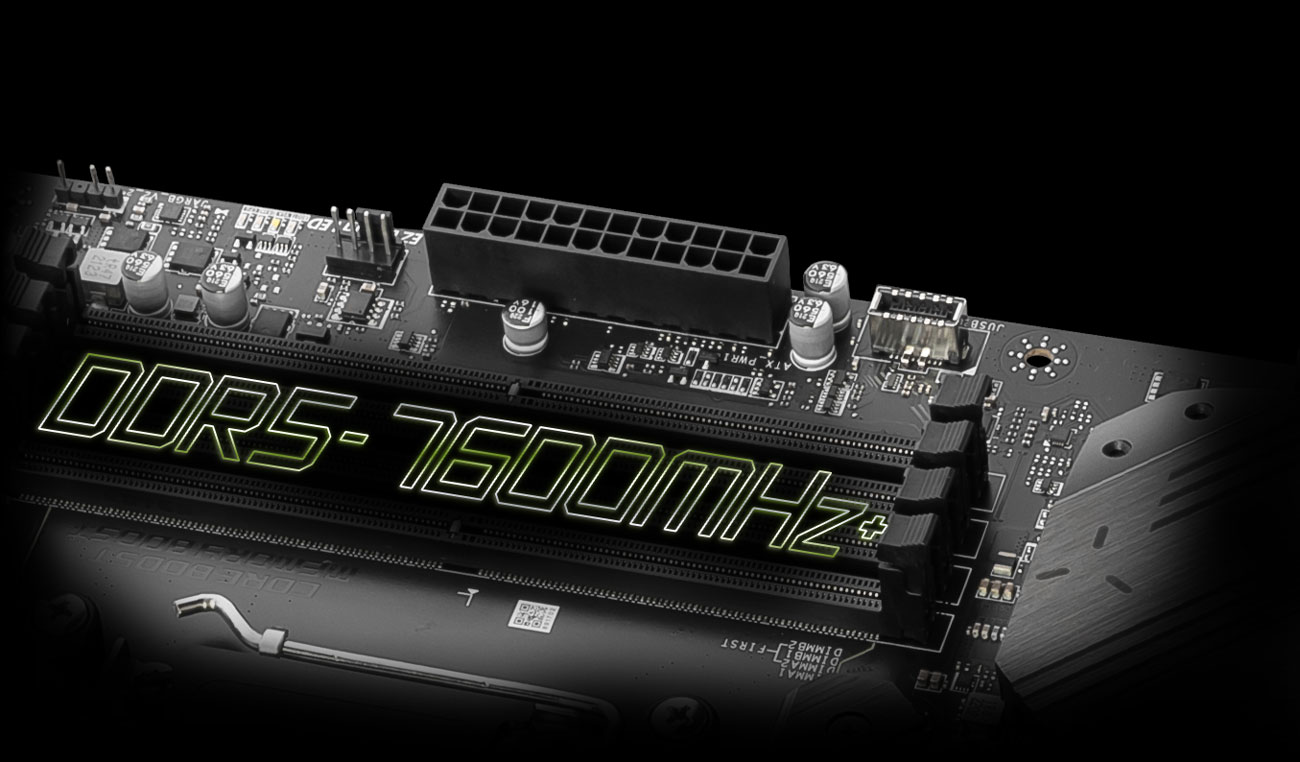

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B650M MORTAR WIFI is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
使用EXPO 参数设定轻松超频
微星在极端条件下对主流记忆体品牌进行严苛测试，以确保系统在任何情况下都能稳定运作。并透过电源自动设置轻松启用EXPO 设定参数，以获得最佳的记忆体读取速度和稳定性。
- CLICK BIOS 5
- MSI CENTER
- AIDA64
- NORTON 360
- RESIZABLE BAR
CLICK BIOS 5
主机板所搭载的BIOS调整系统，方便使用，可以从中获得游戏性能、优异的使用效率，甚至挑战超频世界纪录！
EXPO（专为超频设计的EXTENDED PROFILES ）
可从预设的EXPO 资料夹中直接选择设定参数，让记忆体轻松自动超频，获得最好的相容性。
Game Boost
单一键即可让CPU快速超频，提高性能。
M-FLASH
从CMOS设定，即可在几分钟内刷新或升级BIOS，轻松方便。
HARDWARE MONITOR
可即时性观看您的主要硬体资讯，包括温度、记忆体容量，时脉速度和电压。
MEMORY TRY IT
从系统记忆体中获得极致速度，以及更高性能。
SEARCH & FAVORITES
右上角的搜寻和收藏选项可让您快速进入BIOS选单
MSI CENTER
MSI 全新的MSI Center 将MSI 所有软体整合到一个应用程序中。进一步控制主机板功能，以释放无限可能性。
AIDA64 EXTREME 独家版本
微星主机板提供AIDA64 Extreme 独家版本60 天免费试用。 AIDA64 Extreme 是一款电脑软硬体侦测诊断软体。通过该软体，您可以在电脑上监控作业系统、主机板、CPU、BIOS…等相关详细资讯，并可储存CSV、HTML 等多种格式文件。
选择使用NORTON 360 DELUXE 加入网路安全
为您的设备提供多层保护、线上隐私功能包含安全VPN，以及暗网监测，并全数整合在单一解决方案中。使用MSI 主机板，即可免费试用Norton 360 Deluxe 60 天。
- 提供高达50 GB云端备份空间
- 即时威胁防护和智慧型防火墙
- 密码管理员
- PC SafeCam
MSI 试用优惠不适用于现有的诺顿客户。如果您已订购诺顿方案，则需要选择退出订购才有资格享受此优惠。有关重要的订阅、订价和优惠详情，请参阅NortonLifeLock 许可和服务协议。 NortonLifeLock 产品和服务隐私声明。
RESIZABLE BAR
Resizable BAR (Re-Size BAR)是一项进阶PCI Express 功能，可以让CPU一次完整存取GPU的记忆体，减少与GPU的来回沟通，进而改善许多游戏的效能。
连接性
- 音效
- mystic light
- 网路连线
- Audio Boost 5
audio boost 5
- 高清晰度ALC4080 音频处理器
- 高品质音效电容
- 高品质音效S/PDIF 连接埠
- AUDIO 线路独立区域
- DE-POP 保护机制
- Synchronize
轻松延伸您的RGB体验
利用Mystic Light 扩充插槽，可以增添RGB 灯条或其他RGB装置设备。 Mystic Light 软体直觉式介面，更方便您操作控制，无需再另外单购RGB控制器。
* Gen2 设备仅支援7 种RGB 灯效
- 2.5G LAN & WI-FI 6E

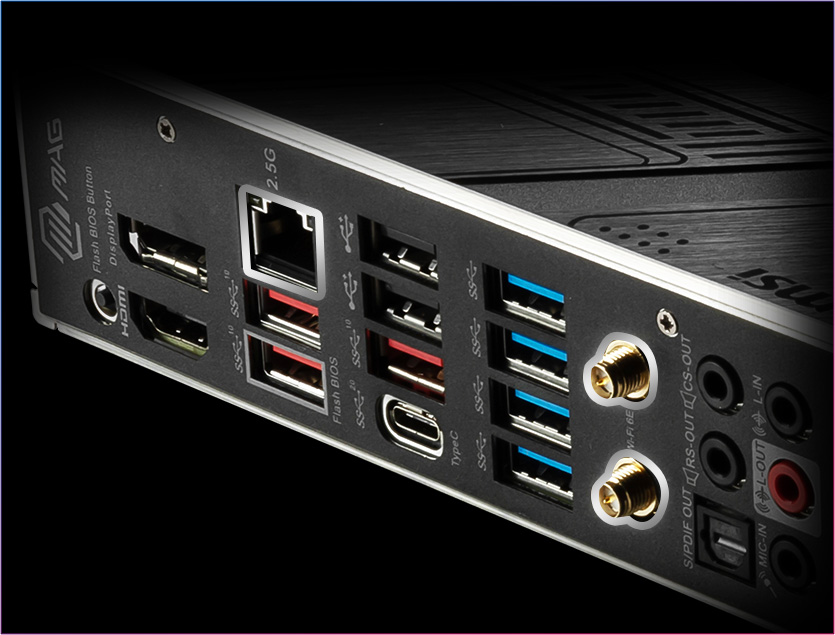

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.2
- 2.5G LAN

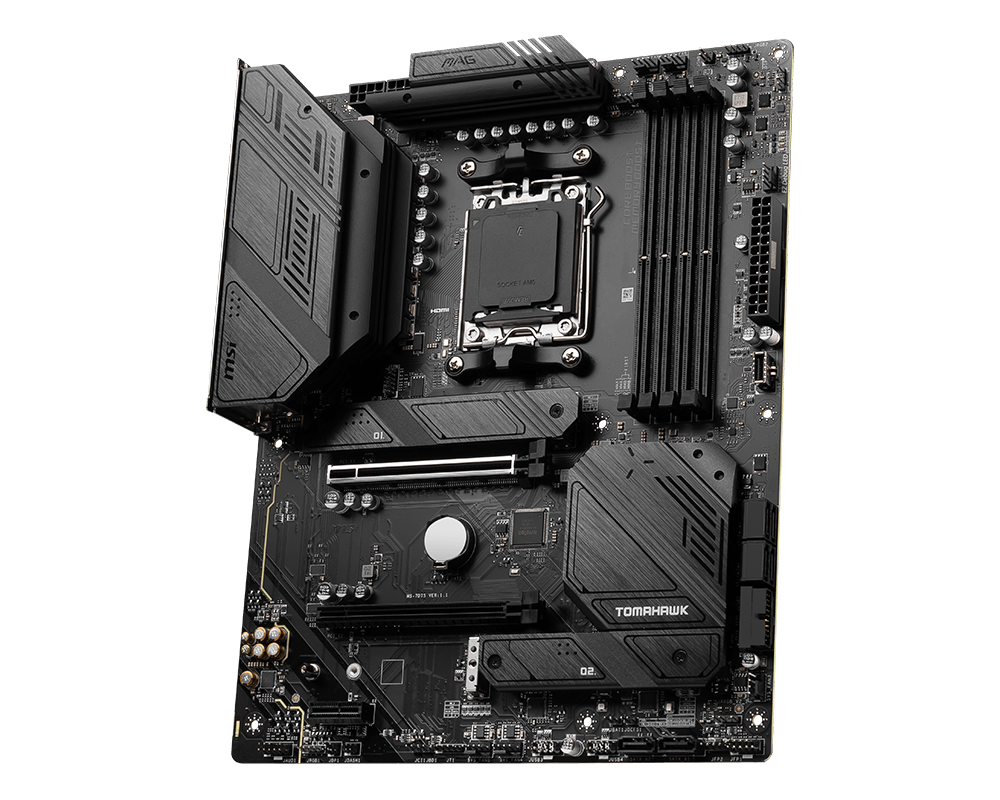

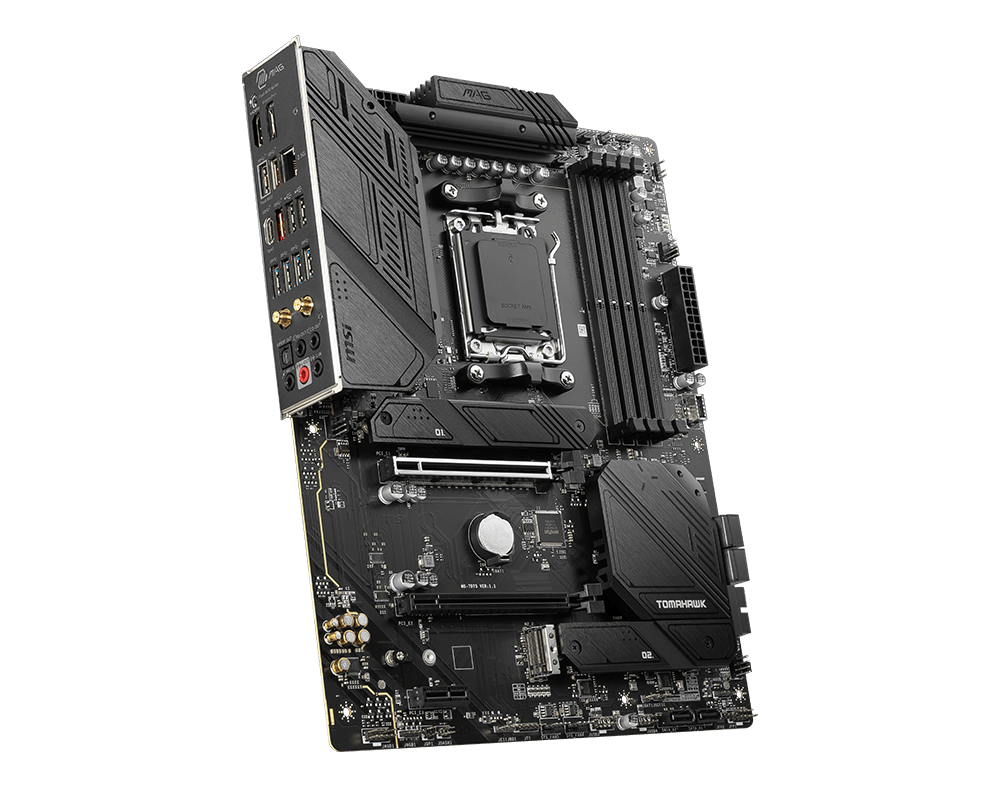

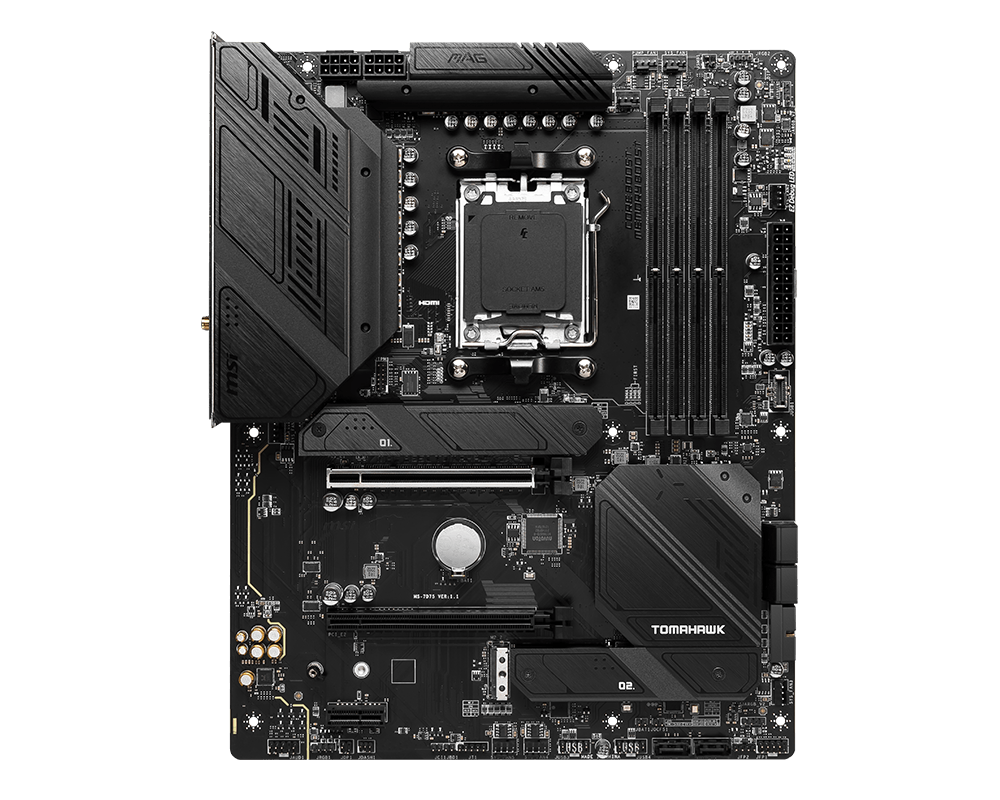

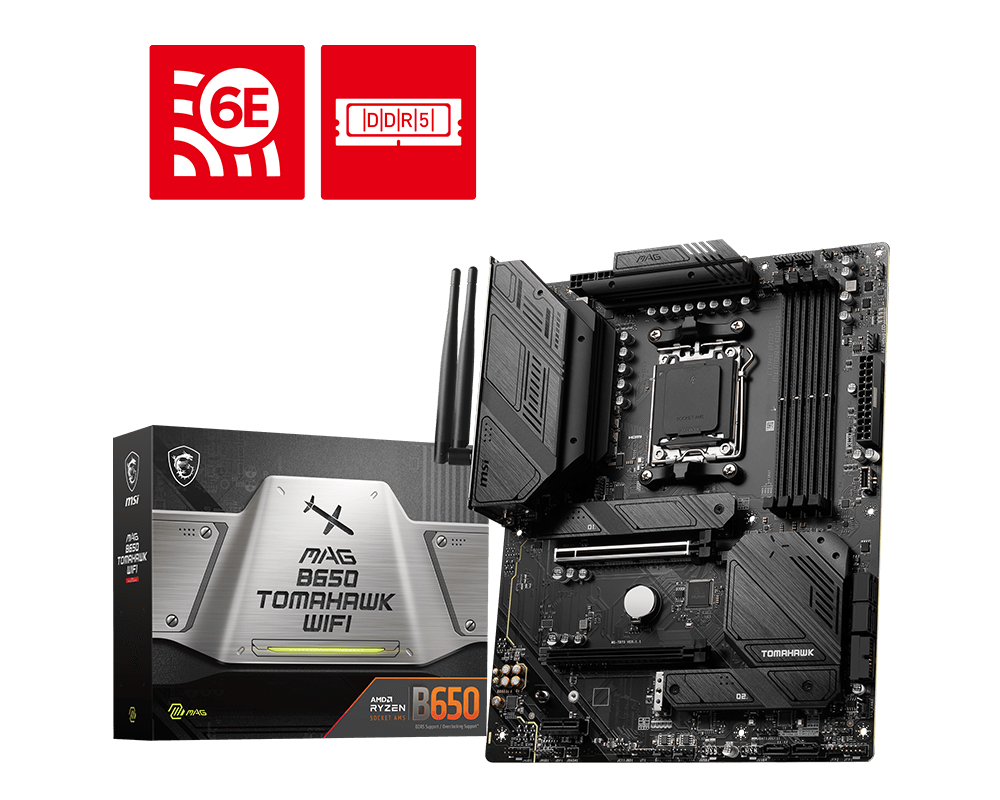

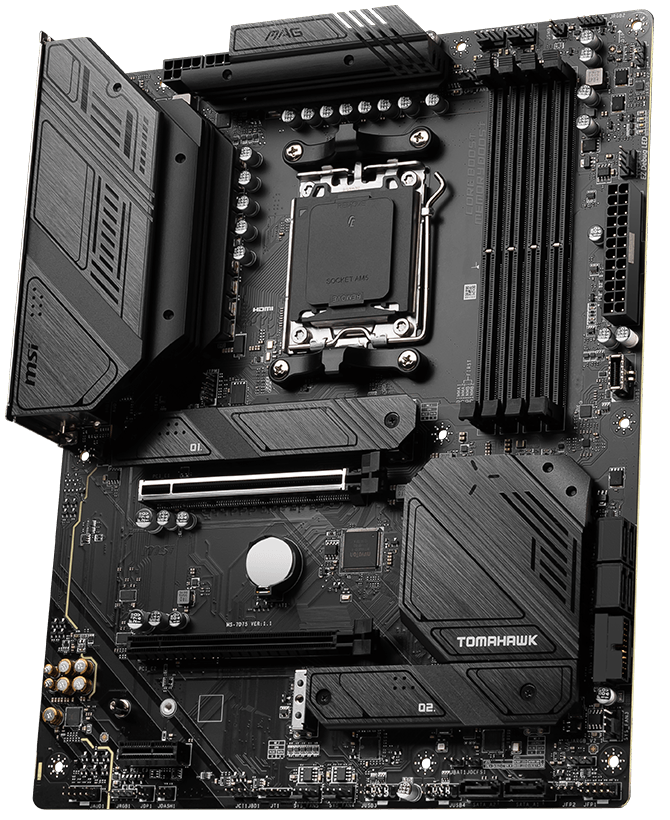

MAG B650 TOMAHAWK WIFI
- 支援AMD Ryzen™ 8000 / 7000 桌上型处理器。
- 支援DDR5 记忆体，高达7600+(OC) MHz
- 优质散热解决方案: 采用直触导热管的加大散热片、M.2 Shield Frozr，提供高性能系统和持久不间断游戏体验。
- 2.5G LAN 和Intel Wi-Fi 6E 解决方案: 针对专业工作者与娱乐创作者需求，升级网路解决方案，提供更安全、稳定、快速的连线体验。
- Lightning M.2: 在PCIe Gen 4 下运行，提供NVMe SSD 最高性能
- Lightning USB 20G: 内建USB 3.2 Gen 2x2 port，提供20Gbps 极速传输，比USB 3.2 Gen 1 快4 倍
- AUDIO BOOST 5: 让您的耳朵沉浸在录音室等级的音效品质，提供最身临其境的游戏体验。
