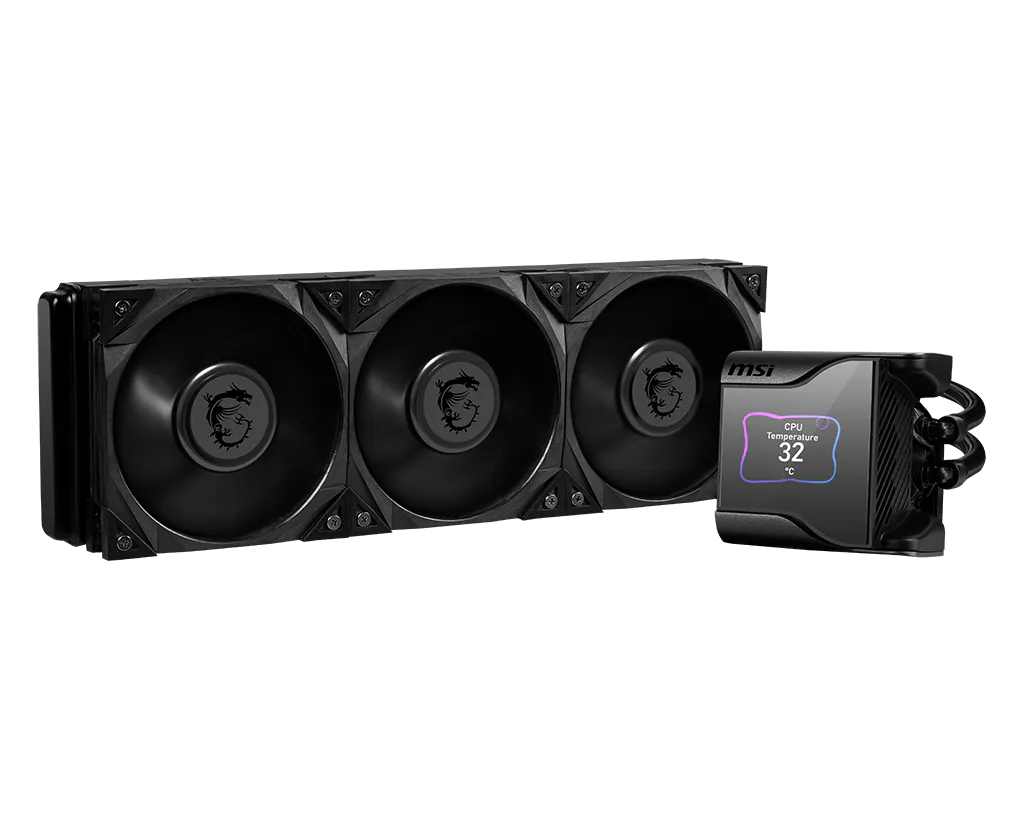

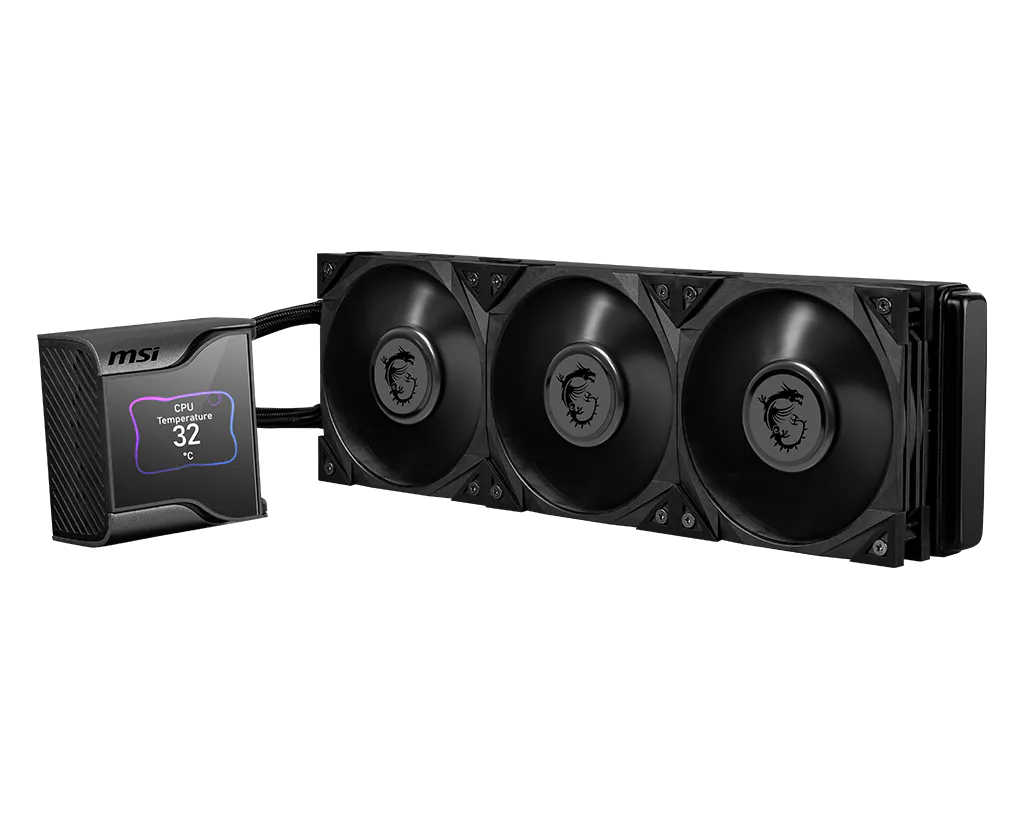

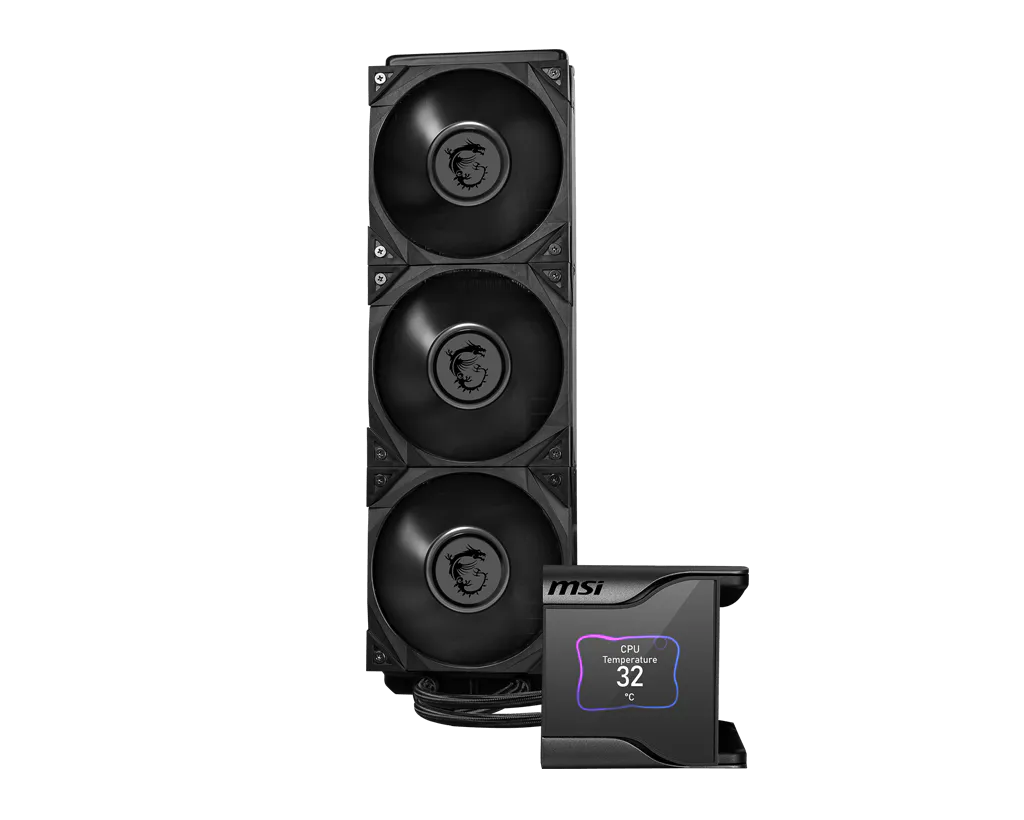

MEG CORELIQUID S 系列可提供静音冷却。 搭载微星创新的MEG SILENT GALE P12静音电竞风扇，支持0转风扇模式。 2.4 英寸 IPS 显示屏还可以帮助您查看大量硬件信息或可自定义的图形和视频。 静在咫尺。
SILENT COOLING
MSI 的 MEG SILENT GALE P12风扇 提供了足够的 气流进入散热器进行冷却，同时 保持低噪音水平。
MEG SILENT GALE P12
MEG SILENT GALE P12 是 MSI 的创新静音 风扇，旨在产生安静的气流。
Concentrated Cooling Performance
一个 60mm 风扇放置在冷头内 帮助 M.2 SSD、CPU VRM ， 和周围的组件散热。
FAN 0 RPM
The MEG SILENT GALE P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
2.4” CUSTOMIZABLE IPS DISPLAY
The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
- Hardware Monitor
- Video / Image
- System Clock
- Live Weather
TOTAL CONTROL IN YOUR HANDS
Everything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.
LGA 1700 Compatible
The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
SPEC
| Fan info | |
|---|---|
| Number of Fans | 3 |
| Fan Dimensions | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
| Fan Speed | 0 ~ 2000 RPM |
| Fan Lighting | NA |
| Fan Air Flow | 56.2 CFM |
| Fan Noise Level | 22.7 dBA |
| Fan Air Pressure | 2.21 mm-H2O |
| Fan Bearing | Hydro-Dynamic Bearing (HDB) |
| Fan Life Expectancy | 50,000 hours, 40oC |
| Fan Rated Current | 0.4 A (Max) |
| Fan Power Consumption | 4.8 W (Max) |
| PWM Mode | Yes |
| Cable Length (PWM cable) | 350mm; 13.78 inches |
| ARGB Cable Connector | NA |
| Radiator Info | |
|---|---|
| Radiator Material | Aluminum |
| Radiator Dimensions (W x D x H) | 394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches |
| Cold Plate Material | Copper |
| Water Cooling Pipe Material | Black Rubber + Mesh |
| Water Cooling Pipe Length | 400mm / 15.75 inches |
| Pump/Block Info | |
|---|---|
| Block Dimensions (W x D x H) | 95 x 95 x 54 mm |
| Panel Size | 2.4” |
| Panel Type | IPS |
| Panel Resolution | 320 x 240 |
| Panel Color bit | 16 bits |
| Panel Brightness | 500 nits |
| Pump Life Expectancy | 50,000 hours |
| Pump Noise Level | 21.2 dBA |
| Pump Load Current | 0.33 A |
| Pump Power Consumption | 4 W |
| Pump Speed | PWM controlled; 100% duty cycle w/ 2800 +/-300 RPM |
| SATA Power Cable | 650mm x 1 |
| USB 2.0 Cable | 750mm x 1 |
| Radiator Fan Cable | 400mm x 1 |
| Pump / CPU Fan Cable | 400mm x 1 |
| Socket Info | |
|---|---|
| Intel Socket | LGA 1150/1151/1155/1156/1200/1700 LGA 2011/2011-3/2066 |
| AMD Socket | AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 SocketTR4/sTRX4/SP3 |
