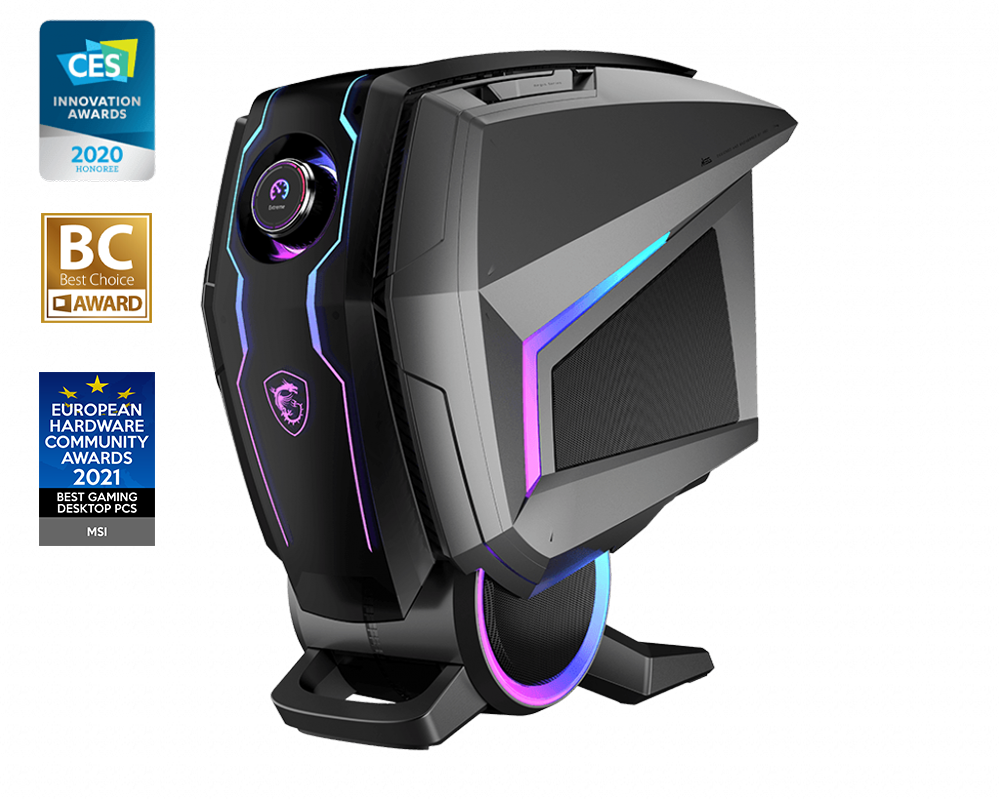

MEG Aegis Ti5 12th

Show the Differences MEG Aegis Ti5 12VTE-025CN MEG Aegis Ti5 12VTJ-035CN MEG Aegis Ti5 12VTE-202CN MEG Aegis Ti5 12VTF-217CN MEG Aegis Ti5 12VTJ-232CN
操作系统 Windows 11 Home Windows 11 Home Windows 11 Home Windows 11 Home Windows 11 Home
CPU Number Intel Core i7-12700K Intel Core i9-12900K Intel Core i7-12700K Intel Core i9-12900K Intel Core i9-12900KF
CPU Clock 3.6GHz 3.2GHz 3.6GHz 3.2GHz 3.2GHz
CPU Cores 12 16,6 12 16,6 16,6
TDP 125W 125W 125W 125W 125W
Cache 25 MB Intel® Smart Cache 30 MB Intel® Smart Cache 25 MB Intel® Smart Cache 30 MB Intel® Smart Cache 30 MB Intel® Smart Cache
Threads 20 24 20 24 24
Max Turbo Frequency up to 5.00 GHz up to 5.20 GHz up to 5.00 GHz up to 5.20 GHz up to 5.20 GHz
CPU Cooler Liquid cooling Liquid cooling Liquid cooling Liquid cooling Liquid cooling
Chipsets Z690 Z690 Z690 Z690 Z690
显卡 8G, HDMIx1, Display Portx3, NVIDIA, GeForce RTX 3070 Ti 24G, HDMIx1, Display Portx3, NVIDIA, GeForce RTX 3090 10G, HDMIx1, Display Portx3, NVIDIA, GeForce RTX 3080 12G, HDMIx1, Display Portx3, NVIDIA, GeForce RTX 3080 Ti 24G, HDMIx1, Display Portx3, NVIDIA, GeForce RTX 3090
内存 Memory Size 64GB(32GB*2)
Memory Type DDR5 SDRAM
Module Type U-DIMM
Memory Slot(Total) 4
Memory Slot(Free) 2
Max Capacity Max 128GB 		Memory Size 128GB(32GB*4)
Memory Type DDR5 SDRAM
Module Type U-DIMM
Memory Slot(Total) 4
Memory Slot(Free) 0
Max Capacity Max 128GB 		Memory Size 64GB(32GB*2)
Memory Type DDR5 SDRAM
Module Type U-DIMM
Memory Slot(Total) 4
Memory Slot(Free) 2
Max Capacity Max 128GB 		Memory Size 64GB(32GB*2)
Memory Type DDR5 SDRAM
Module Type U-DIMM
Memory Slot(Total) 4
Memory Slot(Free) 2
Max Capacity Max 128GB 		Memory Size 128GB(32GB*4)
Memory Type DDR5 SDRAM
Module Type U-DIMM
Memory Slot(Total) 4
Memory Slot(Free) 0
Max Capacity Max 128GB
SSD Interface PCIe GEN4x4 NVMe PCIe GEN4x4 NVMe PCIe GEN4x4 NVMe PCIe GEN4x4 NVMe PCIe GEN4x4 NVMe
存储 SSD Form Factor M.2-2280 M-KEY(2TB*1)
SSD Size 2TB
HDD1 Interface SATA GEN3
HDD1 Form Factor 3.5 inch
HDD1 Size 3TB*1(7200RPM)
M.2 slots(Total) 3
M.2 slots(Free) 2
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free) 0
mSATA slots(Free) 0 		SSD Form Factor M.2-2280 M-KEY(2TB*1)
SSD Size 2TB
HDD1 Interface SATA GEN3
HDD1 Form Factor 3.5 inch
HDD1 Size 3TB*1(7200RPM)
M.2 slots(Total) 3
M.2 slots(Free) 2
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free) 0
mSATA slots(Free) 0 		SSD Form Factor M.2-2280 M-KEY(2TB*1)
SSD Size 2TB
HDD1 Interface SATA GEN3
HDD1 Form Factor 3.5 inch
HDD1 Size 3TB*1(7200RPM)
M.2 slots(Total) 3
M.2 slots(Free) 2
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free) 0
mSATA slots(Free) 0 		SSD Form Factor M.2-2280 M-KEY(2TB*1)
SSD Size 2TB
HDD1 Interface SATA GEN3
HDD1 Form Factor 3.5 inch
HDD1 Size 3TB*1(7200RPM)
M.2 slots(Total) 3
M.2 slots(Free) 2
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free) 0
mSATA slots(Free) 0 		SSD Form Factor M.2-2280 M-KEY(2TB*1)
SSD Size 2TB
HDD1 Interface SATA GEN3
HDD1 Form Factor 3.5 inch
HDD1 Size 3TB*1(7200RPM)
M.2 slots(Total) 3
M.2 slots(Free) 2
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free) 0
mSATA slots(Free) 0
音频 Realtek ALC1220P, 7.1 Channel HD Audio Realtek ALC1220P, 7.1 Channel HD Audio Realtek ALC1220P, 7.1 Channel HD Audio Realtek ALC1220P, 7.1 Channel HD Audio Realtek ALC1220P, 7.1 Channel HD Audio
LAN 1x Intel I225-V+1x Intel I219-V 1x Intel I225-V+1x Intel I219-V 1x Intel I225-V+1x Intel I219-V 1x Intel I225-V+1x Intel I219-V 1x Intel I225-V+1x Intel I219-V
WLAN Version Wi-Fi 6E+BT Wi-Fi 6E+BT Wi-Fi 6E+BT Wi-Fi 6E+BT Wi-Fi 6E+BT
BT Version 5.2 5.2 5.2 5.2 5.2
WLAN INTEL/AX211.NGWG.NV INTEL/AX211.NGWG.NV INTEL/AX211.NGWG.NV INTEL/AX211.NGWG.NV INTEL/AX211.NGWG.NV
I/O 接口 (前) 2 x USB 3.2 Gen 1 Type A
1 x USB 3.2 Gen 2 Type C
 2 x USB 3.2 Gen 1 Type A
1 x USB 3.2 Gen 2 Type C
 2 x USB 3.2 Gen 1 Type A
1 x USB 3.2 Gen 2 Type C
 2 x USB 3.2 Gen 1 Type A
1 x USB 3.2 Gen 2 Type C
 2 x USB 3.2 Gen 1 Type A
1 x USB 3.2 Gen 2 Type C
Audio Mic-in 1 1 1 1 1
Audio Headphone-out 1 1 1 1 1
I/O 接口 (后) 1 x USB 3.2 Gen 2x2 Type C (R)
3 x USB 3.2 Gen 2 Type A (R)
 1 x USB 3.2 Gen 2x2 Type C (R)
3 x USB 3.2 Gen 2 Type A (R)
 1 x USB 3.2 Gen 2x2 Type C (R)
3 x USB 3.2 Gen 2 Type A (R)
 1 x USB 3.2 Gen 2x2 Type C (R)
3 x USB 3.2 Gen 2 Type A (R)
 1 x USB 3.2 Gen 2x2 Type C (R)
3 x USB 3.2 Gen 2 Type A (R)
USB 2.0 Type A (R) 2 2 2 2 2
RJ45 2 2 2 2 2
HDMI out 1x (v2.0b) 1x (v2.0b) 1x (v2.0b) 1x (v2.0b) 1x (v2.0b)
PS/2 1 1 1 1 1
Audio jack 5 5 5 5 5
S/PDIF 1 1 1 1 1
电源 850W, 80PLUS Gold, SFX, POWER SUPPLY 850W, 80PLUS Gold, SFX, POWER SUPPLY 850W, 80PLUS Gold, SFX, POWER SUPPLY 850W, 80PLUS Gold, SFX, POWER SUPPLY 850W, 80PLUS Gold, SFX, POWER SUPPLY
Product Dimension (WxDxH) (mm) 551.3 x 239.9 x 511.6 551.3 x 239.9 x 511.6 551.3 x 239.9 x 511.6 551.3 x 239.9 x 511.6 551.3 x 239.9 x 511.6
Product Dimension (WxDxH) (inch) 21.7 x 9.44 x 20.14 21.7 x 9.44 x 20.14 21.7 x 9.44 x 20.14 21.7 x 9.44 x 20.14 21.7 x 9.44 x 20.14
Inside Carton Dimension (WxDxH) (mm) 686 x 357 x 673 686 x 357 x 673 686 x 357 x 673 686 x 357 x 673 686 x 357 x 673
Inside Carton Dimension (WxDxH) (inch) 27.01 x 14.06 x 26.5 27.01 x 14.06 x 26.5 27.01 x 14.06 x 26.5 27.01 x 14.06 x 26.5 27.01 x 14.06 x 26.5
Weight (Net kg) 15.15 15.15 15.15 15.15 15.15
Net Weight (lbs) 33.4 33.4 33.4 33.4 33.4
Weight (Gross kg) 21.3 21.3 21.3 21.3 21.3
Gross Weight (lbs) 46.96 46.96 46.96 46.96 46.96
Liter 67 67 67 67 67
Pint 141.59 141.59 141.59 141.59 141.59
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C 0° C ~ 35° C ; -20° C ~ 60° C 0° C ~ 35° C ; -20° C ~ 60° C 0° C ~ 35° C ; -20° C ~ 60° C 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90% 0% ~ 85%;0% ~ 90% 0% ~ 85%;0% ~ 90% 0% ~ 85%;0% ~ 90% 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B)CB/CEUL(CUL)BSMIVCCI FCC(Class B)CB/CEUL(CUL)BSMIVCCI FCC(Class B)CB/CEUL(CUL)BSMIVCCI FCC(Class B)CB/CEUL(CUL)BSMIVCCI FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
Power Cord 1 1 1 1 1
Warranty Card 2 2 2 2 2
Quick Guide 1 1 1 1 1
EAN 4719072913397 4719072921293 4719072950033 4719072967031 4719072974190
Part No 9S6-B93911-025 9S6-B93911-035 9S6-B93911-202 9S6-B93911-217 9S6-B93911-232
MKT Name MEG Aegis Ti5 12VTE MEG Aegis Ti5 12VTJ MEG Aegis Ti5 12VTE MEG Aegis Ti5 12VTF MEG Aegis Ti5 12VTJ
MKT Spec MEG Aegis Ti5 12VTE-025CN MEG Aegis Ti5 12VTJ-035CN MEG Aegis Ti5 12VTE-202CN MEG Aegis Ti5 12VTF-217CN MEG Aegis Ti5 12VTJ-232CN
Color ID1/Black-Black-Black ID1/Black-Black-Black ID1/Black-Black-Black ID1/Black-Black-Black ID1/Black-Black-Black
Model B939 B939 B939 B939 B939
