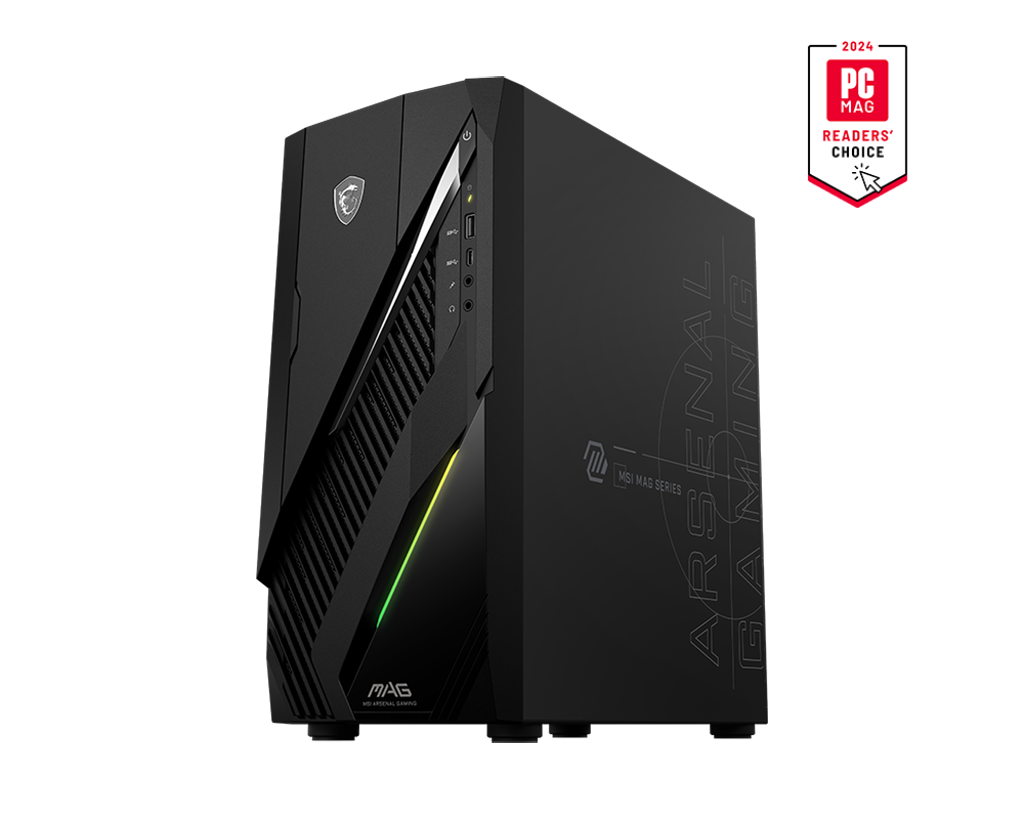

MAG Infinite E1
| Show the Differences |
MAG Infinite E1 14
|
MAG Infinite E1 12
|
| CPU |
Intel® Core™ i7 processor 14700 (33M Cache, 2.10 GHz up to 5.40 GHz) Intel® Core™ i7 processor 14700F (33M Cache, 2.10 GHz up to 5.40 GHz) Intel® Core™ i5 processor 14400 (20M Cache, 2.50 GHz up to 4.70 GHz) Intel® Core™ i5 processor 14400F (20M Cache, 2.50 GHz up to 4.70 GHz) |
Intel® Core™ i5-12400F (18M Cache, 2.50 GHz up to 4.40 GHz) |
|---|---|---|
| OS |
Windows 11 Home Windows 11 Pro |
Windows 11 Home Windows 11 Pro |
| Chipset | Intel® H610 | Intel® H610 |
| Audio | Realtek ALC897 7.1 Channel HD Audio | Realtek ALC897 7.1 Channel HD Audio |
| I/O Ports (Front) |
1x USB 3.2 Gen 1 (5G) Type C 1x USB 3.2 Gen 1 (5G) Type A 1x Mic-in 1x Headphone-out |
1x USB 3.2 Gen 1 (5G) Type C 1x USB 3.2 Gen 1 (5G) Type A 1x Mic-in 1x Headphone-out |
| I/O Ports (Rear) |
2x USB 3.2 Gen 1 (5G) Type A 1x RJ45 3x Audio Jack 4x USB 2.0 Type A 1x (v1.4) DP out 1x PS/2 |
2x USB 3.2 Gen 1 (5G) Type A 1x RJ45 3x Audio Jack 4x USB 2.0 Type A 1x (v1.4) DP out 1x PS/2 |
| Lock type | Kensington Lock | Kensington Lock |
| Cooler | Air | Air |
| Graphics |
MSI GeForce RTX 3050 VENTUS 2X 8G GDDR6 (DP x 3 (v1.4a) / HDMI 2.1 x 1 ) MSI GeForce RTX 4070 VENTUS 2X 12G GDDR6X (DP x 3 (v1.4a) / HDMI 2.1a x 1 ) MSI GeForce RTX 4060 Ti VENTUS 2X BLACK 8G GDDR6 (DP x 3 (v1.4a) / HDMI 2.1a x 1 ) MSI GeForce RTX 4060 VENTUS 2X BLACK 8G GDDR6 (DP x 3 (v1.4a) / HDMI 2.1a x 1 ) MSI GeForce RTX 5070 12G VENTUS 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5070 12G SHADOW 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 8G SHADOW 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 16G SHADOW 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 8G SHADOW 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 8G VENTUS 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 16G VENTUS 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 8G VENTUS 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) |
MSI GeForce RTX 3050 VENTUS 2X 8G GDDR6 (DP x 3 (v1.4a) / HDMI 2.1 x 1 ) MSI GeForce RTX 4070 VENTUS 2X 12G GDDR6X (DP x 3 (v1.4a) / HDMI 2.1a x 1 ) MSI GeForce RTX 4060 Ti VENTUS 2X BLACK 8G GDDR6 (DP x 3 (v1.4a) / HDMI 2.1a x 1 ) MSI GeForce RTX 4060 VENTUS 2X BLACK 8G GDDR6 (DP x 3 (v1.4a) / HDMI 2.1a x 1 ) MSI GeForce RTX 5070 12G VENTUS 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5070 12G SHADOW 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 8G SHADOW 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 16G SHADOW 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 8G SHADOW 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 8G VENTUS 2X GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 16G VENTUS 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) MSI GeForce RTX 5060 Ti 8G VENTUS 2X PLUS GDDR7 (DP x 3 (v2.1b) / HDMI 2.1b x 1 ) |
| Memory |
DDR5 5600 MHz
Max 64GB
U-DIMM
2 Slots *5600MHz (with Core i7 processor above) *4800MHz (with Core i5 processor) *The system speed follows the Intel POR (Plan of Record) design. Actual specifications will vary depending on the model. |
DDR5 5600 MHz
Max 64GB
U-DIMM
2 Slots *5600MHz (with Core i7 processor above) *4800MHz (with Core i5 processor) *The system speed follows the Intel POR (Plan of Record) design. Actual specifications will vary depending on the model. |
| Storage |
1x M.2 SSD combo (NVMe PCIe Gen3 x4 / SATA) 1x 2.5" Drive Bays 1x 3.5" Drive Bays |
1x M.2 SSD combo (NVMe PCIe Gen3 x4 / SATA) 1x 2.5" Drive Bays 1x 3.5" Drive Bays |
| Communication |
Intel I219-V
Intel Wireless AX210 + Bluetooth v5.2 Azurewave AW-XB560NF+Bluetooth v5.3 |
Intel I219-V
Intel Wireless AX210 + Bluetooth v5.2 Azurewave AW-XB560NF+Bluetooth v5.3 |
| Power Supply | 500W 80 Plus Bronze Certified PSU | 500W 80 Plus Bronze Certified PSU |
| Extensions |
4x SATA connectors |
4x SATA connectors |
| Product Dimension (WxDxH) |
168 x 323 x 369 (mm) |
168 x 323 x 369 (mm) |
| Size |
18 Liter |
18 Liter |
| W/O KB Weight (Net kg) | 7.59 | 7.59 |
| W/O KB Weight (Net lbs) | 16.73 | 16.73 |
| W/O KB Weight (Gross kg) | 9.03 | 9.03 |
| W/O KB Weight (Gross lbs) | 19.91 | 19.91 |
| W/KB Weight (Net kg) | 8.14 | 8.14 |
| W/KB Weight (Net lbs) | 17.95 | 17.95 |
| W/KB Weight (Gross kg) | 10.31 | 10.31 |
| W/KB Weight (Gross lbs) | 22.73 | 22.73 |
| Noise Level |
28 Idle mode 38 Full loading mode |
28 Idle mode 38 Full loading mode |
| Mechanical and Environmental | 0° C ~ 35° C ; -20° C ~ 60° C 0% ~ 85%;0% ~ 90% | 0° C ~ 35° C ; -20° C ~ 60° C 0% ~ 85%;0% ~ 90% |
