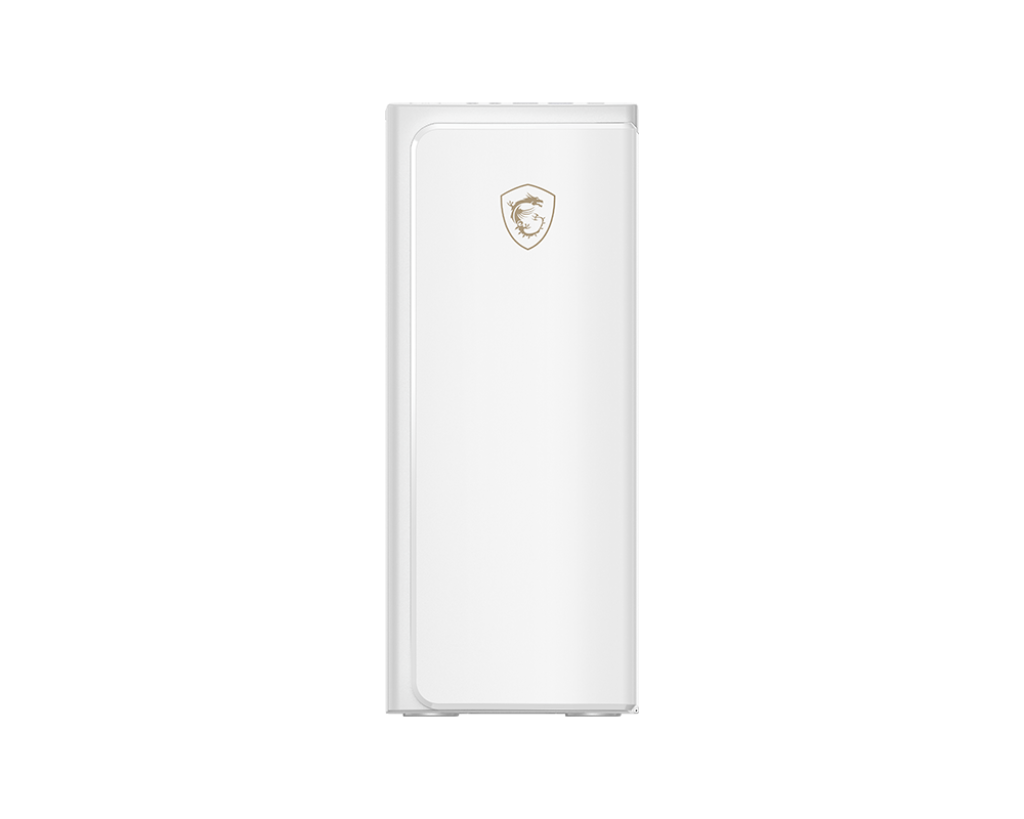

Creator P70

Show the Differences 微星Creator设计师P7013TH-134NNXUDN 微星Creator设计师P7014TH-144NNXUDN 微星Creator设计师P7011TH-114NNXUBN
系统 windows11 家庭中文版 windows11 家庭中文版 windows11 家庭中文版
处理器 英特尔13代酷睿i5-13400处理器 英特尔14代酷睿i5-14400处理器 英特尔11代酷睿i5-11400处理器
主板 微星 PRO H610M-S WIFI DDR4 微星 PRO H610M-S WIFI DDR4 微星 H510M-A PRO
CPU 风扇 四铜管塔式散热器 四铜管塔式散热器 四铜管塔式散热器
显卡 集显 集显 集显
系统内存 英睿达(Crucial)D4 16G 3200 英睿达(Crucial)D4 16G 3200 英睿达(Crucial)D4 16G 3200
有线网络 1x RJ45 (Gigabit LAN) Realtek RTL8111H 1x RJ45 (Gigabit LAN) Realtek RTL8111H 1x Intel® I219V Gigabit LAN controller
无线网络 Intel® Wi-Fi 6E module (AX211) Intel® Wi-Fi 6E module (AX211)
音频 Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
視訊輸出 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
I/O(前置) 1 x 重启键
1 x 音频输出
1 x 麦克风
1x USB 3.0
1x USB 2.0
1x Type-A
1 x 重启键
1 x 音频输出
1 x 麦克风
1x USB 3.0
1x USB 2.0
1x Type-A
1 x 重启键
1 x 音频输出
1 x 麦克风
1x USB 3.0
1x USB 2.0
1x Type-A
I/O(後置) HDMI™ x 1 ,
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
LAN port
USB 2.0
USB 2.0
HDMI™ x 1 ,
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
LAN port
USB 2.0
USB 2.0
HDMI™ x 1 ,
VGAx 1
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
存储 1TB NVMe SSD 1TB NVMe SSD 512GB SSD
电源适配器 VTG  SFX电源M3300  (230W) VTG  SFX电源M3300  (230W) VTG  SFX电源M3300  (230W)
尺寸 310.6mm(L)*145mm(W)*351.5mm(H)mm 310.6mm(L)*145mm(W)*351.5mm(H)mm 310.6mm(L)*145mm(W)*351.5mm(H)mm
重量 0 0 0
保固 3年上门服务 3年上门服务 3年上门服务
