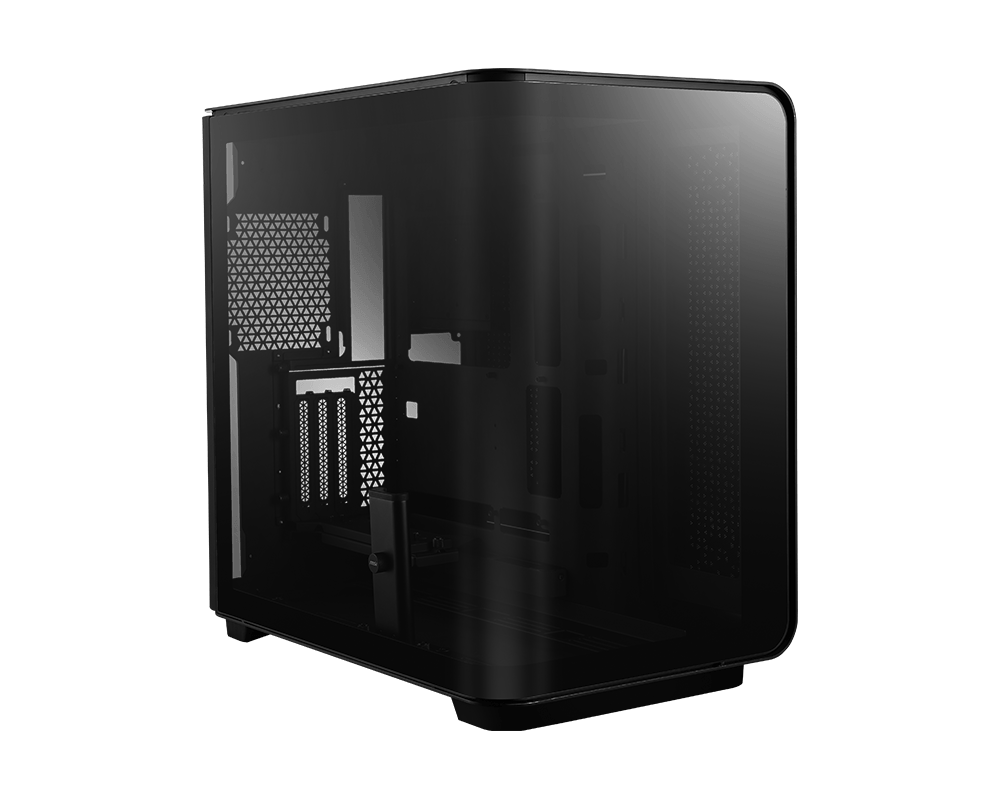

MEG MAESTRO 700L PZ
E-ATX (up to 305 x 280 mm)
ATX (Back-connect supported)
M-ATX / ITX
ATX (Back-connect supported)
M-ATX / ITX
Mid-Tower
MEG MAESTRO 700L PZ
2 x 2.5”/3.5" combo bay
470 x 300 x 474 mm / 18.5 x 11.81 x 18.66 inches
1 x Power Button
1 x Reset Button
2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x Reset Button
2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
7
Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm / 3 x 140 mm
230 mm / 9.06 inches
430 mm / 16.93 inches
170 mm / 6.69 inches
Top: 120 / 240 / 360 mm (thickness: 80 mm)
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm (thickness: 80 mm)
Bottom: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm (thickness: 80 mm)
Bottom: 120 / 240 / 360 mm
ATX

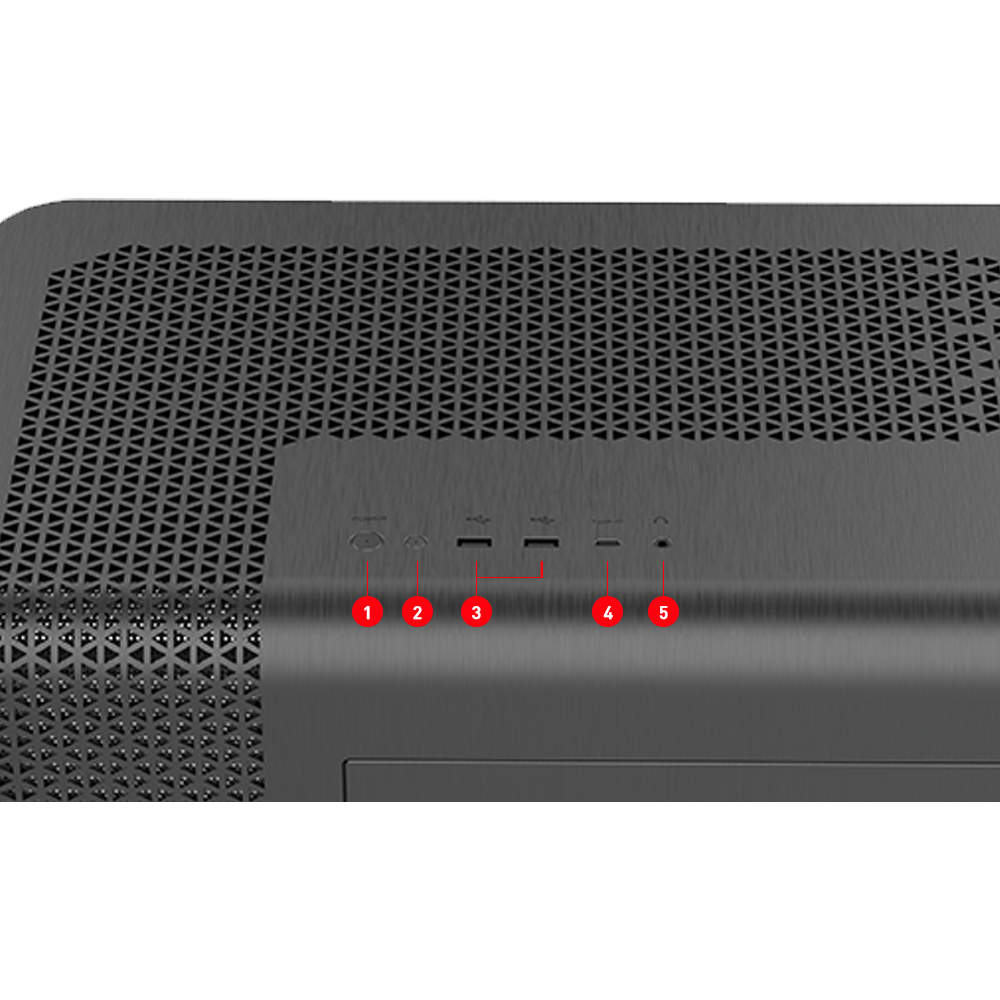

Connection
- Power Button
- Reset Button
- 2x USB 3.2 Gen 1 Type-A
- 1x USB 3.2 Gen 2x2 Type-C
- Mic In/ Audio Out
所有图片和描述仅用于说明目的。产品的视觉表现可能不完全准确。产品规格、功能和外观可能因型号和国家/地区而异。所有规格如有变更，恕不另行通知。尽管我们尽力在发布时提供最准确和最全面的信息，但少数项目可能包含版面设计或摄影错误。部分产品和配置可能不适用于所有市场，或上市时间有所不同。我们建议您与您当地的供应商核实确切的报价和详细规格。
