MAG VAMPIRIC 300R 玩派3

MAG VAMPIRIC 300R(玩派3)

主板规格支持
Case Form Factor
Product Name
Drive Bays
Dimension
I/O Ports
Case Expansion Slots
Maximum PSU Length
Maximum GPU Length
Maximum CPU Cooler Length
Radiator Layout
Lightning
Power Supply

主板规格支持

E-ATX / ATX / M-ATX / ITX

Case Form Factor

Mid-Tower

Product Name

MAG VAMPIRIC 300R

Drive Bays

2.5" SSD x 2 / 3.5" HDD x 2

Dimension

471(W) x 231(D) x 497(H)mm / 18.5(W) x 9.1(D) x 19.6(H)inches

I/O Ports

USB 3.2 Gen 1 x 2
USB 3.2 Gen 2 Type-C x 1
Audio x1
Mic x1

Case Expansion Slots

Maximum PSU Length

Standard ATX, max up to 220mm (without 3.5" HDD tray installed)

Maximum GPU Length

380mm / 15inches

Maximum CPU Cooler Length

175mm / 6.9inches

Radiator Layout

Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120 mm

Lightning

ARGB

Power Supply

Standard ATX, max up to 270mm (without 3.5'' HDD case installed)

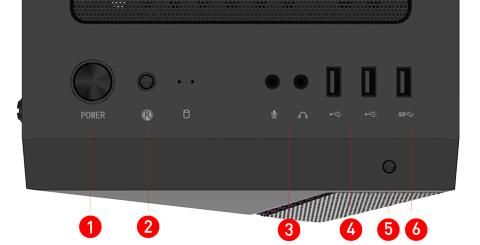

Connection

Power Button
Reset Button
Mic in / Audio out
USB 2.0x 2
Insta-Light Loop Button
USB 3.2 Gen 1 Type-A

所有图片和描述仅用于说明目的。产品的视觉表现可能不完全准确。产品规格、功能和外观可能因型号和国家/地区而异。所有规格如有变更，恕不另行通知。尽管我们尽力在发布时提供最准确和最全面的信息，但少数项目可能包含版面设计或摄影错误。部分产品和配置可能不适用于所有市场，或上市时间有所不同。我们建议您与您当地的供应商核实确切的报价和详细规格。
