Enchant Your Setup – MAG VAMPIRIC 300R MIDNIGHT GREEN

MAG VAMPIRIC 300R MIDNIGHT GREEN 玩派3 暗夜绿

主板规格支持
Case Form Factor
Product Name
Drive Bays
Dimension
I/O Ports
Case Expansion Slots
Maximum PSU Length
Fan Support
Maximum GPU Length
Maximum CPU Cooler Length
Radiator Layout

主板规格支持

E-ATX / ATX / M-ATX / ITX

Case Form Factor

Mid-Tower

Product Name

MAG VAMPIRIC 300R MIDNIGHT GREEN

Drive Bays

2.5” SSD x 2 / 3.5” HDD x 2

Dimension

471 x 231 x 497mm / 18.5 x 9.1 x 19.6inches

I/O Ports

USB 3.2 x 2 USB 3.2 Gen 2x2 Type C x 1 Audio x 1Mic x 1

Case Expansion Slots

Maximum PSU Length

Standard ATX, max up to 220mm (without 3.5" HDD tray installed)

Fan Support

Front: 120mm x 3 or 140mm x 3
Top: 120mm x 3 or 140mm x 2
Rear: 120mm x 1

Maximum GPU Length

380mm / 15inches

Maximum CPU Cooler Length

175mm / 6.9inches

Radiator Layout

Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120 mm

420 x 220 x 460mm / 16.5 x 8.7 x 18.1inches

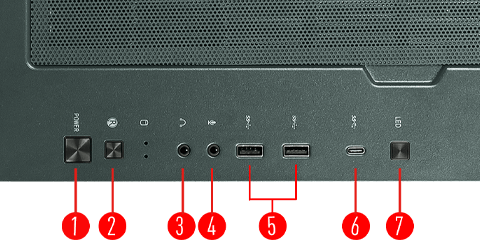

Connection

Power Button
Reset Button
Audio
Mic
USB 3.2 x 2
USB 3.2 Type C

LED Switch Button
